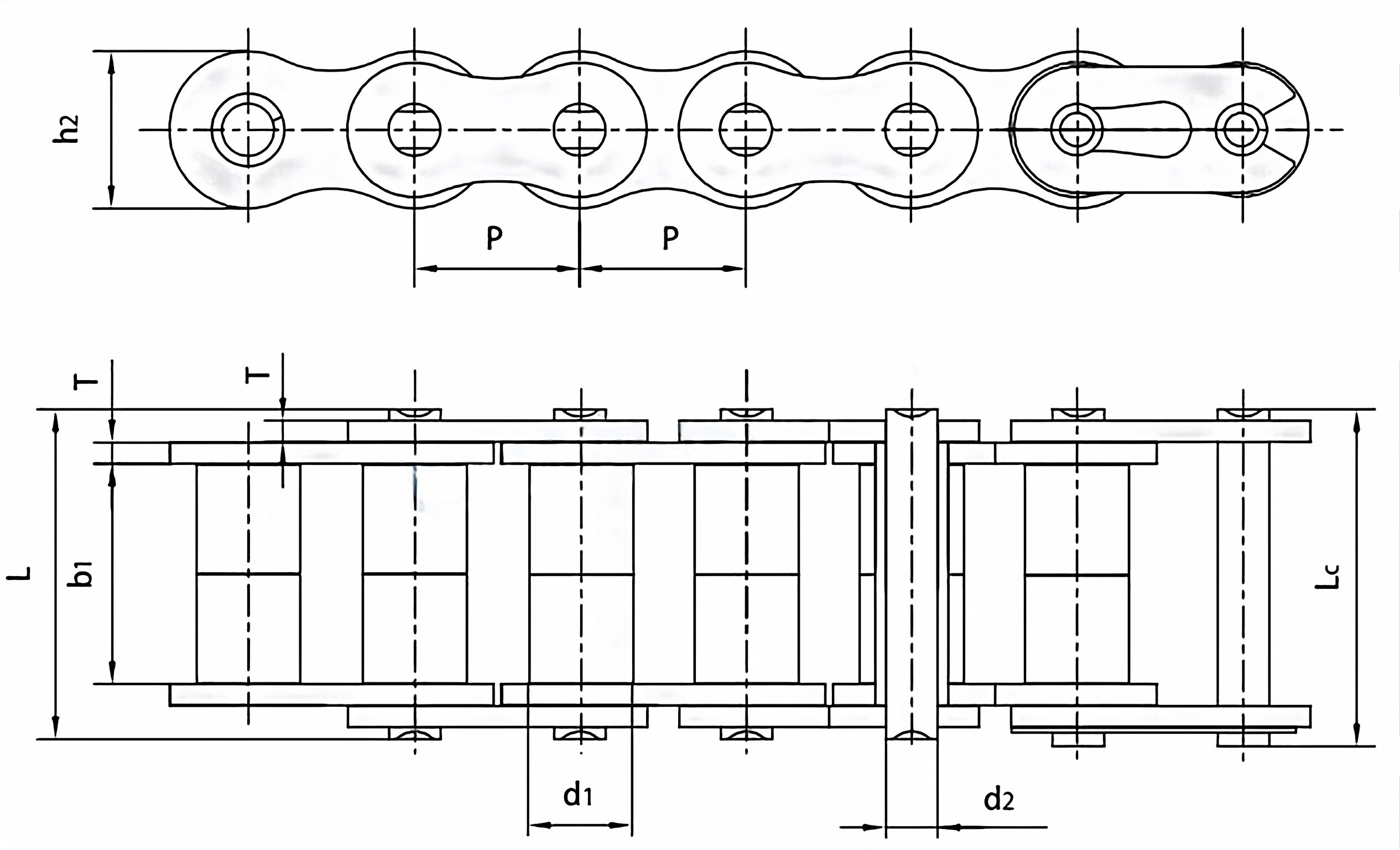

Coupling Chains 06BF/08AF/08BF/10AF/10BF/12AF/16AF

Coupling Chains 06BF/08AF/08BF/10AF/10BF/12AF/16AF

Coupling chains are mechanical parts of metal roller chains. They have sprockets identical at both ends and cover alignment errors. They are used in a variety of applications and are commonly found in low-speed, high-torque applications. Chain couplings are considered an economical way to transmit power between two shafts. They are designed to accommodate up to 2 degrees of misalignment between the shafts. They are also suitable for applications where grease and oils are present.

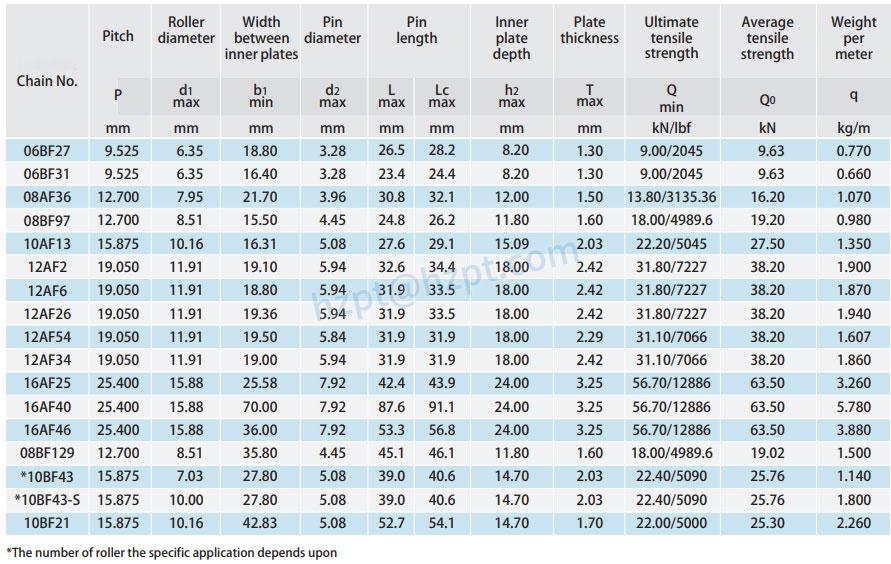

Coupling Chains Size Chart

What is a Coupling Chain?

Coupling chains are an important part of rotating equipment. They help move large loads, which is very useful for mining, agricultural and metal fabrication applications. While the most common type of chain is a roller chain, coupling chains can extend the life of roller chains by increasing their tensile strength and load-bearing capacity.Chain couplings consist of a pair of identical sprockets that are connected by a double roller chain. Plastic chains can also be used, but they do not require lubrication and do not have a cover. These drive chains are usually installed at the end of the motor or reducer to which they are connected to the machine. A complete coupling consists of two hubs and a coupling chain. Chain couplings can be used in a variety of applications, depending on the conditions under which they must operate. For example, coupling chains can be made of grease-resistant acetal plastic.Because coupling chains are relatively low-maintenance and easy to install or disassemble, they offer an excellent price/performance ratio. Coupling chains are usually available in various sizes. They are usually mounted on opposite shaft extensions. They must meet specific requirements to be effective, and the chain must maintain a minimum clearance between the two sprockets. Coupling chains are also easy to install and remove, and the single connecting pin makes them quick and easy to use.

How to Use the Coupling Chain Correctly?

A coupling chain is a mechanical fastener that connects two parts. It can be used in a variety of applications, including agriculture, mining and metal fabrication. It is also used to extend the life of roller chains. Roller chains are the most common type of chain used today, but coupling chains are stronger and can withstand greater stress. Whether you are using chain for agricultural or industrial applications, it is important to understand how to use it properly.Coupling chains are continuous rings of worn pins and master links on and around the driving and driven sprockets. Since they are always in contact with the chain teeth on both wheels, they prevent coupler misalignment. The coupling chain compensates for two degrees of misalignment, making it ideal for high torque and low speed environments. To maintain proper performance, use links with sufficient side clearance between the sprocket faces.Coupling chains are a simple mechanism to ensure proper operation of all machine components. They are easy to install, replace and remove. They are a simple, straightforward way to keep your machine running smoothly. Coupling chains also prevent inconsistent performance because they distribute torque evenly across the chain. A good coupling chain will ensure that there is no lag time. And because coupling chains are a simple device, they are easy to use and install.

Chains and Sprockets

• Chains and sprockets are mainly used in all applications such as transportation, machinery and other motor applications.
• Chain and sprockets are maintained with grease and oil spray to provide smoother and better operation.
• It makes the wheels run as the motor rotates and is considered as Rotation Per Minute (RPM).

Chains and sprockets are mainly used in the transport industry and machine building industry to rotate wheels by means of motors or engines. These chains and sprockets both help the wheelbase to run fast according to the engine speed. The chain hangs between the motor and the sprocket, the motor turns the sprocket and the chain is connected to the sprocket teeth, which can turn simultaneously with the motor wheel, thus making the vehicle or machine run smoothly. Raydafon is one of the leading manufacturers and suppliers in China. We can offer various high-quality chains and?sprockets for sale.

Related Chains

We specialize in the chains made to customers’ drawings and specification. Our advantage is reliable quality, competitive price, prompt delivery and good service. Standard products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain,?Hollow Pin Chain,?Leaf Chain, Table Top Chain, Side Bow Chain, Lumber Chain, Agriculture Chain, Silent Chain, PIV Chain,?Stainless Steel Chain, Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain, Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachment are available.

Why Choose Raydafon?

1. Raydafon established in 1991, we have 5 subsidiaries in China and also have 6 subsidiaries abroad;2. We covering a production area of 200, 100 square meters, have more than 1, 800 sets of advanced equipment and over 3, 100 highly skilled employees, the annual production capacity has exceeded 20, 000, 000 meters;3. We specialized in producing all kinds of standard chains and special chains, such as A or B series chains, driving chains, conveyor chains, dragging chains, agricultural chains and so on;4. We have obtained ISO9001, ISO14001, ISO16969, AAA and API certificates.The company is specialized in producing all kinds of standard chains and special chains, e. G. A or B series chains, automobile chains, stainless steel chains, combine harvester chains, heavy-duty cranked link transmission chains, stereo garage chains and maintenance-free chains etc. In recent years, it invests the capital and depends on the improvement of technology to accelerate the step of new product development and the step of technology reform. It intends to produce high strength and precision chains in order to meet requirements of the domestic and overseas markets.We look forward to receiving your soon.
