Ditch Machine Chain Trencher for Agricultural Trenching Operations

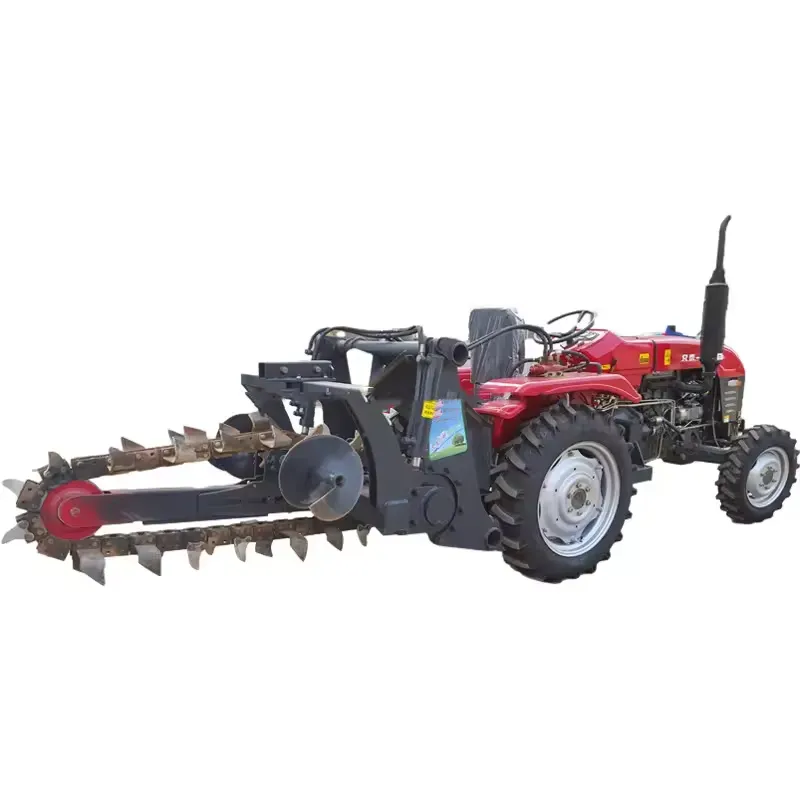

Introducing the Ditch Machine Chain Trencher, a single chain trencher designed for high productivity, particularly in agricultural trenching operations. This piece of equipment is new to the market in 2024 and comes with a one-year warranty. Its core components include a gearbox, and it calls for a matched power of 50-80hp. The trencher is capable of creating trenches of 15-20cm in width and 1.5m in depth. With its three-pointed linkage and a material knife made of 65Mn Spring steel or a carbide blade, this trencher is set to revolutionize farming operations.

Advantages of the Ditch Machine Chain Trencher

Among the many benefits that come with the Ditch Machine Chain Trencher include:

1. High productivity due to its efficient design and robust components.
2. Outstanding trenching capacity able to achieve depths of 1.5m and widths of 15-20cm.
3. Remarkable versatility with its three-pointed linkage system allowing attachment to various types of tractors.
4. Superior power compatibility, working seamlessly with machines of 50-80hp.
5. Durability and strength rendered by its core component - the gearbox.
6. One-year warranty, offering protection and peace of mind for consumers.

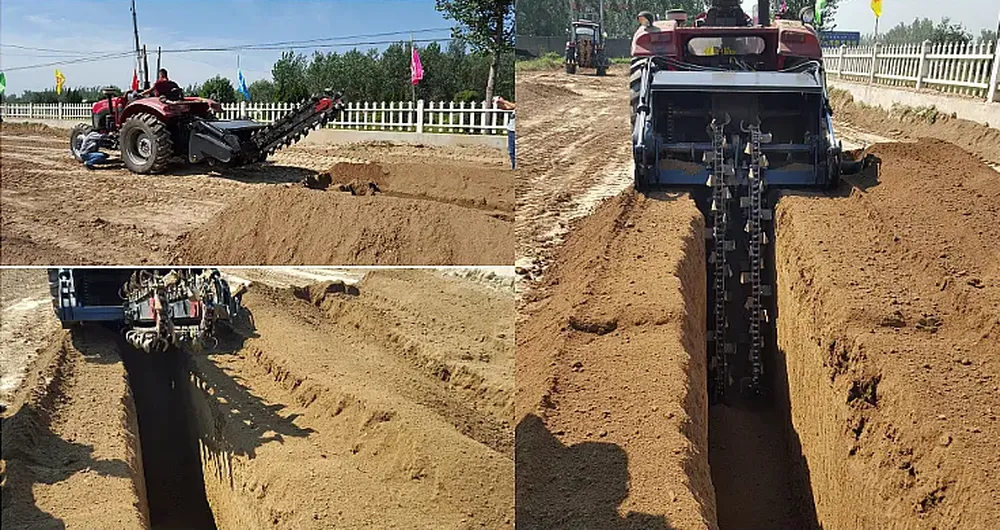

Applications of the Ditch Machine Chain Trencher

The Ditch Machine Chain Trencher is not just limited to farming, but extends its utility to several applications like:

1. 1. Installation of underground utilities such as water lines, gas lines, and electrical conduit.
   2. Laying down irrigation systems in agricultural fields.
   3. Creating drainage channels in farms and construction sites.

1. Fiber optic installations for telecommunications.
2. Landscaping tasks such as creating garden beds or installing edging.
3. Construction tasks, including foundation laying and fence installations.

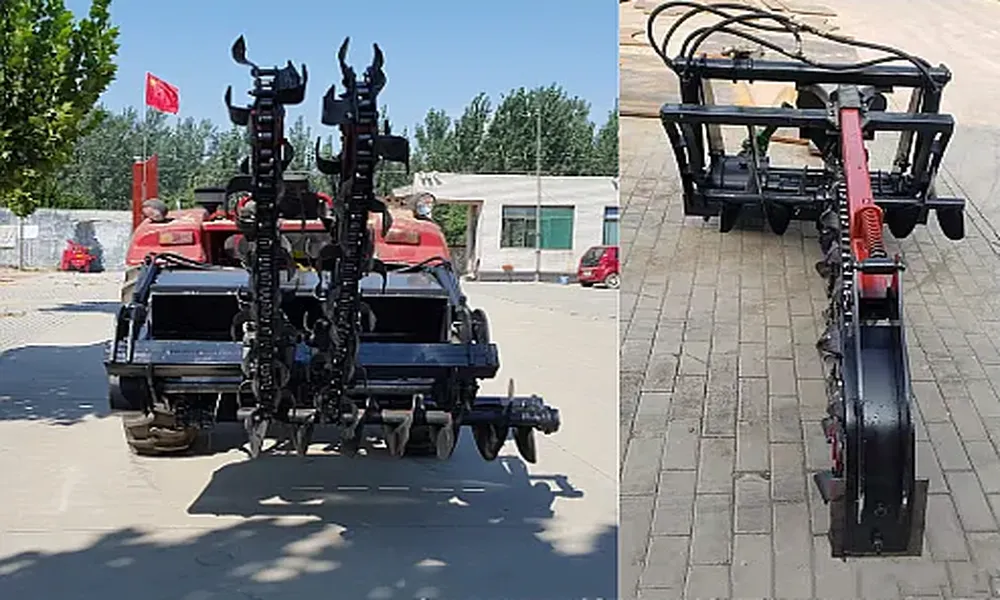

Key Components of the Tractor 3 Point Mounted Chain Trencher

The Tractor 3 Point Mounted Chain Trencher is made up of several key components:

1. Three-Point Hitch: This allows the trencher to be attached to the tractor.
2. Power Take-Off (PTO) Shaft: This transfers mechanical power from the tractor to the trencher.
3. Chain with Digging Teeth: The primary digging component.
4. Boom: Supports the chain and determines the depth of the trench.
5. Drive System: Includes a gearbox and possibly a hydraulic motor, depending on the trencher model.
6. Soil Ejection System: Removes excavated soil from the trench path.

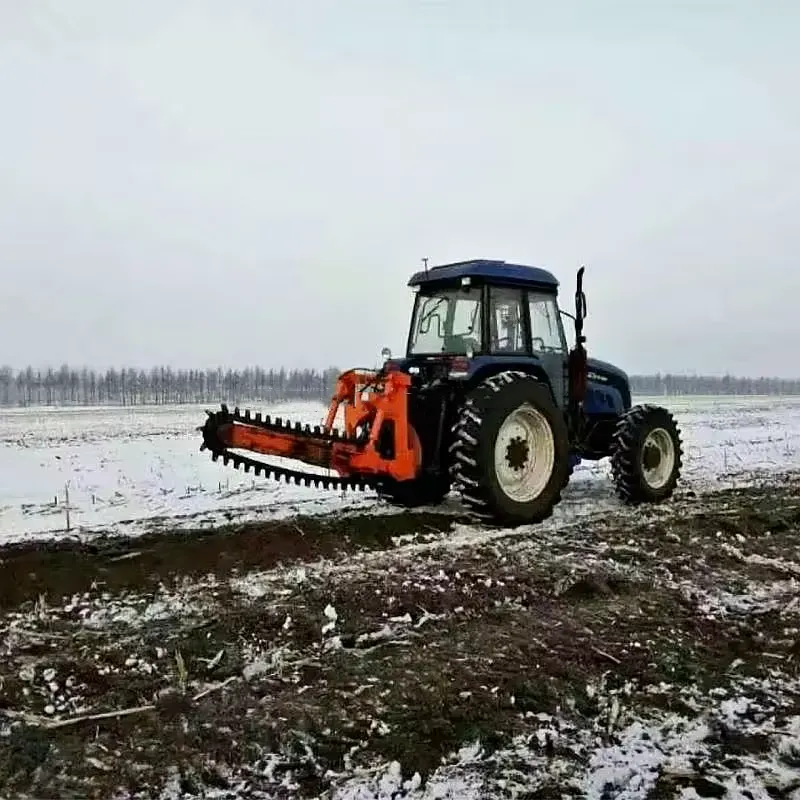

How Does the Tractor 3 Point Mounted Chain Trencher Work?

The tractor 3-point mounted chain trencher operates as follows:

1. Attachment and Power Source: The trencher is attached to the tractor via the three-point hitch.
2. Chain and Boom Operation: When the PTO is engaged, it drives the trencher's chain mechanism.
3. Depth Control: The depth of the trench is controlled by the length of the boom and the adjustment mechanism on the trencher.

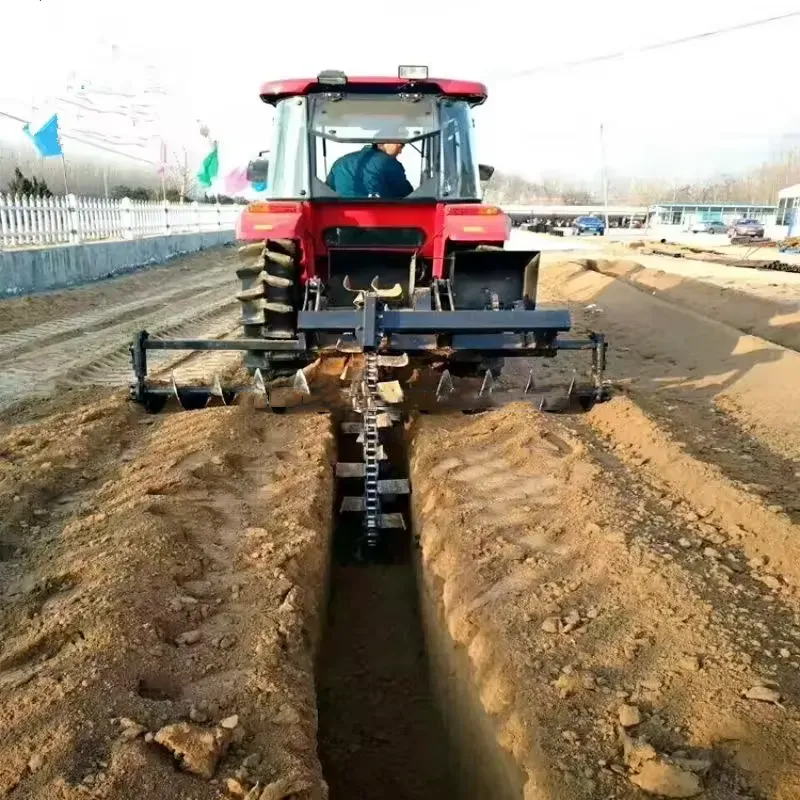

4. Movement and Trench Formation: As the tractor moves forward, the rotating chain digs a continuous trench in the soil.

How to Install the 3 Point Mounted Chain Trencher to Tractor

Installation of the 3 Point Mounted Chain Trencher to a Tractor follows these steps:

1. Read Manuals: Start by thoroughly reading the operator's manuals for both the tractor and the trencher.
2. Positioning the Tractor and Trencher: Position the tractor close to the trencher so that the three-point hitch arms of the tractor are near the trencher's mounting points.
3. Attaching the Trencher: Use the tractor's controls to lower the three-point hitch to a height that aligns with the trencher's mounting brackets.
4. Connecting the PTO Shaft: Align the PTO shaft on the trencher with the PTO stub on the tractor.
5. Final Checks: Walk around the tractor and trencher to make a final inspection.

Common Troubleshooting of the Tractor 3 Point Mounted Chain Trencher

Here are some common troubleshooting tips for the Tractor 3 Point Mounted Chain Trencher:

1. Trencher Won't Start or Operate: Ensure the PTO shaft is properly connected to both the tractor and the trencher.
2. Trencher Chain Doesn??t Move: Verify that the tractor's PTO is engaged and the tractor is running at the correct RPM.
3. Inefficient Trenching or Poor Trench Quality: Inspect the chain for worn or missing teeth.
4. Trencher Vibrates Excessively: Check if the chain is evenly tensioned and not missing any teeth.
5. Excessive Wear on Chain or Teeth: Hard, rocky, or abrasive soil can increase wear.

Why Choose Raydafon's Tractor Mounted Chain Trencher?

Raydafon Agricultural Machinery Co., Ltd. is a trusted name in the industry. Specializing in a wide range of agricultural machinery, Raydafon offers excellent service, durable products, and professional expertise. Our product line includes PTO shafts, agricultural gearboxes, large round balers, mini round balers, PTO wood chippers, diesel wood chippers, corn seeders and many more.Raydafon is dedicated to providing top-notch quality and service. Our production facilities are state-of-the-art and we carry international certifications to ensure the best quality of our products. We also offer customized services to cater to individual customer needs and our after-sales service is second to none.[embed]https://youtu.be/f6nv2ByPjb8[/embed]Author: Yjx
