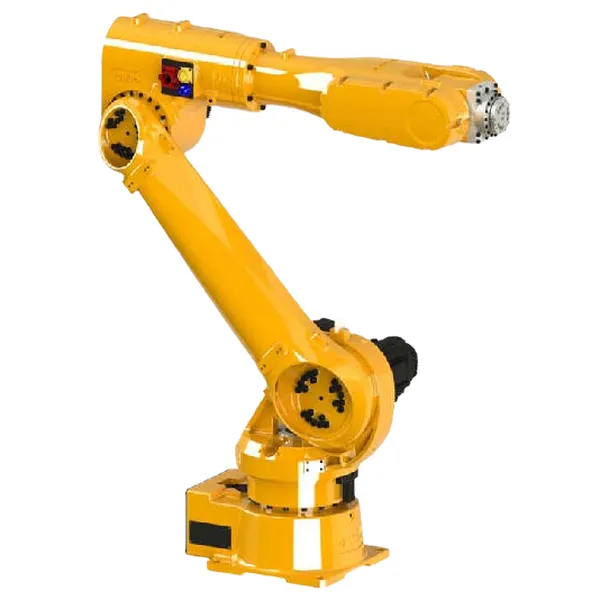

DR35-1.8 6-Axis Articulated Robotic Arm for Automation Cutting/Assembly/Handling/Marking/Grinding

DR35-1.8 6-Axis Articulated Robotic Arm for Automation

The DR35-1.8 6-Axis Articulated Robotic Arm is an advanced automation solution designed to perform precise and complex tasks in various industries. It is equipped with six degrees of freedom, allowing it to move in a wide range of directions and angles, offering flexibility and versatility in its operations.

Advantages of DR35-1.8 6-Axis Articulated Robotic Arm?

1. The overall structure of the robot is highly compact and lightweight, more lightweight and applicable, especially the wrist, is more compact to meet more scenes.2. The robot has high rigidity and adopts high-speed motors, which makes the beat faster.3. The robot motor adopts a sealed design, with a protection level up to IP67, adapting to a more severe application environment.4. J2J3J4 axes are reserved with mounting holes, which is convenient for installing and fixing solenoid valves and other accessories, etc. The J3 axis position provides a user I0 interface and circuit air pipe, which is more suitable for handling applications.5. New control algorithm, kinematics, and dynamics combination. New design, drive algorithm, control algorithm, according to the characteristics of mechanical components load conditions, to achieve automatic planning, to ensure that the mechanical life of the robot at the same time in the maximum capacity allowed to work, robot life longer, robot to achieve a high-speed response, faster, more flexible, more stable, faster work beat.6. With a collision detection function, there is better protection of the robot body and peripheral equipment; with a gravity compensation function, the robot is more accurate, meets the higher precision of the scene application, and broadens the application scenarios.7. A Three-phase filter is installed inside, effectively isolating external interference and preventing internal interference output.

DR35-1.8 6-Axis Articulated Robotic Arm Technical Parameters

Models	DR35-1.8
Arm form	Vertical multi-joint (6-axis)
Maximum loads	35KG
Maximum stroke	J1	±178°
	J2	-98°～+158°
	J3	-178°～+78°
	J4	±400°
	J5	±120°
	J6	±500°
Maximum speed	J1	200°/s
	J2	175°/s
	J3	190°/s
	J4	425°/s
	J5	415°/s
	J6	630°/s
Allowable torque	J4	98N.M
	J5	98N.M
	J6	80N.M
Repeat Positioning Accuracy	±0.05
Maximum coverage area	1941.3
Body weight	255KG
Installation Methods	Floor, ceiling, and wall-mounted
Installation Environment	Environmental temperature	0-45℃
	Relative humidity	20-80% (no condensation)
	vibratory	Below 0.5G
	other	The robot must be installed away from: flammable or corrosive liquids or gases Electrical interference sources.
IP rating	Wrist IP67, rest IP54
Characteristic	Compact, high speed, high accuracy, high expandability, easy to operate
Application scenario	Cutting, assembly, handling, marking, grinding

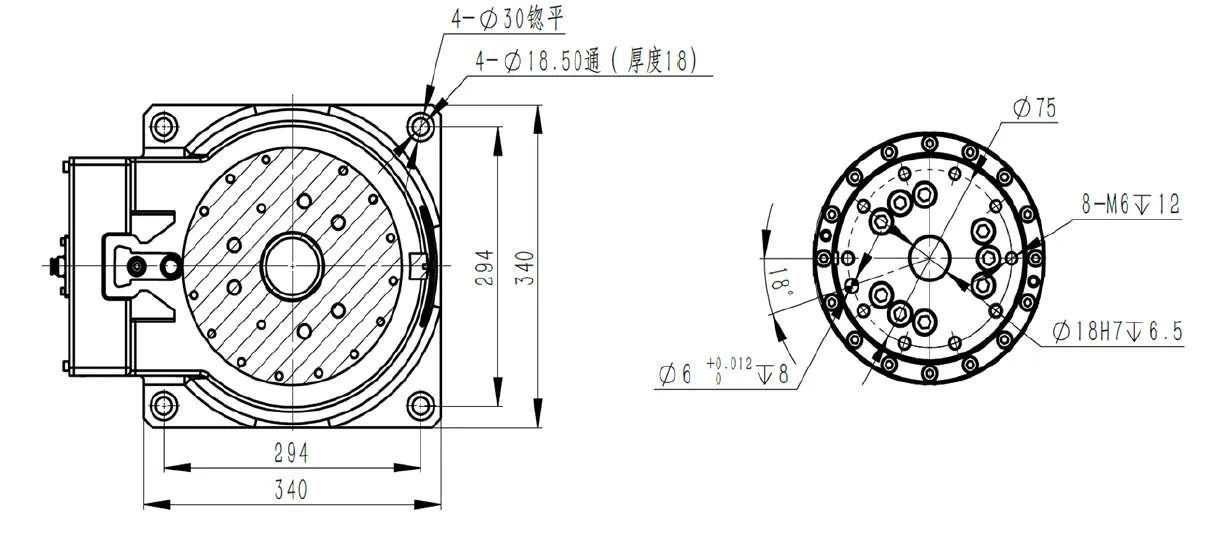

DR35-1.8 6-Axis Articulated Robotic Arm Mounting Interface Diagram

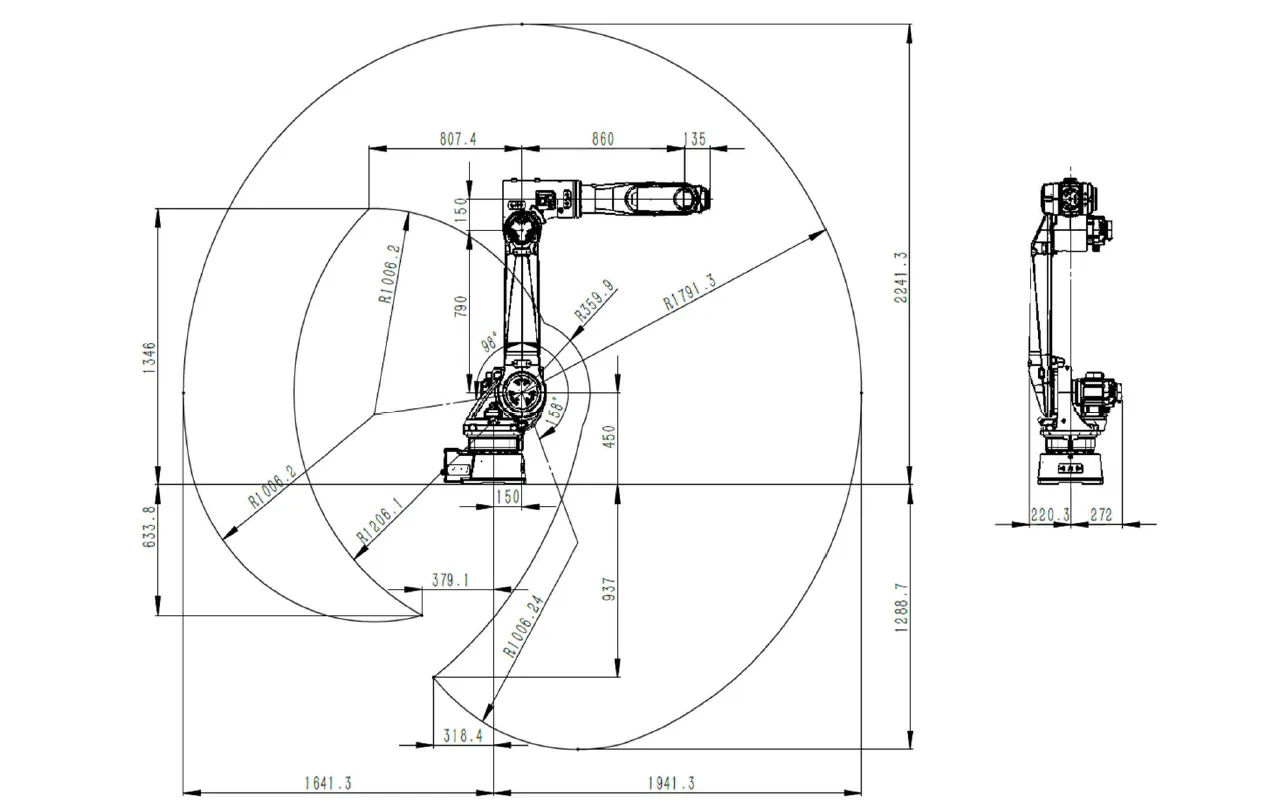

DR35-1.8 6-Axis Articulated Robotic Arm Scope of Work Diagram

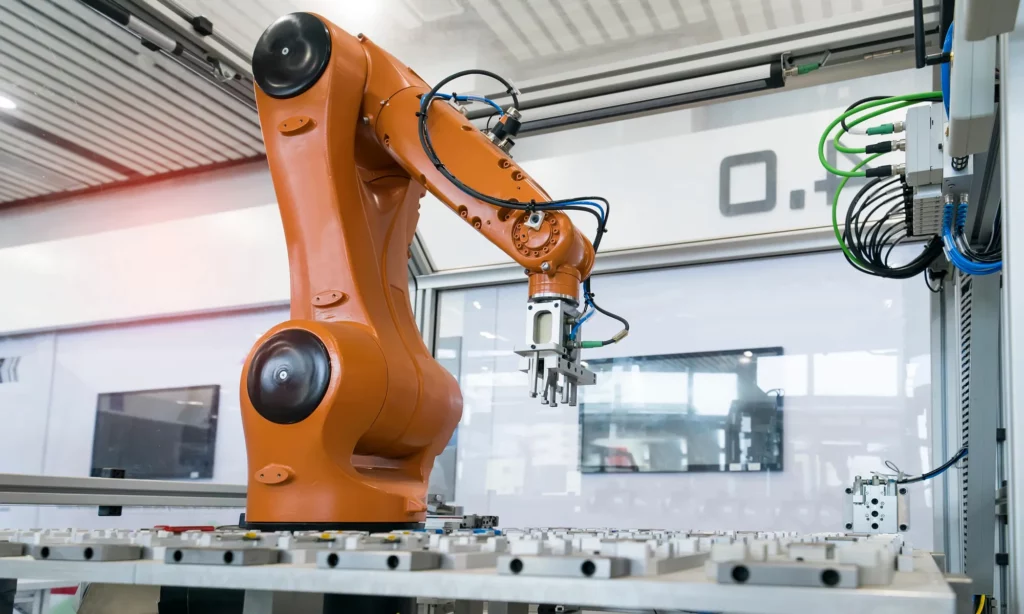

Applications of DR35-1.8 6-Axis Articulated Robotic Arm?

The DR35-1.8 6-Axis Articulated Robotic Arm has a wide range of applications across various industries. Here are some specific examples:1. Manufacturing and Assembly: The robotic arm can be used for assembly line operations, such as picking up and placing components, tightening screws, and performing intricate assembly tasks with high precision.2. Material Handling: The robotic arm is capable of lifting and moving heavy objects, making it ideal for material handling tasks in warehouses, factories, and distribution centers. It can load and unload items, sort and stack pallets, and optimize logistics processes.3. Welding and Metal Fabrication: With its precise control and dexterity, the robotic arm can perform welding tasks in industries like automotive, aerospace, and construction. It can handle welding torches or laser systems to join metal components accurately.4. Painting and Coating: The robotic arm can automate painting and coating processes in industries such as automotive, furniture, and appliance manufacturing. It ensures consistent and uniform application, reducing errors and improving efficiency.5. Pick and Place Operations: The robotic arm is capable of accurately picking up objects of varying sizes, shapes, and materials. This makes it suitable for pick and place applications in industries like e-commerce, logistics, and electronics manufacturing.6. Quality Inspection: The robotic arm can be equipped with vision systems and sensors to perform quality inspections on products. It can detect defects, measure dimensions, and ensure compliance with quality standards.7. Packaging and Palletizing: The robotic arm can automate packaging operations by picking up products, placing them in containers, and sealing or labeling them. It can also handle palletizing tasks, stacking and arranging products onto pallets for efficient storage and shipping.8. Lab Automation: In the pharmaceutical and medical industries, the robotic arm can assist in laboratory automation tasks. It can handle pipettes, test tubes, and lab equipment, improving accuracy and productivity in research and testing processes.9. Food Processing: The robotic arm can be utilized in food processing and packaging applications. It can handle ingredients, perform sorting and quality control, and assist in packaging and palletizing food products.

6-Axis Articulated Robotic Arm Manufacturer

Raydafon Precision Technology Co., Ltd. was established in April 1995, and the factory is located in the center of the city. Raydafon integrates ISO-9001, TS-16949, ISO14001:2004, OHSAS18001:2007 management system; it has been awarded as High and New Technology Enterprise, Intellectual Property Advantageous Enterprise, Provincial Enterprise Technology Center, Intellectual Property Advantageous Cultivating Enterprise, and Typical Manufacturing Informatization Demonstration Enterprise.Raydafon has been actively promoting its own automation application for many years. Raydafon has been actively promoting its own automation application for many years, fully utilizing Raydafon's R&D, casting, machining and assembly capabilities to develop DR series industrial 6-axis articulated robots and supporting automation peripheral equipments such as silos and tilting tables.The industrial 6-axis articulated robots developed by Raydafon are firstly used for the automation application transformation of the existing new and old equipments in the factory, and there are nearly 100 groups of various automated machining cells and automated intelligent manufacturing production lines within the company. In promoting the company's automation development, accumulation of a large number of automation application experience at the same time, Raydafon also actively promote their own automation experience, to provide from the processing process design, tooling design, equipment selection, automation program design, automation project implementation and application of maintenance of one-stop service. The service involves machine loading and unloading, welding, packing and blocking, and so on.
