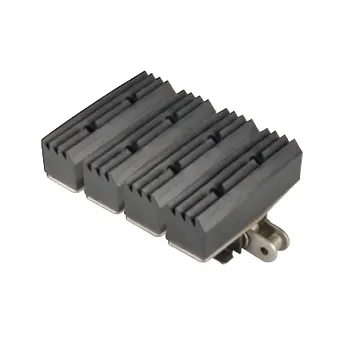

Flat Top Chains Sideflexing with Snap-on Gripper 1874TAB-G

1874TAB-G Flat Top Chains Sideflexing with Snap-on Gripper?

1874TAB-G Flat top chains are side-flexing snap-on chains. It is designed with plastic flights assembled on a steel roller chain with extended pins.1874 series chains are 1.5-inch pitch, have a top plate thickness of 0.12 inches, and utilize a 63 base chain. The chains have a smooth top and are versatile enough to convey everything from individual units to packaged and cased goods. Features TAB curve retention. Chain is available with carbon & stainless steel top plates on carbon and stainless steel base chains for different characteristics. The chain operates on standard #60 series sprockets for true chain/sprocket interaction.

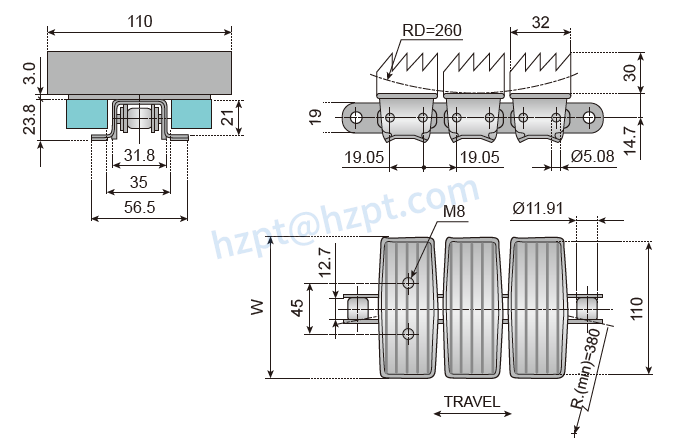

Chain specification

Chain No.	Width ( W )		Weight		Working load
	mm	inch	kg/m	lbs/ft	N
	STEEL TOP PLATE / STEEL BASE CHAIN
1874 TAB - K325	82.6	3.25	3.33	2.24	4500
1874 TAB - K450	114.3	4.50	4.00	2.69	4500
1874 TAB - K600	152.4	6.00	4.40	2.95	4500
1874 TAB - K750	190.5	7.50	4.80	3.22	4500
	STAINLESS STEEL TOP PLATE / STAINLESS STEEL BASE CHAIN
1874 TAB SS- K325	82.6	3.25	3.33	2.24	3400
1874 TAB SS - K450	114.3	4.50	4.00	2.69	3400
1874 TAB SS - K600	152.4	6.00	4.40	2.95	3400
1874 TAB SS - K750	190.5	7.50	4.80	3.22	3400

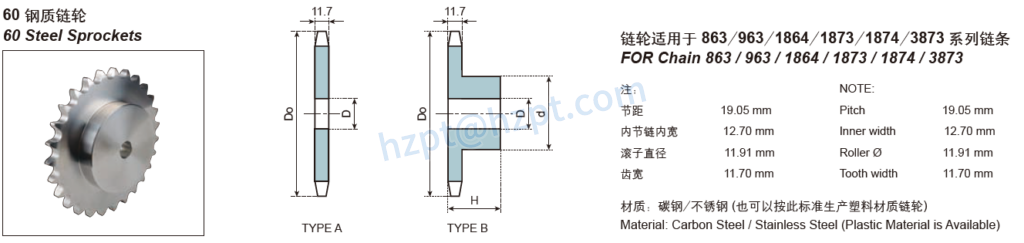

We can also provide matching 60 Steel sprockets.
