Gear Racks for Automobiles

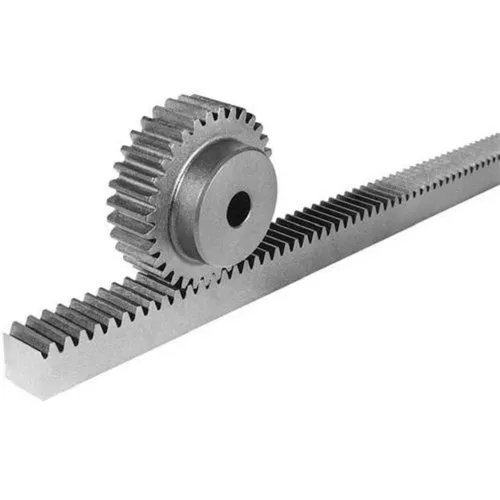

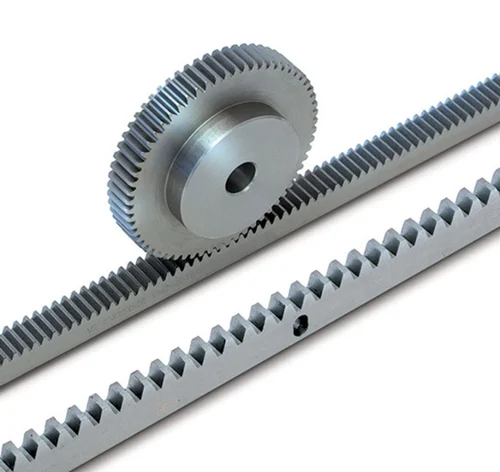

Gear racks for automobiles are mechanical components used in the steering system of a vehicle. It consists of a straight bar with accurately spaced teeth along its length. The gear rack works in conjunction with a pinion gear to convert rotational motion into linear motion, facilitating the steering of the vehicle.

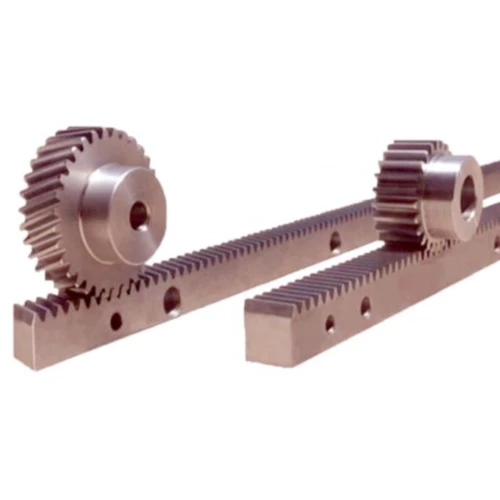

Advantages of Gear Rack for Automobiles:

1. Precise Steering Response: Gear racks provide a direct and precise steering response, allowing drivers to have better control over the vehicle's movements. This contributes to enhanced safety and maneuverability.2. High Durability: Gear racks are designed to withstand high loads and forces, making them durable and reliable components in automotive steering systems. They can handle the rigors of daily driving and various road conditions.3. Efficient Power Transfer: Gear racks have high mechanical efficiency, meaning less power is lost in the steering system. This efficiency translates into improved fuel economy and optimized power utilization.4. Compact Design: Gear racks offer a compact and space-saving solution, making them suitable for vehicles with limited space in the engine compartment. Their compactness allows for better packaging and optimization of the overall vehicle design.5. Cost-Effective: Gear racks are relatively cost-effective compared to other steering mechanisms. Their simple construction and widespread use in the automotive industry contribute to their affordability, making them a popular choice for vehicle manufacturers.

6. Compatibility: Gear racks are compatible with various types of steering systems, including manual, power-assisted, and electric power steering. They can be integrated into different vehicle platforms and architectures, providing versatility in design and application.7. Wide Range of Applications: Gear racks find applications in a wide range of vehicles, from passenger cars to commercial vehicles, trucks, and even off-road vehicles. They are suitable for both standard and specialized vehicle types.8. Proven Technology: Gear racks have been used in automotive steering systems for many years and have a proven track record of reliability and effectiveness. Their long-standing presence in the industry attests to their performance and suitability for automotive applications.

Application

1. Precise steering: The rack provides direct and precise steering response, allowing the driver to better control the movement of the vehicle.2. Enhanced durability: The rack is designed to withstand high loads and forces, making it a durable and reliable component in the automotive steering system.3. Improved efficiency: The rack has higher mechanical efficiency, which means less power is lost in the steering system, thus improving fuel efficiency.4. Compact design: The rack offers a compact and space-saving solution, making it suitable for vehicles with limited engine bay space.5. Cost-Effectiveness: Rack and pinion is relatively cost-effective compared to other steering mechanisms, making it a popular choice in the automotive industry.6. Easy installation: The rack and pinion can be easily installed on the vehicle, reducing assembly complexity and time.7. Versatility: Rack and pinion can be used in various types of vehicles, including passenger cars, commercial vehicles, trucks, and even off-road vehicles.8. Compatibility: The rack is compatible with manual and power steering systems, providing design and application flexibility.

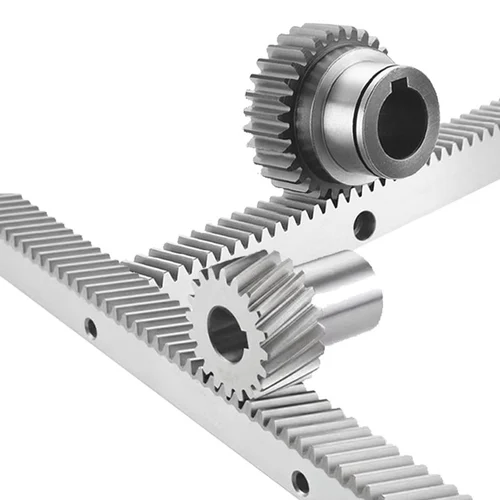

Working principle

1. Components: An automobile rack and pinion consists of a long straight rod with teeth cut along its length. It is responsible for converting rotational input from the steering wheel into linear motion.2. Rack and pinion system: The rack is connected to the pinion. The pinion is a small gear that meshes with the rack. When the driver turns the steering wheel, the rotational motion is transmitted to the pinion gear.3. Linear motion: When the pinion rotates, its teeth mesh with the teeth on the rack. This meshing causes the rack to move linearly. The linear motion of the rack is used to push or pull the tie rods connected to the front wheel knuckles.4. Wheel movement: The linear movement of the rack is transmitted through the tie rod, causing the front wheel to rotate in the desired direction. The movement of the wheels allows the driver to control the steering and change the direction of the vehicle.

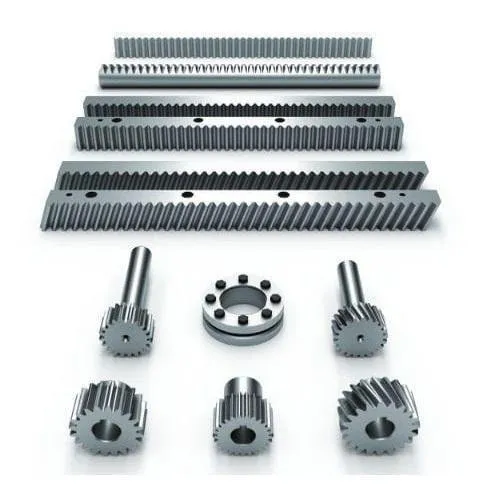

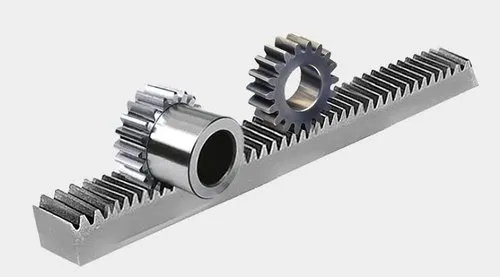

How to select?

1. Load Capacity: Determine the expected loads and forces the rack will be subjected to, taking into account factors such as vehicle weight, road conditions and intended use.2. Size and Dimensions: Select the right size rack to fit your specific steering system and the space available in your vehicle.3. Material: Consider the material of the rack, such as steel or alloy, based on durability, corrosion resistance, weight and other factors.4. Tooth shape: Select the appropriate tooth shape based on required performance characteristics such as noise reduction, smooth operation and load-bearing capacity.5. Accuracy and Tolerance: Evaluate the level of accuracy and tolerance required to ensure that the rack meets necessary performance standards and is installed correctly in the steering system.6. Compatibility: Make sure the rack is compatible with the type of steering system being used, whether manual, power-assisted or electric power steering.7. Manufacturer reputation: Choose a reputable and reliable manufacturer or supplier known for producing high-quality gear carriers suitable for automotive applications.8. Cost considerations: Balance the required performance and quality with the available budget and consider the cost-effectiveness of the rack.

Installation and Maintenance of Gear Racks for Automobiles:

Installation:

1. Prepare the Vehicle: Ensure the vehicle is parked on a level surface and the wheels are properly secured to prevent any movement during installation.2. Remove Old Components: If replacing an existing gear rack, remove the old rack carefully, following the manufacturer's instructions or vehicle service manual.3. Position the New Gear Rack: Position the new gear rack in the appropriate location, aligning it with the mounting points or brackets provided in the vehicle's steering system.4. Secure the Gear Rack: Use the specified hardware (bolts, nuts, etc.) to securely fasten the gear rack to the mounting points. Follow the recommended torque specifications provided by the manufacturer.5. Connect Steering Components: Connect the necessary steering components, such as tie rods or steering linkage, to the gear rack according to the vehicle's specifications. Ensure proper alignment and secure all connections.6. Check Clearances: Verify that there is sufficient clearance between the gear rack and surrounding components, such as the engine, suspension, or chassis. Make any necessary adjustments to ensure proper fitment.7. Verify Steering Operation: Before finalizing the installation, turn the steering wheel from lock to lock to confirm that the gear rack moves smoothly and without any binding or interference.

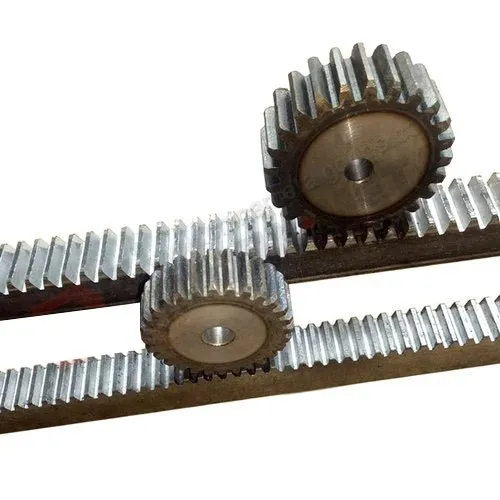

Maintenance:

1. Regular Inspection: Conduct periodic inspections of the gear rack, looking for signs of wear, damage, or misalignment. Pay attention to the condition of the teeth, the presence of contaminants, and any unusual noises or vibrations.2. Lubrication: Follow the manufacturer's recommendations for lubrication intervals and use the appropriate lubricant. Apply lubricant to the gear rack as specified, ensuring even coverage along the length of the rack.3. Cleaning: Regularly clean the gear rack to remove dirt, debris, and contaminants. Use a suitable cleaning agent and a soft brush or cloth to gently clean the rack, being careful not to damage the teeth or other components.4. Protection from Corrosion: If the gear rack is exposed to corrosive elements, consider applying a protective coating or corrosion inhibitor to prevent rust or corrosion. Follow the manufacturer's recommendations for suitable protective measures.5. Torque Checks: Periodically check the fasteners securing the gear rack to ensure they remain properly torqued. Follow the manufacturer's specifications for torque values and tightening sequences.6. Address Issues Promptly: If any abnormal behavior, excessive play, noise, or steering inconsistencies are observed, address the issues promptly. Consult a qualified professional to diagnose and rectify the problem to prevent further damage or safety hazards.It is important to note that specific installation and maintenance procedures may vary depending on the vehicle make, model, and manufacturer's recommendations. Always refer to the appropriate service manual or seek professional assistance when in doubt.

Potential problems and solutions for automobile gear racks:

1. Wear: Over time, racks experience wear from constant use and stress. This can lead to performance degradation and potential failures. Regular inspection and maintenance, including lubrication, can help reduce wear problems. If significant wear is detected, replacing the rack is usually the best solution.2. Misalignment: Improper installation or damage can cause misalignment between the rack and pinion. This can lead to uneven wear, increased friction, and reduced steering performance. Re-aligning or replacing the rack and ensuring proper installation can resolve this issue.3. Backlash: Backlash is excessive play or movement between the rack and pinion. It can result in imprecise steering and lack of responsiveness. Adjusting gear mesh or replacing worn parts can help reduce backlash and restore normal function.4. Binding or jamming: Contaminants or foreign particles can cause the rack to jam or jam, preventing smooth movement. Thoroughly cleaning the rack and removing any debris will usually resolve this issue. In some cases, a damaged or heavily soiled rack may need to be replaced.5. Corrosion: Gear racks and pinions are susceptible to corrosion, especially in harsh environments or when proper corrosion protection measures are not taken. Regular inspections, cleaning, and applying appropriate protective coatings can help prevent or mitigate corrosion-related problems.6. Improper lubrication: Insufficient or improper lubrication can lead to increased friction, wear and noise in the rack system. Following the manufacturer's lubrication recommendations and regularly checking and replenishing lubricant levels can prevent such problems.7. Damage caused by impact: Accidents or impacts may cause damage to the rack, such as bending or breaking the rack. In this case, the damaged rack usually needs to be replaced to restore normal function.8. Excessive temperature or climate effects: Extreme temperature or climate conditions, such as high or freezing temperatures, can affect the performance and integrity of the rack. These effects can be mitigated by using a rack designed for such conditions or by implementing additional thermal or cold protection measures.9. Excessive load or overload: The rack has a specified load capacity, exceeding these limits may cause premature wear, damage or failure. You can prevent overloading problems by making sure the rack is appropriate for your vehicle's weight and usage.10. Component Compatibility: Incompatibilities between racks and other steering system components can cause operating problems. Help avoid compatibility-related issues by ensuring that all components, including pinions, steering linkage, and related hardware, are properly matched and compatible.

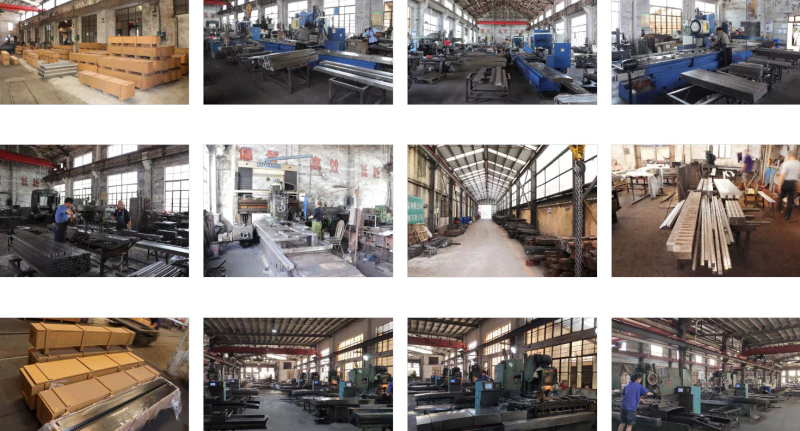

About Ever Power

Ever Power is a leading manufacturer and supplier of power transmission components, focusing on gear rack production. With a commitment to excellence and innovation, we provide high-quality gear racks and various transmission products to meet the diverse needs of our customers. Our company takes pride in its international certifications, quality assurance, comprehensive after-sales support, and advanced manufacturing facilities.We specialize in the production of gear racks, offering a wide variety of sizes, materials, and configurations. Our gear racks are precision-engineered to deliver smooth and accurate linear motion, making them ideal for applications in industries such as greenhouse automation, robotics, machinery, automotive, and more.We prioritize quality at every stage of production, from material selection to final inspection. Our experienced engineers and technicians utilize advanced manufacturing techniques and equipment to ensure the precision, durability, and performance of our transmission components. We conduct thorough quality control checks to maintain consistency and reliability in our products.At Ever Power, we believe in providing exceptional customer service and support. We offer comprehensive after-sales assistance, including technical guidance, troubleshooting, and prompt resolution of any issues that may arise. Our dedicated support team is committed to ensuring that our customers receive the utmost satisfaction throughout their experience with our products.Ever Power boasts state-of-the-art manufacturing facilities equipped with advanced machinery and tools. Our production capabilities, combined with our skilled workforce, enable us to deliver high-quality gear racks and transmission components with precision and efficiency. We continuously invest in technological advancements to stay at the forefront of the industry and meet the evolving needs of our customers.We provide Agricultural gearboxes, hydraulic cylinder, chains and sprockets, PTO shaft, various gears, Plastic Gear Rack, Helical Gear Rack, Spur Gear Rack,etc.
