German After-Sales Service Quickly Conversion The Front Hub Motor for Ebike

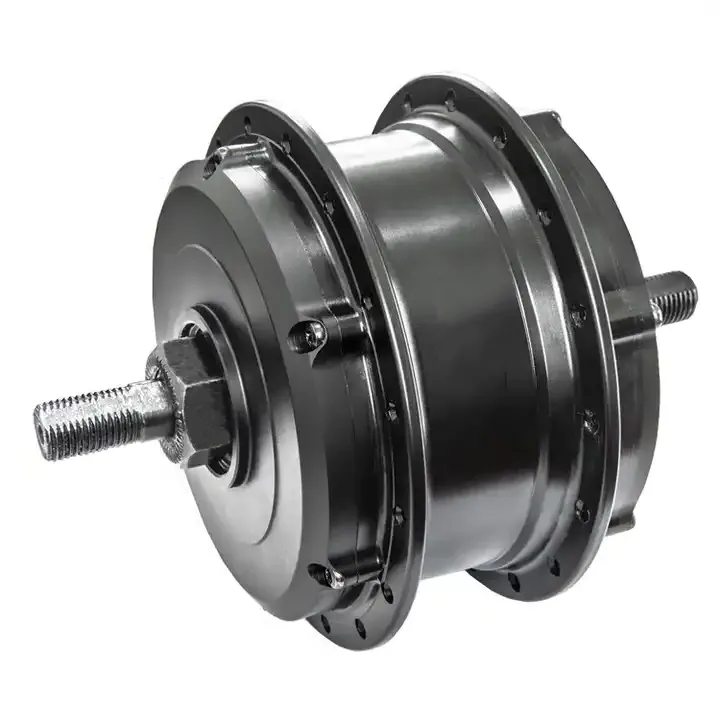

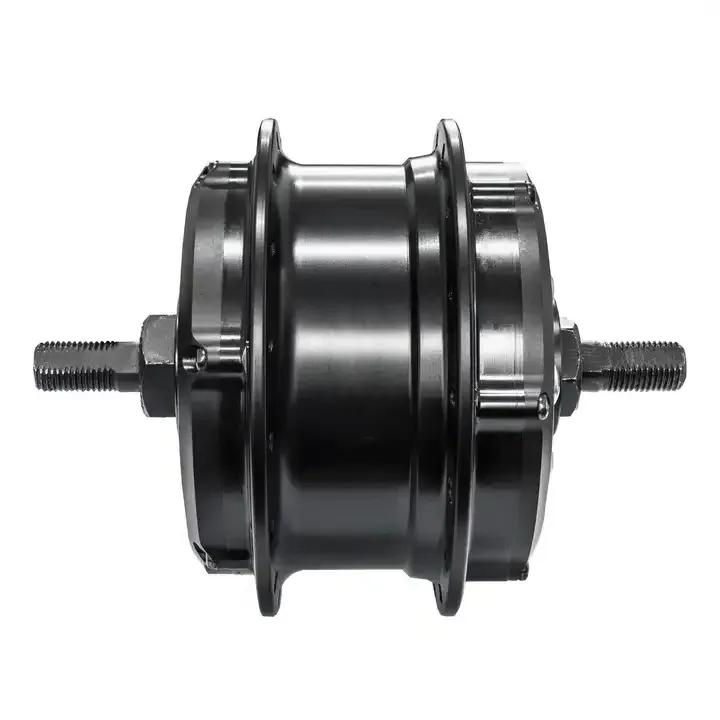

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]Discover the ease and efficiency of the S110 front hub motor, designed to transform your regular bicycle into an electric bike. With a voltage of 36V and a brushless design, this model S110SWXDC36 hub motor weighs just 2.1KGS and is a perfect fit for any standard bike. It offers a high efficiency of over 90%, wireless control, and a speed of 260rpm. The motor comes with an integrated controller and displays its width as 135mm±2. Packaged securely for export, the motor is shipped from Shanghai with all the necessary product parameters for easy installation and use.

Specification of S110 Front Hub Motor for E-bike

Specification	S110SWXC / S110SWXDC
Diameter (mm)	112±1mm
Width (mm)	100±2mm
Communication	Wireless
Sensor	Wireless Pedal Sensor
Spokes Number	20, 24, 28, 32, 36
Rated Voltage (V)	36V	33V	24V
Maximum Current (A)	6.18A	6.67A	9.0A
Rated Output Power (W)	250W	250W	250W
Maximum Power (W)	500W	500W	500W
Maximum Torque (N·m)	>35N·m	>35N·m	>35N·m
Efficiency (%)	≥89%	≥88%	≥87%
Rated Revolution (r/min)	160-260r/min	160-260r/min	160-260r/min
Weight (kg)	2.1kg	2.1kg	2.1kg

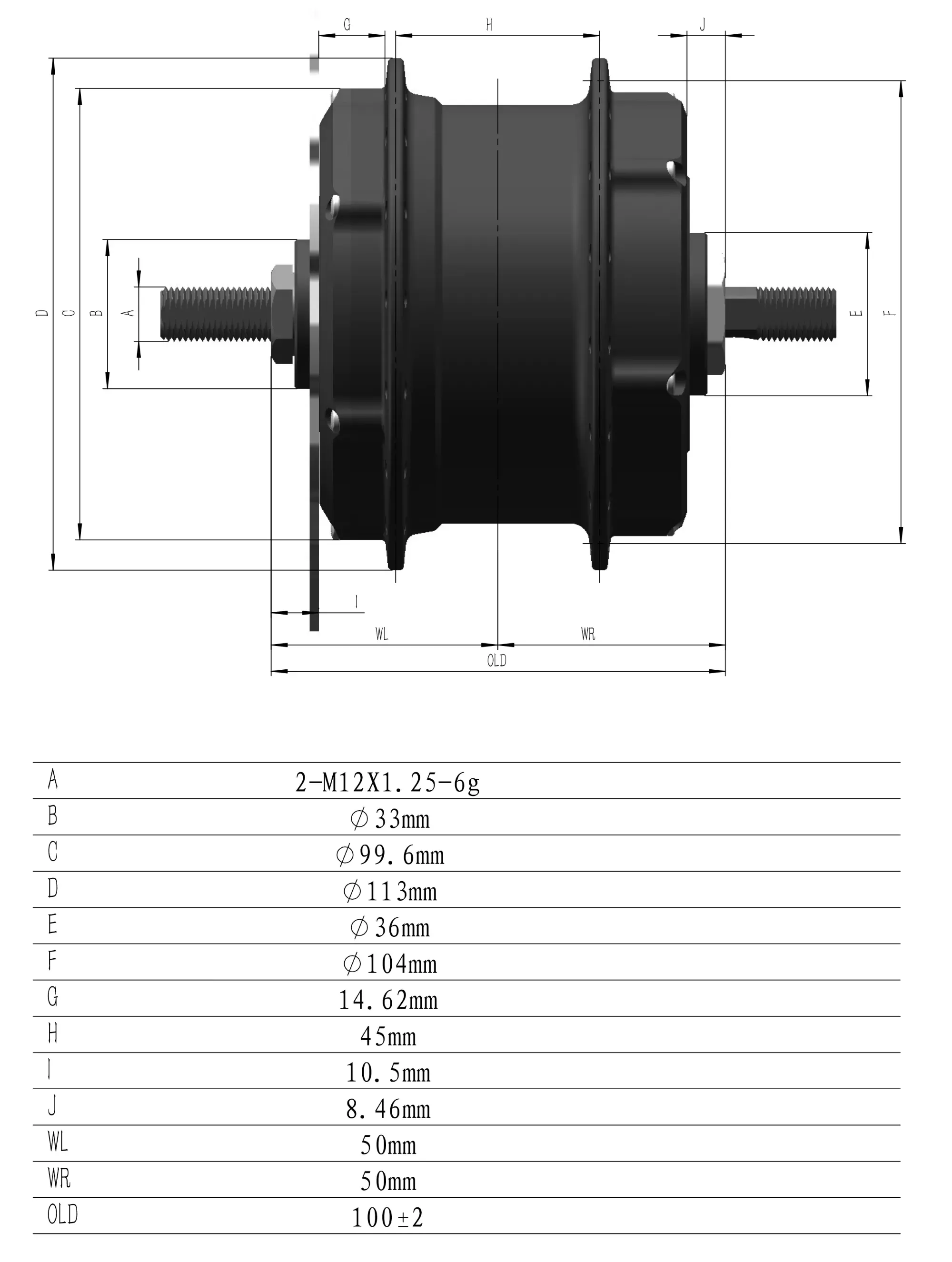

S110 E-bike Front Hub Motor Dimension

Key Advantages of the S110 Smart Front Hub Motor

The S110 front hub motor is packed with features that make it a superior choice for your ebike conversion. Here are six key advantages that this product offers:

1. Built-in controller: The integrated controller ensures seamless performance and easy management of the motor functions.
2. Wireless pedal sensor: A wireless pedal sensor allows for seamless communication between the motor and the rider's input, ensuring efficient power delivery.
3. Lightweight and small size: Weighing only 2.1 kg and with a diameter of 100mm, the S110 front hub motor is compact and easy to install on any standard bicycle.
4. Super-silent: The brushless design of the motor ensures super-silent performance, providing a smooth and quiet riding experience.
5. Easy to install & disassemble: The design of the motor enables easy installation and disassembly, making it convenient for maintenance and troubleshooting.
6. Wireless control: The motor offers wireless control, making it easy to manage its performance without the clutter of wires.

With these features, the S110 front hub motor ensures that your transition from a regular bike to an electric bike is smooth and hassle-free. Being a renowned manufacturer, we can customize this product to suit your needs.

Applications of the S110 Front Hub Motor

The S110 front hub motor is versatile and can be used in a variety of ways. Here are some common applications for this product:

1. Electric Assist: The motor provides additional power to the rider, making it easier to pedal, especially in challenging conditions like uphill climbs and headwinds.
2. Commuting: With the assistance of the motor, riders can cover longer distances with ease, making it an excellent choice for commuting.
3. Hill Climbing: The motor's high torque output is particularly useful for climbing steep hills, making it easier for the rider.
4. Cargo and Utility Bikes: The motor is also suitable for cargo and utility bikes designed to carry heavy loads. With the motor's power, hauling significant cargo becomes easier.
5. Recreational Riding: The motor enhances the recreational riding experience by providing an extra power boost, allowing riders to explore new routes and tackle various terrains.
6. Conversion Kits: The S110 front hub motor is commonly used in electric bicycle conversion kits, allowing users to convert their existing non-electric bicycles into electric ones.

How Does the Ebike System S110 Front Hub Motor Work?

The S110 front hub motor is a sophisticated piece of technology that provides power to your bicycle. Here is a general overview of how it operates:

1. Motor and Hub Assembly: The motor is integrated into the front wheel of the bicycle, providing direct power to the front wheel.
2. Power Source: The motor operates on a lithium-ion battery pack, which supplies electrical energy to the motor.
3. Pedal Assist Sensors: These sensors detect the rider's pedaling motion and send signals to the motor controller.
4. Motor Controller: This crucial component receives input from the pedal assist sensors and controls the operation of the motor.
5. Electric Assistance: When the rider starts pedaling, the pedal assist sensors send signals to the motor controller, which activates the motor to provide electric assistance.
6. Power Output and Control: The motor controller allows the rider to control the level of electric assistance, offering multiple assistance levels for the rider to choose from.
7. Regenerative Braking: Some models of the S110 front hub motor system include regenerative braking capabilities. When the rider applies the brakes, the motor reverses its operation, converting the bike's kinetic energy into electrical energy, which is stored back into the battery.

Choosing the Right S110 Front Hub Motor for your Electric Bicycle

When choosing the correct S110 front hub motor for an electric bicycle, several factors should be considered:

1. 1. Power and Torque: Higher power and torque ratings generally provide better acceleration, hill-climbing ability, and overall performance. Consider your riding needs and terrain conditions to determine the appropriate power and torque levels required.
   2. Voltage and Battery Compatibility: Ensure the motor's voltage rating aligns with the voltage of your electric bicycle's battery pack. Check the manufacturer's specifications and guidelines to verify compatibility.
   3. Wheel Size: Ensure that the motor you choose matches the wheel size of your electric bicycle. Common wheel sizes include 26", 27.5", and 700c, among others.
   4. Installation Compatibility: Consider the compatibility of the motor with your bicycle's fork and front wheel. The motor should fit properly and securely onto the front wheel's hub and align with the fork dropouts.
   5. Weight and Size: The weight and size of the motor can impact the overall weight distribution and handling of the electric bicycle. Consider the weight of the motor and its impact on the bike's front end.
   6. Efficiency and Noise: Look for motors that offer high efficiency, as it impacts the range and battery life of your electric bicycle. Additionally, consider noise levels, as quieter motors provide a more enjoyable riding experience.

Maintenance of the S110 Front Hub Motor

Proper maintenance of the S110 front hub motor is crucial to ensure its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Keep the motor clean by wiping it down regularly with a damp cloth. This prevents the buildup of dirt, dust, and grime that can affect its performance.
2. Inspection: Periodically inspect the motor for any signs of damage, loose connections, or wear. Check for loose wires, damaged cables, or any abnormal sounds or vibrations during operation.
3. Lubrication: Depending on the manufacturer's recommendations, the motor's internal components may require lubrication. Consult the user manual or contact the manufacturer to determine if lubrication is necessary and the appropriate lubricant to use.
4. Battery Maintenance: Properly maintain the battery pack that powers the motor. Follow the manufacturer's guidelines for charging, storage, and maintenance of the battery.
5. Tighten Fasteners: Regularly check and tighten any fasteners, such as bolts or screws, that secure the motor to the bicycle frame or wheel.
6. Avoid Overloading: Do not exceed the recommended weight capacity of the motor and electric bicycle. Overloading can strain the motor and other components, leading to reduced performance and potential damage.
7. Avoid Water Exposure: The S110 front hub motor may not be fully waterproof. Avoid riding in heavy rain or submerging the motor in water. If the motor does get wet, dry it thoroughly before use.

Why Choose Raydafon's S110 Front Hub Motor for Ebike System?

Raydafon Electric Technology Co., Ltd is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. Our products are designed and developed in-house and are protected by domestic and international intellectual property rights. We have professional production and testing equipment, advanced production lines, and a complete quality management system. All our products are CE-certified and have independent intellectual property rights. Our products are renowned for their reliable quality, exquisite craftsmanship, and stylish design.We offer a range of products including super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays, and more. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking high-end electrical components for electric bicycles, or if you are still worried about traffic jams, or if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.With a professional team, international certifications, customized services, top-notch production facilities, and comprehensive after-sales services, Raydafon is your go-to choice for high-quality electric bicycle components. Explore our range and transform your riding experience today!Author: Yjx
