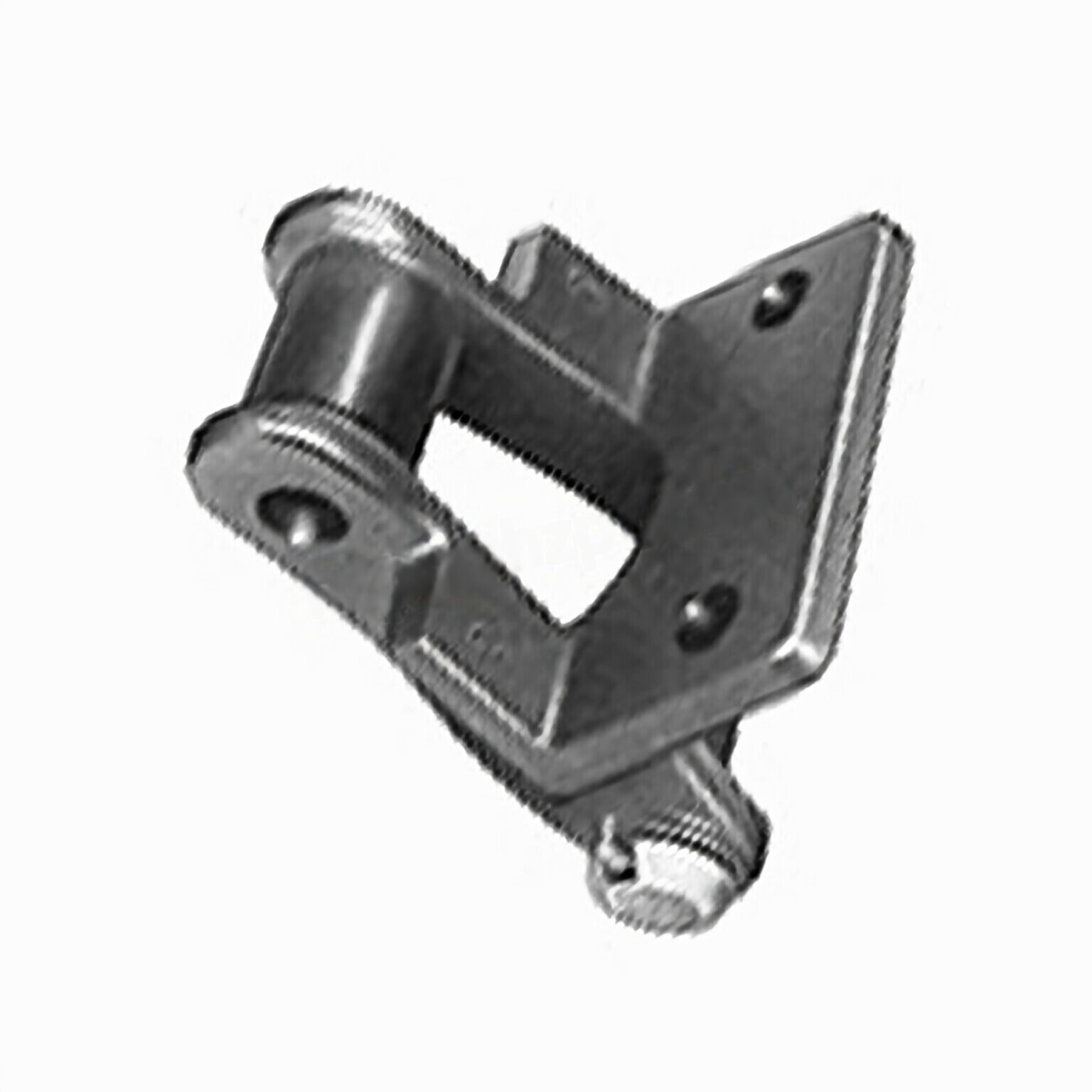

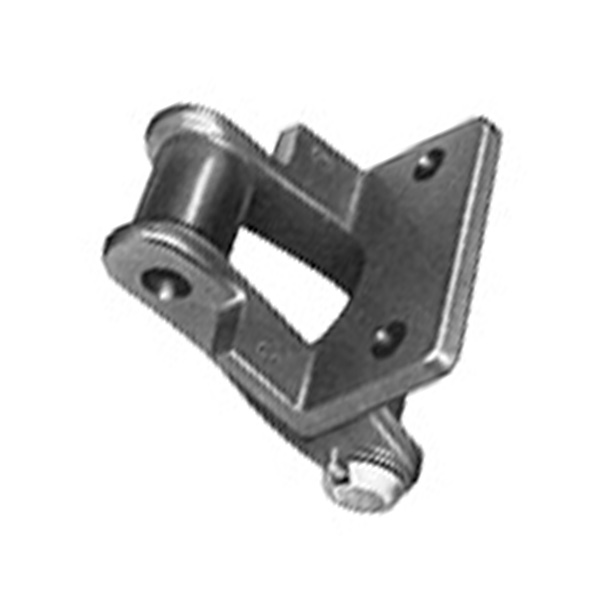

H Class Mill Chain with F8 Attachment H78-F8
  • H Class Mill Chain with F8 Attachment H78-F8H Class Mill Chain with F8 Attachment H78-F8

H Class Mill Chain with F8 Attachment H78-F8

Raydafon Guoup presents the H Class Mill Chain with F8 Attachment H78-F8, a robust industrial chain designed for heavy-duty milling and conveying applications. Its high-strength material and F8 attachment ensure superior durability and precise performance in demanding environments. Ideal for manufacturing and processing industries, this chain solves reliability issues, enhancing efficiency and reducing downtime. Unlike competitors, it offers unmatched wear resistance and seamless integration. Elevate your operations today!

H78 F8 H Class Mill Chain with F8 Attachment

H class Mill Duty Chains of Pearlitic Malleable Iron are designed for demanding heavy drives and transfer conveyors in the pulp and paper industry and similar rich industrial applications. The sidebars of the “H” class links feature a strengthened cross-section providing an added benefit of a wear surface to prolong chain service life when operated in troughs or over floors and slider beds.
H Class Mill Chain with F8 Attachment H78-F8
H Class Mill Chain with F8 Attachment H78-F8

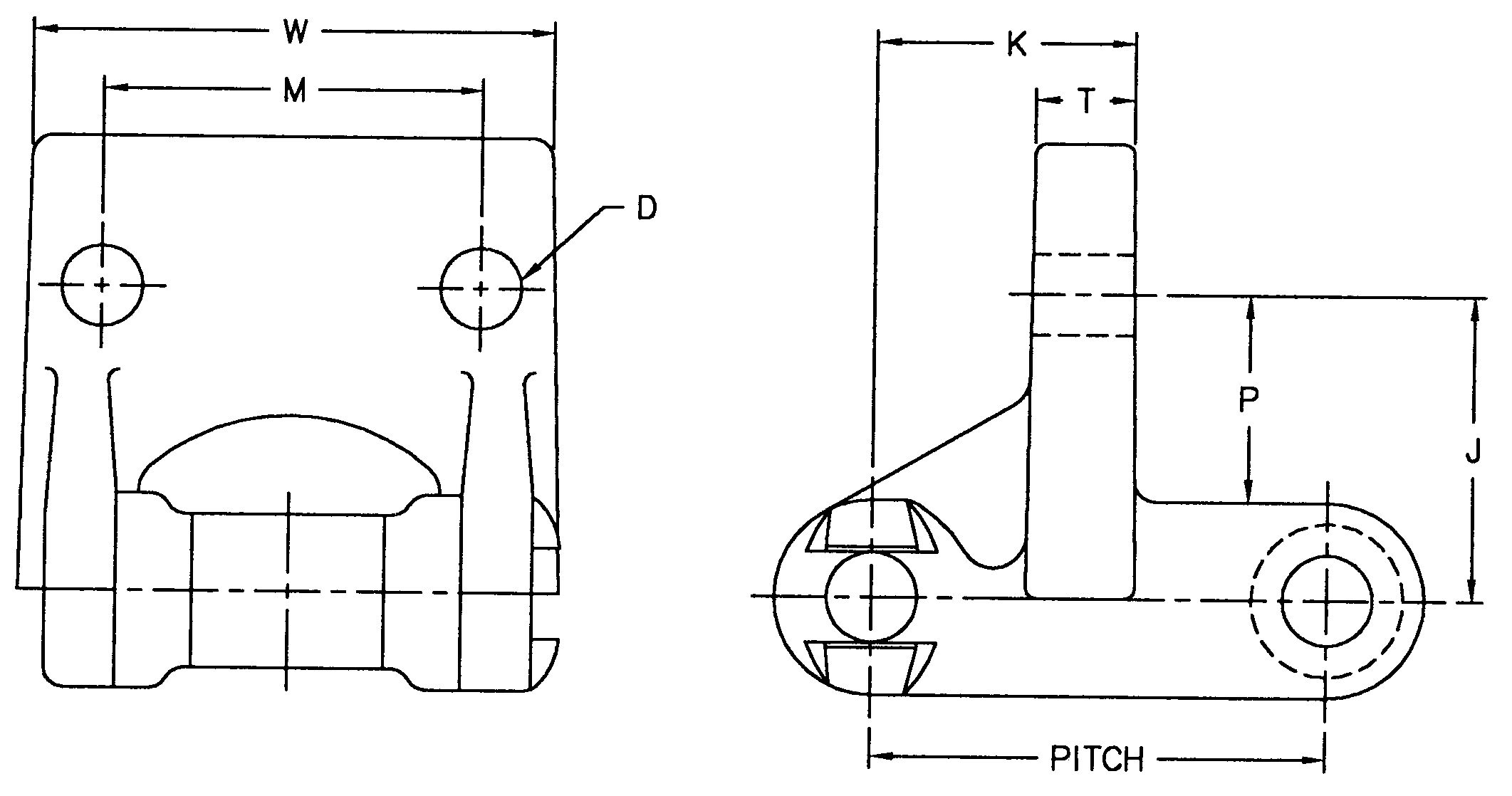

MOLINE ATTACHMENT NO.
 PITCH
D
 J
 K
 M
 P
 T
 W
BOLT DIAMETER
HOLE DIAMETER
H 78-F8
2.609
0.44
0.47
1.75
1.50
2.19
1.19
0.62
3.00
H Class Mill Chain with F8 Attachment H78-F8

Company Information

Raydafon transmission group is a professional manufacturer of particular chains with large pitches. We have a complete chain production line, equipment selection, and process design that adhere to high efficiency, energy-saving, and automation, with perfect testing equipment, high-quality enterprise management, and professional technical personnel. We focus on the production, processing, and sales of the drive chains, particular chains, chain accessories, machinery parts, and so on, forming an "aluminum, fine, special, creative" separate chain development and production system. We have mastered the core technology of chain production and are proficient in core processing. All products are widely used in sugar, paper, cement, wood, food, mining, metallurgy, and other industries. We pay attention to the reputation of product quality through IS09001:2008 quality management system certification and obtain self-supporting, agent-related products and technology import and export business qualifications. Our products are exported to all provinces and cities in China, Europe, America, and Southeast Asia.
H Class Mill Chain with F8 Attachment H78-F8
H Class Mill Chain with F8 Attachment H78-F8
1. Large bell-type intelligent annealing furnace:
stable and reliable annealing quality and low energy consumption2. Mesh belt furnace:
first-class domestic mesh belt furnace heat treatment production line3. Multipurpose furnace:
Epson multipurpose furnace provides stable and reliable heat treatment quality4. ABB intelligent welding robot:
instead of manual completion of complex welding operations, the welding is beautiful, stable, and reliable
5. Automatic hot riveter:?the self-developed automatic assembly line of welding chain can replace manual to realize automatic outcrop and hot riveting, with stable products, high precision, and high efficiency6. Induction quenching equipment:?the self-developed semi-automatic induction quenching equipment successfully realizes selective (local) induction quenching of pin shaft and induction quenching of sprocket teeth7. Programmable gantry cutting machine:?it has the functions of plasma cutting and flame cutting8. CNC machining center:?CNC vertical machining center and CNC horizontal machining center, which meet the processing of high-precision molds and products
