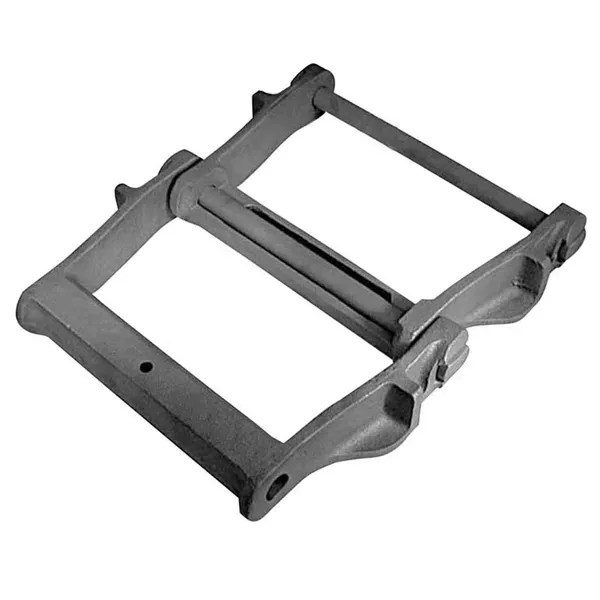

H120 Refuse Drag Chain

H120 Refuse Drag Chain

The H120 Refuse Drag Chain is a heavy-duty chain designed for conveying abrasive waste materials such as sawdust, wood chips, pulp, garbage, tankage, and ashes. It is available in a variety of sizes and configurations to meet the specific needs of each application. The H120 Refuse Drag Chain is a versatile and reliable chain that can be used in a variety of applications. It is a good choice for applications where large quantities of abrasive waste materials need to be conveyed quickly and efficiently.

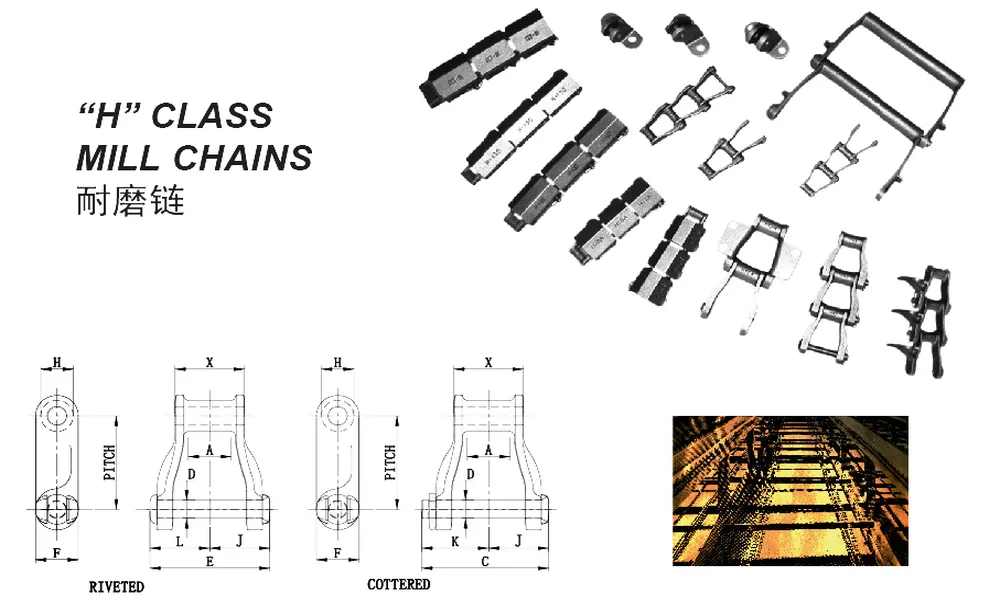

H120 Refuse Drag Chain Dimensions:

H120 Refuse Drag Chain Dimensions in Inches:

Chain No.	H120 Refuse Drag Chain
Pitch in Inches	6.000
Weight Per Foot LBS.	18.50
Average Ultimate Strength LBS.	49400
Maximum Working Load LBS.	8200
A	8.75
D	0.750
E	12.88
F	2.00
Ne	12.88
X	10.19
Available Attachments	None

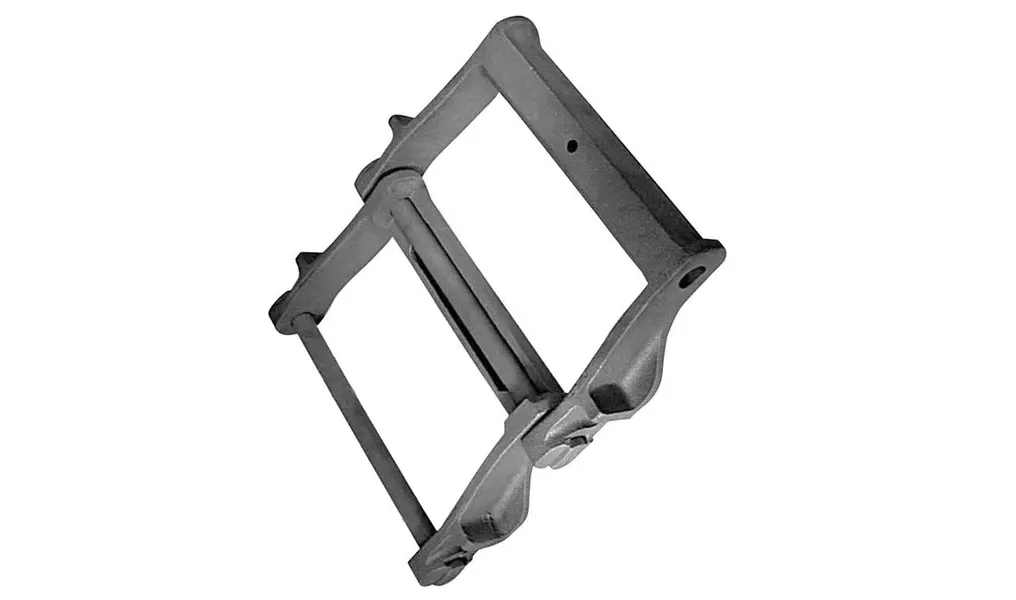

Features of H120 Refuse Drag Chain:

Here are some of the key features of the H120 Refuse Drag Chain:

1. Large, wide opening area: The H120 Refuse Drag Chain has a large, wide opening area that allows for a large volume of material to be conveyed at a time. This makes it ideal for applications where large quantities of material need to be moved quickly and efficiently.2. Flat front face: The flat front face of each barrel provides a broad area to push material along the trough and to keep the chain from riding over the top of the material. This helps to prevent material from accumulating in front of the H120 Refuse Drag Chain and causing a blockage.3. Rounded inner side: The rounded inner side of the barrel is carefully shaped to make excellent sprocket contact. This helps to reduce wear and tear on the H120 Refuse Drag Chain and sprockets, extending the life of both components.4. Reinforced sidebars: The sidebars of the H120 Refuse Drag Chain are reinforced with wearing shoes which provide both additional wearing surface and stiffening for the link. This makes the chain more durable and resistant to wear, even in harsh environments.5. Vertical member: A vertical member on each sidebar assures added link rigidity and protects the pin from damage. This helps to prevent the H120 Refuse Drag Chain from breaking or becoming misaligned, even under heavy loads.6. Grease chambers: Grease chambers, cored into each link's barrel, hold grease which lubricates pins. This helps to reduce friction and wear, extending the life of the H120 Refuse Drag Chain.

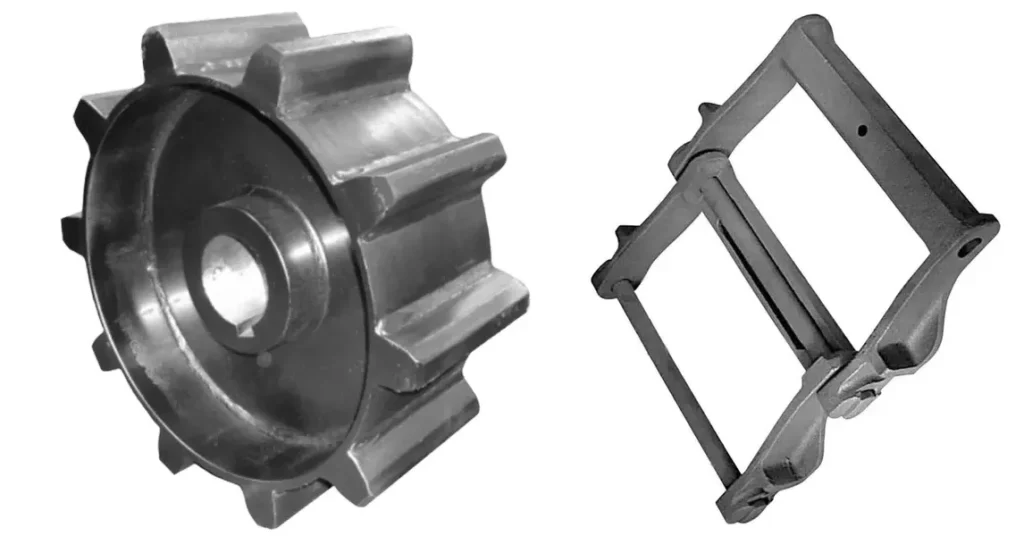

H120 Chain Sprockets for H120 Refuse Drag Chains:

H120 chain sprockets and H120 refuse drag chains are used in a variety of applications where high strength and durability are required. The H120 chain is an H-Class chain, which means that it is designed for use in heavy-duty applications. It is made with Promal cast links and heat-treated carbon steel pins, which gives it a high tensile strength and wear resistance. The H120 chain is also available in a variety of sizes, pitches, and constructions to meet the specific needs of each application.

H120 chain sprockets are designed to work with the H120 chain. They are typically made from steel or cast iron, and they have a wide face to provide good sprocket contact. H120 chain sprockets are available in a variety of sizes and pitches to match the specific chain that is being used.

H120 refuse drag chains are used to convey abrasive waste materials through wooden or steel troughs. They are designed to withstand the harsh conditions of these applications, and they can carry a significant amount of weight. H120 refuse drag chains are available in a variety of lengths and widths to accommodate different trough sizes.

Here are some of the benefits of using H120 chain sprockets and H120 refuse drag chains:

• High strength and durability
• Available in a variety of sizes, pitches, and constructions
• Wide-face sprockets for good sprocket contact
• Can withstand harsh conditions
• Can carry a significant amount of weight

Here are some specific applications where H120 chain sprockets and H120 refuse drag chains are commonly used:

• Conveying sawdust, wood chips, pulp, garbage, tankage, ashes, and other abrasive waste materials
• Material handling in industrial plants
• Mining and quarrying
• Construction
• Wastewater treatment
• Pulp and paper mills
• Food processing plants
