H131 Transfer Rooftop Chains

H131 Transfer Rooftop Chains

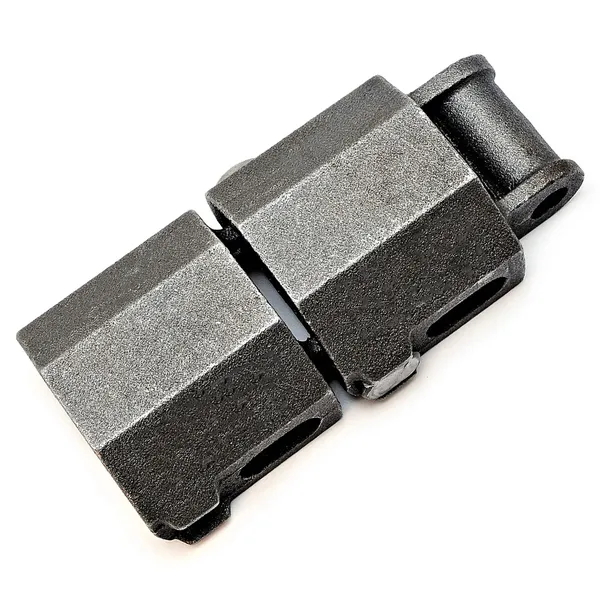

H131 transfer rooftop chains are a type of chain that is designed for carrying heavily concentrated loads, such as lumber, boxes, barrels, and crates. They are typically used in conveyor applications where the chain is running in a trough, with only the tops of the links protruding.

H131 rooftop chains are made of pearlitic malleable iron, which makes them strong and durable. They have a tensile strength of 29,900 pounds, and they can carry a maximum recommended working load of 4,700 pounds. The sidebars of H131 transfer rooftop chains are also strengthened, which provides an added benefit of a wear surface to prolong chain service life when operating in troughs or over floors and slider beds.

Here are some of the key features of H131 transfer rooftop chains:

• Heavy duty construction
• High tensile strength
• Durable pearlitic malleable iron
• Strengthened sidebars
• Designed for use in troughs
• Available in a variety of lengths and pitches

H131 transfer rooftop chains are a versatile and reliable solution for a variety of conveyor applications. They are ideal for transporting heavy loads in a safe and efficient manner.

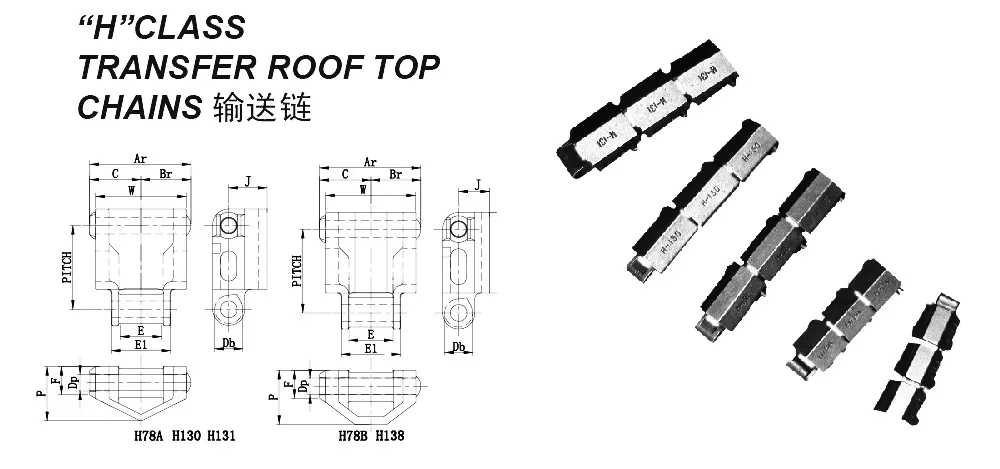

H131 Transfer Rooftop Chain Dimensions:

H131 Transfer Rooftop Chains Dimensions in Inches:

Chain No.	H131 Transfer Rooftop Chain
Pitch in Inches	4.000
Style of Top	A
Links Per 10 Feet	30
Weight Per Foot LBS.	8.4
Average Ultimate Strength Load LBS.	24000
Recommended Maximum Working Load LBS.	4700
Ar	4.00
Br	2.06
C	1.94
Db	1.25
Dp	0.625
E	1.62
E1	2.50
F	1.56
J	1.47
P	2.25
W	3.44

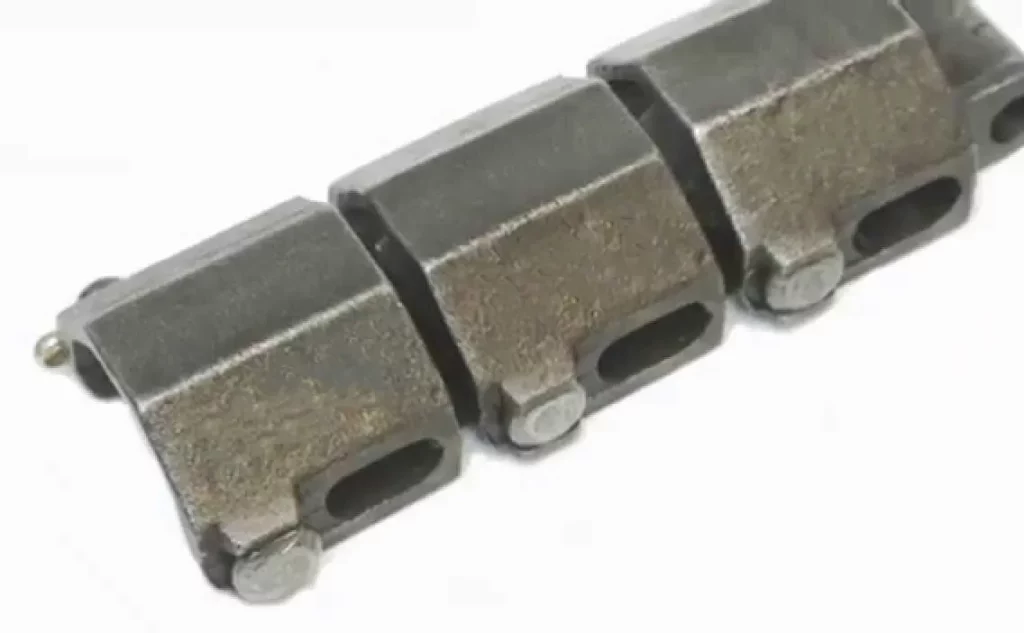

H131 Transfer Rooftop Chain Benefits:

H131 Transfer Rooftop Chains offer a number of benefits, including:

1. High tensile strength: H131 Transfer Rooftop Chains are made of pearlitic malleable iron, which gives them a tensile strength of 29,900 pounds. This makes them strong enough to handle even the heaviest loads.2. Durability: H131 Rooftop Chains are designed to withstand harsh environments and heavy use. The sidebars are strengthened to provide added wear resistance, and the chain is available in a variety of lengths and pitches to accommodate different applications.3. Versatility: H131 Transfer Rooftop Chains can be used in a variety of conveyor applications, including lumberyards, warehouses, manufacturing plants, and material handling facilities. They are also ideal for transporting heavy loads in abrasive environments.4. Ease of maintenance: H131 Rooftop Chains are relatively easy to maintain. They can be cleaned and lubricated with simple tools, and they are not prone to wear and tear.

Overall, H131 transfer rooftop chains are a reliable and versatile solution for a variety of conveyor applications. They are strong, durable, and easy to maintain, making them a wise investment for businesses that need to transport heavy loads.

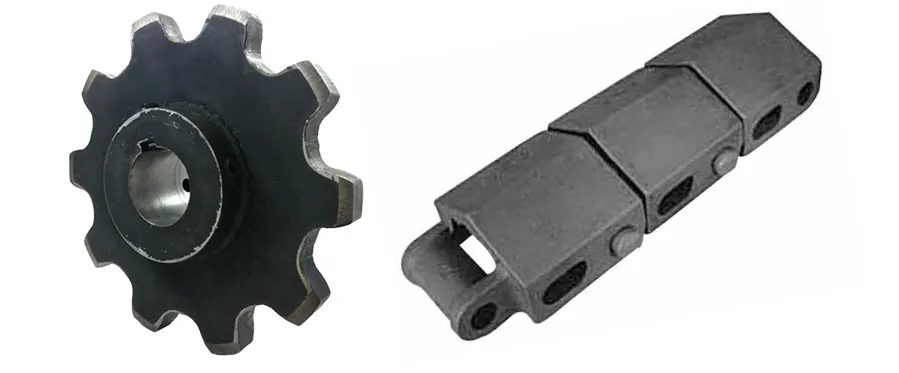

H131 Chain Sprockets for H131 Rooftop Chains:

H131 chain is a heavy-duty, high-quality rooftop transfer chain that is manufactured out of pearlitic malleable iron. It is designed to carry heavily concentrated loads, such as lumber, boxes, barrels, and crates. It is usually intended for operation in troughs, in two or more parallel strands, with only the tops of the links protruding.

H131 chain sprockets are designed to work with the H131 rooftop chain. They are made from high-quality materials and are precision-machined to ensure smooth operation and long life.

Here are some of the key features of the H131 rooftop chain and H131 chain sprockets:

• Heavy-duty construction for carrying heavy loads
• Long life and durability
• Precision-machined for smooth operation
• Available in a variety of sizes and styles to meet specific application requirements

H131 rooftop chain and H131 chain sprockets are used in a variety of applications, including:

• Conveyors
• Forest products
• Material Handling
• Stackers

If you are looking for a heavy-duty, high-quality rooftop transfer chain or chain sprockets, the H131 rooftop chain is a great option. It is a proven product that has been used in a variety of demanding applications for many years.

China "H" Class Transfer Rooftop Chain?Manufacturers

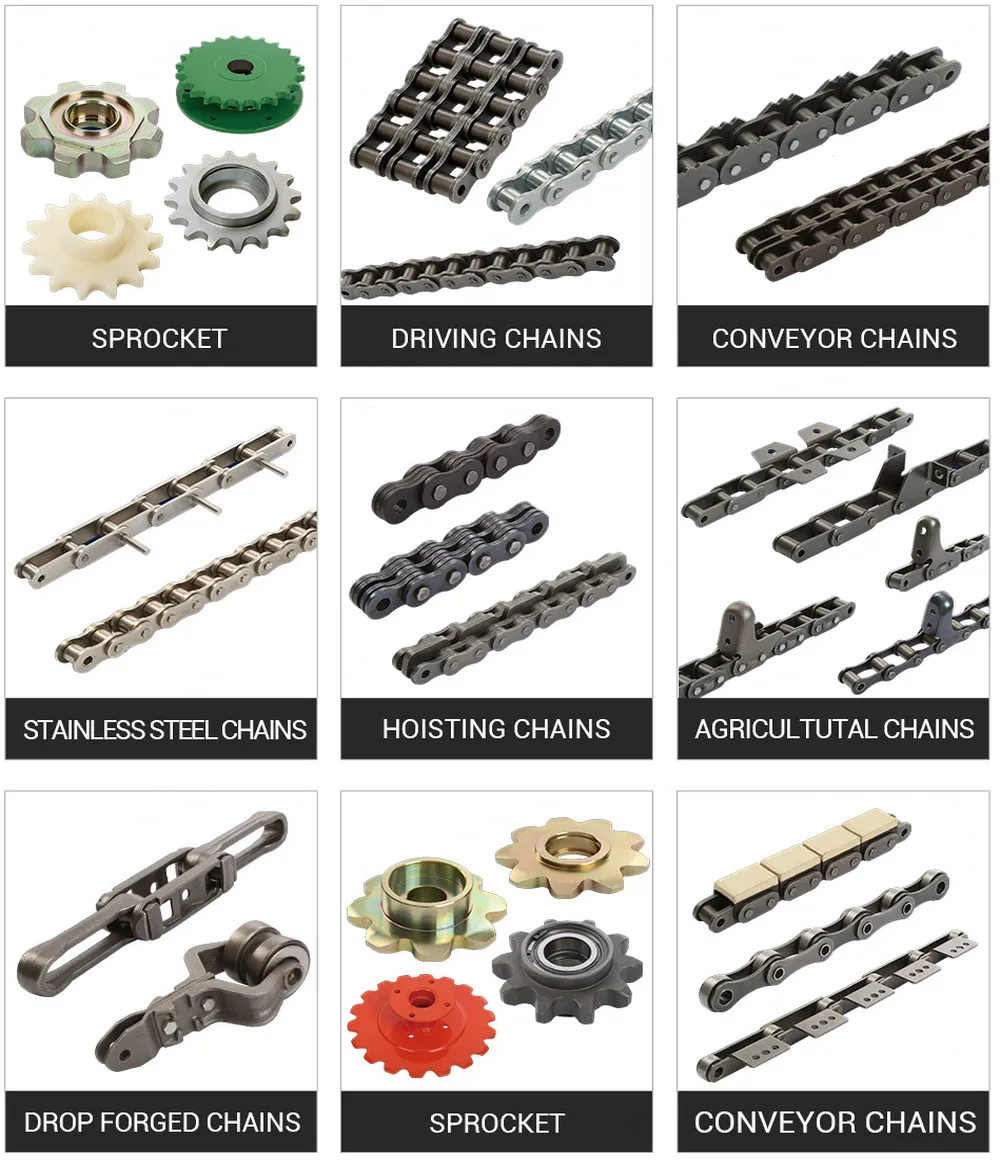

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains,?grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain,?steel pintle chain, welded steel chain, drop forged chain, malleable iron chain,?“H” Class mill chain,?CC Class crate conveyor chain, “H” Class refuse drag chain, and many other types. Different kinds of attachments are available.
