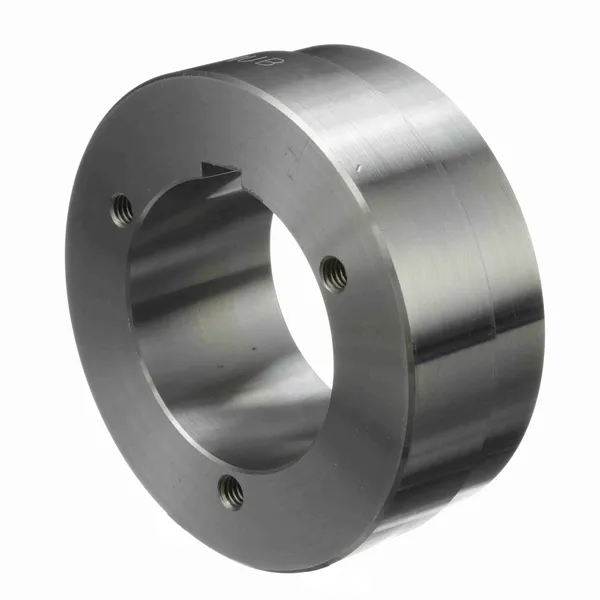

HB2 Steel Hubs for Split Taper Bushings

HB2 Steel Hubs for B Split Taper Bushings

HB2 steel hubs are a type of mechanical component used in power transmission systems. Specifically, they are designed to be used in conjunction with split taper bushings to create a secure and reliable connection between a shaft and a mounted component such as a pulley or sprocket.The HB2 steel hubs are typically made of high-quality steel, which provides the necessary strength and durability to withstand the demands of heavy-duty applications. The HB2 hub has a tapered bore that matches the size and taper angle of the split taper bushing, allowing the bushing to be inserted and securely fastened to the hub.Once the split taper bushing is installed, the hub can be mounted onto a shaft using set screws or other types of fasteners. The result is a tight and secure connection that can transmit high levels of torque without slipping or failing.Overall, HB2 steel hubs are an important component in many power transmission applications, allowing for easy assembly and disassembly while maintaining high levels of precision and reliability.

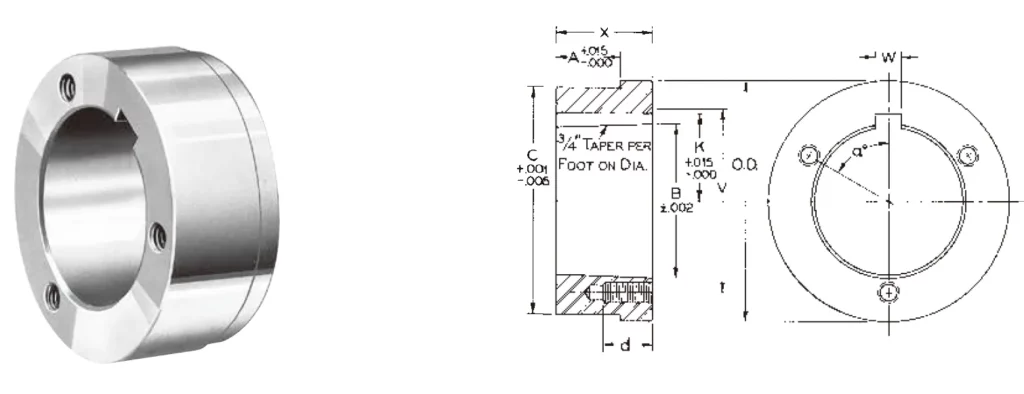

HB2 Steel Hubs Dimensions:

Part No.		HB2 Steel Hubs
For Bushing		B Split Taper Bushings
Dimensions	O.D.	4 1/2"
	A	0.709"
	B	2.623"
	C	4.375"
	K	1 7/16"
	V	3 1/8"
	W	1/2"
	X	1 3/4"
	a	60°
Tapped Holes	d	13/16"
	No.	3
	Size	5/16-18
Wt. Lbs.		4.7

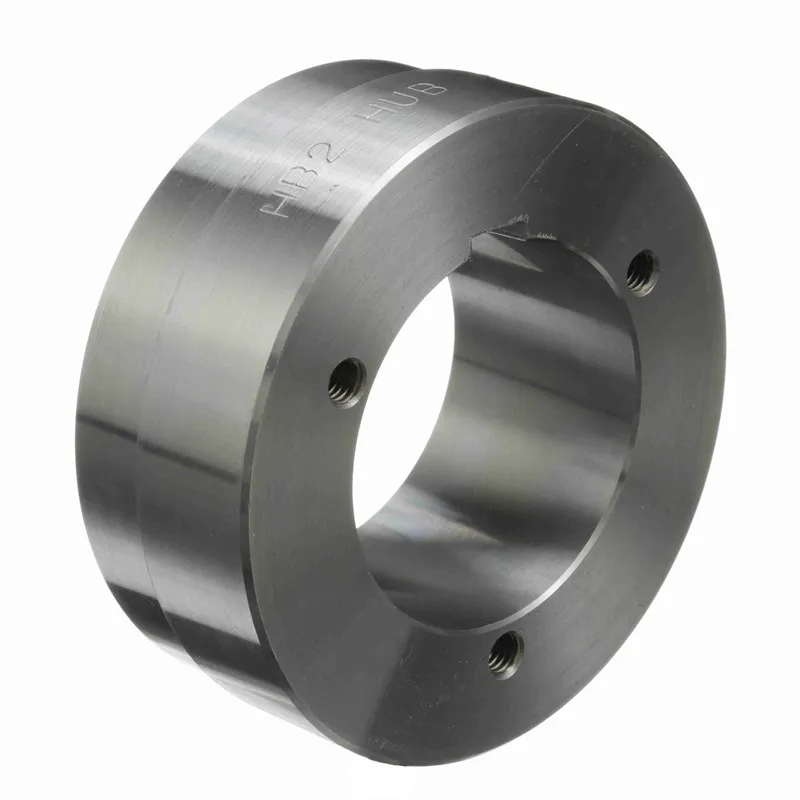

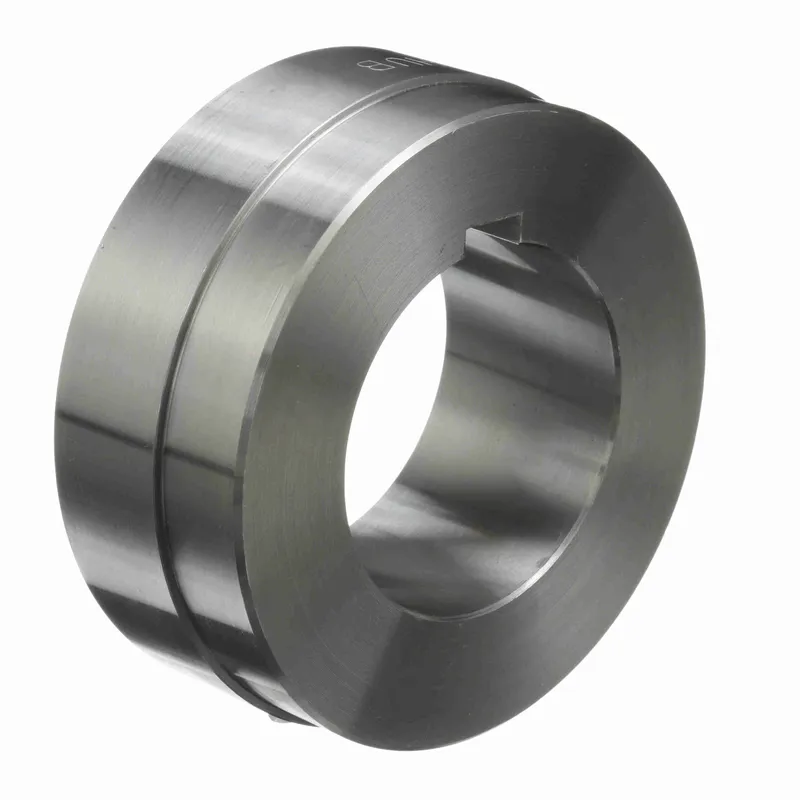

HB2 Steel Hubs for Split Taper Bushings Characteristics:

HB2 steel hubs for split taper bushings are commonly used in power transmission applications to provide a secure and reliable connection between a shaft and a driven component. The characteristics of these hubs include:1. Material: HB2 steel hubs are typically made of high-quality steel, which offers a combination of strength, durability, and resistance to wear and corrosion.2. Design: HB2 steel hubs for split taper bushings are designed to provide a tight and secure fit between the hub and the shaft. The split taper bushing allows for easy installation and removal of the hub while ensuring a secure connection during operation.3. Finish: HB2 steel hubs are typically finished with a black oxide coating to protect against corrosion and wear. This coating also provides a smooth surface for the split taper bushing to slide onto.4. Sizes: HB2 steel hubs are available in a range of sizes to accommodate different shaft diameters and torque requirements. They are typically designed to work with split taper bushings that conform to industry standards, such as those set forth by the Power Transmission Distributors Association (PTDA).5. Applications: HB2 steel hubs for split taper bushings are commonly used in a variety of power transmission applications, including conveyor systems, pumps, fans, and other machinery. They are ideal for applications that require a reliable and secure connection between a shaft and a driven component.

HB2 Steel Hubs for Split Taper Bushings Uses:

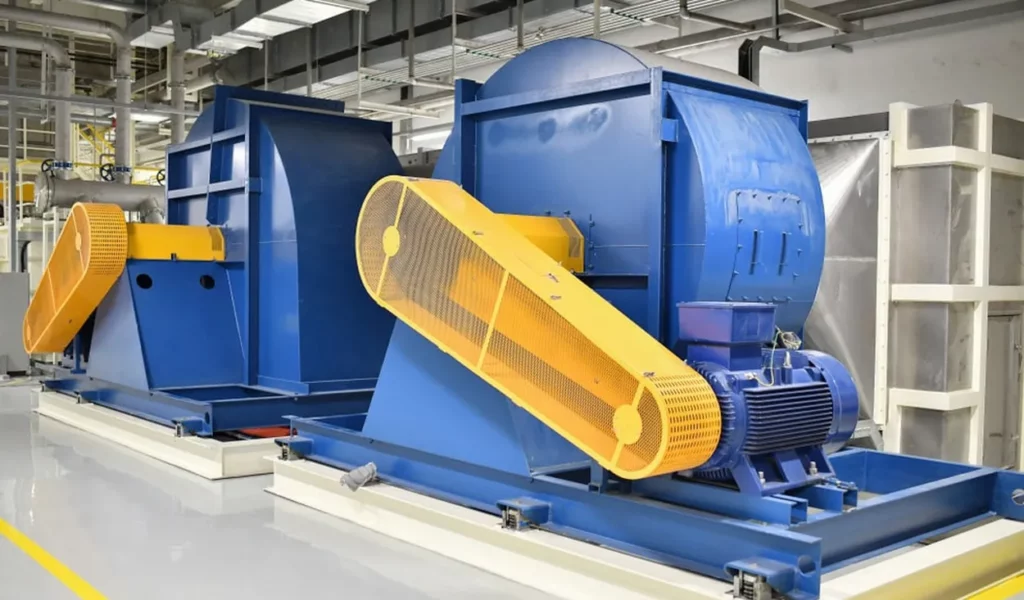

HB2 steel hubs for split taper bushings are commonly used in a variety of power transmission applications. They are typically used to connect a shaft to rotating equipment such as pulleys, sprockets, and gears. Here are some of the most common uses of HB2 steel hubs for split taper bushings:(1) Conveyor systems: HB2 steel hubs are commonly used in conveyor systems to connect the motor to the conveyor belt. The split taper bushing design allows for easy installation and removal of the hub, which can be useful in applications where the conveyor belt needs to be replaced or serviced.(2) Pumps and compressors: HB2 steel hubs are often used in pumps and compressors to connect the motor to the impeller or compressor wheel. This provides a secure and reliable connection that can withstand high loads and pressures.(3) Fans and blowers: HB2 steel hubs are also commonly used in fans and blowers to connect the motor to the fan or blower wheel. The split taper bushing design allows for easy installation and removal of the hub, which can be useful in applications where the fan or blower needs to be serviced.(4) Machine tools: HB2 steel hubs are used in machine tools to connect the motor to the spindle or other rotating components. The split taper bushing design allows for easy installation and removal of the hub, which can be useful in applications where different tooling is needed.

China Steel Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Steel hubs for split taper bushings are available in a variety of materials, such as stainless steel, aluminum, and copper. If you are looking for a wide selection of high-quality products at a competitive price, Raydafon's steel hubs are the perfect choice. Raydafon's steel hubs for split taper bushings are crafted to meet or exceed industry standards. We can supply the replacement of Dodge hubs, Browning hubs, Martin hubs, etc. The steel hubs for split taper bushings are manufactured from C45 steel, making them suitable for a wide variety of industrial applications.
