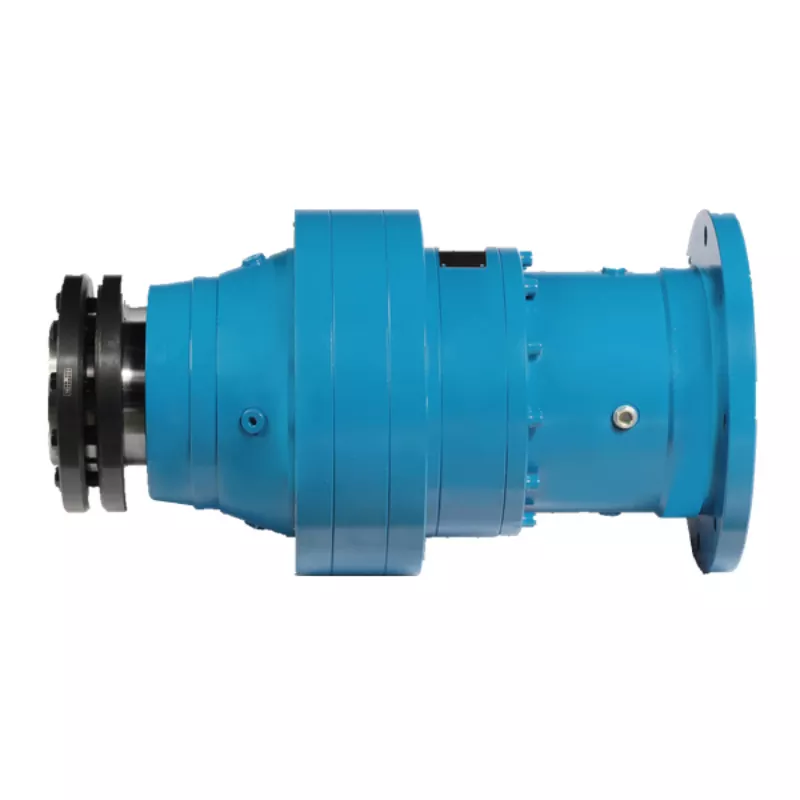

Inline Planetary Gear Reducer Planetary Gearbox

Superior PerformanceThe replacement of NBPG NB300L Series inline planetary gear reducer is the best gearbox solution for all applications requiring high torque with minimal dimensions, such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution offers a substantial improvement over ordinary gearboxes in terms of space occupation and weight. This gearbox combines high performance with low cost and compact size, excellent reliability, simple installation, and reduced maintenance. The replacement of NB300L Series planetary gearboxes comes in a range of sizes to ensure optimum duration and silent running in all sorts of applications.The replacement of the NB300L Series is also available in a high-power version, linking the performance of our planetary technology with the high quality and reliability of gearboxes: a solution that is more efficient, quieter, and more compact, and more cost-effective compared with traditional gear units.Key Features1. Torque range: 1000-450.000 Nm2. Transmissible mechanical power: up to 540 kW3. Gear ratios: 3.4-9.0004. Gear unit versions: inline5. Output configurations:1) Foot and flange mounted2) Output shaft: solid with key, splined, splined hollow3) Hollow with shrink disc6. Input configurations:1) Flanged axial piston hydraulic motors2) Hydraulic orbit motors3) IEC and NEMA motor adaptors4) Solid input shaft7. Hydraulic brake: hydraulically released parking brake8. Electric brake: DC and AC typeedited by CX

Tipo		Torque Nm
NB300L	NB300L1, NB300L2, NB300L3, NB300L4	1000
NB301L	NB301L1, NB301L2, NB301L3, NB301L4	1750
NB303L	NB303L1, NB303L2, NB303L3, NB303L4	2500

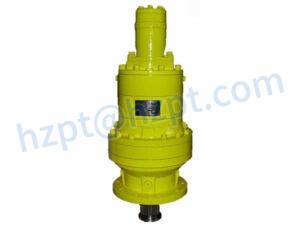

NB305L	NB305L1, NB305L2, NB305L3, NB305L4	5000
NB306L	NB306L1, NB306L2, NB306L3, NB306L4	8500
NB307L	NB307L1, NB307L2, NB307L3, NB307L4	12500
NB309L	NB309L1, NB309L2, NB309L3, NB309L4	18000
NB310L	NB310L1, NB310L2, NB310L3, NB310L4	25000
NB311L	NB311L1, NB311L2, NB311L3, NB311L4	40000
NB313L	NB313L1, NB313L2, NB313L3, NB313L4	55000
NB315L	NB315L1, NB315L2, NB315L3, NB315L4	100000
NB316L	NB316L1, NB316L2, NB316L3, NB316L4	135000
NB317L	NB317L1, NB317L2, NB317L3, NB317L4	170000
NB318L	NB318L1, NB318L2, NB318L3, NB318L4	250000
NB319L	NB319L1, NB319L2, NB319L3, NB319L4	350000
NB321L	321L 1, 321L2, 321L3, 321L4	500000
