Male Branch Tee-NPT Flared Tube Fittings

Flared Tube Male Branch Tee Fittings

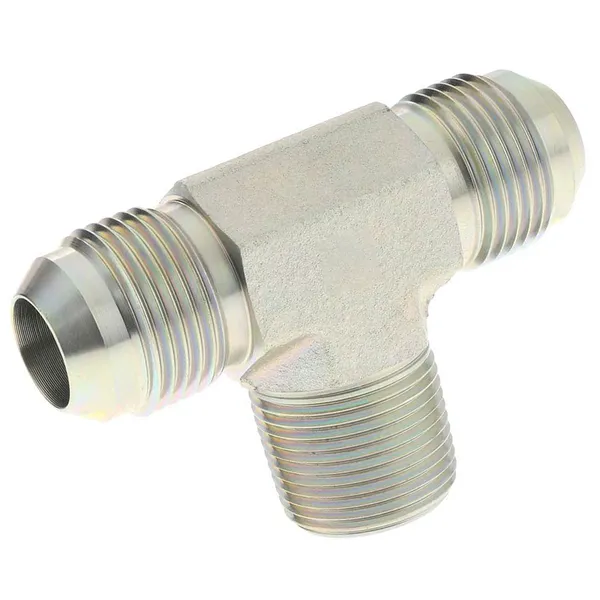

Flared tube male branch tee fittings are T-shaped connectors with three ends: two ends designed for connecting with flared tubes and one male threaded end. The male threaded end allows it to be connected to a female threaded component, while the two flared tube ends facilitate branching out to tubes. Flared tube male branch tee fittings are specialized components used in various fluid and gas systems to facilitate branching connections. Designed to provide a reliable and leak-proof connection, they are an essential part of many hydraulic, pneumatic, and refrigeration systems.Key Features:

1. Three-Way Connection: As the name suggests, these fittings are tee-shaped, enabling the formation of a three-way connection.
2. Flared Design: The tube ends are tailored for flared tube connections, ensuring a wider sealing surface and a tight, leak-proof seal.
3. Male Threaded Branch: The third branch has male threads, which can be screwed into female-threaded components or adapters.

Materials:Flared Tube Male Branch Tee Fittings can be constructed from various materials to cater to specific application requirements:

• Brass: Often chosen for its corrosion resistance and good conductivity.
• Stainless Steel: Durable and resistant to corrosion and high temperatures, stainless steel is ideal for heavy-duty applications.
• Carbon Steel: Typically used in high-pressure scenarios due to its high strength.

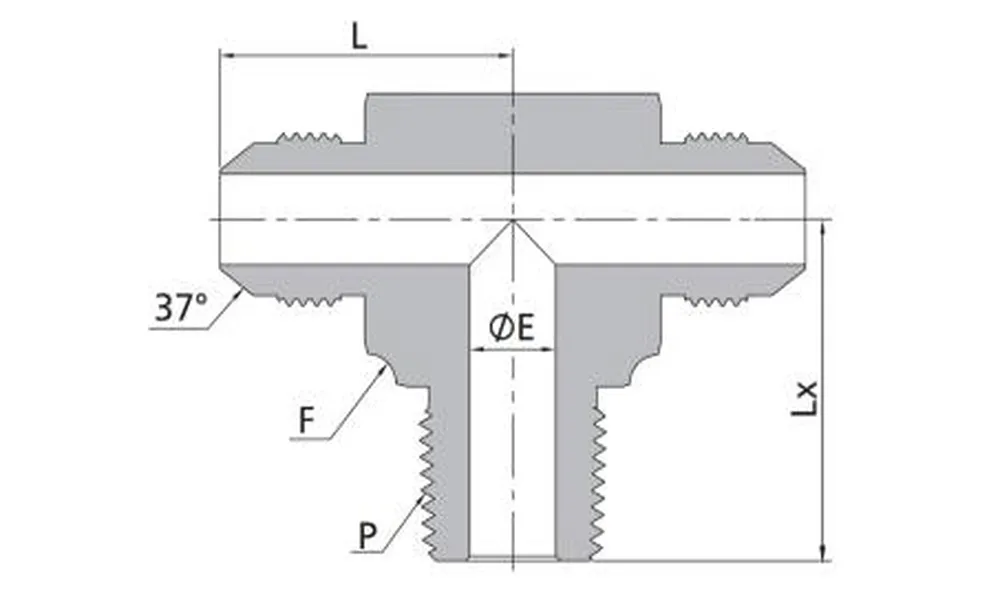

Flared Tube Male Branch Tee Fittings Size Chart:

T-Tube O.D		P-NPTSize	Basic Ordering Number	Dimension, in. (mm)
In.	mm			L	E	F (Flat)	Lx
1/8	3	1/8	-MBT-AN2-MN2	0.77 (19.6)	0.06 (1.6)	0.44 (11.1)	0.72 (18.3)
3/16	4	1/8	-MBT-AN3-MN2	0.83 (21.1)	0.13 (3.2)	0.44 (11.1)	0.72 (18.3)
1/4	6	1/8	MBT-AN4-MN2	0.89 (22.6)	0.17 (4.4)	0.50 (12.7)	0.78 (19.8)
1/4	6	1/4	-MBT-AN4-MN4	1.06 (26.9)	0.17 (4.4)	0.56 (14.3)	1.09 (27.7)
5/16	8	1/8	-MBT-AN5-MN2	0.95 (24.1)	0.19 (4.8)	0.56 (14.3)	0.78 (19.8)
5/16	8	1/4	-MBT-AN5-MN4	1.06 (26.9)	0.24 (6.0)	0.56 (14.3)	1.09 (27.7)
3/8	10	1/8	-MBT-AN6-MN2	1.06 (26.9)	0.19 (4.8)	0.56 (14.3)	0.90 (22.8)
3/8	10	1/4	-MBT-AN6-MN4	1.06 (26.9)	0.28 (7.1)	0.56 (14.3)	1.09 (27.7)
3/8	10	3/8	-MBT-AN6-MN6	1.14 (29.0)	0.30 (7.5)	0.69 (17.5)	1.22 (31.0)
3/8	10	1/2	-MBT-AN6-MN8	1.23 (31.2)	0.30 (7.5)	0.81 (20.6)	1.47 (37.3)
1/2	12	1/4	-MBT-AN8-MN4	1.25 (31.8)	0.28 (7.1)	0.81 (20.6)	1.22 (31.0)
1/2	12	3/8	-MBT-AN8-MN6	1.25 (31.8)	0.39 (9.9)	0.81 (20.6)	1.22 (31.0)
1/2	12	1/2	-MBT-AN8-MN8	1.33 (33.7)	0.39 (9.9)	0.81 (20.6)	1.47 (37.3)
1/2	12	3/4	-MBT-AN8-MN12	1.42 (36.0)	0.39 (9.9)	1.00 (25.4)	1.59 (40.4)
5/8	16	3/8	-MBT-AN10-MN6	1.45 (36.8)	0.39 (9.9)	0.81 (20.6)	1.30 (33.0)
5/8	16	1/2	-MBT-AN10-MN8	1.45 (36.8)	0.48(12.3)	0.81 (20.6)	1.47 (37.3)
5/8	16	3/4	-MBT-AN10-MN12	1.53 (38.9)	0.48(12.3)	1.00 (25.4)	1.59 (40.4)
3/4	18	3/4	-MBT-AN12-MN12	1.66 (42.2)	0.61(15.5)	1.06 (27.0)	1.59 (40.4)
3/4	18	1	-MBT-AN12-MN16	1.66 (42.2)	0.61(15.5)	1.25 (31.8)	1.98 (50.4)
7/8	22	3/4	-MBT-AN14-MN12	1.80 (45.7)	0.72(18.3)	1.25 (31.8)	1.69 (42.9)
1	25	3/4	-MBT-AN16-MN12	1.81 (46.0)	0.72 (18.3)	1.37 (34.9)	1.78 (45.2)
1	25	1	MBT-AN16-MN16	1.81 (46.0)	0.85 (21.5)	1.37 (34.9)	1.97 (50.0)
1 1/4	32	1	MBT-AN20-MN16	2.06 (52.3)	0.94 (23.8)	1.69 (42.9)	2.35 (59.6)
1 1/4	32	1 1/4	MBT-AN20-MN20	2.06 (52.3)	1.08 (27.5)	1.69 (42.9)	2.38 (60.5)
1 1/2	38	1 1/2	MBT-AN24-MN24	2.33 (59.2)	1.30 (33.0)	2.00 (50.8)	2.64 (67.1)
2	50	2	MBT-AN32-MN32	3.06 (77.7)	1.77 (45.0)	2.50 (63.5)	3.00 (76.2)

Typical Applications of Flared Tube Male Branch Tee Fittings:

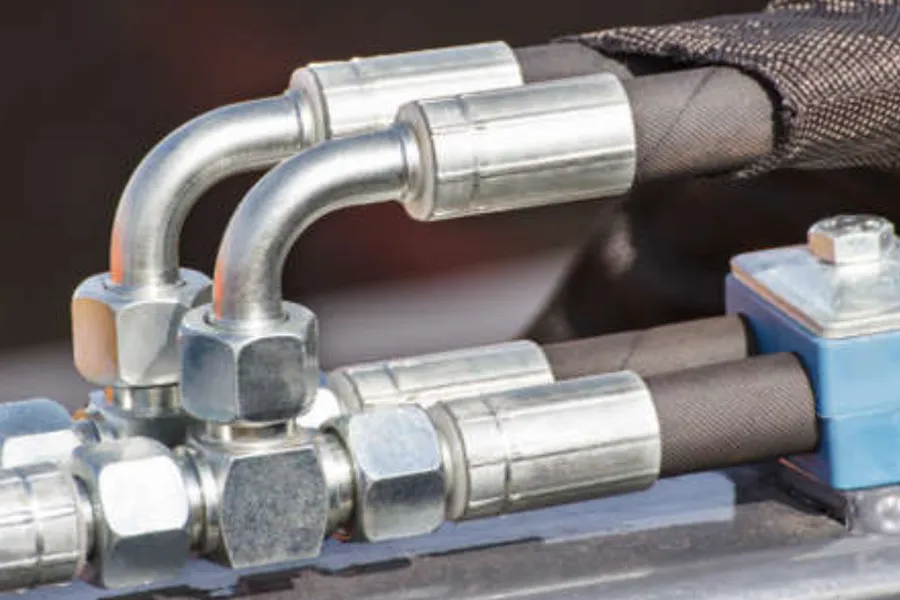

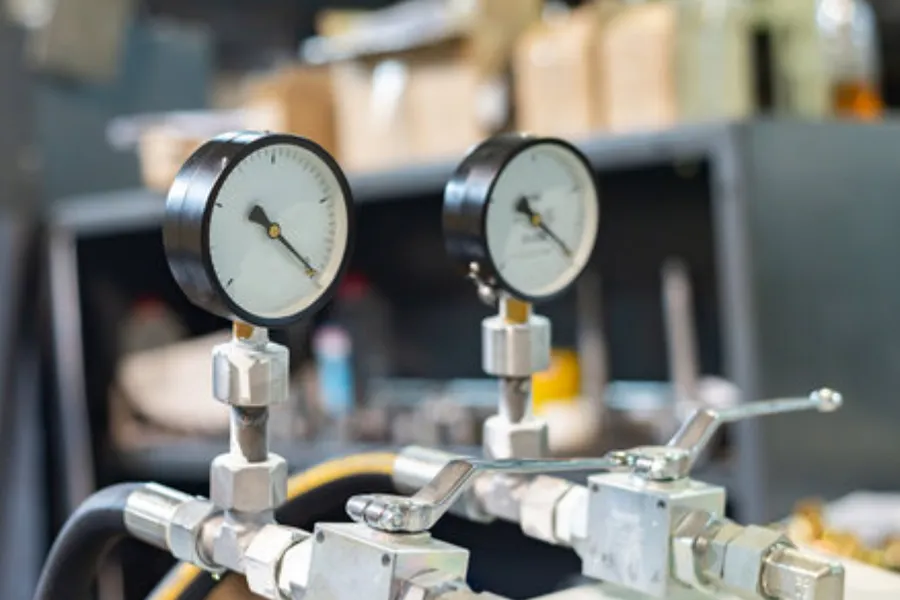

Flared tube male branch tee fittings find applications in various industries and systems where fluid or gas distribution needs to be directed to multiple locations. Here are some typical applications:1. Plumbing Systems: Flared tube male branch tee fittings are commonly used in plumbing systems for water supply, drainage, and gas distribution. They are employed to split the flow of water or gas from a mainline into multiple branches, allowing for connections to fixtures, appliances, or other plumbing components.2. Hydraulic Systems: These fittings are widely utilized in hydraulic systems, such as those found in heavy machinery, construction equipment, and industrial applications. They enable the branching of hydraulic fluid lines to different actuators, valves, or components, allowing for controlled movement and operation.3. Automotive Industry: Flared tube male branch tee fittings are employed in various automotive systems. They can be found in brake systems, where they help distribute brake fluid to different wheels, or in fuel delivery systems, where they split the fuel line to different fuel injectors.4. HVAC (Heating, Ventilation, and Air Conditioning) Systems: In HVAC systems, these fittings are used to divide the flow of refrigerant or other fluids into different sections or units. They allow for the connection of pipes leading to separate air conditioning units, heating zones, or ventilation ducts.5. Industrial Processes: Flared tube male branch tee fittings are utilized in various industrial processes where fluid or gas distribution is required. Examples include chemical processing plants, oil refineries, food and beverage production, and pharmaceutical manufacturing. These fittings help direct the flow of materials to different parts of the process or equipment.6. Instrumentation and Control Systems: They are also used in instrumentation and control systems where precise fluid or gas flow is necessary. These fittings enable the branching of fluid lines to different instruments, sensors, or control devices, facilitating the measurement, monitoring, and regulation of various parameters.Flared tube male branch tee fittings are valued for their robustness, ease of installation, and reliable sealing capabilities. They provide a versatile solution for splitting fluid or gas flow, making them widely applicable in numerous industries and systems that require efficient distribution to multiple locations.
