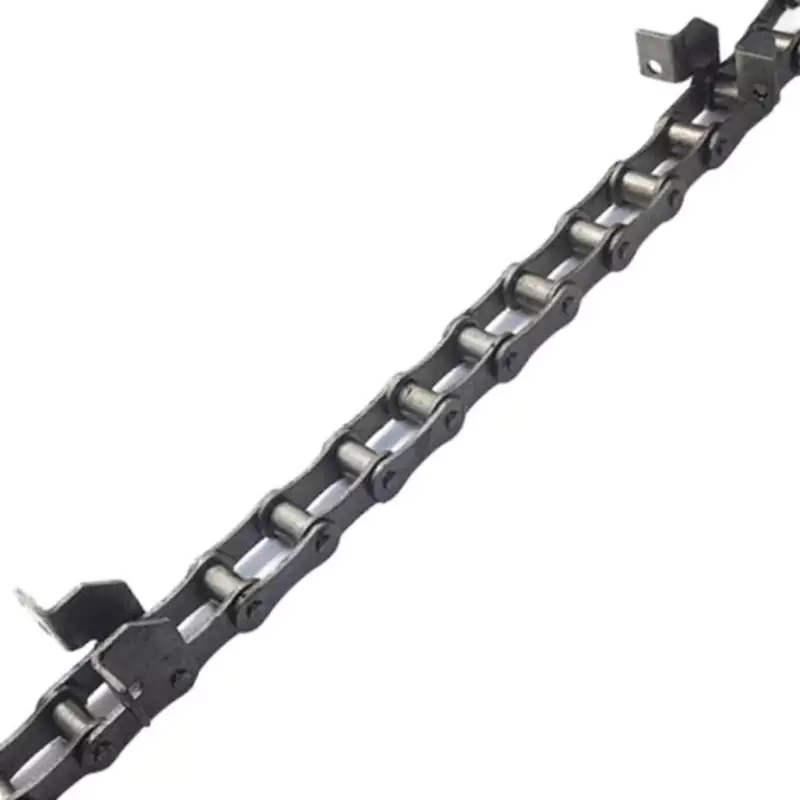

P41.3SD Special Agricultural Chains with SD Attachments

P41.3SD Special Agricultural Chains

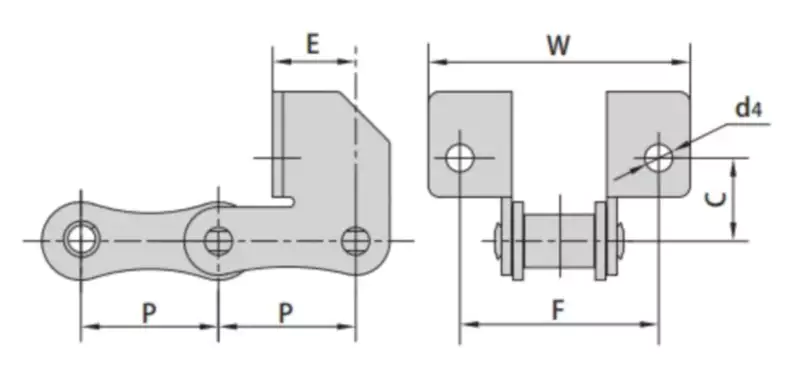

Chain?No	P	C	E	F	W	d4
	mm	mm	mm	mm	mm	mm
P41.3SD	41.3	25	25	60	79	6.4

The p41.3sd accessory is manufactured for high strength and durability. It can be assembled to the chain in any required configuration or provided as an accessory for field installation. Please contact us to get a quote or more information, and we will be happy to help you.The reliability and quality of all agricultural chains are based on rigorous testing in laboratories and simulation production facilities, where various operating conditions are applied. Only after a detailed sampling procedure can the chain be continuously produced.We offer the following agricultural chains:For harvesters: ? feeding chain ? lifting chain - clean grain elevator - tailings elevator ? collection chain for corn, sunflower, and other particular crops ? drive chainFor the basket: ? round baler chain ? drive chain ? reinforced chain ? optimized wear chainOther applications: ? straw lifting chain ? scraper conveyor chain ? bucket lifting chain ? coarse conveying chain ? leaf chain

Related Sprockets and Chains

Sprockets fit our entire conveyor chain range.The drive chain and the conveying chain are driven by sprockets. The uniform distribution of power depends on the precise transmission between the sprocket teeth and the chain rollers or bushes.Because sprockets significantly impact the chain's life, all challenging sprockets (from casting to precision mechanical cutting) are manufactured according to strict tolerances and quality control. We also recommend that all customers replace the sprocket when replacing the chain to maximize the chain life.

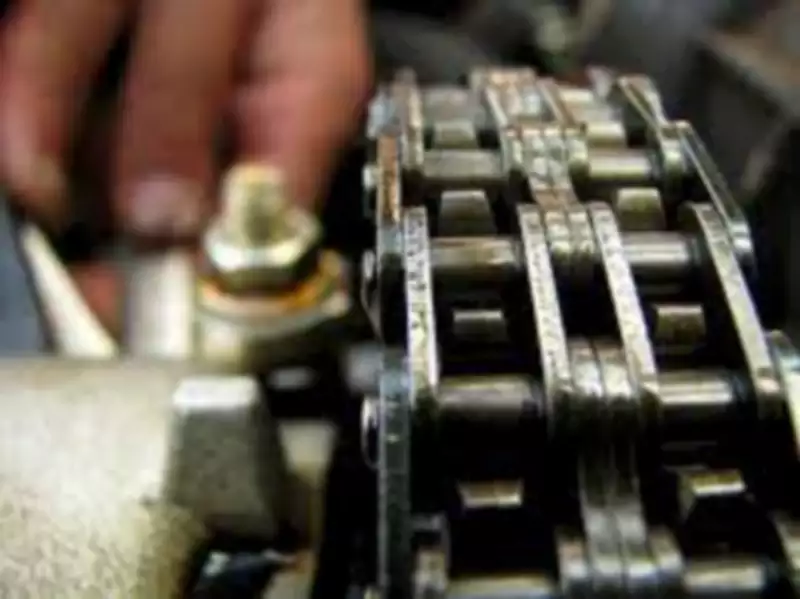

How to lubricate your chain

• The flow of lubricating oil

Each hinge of the roller chain is a radial bearing, so it must be fully and effectively lubricated to obtain the highest wear life. Adequate lubrication can reduce the wear of pin shaft and sleeve sound and make the sprocket and chain roller flat, slow down the impact of roller and sprocket, make heat loss, take away wear debris and foreign matters, and prevent corrosion.Before the chain is engaged with the sprocket, the lubricating oil shall be applied to the upper part of the chain plate at the sagging section. Gravity and centrifugal force will cause the lubricating oil to flow to the surface of the pin shaft and sleeve to be lubricated. The lubricant carried by the edge of the chain plate also provides lubrication to the surface of the pin shaft and the sleeve.

• Characteristics of lubricants

The lubricant for roller chain transmission shall have the following characteristics:

1. ?Sufficiently low viscosity to allow lubricating oil to penetrate the surface to be lubricated;
2. ?Maintain sufficient viscosity of lubricating oil film or add appropriate additives under normal bearing pressure;
3. ?Clean and free of corrosive substances;
4. It has the ability to maintain the lubrication quality under normal working conditions. High-quality lubricating oil extracted from petroleum without detergent can meet these requirements. Generally, detergent is not required, but it is better to contain additives for anti-foaming, rust prevention, and increasing oil film strength.

China's Top Agricultural Chain Manufacturer

Raydafon chain is a famous Zhejiang Province brand product and a famous Zhejiang Province trademark. The company mainly produces standard and non-standard chains of various specifications, such as conveyor chains, stainless steel chains, agricultural machinery chains, etc., with sales networks worldwide. It has cooperated with jiangdier, New Holland, Klaas, Kubota, Yangma, and other enterprises.Raydafon Group has advanced equipment, with high-precision CNC equipment such as a slow wire cutting machine, coordinate grinder, and EDM, to ensure that the mold processing reaches the first-class precision level; The advanced, efficient, and environmentally friendly continuous acid rolling line is the most extensive raw material transformation equipment in China's chain industry. The enterprise has also established a sound quality management system with advanced and complete testing and testing equipment. Since 1996, it has successively passed ISO9002 certification, ISO9001 certification, API certification, ISO / TS16949 certification, and ISO10012 certification. In 2008, it won the "export inspection free enterprise." Lean manufacturing in production, making full use of various advanced processes and technologies, from material selection and restructuring to parts manufacturing, from parts heat treatment to chain automatic assembly; From quality control to product inspection and test; From order processing to after-sales service, every process, every link, every performance, every power requires to be meticulous and considerate.
