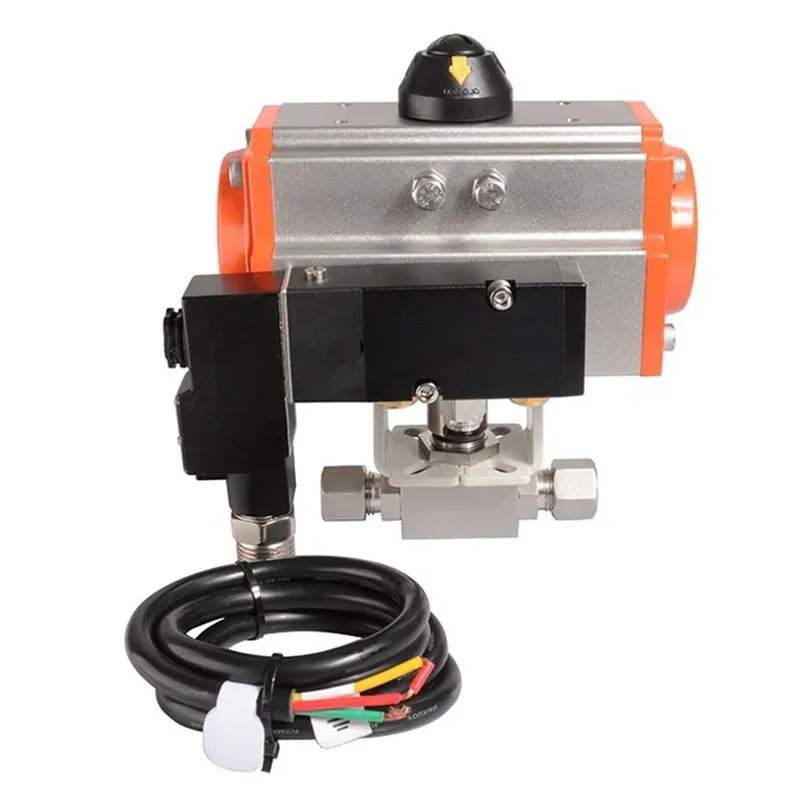

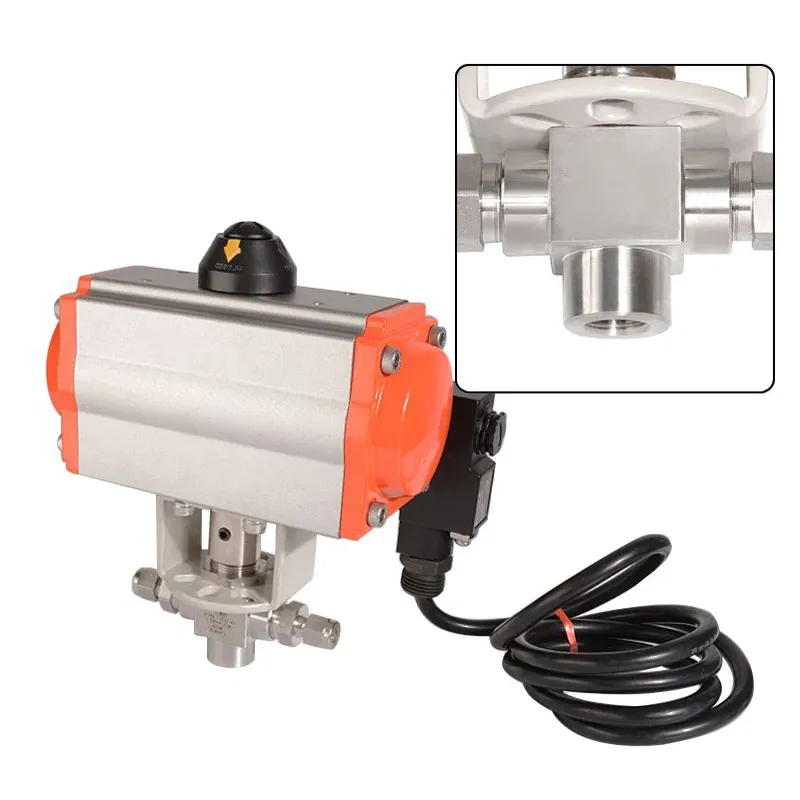

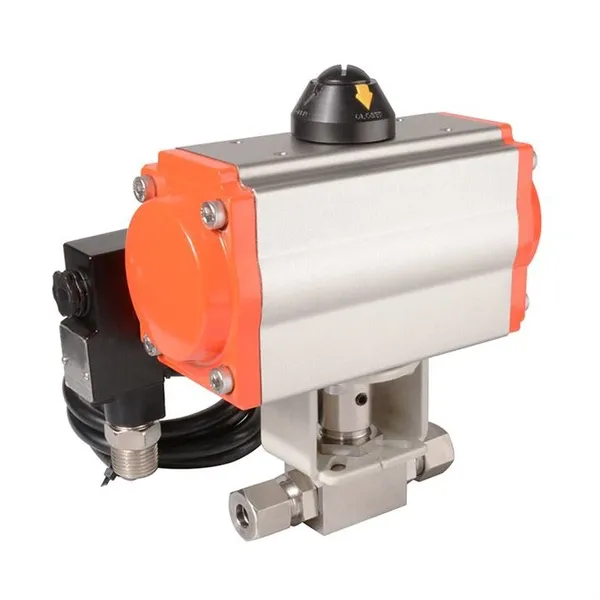

PBV Series Pneumatic Hydraulic Ball Valves

PBV Series Pneumatic Hydraulic Ball Valves

PBV series pneumatic hydraulic ball valves are a type of valve commonly used in industrial applications to control the flow of fluids, such as liquids or gases. These hydraulic ball valves are designed to handle high-pressure and high-temperature environments, making them suitable for a wide range of industries, including oil and gas, chemical processing, power generation, and water treatment.Pneumatic hydraulic ball valves consist of a spherical ball with a hole in the center that acts as the flow control mechanism. When the valve is open, the ball allows fluid to pass through the hole, and when it is closed, the ball blocks the flow of fluid. The valve is operated using compressed air or hydraulic pressure, which actuates the valve actuator to rotate the ball and control the flow.The PBV series of pneumatic hydraulic ball valves are known for their durability, reliability, and high performance. They are designed to withstand harsh operating conditions and provide precise and efficient flow control. These valves are typically made from materials such as stainless steel, carbon steel, or brass, depending on the specific application requirements.One of the key advantages of PBV series pneumatic hydraulic ball valves is their quick and easy operation. The valve actuator can be remotely controlled, allowing for automatic or remote operation, which improves efficiency and reduces the need for manual intervention. Additionally, these valves offer a tight shut-off capability, minimizing leakage and ensuring safe and reliable operation.PBV series pneumatic hydraulic ball valves are available in a variety of sizes, pressure ratings, and end connections to accommodate different piping systems and flow requirements. They can be used for on/off control or for modulating the flow of fluids. Some models may also feature additional options such as locking devices, position indicators, and emergency manual overrides for added safety and control.

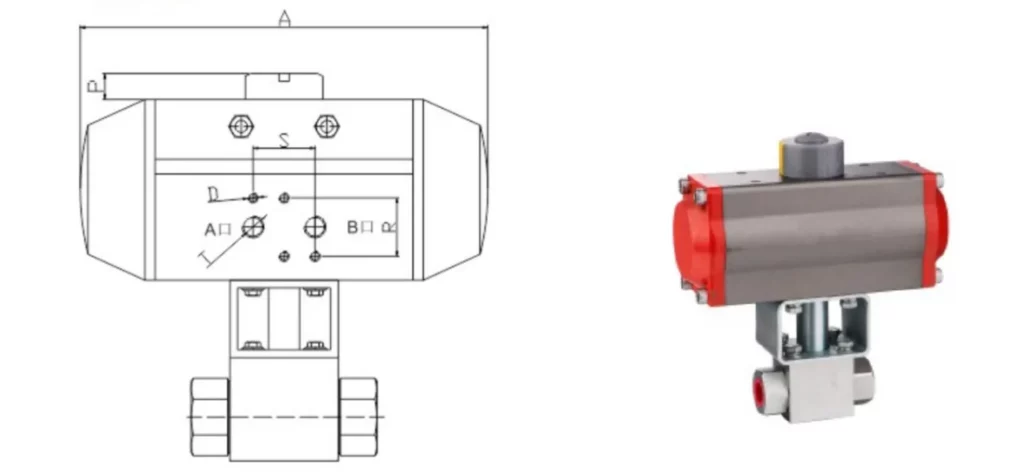

PBV Series Pneumatic Hydraulic Ball Valve Dimensions:

Selection Table of Pneumatic Actuator

Part NO.	Torque Nm(5 bar)	Valve DN	Dimension(mm)
			A	P	R	S	T	D
RAT032DA	7.5	DN4-5	109	20	32	24	G1/4	M5*8
RAT032DA	20.8	DN6-8	163.5	25.5	32	24	G1/4	M5*8
RAT032DA	36.6	DN10-13	181	30.4	32	24	G1/4	M5*8
RAT032DA	58.8	DN16-20	207	25.5	32	24	G1/4	M5*8
RAT032DA	113.7	DN25	258	25.5	32	24	G1/4	M5*8
RAT032DA	169.6	DN32	287	25.5	32	24	G1/4	M5*8
RAT032DA	291.5	DN40	312.5	25.6	32	24	G1/4	M5*8
RAT032DA	438.7	DN50-80	411	25.7	32	24	G1/4	M5*8
RAT032DA	668.5	DN100	488	25.8	32	24	G1/4	M5*8

Advantages of PBV Series Pneumatic Hydraulic Ball Valves:

The PBV Series pneumatic hydraulic ball valves are a type of ball valve that uses compressed air or hydraulic fluid to open and close the valve. These valves have a number of advantages over other types of valves, including:

1. Fast cycle time: PBV Series pneumatic hydraulic ball valves can be opened and closed very quickly, making them ideal for applications where speed is critical.2. High durability: These PBV Series pneumatic ball valves are built to withstand heavy use and demanding environments.3. Reliable sealing: PBV Series pneumatic hydraulic ball valves provide a reliable seal, even under high pressure and temperature conditions.4. Wide range of operating pressures: These PBV Series pneumatic ball valves can be used in a wide range of operating pressures, making them suitable for a variety of applications.5. Easy to maintain: PBV Series pneumatic hydraulic ball valves are relatively easy to maintain, with few moving parts.

In addition to these general advantages, PBV Series pneumatic hydraulic ball valves also offer a number of specific features that make them ideal for certain applications. For example, these valves can be equipped with a variety of actuators, including double-acting and spring-return actuators. This allows them to be used in a wide range of applications, including remote control and fail-safe applications.

Overall, PBV Series pneumatic ball valves are a reliable and versatile type of valve that offers a number of advantages over other types of valves. They are ideal for a wide range of applications, including:

• Chemical processing: PBV Series pneumatic hydraulic ball valves can be used to control the flow of corrosive and abrasive chemicals.
• Food and beverage processing: These PBV Series pneumatic ball valves can be used to control the flow of food and beverage products, where hygiene and cleanliness are critical.
• Oil and gas production: PBV Series pneumatic hydraulic ball valves can be used to control the flow of oil and gas products in harsh and demanding environments.
• Power generation: These PBV Series pneumatic ball valves can be used to control the flow of water and steam in power generation plants.
• Water and wastewater treatment: PBV Series pneumatic hydraulic ball valves can be used to control the flow of water and wastewater in treatment plants.

If you are looking for a reliable and versatile type of ball valve, PBV Series pneumatic hydraulic ball valves are a good option to consider.
