Raydafon ALL-IN-ONE Motor ebike Conversion Kit Electric Bike kit eBike Kit

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]This article will provide a thorough review of the Raydafon ALL-IN-ONE Rear Hub Motor ebike Conversion Kit. This kit is designed to transform your regular bicycle into a high-performance electric bike, providing you with a more efficient and enjoyable riding experience. This conversion kit includes several key features such as a built-in battery, controller and sensor, dynamic torque sensing system, slope induction system, support for extended range battery, GPS positioning, and wireless control. It comes in a sleek black/silver design and is engineered for top-notch efficiency.

P130 ALL-IN-ONE Rear Hub Motor Specifications

Item No.	P130SWXRDC30/P130SWXRC30
Diameter	143mm±1mm
Width	135±2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Free-wheel types	Cassette & Whirl
Gears	1-12s
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Internal
Battery	7Ah
Rated power	250W
Max. power	300W
Max. torque	30N·m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	＜50dB
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.7KGS

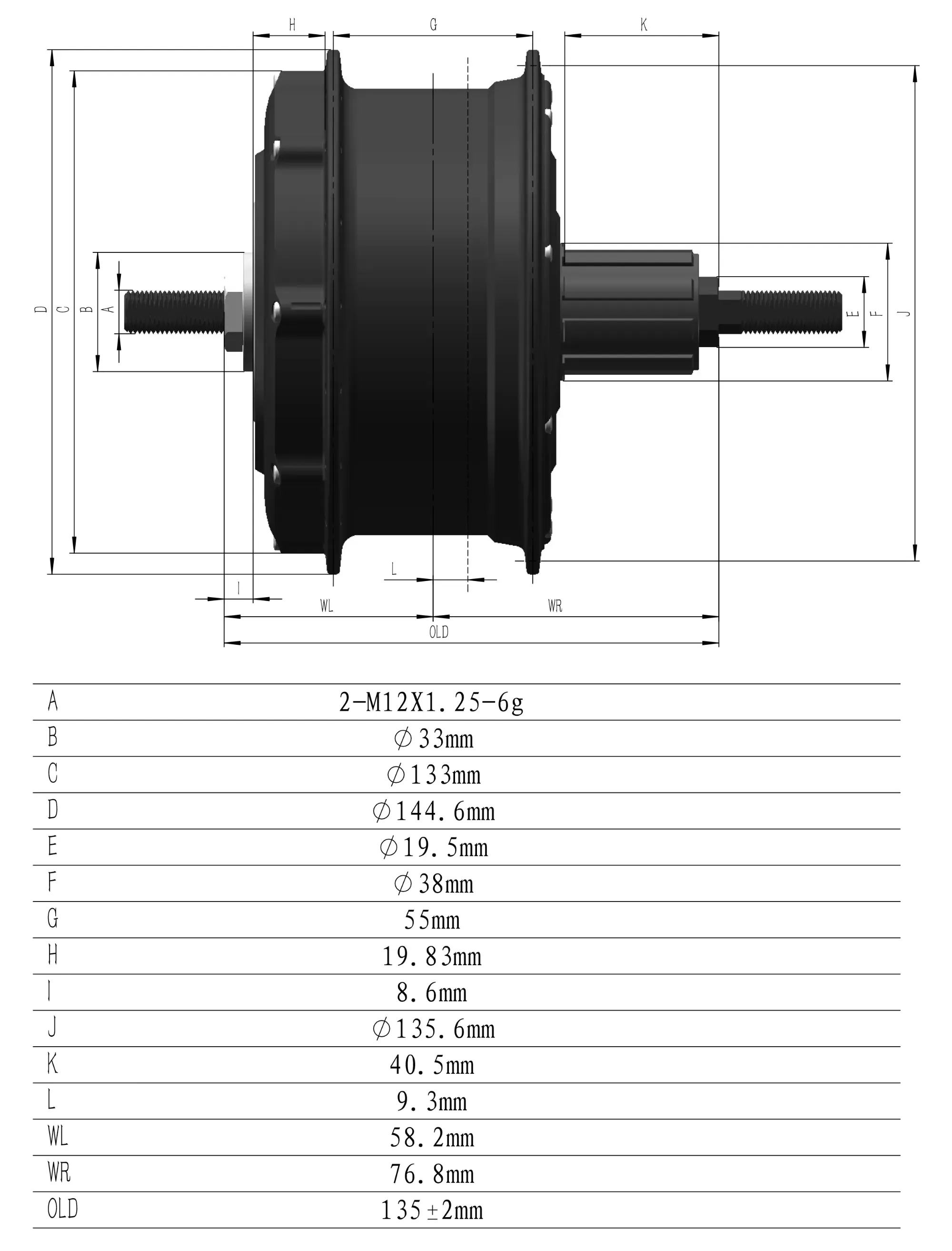

P130 ALL-IN-ONE Rear Hub Motor Dimension

Advantages of the ALL-IN-ONE Rear Hub Motor

The Raydafon ALL-IN-ONE Rear Hub Motor ebike Conversion Kit provides several significant advantages:

• Built-in 7Ah battery, controller, and sensor: These built-in features simplify the installation process and reduce the clutter of external components.
• Dynamic torque sensing system: This system ensures a smooth and natural riding experience by dynamically adjusting the level of assistance based on your pedaling force.
• Slope induction system: This feature senses when you are riding uphill and automatically provides additional assistance, making it easier to climb steep slopes.
• Support for extended range battery: This feature allows you to extend your riding range by adding an external battery.
• GPS positioning: With built-in GPS, you can easily track your riding routes and location.
• Wireless control: You can conveniently control the motor and monitor your riding data through a wireless display or app.

We have the capacity and expertise to produce this high-quality conversion kit, ensuring that each component meets our stringent quality standards.

Applications of the ALL-IN-ONE Rear Hub Motor

The ALL-IN-ONE Rear Hub Motor is versatile and can be used in a wide range of applications:

1. Electric Bike Conversion: It can turn a regular pedal bicycle into an electric bike, enhancing the riding experience with improved speed and less effort.
2. Commuting: Bicycles equipped with this motor are ideal for commuting, as they provide assistance in covering longer distances and tackling hilly terrains.
3. Eco-friendly Transportation: These electric bikes produce zero emissions, making them a green alternative for short to medium-distance commuting.
4. Recreational Riding: The motor enhances recreational riding experiences, allowing riders to explore off-road trails or enjoy leisurely rides with ease.
5. Cargo and Delivery Services: Electric cargo bikes equipped with this motor can efficiently transport goods in urban areas with challenging traffic and parking conditions.
6. Fitness and Health: While providing assistance, these e-bikes still require the rider to pedal, helping them balance exercise with convenience.

How Does the ALL-IN-ONE Rear Hub Motor for Ebike System Work?

The ALL-IN-ONE Rear Hub Motor system is composed of several integrated components that work together to provide a seamless riding experience:

• • Motor: The rear hub motor is the heart of the system. It generates the necessary torque and power to propel the e-bike forward.
  • Controller: It manages the operation of the motor, determining the power output and assistance level based on inputs from the rider, sensors, and throttle.
  • Battery: The lithium-ion battery pack powers the system, providing the necessary voltage and current to drive the motor.
  • Sensors: The system includes various sensors that provide feedback and optimize the motor's performance.
  • User Interface: The e-bike system includes a user interface that allows the rider to select different power modes, monitor battery level, and access other relevant information.
  • Electric Assistance: The motor provides additional torque to assist the rider's pedaling effort, propelling the e-bike forward.

Choose the Right ALL-IN-ONE Rear Hub Motor for Electric Bicycle

Choosing the right ALL-IN-ONE Rear Hub Motor for an electric bicycle involves considering several factors:

1. Power and Torque: Consider the motor's power and torque output based on your intended use.
2. Battery Voltage and Capacity: Check the recommended or compatible battery for the motor to ensure it suits your riding distance.
3. Assistance Modes: Determine your preferred assistance mode and ensure the motor supports it.
4. Compatibility: Ensure the motor is compatible with your bicycle frame and wheel size.
5. Weight: Consider the weight of the motor as it affects the overall weight distribution of the e-bike.
6. Integration and Ease of Installation: Look for motors that offer easy installation and integration.

Maintenance of the ALL-IN-ONE Rear Hub Motor

Proper maintenance of the ALL-IN-ONE Rear Hub Motor is crucial for its longevity and performance:

• Regular Cleaning: Keep the motor clean and free from dirt, dust, and debris.
• Check and Tighten Bolts: Periodically inspect the motor and its mounting bolts.
• Lubrication: Some motors may require periodic lubrication. Refer to the manufacturer's guidelines for recommendations.
• Battery Maintenance: Follow the battery manufacturer's guidelines for maintenance, charging, and storage.
• Sensor Alignment: Check the alignment of the sensors periodically.
• Inspect Wiring: Check the wiring connections leading to and from the motor.
• Brake Adjustment: Adjust the brake system properly if your motor features regenerative braking.

Why Choose Raydafon's ALL-IN-ONE Rear Hub Motor for Electric Bicycle?

Raydafon Electric Technology Co Ltd. is a renowned manufacturer dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house, ensuring quality and innovation. Our products are CE-certified and protected by independent intellectual property rights. We offer a variety of electric bicycle parts including super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, and more. If you're looking for high-end electrical components for electric bicycles, Raydafon is your ideal choice.Author: Yjx
