Raydafon Bicycle Parts Electric Bike Conversion Kit - Small Light Front Hub Motor for Ebike

Transform your bicycle into a high-performance electric bike with the Raydafon Bicycle Parts Electric Bike Conversion Kit. This compact, lightweight kit features the P100 Powerful Front Hub Motor, designed for efficiency and power. Available in black or silver, this brushless motor is engineered with precision and quality. With a diameter of 102??1mm, a width of 100??2mm, and a weight of just 1.7kg, it's perfectly balanced for optimal performance.

Specifications of P100 Front Hub Motor for E-bike

Item No.	P100SWXDC36/P100SWXC36
Diameter	103mm±1mm
Width	100±2mm
Brake types	Disc brake / V brake
Outlet position	Under the shaft on the right side
Controller	Internal
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Wireless pedal sensor
Rated power	250W
Max. power	500W
Max. torque	30N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞89%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	1.7KGS

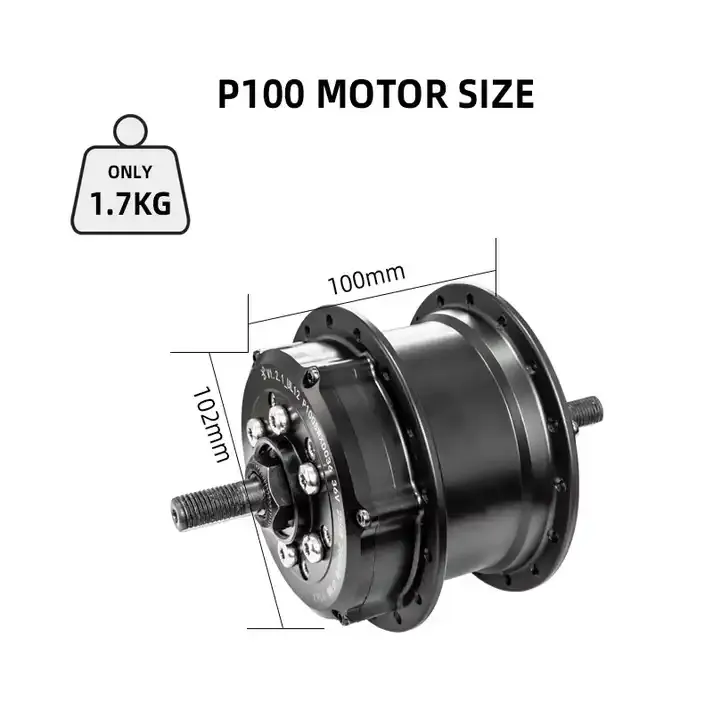

P100 E-bike Front Hub Motor Dimension

Advantages of the P100 Powerful Front Hub Motor

The P100 Powerful Front Hub Motor comes with a host of advantages that make it stand out in the market. These include:

1. Built-in Controller: The motor features an integrated controller, eliminating the need for external controllers and reducing wiring complexity.
2. Wireless Pedal Sensor: This provides seamless control and responsiveness, enhancing your riding experience.
3. Easy to Install and Disassemble: The kit is designed for easy installation and removal, making it convenient for upgrades or maintenance.
4. Max. Power 750W, Torque Exceeds 40N??m: The motor delivers powerful output, providing you with enough torque for steep climbs and fast acceleration.
5. Efficiency ??90%: With a high efficiency, the motor ensures you get the most out of your battery power, extending your ride distance.
6. Wireless Control: The motor can be controlled wirelessly, providing a clean, clutter-free setup.

With these advantages, the P100 Powerful Front Hub Motor delivers exceptional performance and reliability, making it a perfect choice for your electric bike conversion needs.

Applications of the P100/P110 Front Hub Motor

The P100/P110 front hub motors are versatile and can be used in a variety of applications. Here are some common uses:

1. 1. Commuting: These motors are perfect for daily commutes, making it easier to cover long distances and tackle steep hills.
   2. Urban Riding: The smooth acceleration and control make these motors ideal for navigating through busy city streets and traffic.

1. Recreation and Leisure: Whether it's exploring trails, cruising along scenic routes, or enjoying outdoor adventures, these motors enhance the riding experience.
2. Delivery Services: Many food delivery services and courier companies use e-bikes with these motors for their efficiency and ability to navigate through urban environments.
3. Tourism and Sightseeing: E-bikes equipped with these motors are often used for sightseeing, allowing tourists to explore cities and attractions with ease.
4. Electric Bike Sharing Programs: These motors are commonly used in bike-sharing programs, providing reliable and efficient transportation options in urban areas.

Regardless of the application, the P100/P110 front hub motors deliver reliable and efficient performance, making every ride enjoyable and effortless.

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor is an integral part of an e-bike system. Here's a general overview of how it works:

1. Power Source: The e-bike system includes a rechargeable battery pack that provides electrical energy to the motor.
2. Motor Controller: This manages the flow of electricity from the battery to the motor based on the rider's input.
3. Torque Sensor or Throttle: The system may include a torque sensor, which measures the force applied to the pedals, or a throttle, which allows the rider to control the motor's power output.
4. Motor Assistance: When the rider applies force to the pedals or activates the throttle, the motor controller sends the appropriate amount of power to the motor.
5. Front Hub Motor: The motor generates rotational force (torque) that propels the e-bike forward.
6. Power Transmission: The motor's rotational force is transmitted to the wheel through integrated gears, allowing the e-bike to accelerate or maintain a consistent speed.
7. Regenerative Braking: Some systems may have regenerative braking capabilities, which convert the kinetic energy of the moving e-bike back into electricity for later use.
8. Display and Control Unit: This provides the rider with important information and allows adjustment of settings and control of the motor's assistance level.

This efficient and intuitive system delivers smooth, responsive power, transforming your regular bike into a high-performance e-bike.

Choose the Right P100/P110 Front Hub Motor for Your Ebike System

When choosing the right P100/P110 front hub motor for your e-bike system, consider the following factors:

1. Power and Torque: Choose a motor with the power and torque that matches your riding needs and terrain.
2. Efficiency: A high-efficiency motor provides longer battery life and a more effective riding experience.
3. Compatibility: Check the motor's specifications and ensure they match your e-bike system's requirements.
4. Wheel Size: Choose a motor designed for your e-bike's wheel size to ensure optimal performance and fit.
5. Weight and Size: Consider the motor's weight and size, as they can affect your e-bike's balance and maneuverability.

Selecting the right motor ensures you get the best performance and experience from your e-bike.

Maintenance of the P100/P110 Front Hub Motor

Proper maintenance of the P100/P110 front hub motor is essential for its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Keep the motor clean by wiping it down regularly with a damp cloth.
2. Inspection: Inspect the motor for damage, loose connections, or wear, and address any issues promptly.
3. Lubrication: Some motors may require lubrication for smooth operation. Apply as recommended by the manufacturer.
4. Battery Maintenance: Follow the manufacturer's instructions for battery care, and regularly check the battery's charge level and connections.
5. Wheel Maintenance: Regularly inspect the wheel for alignment, trueness, and spoke tension and have any issues addressed by a qualified bike mechanic.
6. Water and Moisture Protection: Avoid excessive moisture and submerging the motor in water to prevent damage.

Regular maintenance ensures your motor continues to perform at its best, providing you with a reliable and enjoyable riding experience.

Why Choose Raydafon's P100/P110 Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is committed to the R&D, manufacturing, and marketing of high-end electric bicycle parts. We offer a wide range of products, including super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, and Wireless displays. All our products are CE-certified and protected by independent intellectual property rights.We have professional production and testing equipment, advanced production lines, and a comprehensive quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life" and the business philosophy of "Credit First, Quality First". We continually develop new products to meet customer needs and market changes.Our products are renowned for their reliable quality, exquisite craftsmanship, and stylish design. They are suitable for all kinds of bikes and provide electric power support while maximizing the original appearance and characteristics of bicycles, making riding more convenient, easy, and environmentally friendly.We offer customized services per your requests and provide excellent after-sales service. If you are seeking high-end electrical components for electric bicycles, or if you want to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
