Raydafon Electric Bike Front Hub Motor with Controller Electric Motor Kit for Ebike

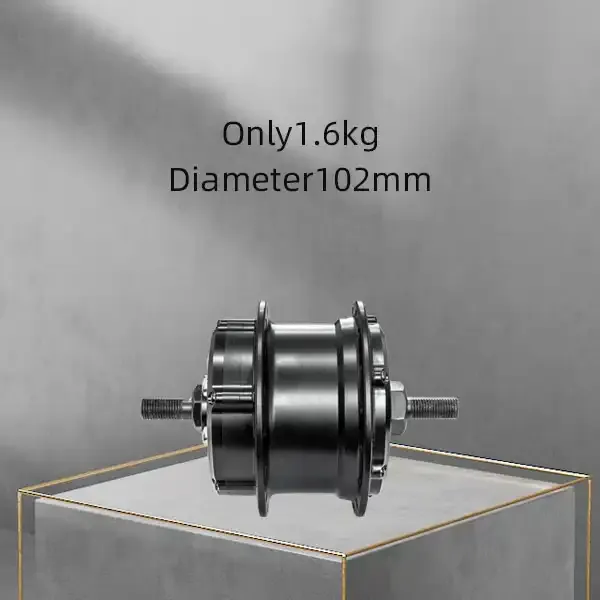

The Raydafon Electric Bike Front Hub Motor is a revolutionary product that can transform your cycling experience. This kit includes an efficient, brushless motor designed to fit in the front hub of your bike, offering enhanced performance for your e-bike. It operates at a voltage of 36V and comes with a built-in controller for easy usage. The model numbers for this product are S100SWXC and S100SWXDC, and it is available in black and silver colors. The diameter is 102??1mm, and the width is 100??2mm. This electric motor kit is rated for a voltage of 24V/33V/36V and a current of 6.10A/6.60A/8.90A, providing a rated output power of 250W with an efficiency of ??88%. This motor is designed to operate at a rated revolution of 160-260r/min and weighs 1.6kg.

Advantages of Raydafon Electric Bike Front Hub Motor

The Raydafon Electric Bike Front Hub Motor comes with several advantages that make it a top choice for all e-bike enthusiasts. Here are six reasons why this motor stands out:

1. Built-in controller: The controller is integrated within the motor, eliminating the need for external devices and complicated wiring.
2. Wireless pedal sensor: This feature enhances the user experience by providing a seamless connection between the pedal and the motor.
3. Light weight & small size: The compact design and light weight of the motor make it easy to install and do not add significant weight to your bike.
4. Super-silent: Unlike many other motors, this one operates silently, ensuring a peaceful ride.
5. Easy to install & disassemble: The design of this motor allows for easy installation and disassembly, making it user-friendly.
6. Wireless control: The motor can be controlled wirelessly, providing a convenient and modern way to operate your e-bike.

At Raydafon Electric Technology Co Ltd, we are not only capable of producing this exceptional product but also customize it to fit your specific needs.

Applications of the S100/S110 Front Hub Motor

The S100/S110 front hub motor is versatile and can be used in various applications. Here are some common uses:

1. Electric Assist: The motor provides electric assistance to the rider, reducing the effort required, especially when climbing hills or riding against strong headwinds.
2. Commuting: Electric bikes equipped with this motor are ideal for commuting, allowing riders to cover longer distances with ease.
3. Hill Climbing: The motor's torque output helps overcome resistance when ascending steep hills.
4. Cargo and Utility Bikes: The motor assists in hauling heavy loads, making it suitable for cargo and utility bikes.
5. Recreational Riding: The motor enhances the recreational riding experience by providing extra power, allowing riders to explore new routes and tackle various terrains with ease.
6. Conversion Kits: The motor is often used in electric bicycle conversion kits, allowing users to convert their non-electric bikes into electric ones.

How Does the Ebike System S100/S110 Front Hub Motor Work?

The S100/S110 front hub motor is an integral part of an electric bicycle system. Here's a quick rundown of its operation:

1. Motor and Hub Assembly: The motor is integrated into the front wheel of the electric bicycle, providing direct power to the front wheel.
2. Power Source: A lithium-ion battery pack supplies electrical energy to the motor.
3. Pedal Assist Sensors: These sensors detect the pedaling motion of the rider and send signals to the motor controller.

4. Motor Controller: The controller receives input from the pedal assist sensors and controls the operation of the motor.
5. Electric Assistance: When the rider pedals, the pedal assist sensors send signals to the motor controller, which activates the motor to provide electric assistance.
6. Power Output and Control: The controller allows the rider to control the level of electric assistance, offering multiple levels such as low, medium, and high.
7. Regenerative Braking: Some versions of the system include regenerative braking capabilities. When the rider applies the brakes, the motor acts as a generator, converting the kinetic energy of the bike into electrical energy, which is then stored back into the battery.

Choosing the Right S100/S110 Front Hub Motor for Your Electric Bicycle

When selecting the right S100/S110 front hub motor for your electric bicycle, consider the following factors:

1. Power and Torque: The power and torque output of the motor should match your riding needs and terrain conditions.
2. Voltage and Battery Compatibility: Ensure that the motor's voltage rating is compatible with your electric bicycle's battery pack.
3. Wheel Size: The motor should match the wheel size of your electric bicycle.
4. Installation Compatibility: The motor should fit securely onto the front wheel's hub and align with the fork dropouts.
5. Weight and Size: The weight and size of the motor can impact the overall weight distribution and handling of the electric bicycle.
6. Efficiency and Noise: Choose motors that offer high efficiency and operate quietly for a more enjoyable riding experience.

Maintenance of the S100/S110 Front Hub Motor

Maintaining the S100/S110 front hub motor is essential for its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Wipe the motor down regularly with a damp cloth to prevent the buildup of dirt and grime.
2. Inspection: Periodically inspect the motor for any signs of damage or wear. If you notice any issues, have them addressed by a qualified technician.
3. Lubrication: Depending on the manufacturer's recommendations, the motor's internal components may require lubrication.
4. Battery Maintenance: Properly maintain the battery pack that powers the motor.
5. Tighten Fasteners: Regularly check and tighten any fasteners that secure the motor to the bicycle frame or wheel.
6. Avoid Overloading: Do not exceed the recommended weight capacity of the motor and electric bicycle.
7. Avoid Water Exposure: The S100/S110 front hub motor may not be fully waterproof, so avoid riding in heavy rain or submerging the motor in water.

Why Choose Raydafon's S100/S110 Front Hub Motor for Your Ebike System?

Raydafon Electric Technology Co Ltd is dedicated to the research and development, manufacturing, and worldwide marketing of high-end electric bicycle parts. Our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment, advanced production lines, and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our products are renowned for their reliable quality, exquisite craftsmanship, and stylish design. We provide ODM & OEM services as per your requests and look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.
