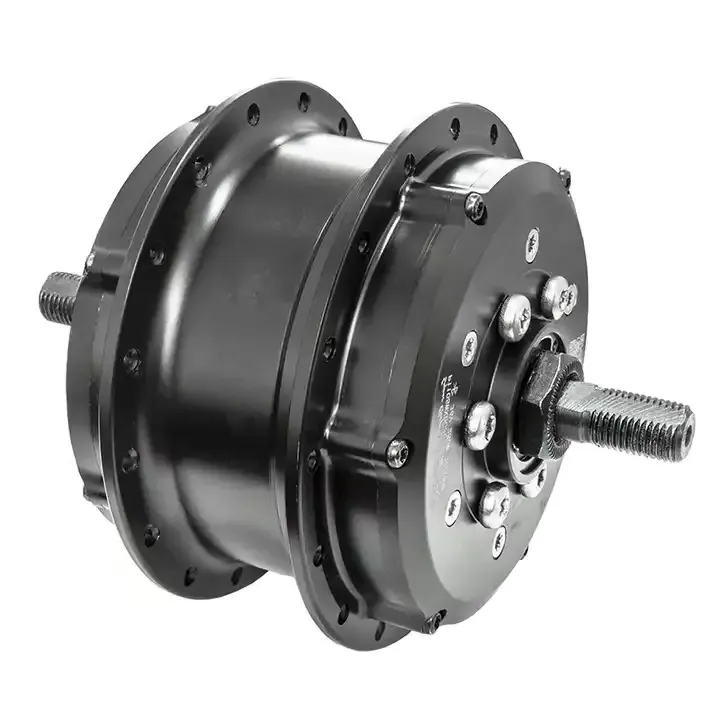

Raydafon P110 Front Motor Wheel with Controller Quick Conversion Kit for Ebike

Discover the remarkable Raydafon P110 front motor wheel with controller quick conversion kit for ebikes. This product boasts a brushless design, two rounds style, and comes in either black or silver. This powerful front hub motor operates at an efficiency of ??90%, making it an ideal choice for your ebike. With a diameter of 112??1mm and a width of 100??2mm, this lightweight motor (2.3kg) fits comfortably into your front wheel, providing power and efficiency to your ride. Its rated voltage ranges from 24V to 36V and it offers a rated output power of 250W.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Product Advantages

The Raydafon P110 front motor wheel offers a multitude of advantages:

• Built-in controller: No need for external controllers, making the motor more compact and easy to install.
• Wireless pedal sensor: Allows for easy control and manipulation of the motor's power.
• Easy to install & disassemble: It makes maintenance and part replacement a breeze.

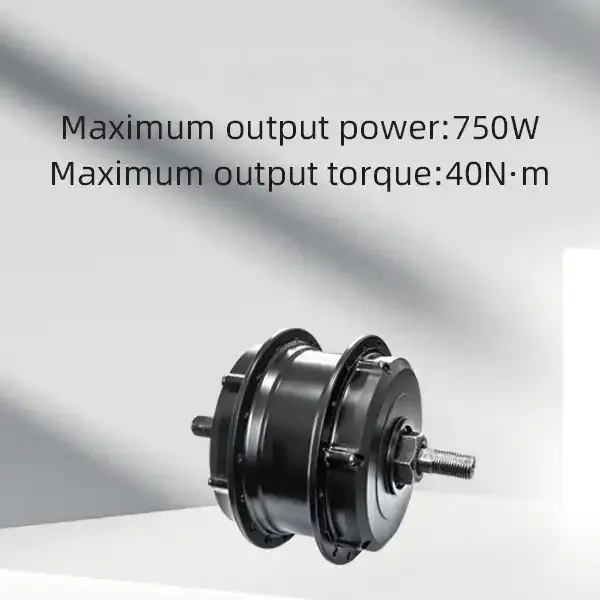

• Max. power 750W, torque exceeds 40N??m: Provides robust power and high torque for stronger acceleration and climbing ability.
• Efficiency ??90%: Ensures that most of the battery power is used for propulsion, leading to longer rides.
• Wireless control: Offers convenient control over your ebike's motor without the clutter of wires.

We have the capabilities to produce this top-tier product, ensuring its high quality and performance.

Applications of the P100/P110 Front Hub Motor

The P100/P110 front hub motors are versatile, finding use in various applications:

1. Commuting: These motors make daily commutes easy, providing assistance for longer distances and steep hills.
2. Urban Riding: The smooth acceleration and easy control make these motors perfect for navigating busy streets.
3. Recreation and Leisure: Whether for trail exploration, scenic cruises, or outdoor adventures, these motors provide an extra boost for an enhanced riding experience.
4. Delivery Services: The efficiency and maneuverability of these motors make them a popular choice for delivery riders.
5. Tourism and Sightseeing: The motors are perfect for tourists who want to explore cities and attractions with ease.
6. Electric Bike Sharing Programs: The P100/P110 motors are commonly used in bike-sharing programs for their reliability and performance.

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor is a key component of an ebike system. Here's an overview of how it works:

1. 1. Power Source: The system includes a rechargeable battery pack that provides energy to the motor.
   2. Motor Controller: This component manages the flow of electricity from the battery to the motor based on input from the rider.
   3. Torque Sensor or Throttle: Different control options measure the force applied to the pedals or allow the rider to control the motor's power output directly.
   4. Motor Assistance: When the rider applies force or activates the throttle, the motor controller sends the right amount of power to the front hub motor.
   5. Front Hub Motor: This motor generates rotational force transmitted to the wheel to propel the ebike forward.
   6. Power Transmission: The motor's force is transmitted to the wheel through gears, allowing the ebike to accelerate or maintain speed.
   7. Regenerative Braking (optional): Some systems can convert kinetic energy back into electricity for later use when the rider applies the brakes.

1. Display and Control Unit: Mounted on the handlebars, this unit provides information like speed, battery level, and assistance level and allows the rider to adjust settings.

Choose the Right P100/P110 Front Hub Motor for Ebike System

Several factors should be considered when choosing the right P100/P110 front hub motor for your ebike system:

1. 1. Power and Torque: The level of assistance required depends on your riding needs and terrain.
   2. Efficiency: High efficiency can impact the range and performance of your ebike.
   3. Compatibility: Ensure the motor is compatible with your ebike system's specs.
   4. Wheel Size: The motor should fit the wheel size of your ebike.
   5. Weight and Size: Consider the weight and dimensions of the motor as they can affect the overall weight distribution and handling of your ebike.

Maintenance of the P100/P110 Front Hub Motor

Proper maintenance of the P100/P110 front hub motor ensures its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Wipe down the motor regularly to remove dirt and debris.
2. Inspection: Check for any signs of damage, loose connections, or wear and address them promptly.
3. Lubrication: Some motors may require lubrication for smooth operation. Refer to the manufacturer's guidelines for proper application.
4. Battery Maintenance: Follow the manufacturer's instructions for proper charging and storage of the battery pack.
5. Wheel Maintenance: Maintain the wheel's condition as the motor is integrated into the front wheel.
6. Water and Moisture Protection: Avoid excessive moisture and submerging the motor in water.

Why Choose Raydafon's P100/P110 Front Hub Motor for Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. Our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. We offer customized services and have professional production facilities and after-sales services. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
