Red Brass Splined Hubs with Flange

Red Brass Splined Hubs with Flange

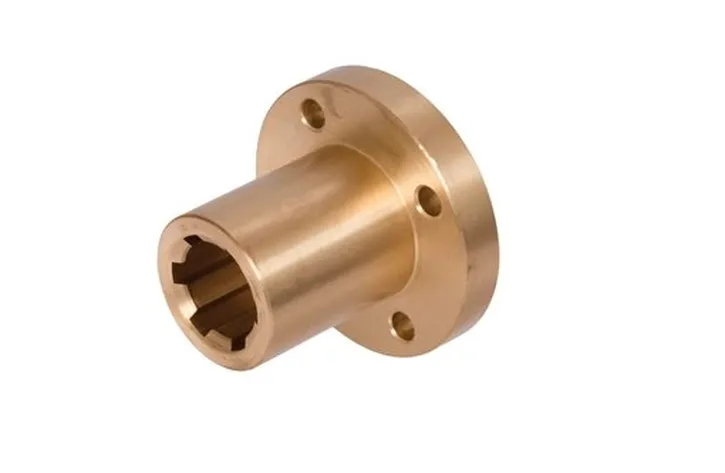

Red brass splined hubs with flange are mechanical components used in power transmission systems. They are designed to connect two rotating shafts together, allowing them to transmit torque and rotational energy from one to the other. The red brass material used in the construction of these splined hubs with flange is a durable and corrosion-resistant alloy that is well-suited to the demands of heavy-duty industrial applications. The splined design of the splined hubs allows them to slide onto the shafts and lock securely into place, preventing any slipping or misalignment.The flange on the splined hubs provides a mounting surface for other components, such as bearings, sprockets, or pulleys, which can be bolted onto the hub to form a complete power transmission assembly. These red brass splined hubs with flange are commonly used in a wide range of machinery and equipment, including motors, pumps, compressors, and conveyors.

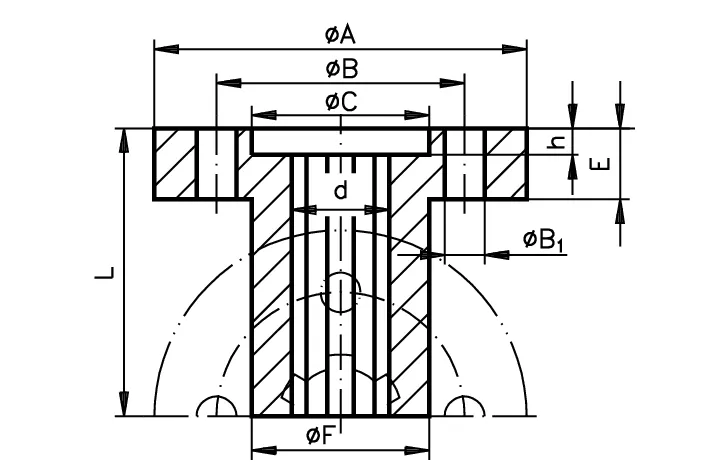

▍Red Brass Splined Hubs with Flange Dimensions:

Profile Type [mm]	Material	ØA  [mm]	ØB [mm]	ØB1  [mm]	Ø C H7 [mm]	Ø F h8 [mm	Ø d H7 [mm]	E  [mm]	h  [mm]	L  [mm]	Weight [kg]
KN 11 x 14	Red Brass	42	28	4.5	20	20	11	8	3	35	0.12
KN 13 x 16	Red Brass	50	36	4.5	22	25	13	8	3	40	0.22
KN 16 x 20	Red Brass	52	38	5.5	25	28	16	10	3	40	0.26
KN 18 x 22	Red Brass	54	40	5.5	30	30	18	10	3.5	45	0.3
KN 21 x 25	Red Brass	62	48	6.6	35	34	21	10	3.5	50	0.38
KN 23 x 28	Red Brass	64	50	6.6	36	36	23	10	3.5	55	0.47
KN 26 x 32	Red Brass	70	56	6.6	40	42	26	10	3.5	60	0.58
KN 28 x 34	Red Brass	78	60	9	46	45	28	12	3.5	60	0.74
KN 32 x 38	Red Brass	82	65	9	50	50	32	12	3.5	60	0.84
KN 36 x 42	Red Brass	90	70	9	52	52	36	16	4	80	1.07
KN 42 x 48	Red Brass	95	75	11	60	60	42	16	4	80	1.38
KN 46 x 54	Red Brass	100	80	11	65	65	46	16	4	100	1.7

▍Benefits of Red Brass Splined Hubs with Flange

Red brass splined hubs with flange offer several benefits in power transmission systems, including:1. High strength and durability: Red brass is a strong and durable material that can withstand heavy loads and resist wear and corrosion, making it ideal for use in demanding industrial applications.2. Accurate alignment: The splined design of the splined hubs with flange ensures accurate alignment between the two shafts, which is essential for reliable power transmission and minimizing wear and tear on the components.3. Easy installation: The splined design of the splined hubs with flange allows for easy installation and removal, reducing downtime and maintenance costs.4. Versatile mounting options: The flange on the splined hubs provides a versatile mounting surface for a wide range of components, allowing for customization and flexibility in power transmission system design.5. Smooth operation: The precise alignment and secure locking of the splined hubs with flange minimize vibration and noise, resulting in a smoother and quieter operation of the machinery.Overall, red brass splined hubs with flange are a reliable and efficient component in power transmission systems, offering strength, durability, accuracy, and versatility.

▍Splined Shafts and Red Brass Splined Hubs with Flange

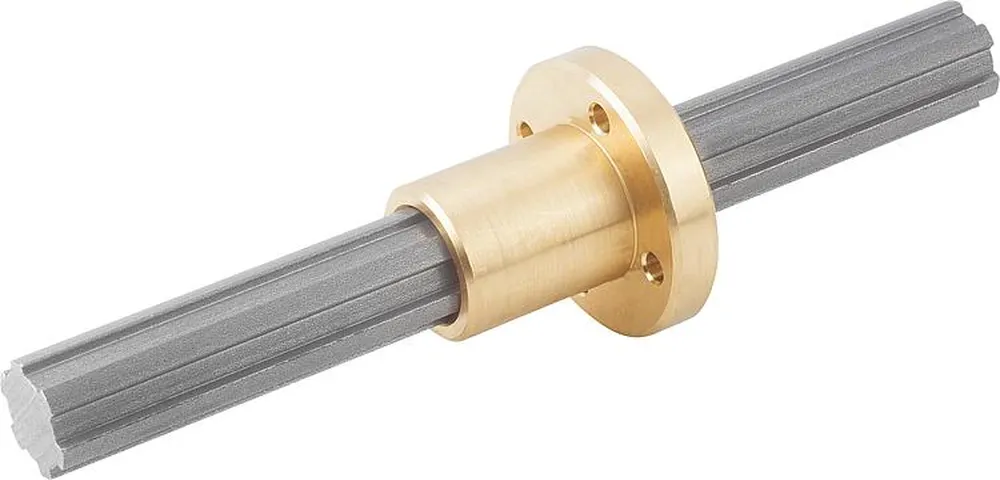

Splined shafts and red brass splined hubs with flange are often used together in power transmission systems. A splined shaft is a type of shaft that has a series of ridges or teeth, called splines, machined into its surface. These splines fit into corresponding grooves on the inside of a splined hub, such as a red brass splined hub with flange, to create a secure and precise connection between the splined shaft and the splined hub.When used together, splined shafts and red brass splined hubs with flange offer several advantages over other types of shaft-hub connections:Accurate alignment: The splines on the splined shaft and splined hubs ensure accurate alignment between the two components, which is critical for efficient power transmission and reducing wear and tear on the components.High torque transmission: The splined connection between the splined shaft and splined hub can transmit high levels of torque, making it ideal for heavy-duty industrial applications.Easy assembly and disassembly: The splined connection allows for easy assembly and disassembly of the components, making maintenance and repairs quicker and easier.Versatile mounting options: The flange on the splined hubs provide a versatile mounting surface for other components, such as bearings or pulleys, allowing for customization and flexibility in power transmission system design.Overall, splined shafts and red brass splined hubs with flange offer a reliable and efficient way to transmit power between two rotating shafts, with the added benefits of accuracy, ease of assembly, and versatility.

▍Splined Hubs with Flange Vs Round Splined Hubs

Splined hubs with flanges and round splined hubs are both types of splined hubs, but they have different features and applications.Splined hubs with flanges have a flange on one end, which allows them to be mounted to a flat surface. This makes them ideal for applications where the hub needs to be secured in place, such as in a machine tool or a vehicle. Splined hubs with flanges are also typically stronger than round splined hubs, making them a good choice for applications where high torque is required.Round splined hubs do not have a flange, which makes them more compact and lightweight. This makes them ideal for applications where space is limited, such as in a small engine or a handheld tool. Round splined hubs are also typically less expensive than splined hubs with flanges.Here is a table comparing the features of splined hubs with flanges and round splined hubs:Ultimately, the best type of splined hub for your application will depend on your specific needs and requirements. If you need a splined hub that is strong, secure, and able to withstand high torque, then a splined hub with flange is a good choice. If you need a splined hub that is compact, lightweight, and affordable, then a round splined hub is a good choice.

Splined Hubs with Flange	Round Splined Hubs

▍How to Choose the Right Red Brass Splined Hubs with Flange?

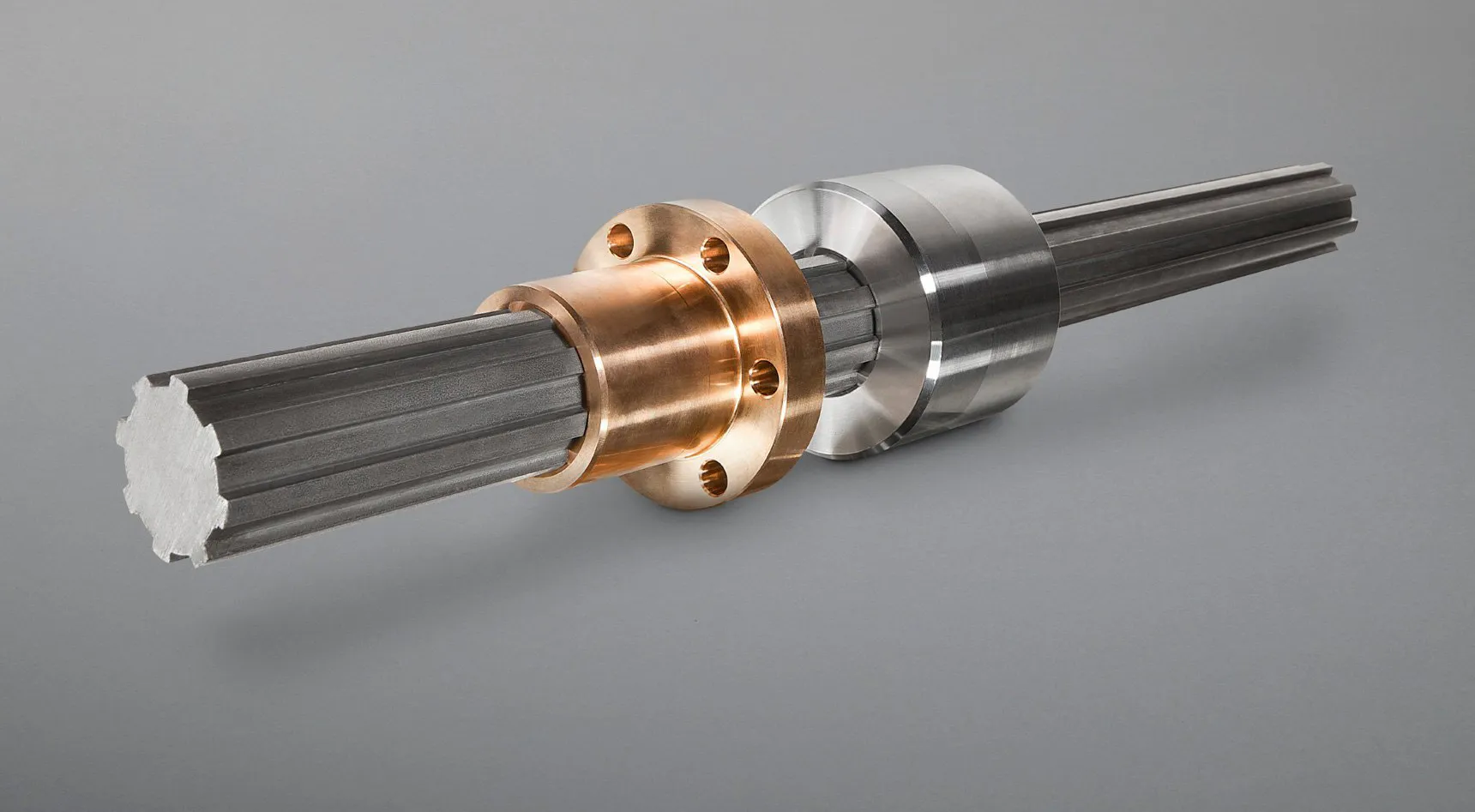

Choosing the right red brass splined hubs with flange involves considering several factors that will ensure that the splined hubs and shafts fit together correctly and perform reliably. Here are some key factors to consider when selecting splined hubs with flange:Spline Count: The spline count refers to the number of teeth on the splined shaft and splined hub. It is important to choose a splined hub with a matching spline count to the shaft to ensure a secure connection.Shaft Diameter: The diameter of the splined shaft should also match the diameter of the bore in the splined hubs with flange. Choosing the wrong diameter can result in a loose or unstable connection, which can cause vibration and wear.Pitch: The pitch of the spline refers to the distance between the teeth. It is important to select splined hubs with flange with a matching pitch to the shaft to ensure a precise fit and efficient power transmission.Load Capacity: The load capacity of the splined hubs and shafts should be considered to ensure that they can handle the expected loads and stresses of the application.Corrosion Resistance: Red brass is a corrosion-resistant material, making it suitable for use in harsh environments such as marine applications. However, it is important to ensure that the specific alloy used in the construction of the splined hubs and shafts is appropriate for the specific application and environment.Mounting Flange: The flange on the splined hubs with flange provides a mounting surface for the component being driven. It is important to ensure that the size and shape of the flange are compatible with the mounting requirements of the application.
