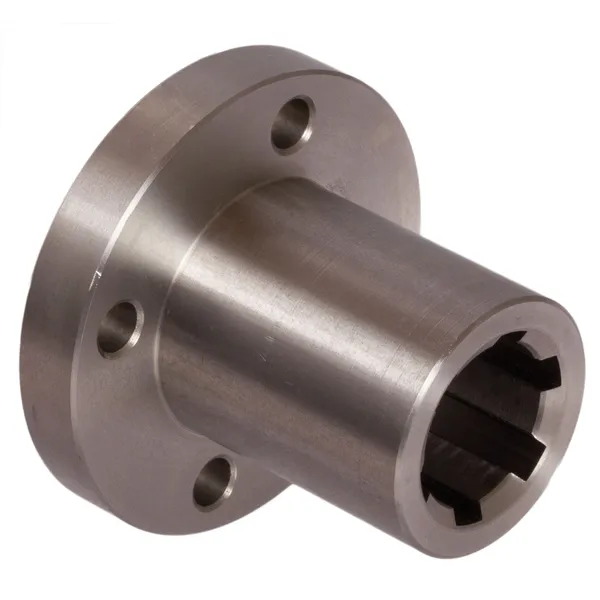

Steel Splined Hubs with Flange

Steel Splined Hubs with Flange

Steel splined hubs with flange are mechanical components used in power transmission systems to connect a shaft to a hub or coupling. They are designed to transmit torque and rotational motion between two rotating components while maintaining accurate alignment. The steel splined hubs with flange is a hollow cylindrical component with internal splines that fit onto a shaft with matching external splines. The flange is a flat, circular plate that surrounds the spline hub and is bolted to another component, such as a gearbox or motor.The steel material used in these splined hubs with flange provides strength and durability, allowing them to withstand high torque and rotational forces. The flange provides a stable mounting surface for the spline hub and helps to distribute the load evenly across the connected components. Steel splined hubs with flange are commonly used in industrial applications such as heavy machinery, construction equipment, and power transmission systems where reliable and high-performance components are required.

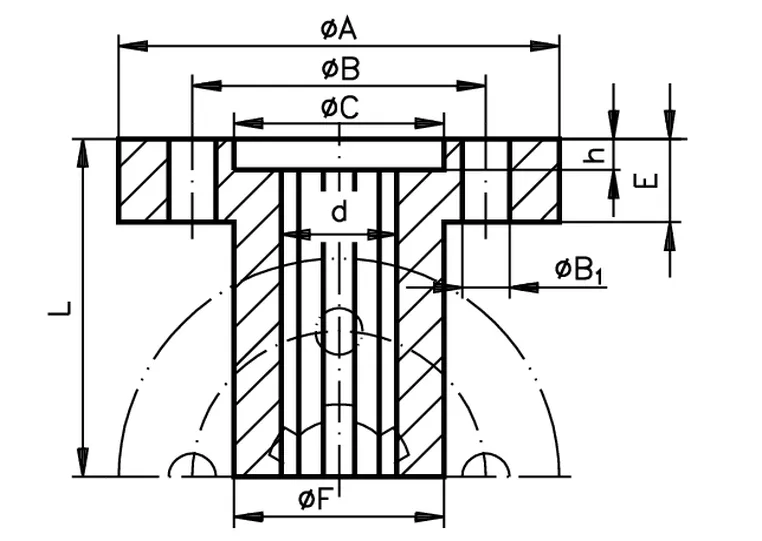

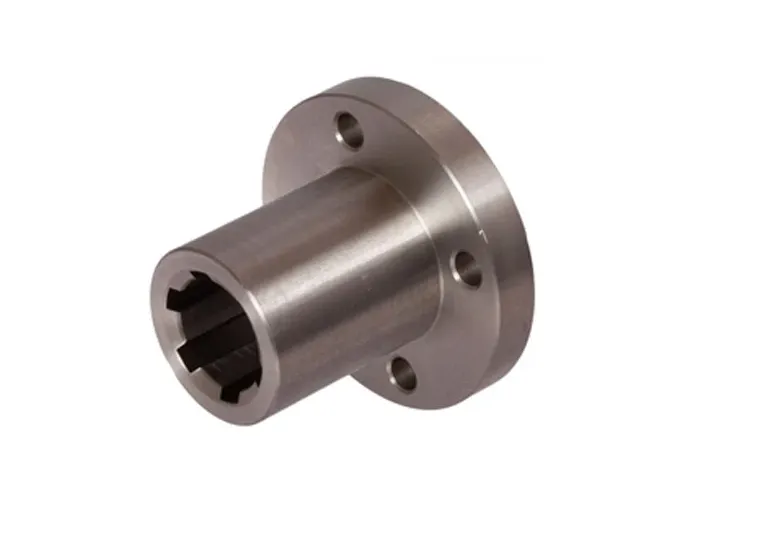

▍Steel Splined Hubs with Flange Dimensions:

Profile Type [mm]	Material	ØA  [mm]	ØB [mm]	ØB1  [mm]	Ø C H7 [mm]	Ø F h8 [mm	Ø d H7 [mm]	E  [mm]	h  [mm]	L  [mm]	Weight [kg]
KN 11 x 14	Steel	42	28	4.5	20	20	11	8	3	35	0.1
KN 13 x 16	Steel	50	36	4.5	22	25	13	8	3	40	0.18
KN 16 x 20	Steel	52	38	5.5	25	28	16	10	3	40	0.22
KN 18 x 22	Steel	54	40	5.5	30	30	18	10	3.5	45	0.26
KN 21 x 25	Steel	62	48	6.6	35	34	21	10	3.5	50	0.34
KN 23 x 28	Steel	64	50	6.6	36	36	23	10	3.5	55	0.41
KN 26 x 32	Steel	70	56	6.6	40	42	26	10	3.5	60	0.5
KN 28 x 34	Steel	78	60	9	46	45	28	12	3.5	60	0.64
KN 32 x 38	Steel	82	65	9	50	50	32	12	3.5	60	0.72
KN 36 x 42	Steel	90	70	9	52	52	36	16	4	80	0.94
KN 42 x 48	Steel	95	75	11	60	60	42	16	4	80	1.22
KN 46 x 54	Steel	100	80	11	65	65	46	16	4	100	1.5

▍Advantages of Steel Splined Hubs with Flange

Here are the advantages of steel splined hubs with flange:1. High strength and durability: Steel is a strong and durable material that can withstand high loads and stresses. This makes steel splined hubs with flange ideal for use in demanding applications.2. Ability to transmit high torques: The splined design of steel splined hubs with flange allows them to transmit high torques without slipping or binding. This makes them ideal for use in applications where high torques are required, such as machine tools and robotics.3. Allow for axial movement: The flange on steel splined hubs with flange allows for axial movement, which is important in applications where there is a need for vibration dampening or alignment adjustment.4. Easy to install and maintain: Steel splined hubs with flange are easy to install and maintain. This makes them a cost-effective option for a variety of applications.

▍Steel Splined Hubs with Flange Applications Examples

Steel splined hubs with flange are a versatile and reliable way to transmit torque and allow for axial movement. They are used in a wide variety of applications, from machine tools to robotics to aerospace. Here are some specific examples of how steel splined hubs with flange are used in these applications:(1) Machine tools: In a machine tool, the spindle is the rotating shaft that holds the cutting tool. The motor is what drives the spindle. The steel splined hubs with flange connect the spindle to the motor, allowing the spindle to rotate at high speeds without slipping or binding.(2) Robotics: In robotics, the joints are the points where two or more parts of the robot are connected. The steel splined hubs with flange connect the joints to each other, allowing the robot to move smoothly and precisely.(3) Material handling equipment: In material handling equipment, the wheels are what allow the equipment to move. The axle is the shaft that the wheels are mounted on. The steel splined hubs with flange connect the wheels to the axle, allowing the equipment to move heavy loads without slipping or binding.(4) Power transmission: In a power transmission system, the input shaft is the shaft that receives power from the engine. The output shaft is the shaft that delivers power to the wheels. The steel splined hubs with flange connect the input and output shafts, allowing the system to transmit power efficiently and without slipping or binding.(5) Automotive: In a car, the wheels are connected to the axle by splined hubs. The steel splined hubs with flange allow the wheels to rotate at different speeds while the car is turning.6) Aerospace: In an aircraft, the various components are connected to each other by splined hubs. The steel splined hubs with flange allow the aircraft to fly safely and efficiently.

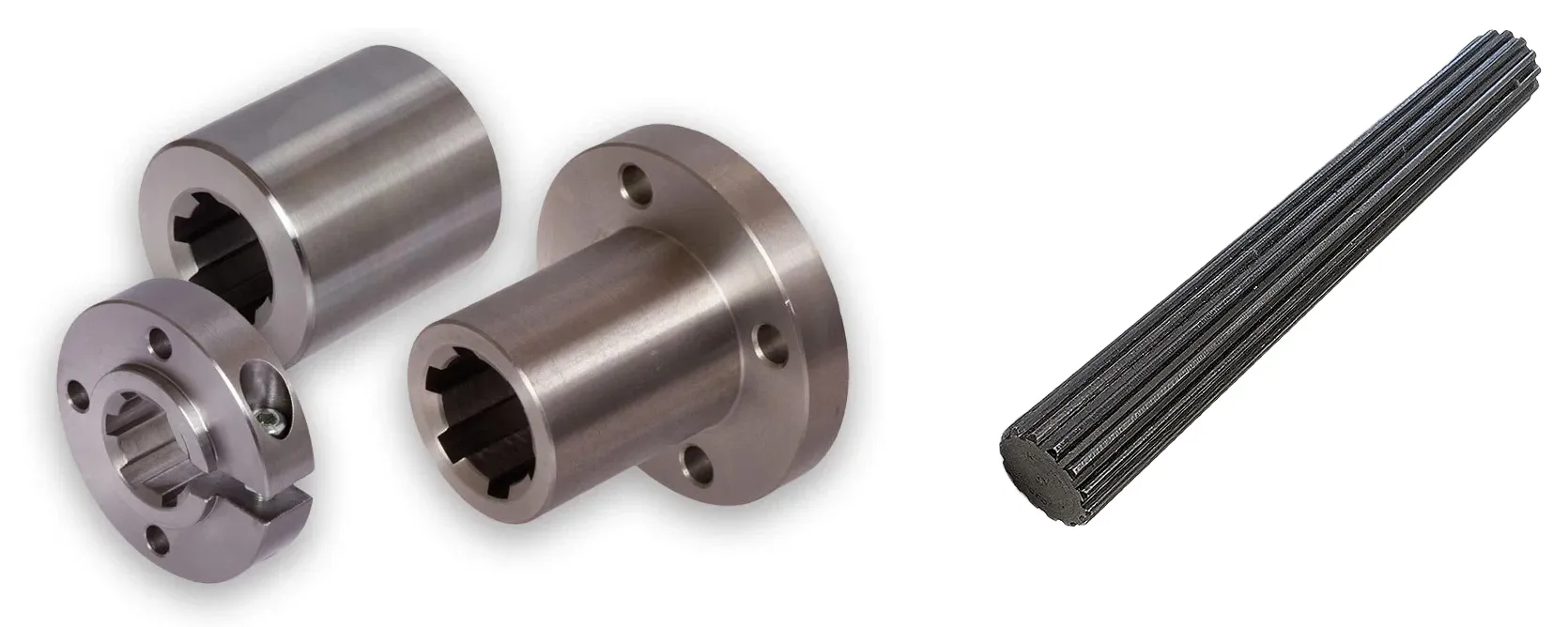

▍Steel Splined Hubs with Flange Installation Instructions:

The installation of steel splined hubs with flange is critical to ensure accurate power transmission and the longevity of the mechanical components. Here are some general instructions for their installation:Clean the surfaces: Before installation, ensure that the surfaces of the splined hub, splined shaft, and flange are clean and free of any debris, rust, or contaminants.Check the fit: Verify that the internal splines of the spline hub fit snugly onto the external splines of the shaft. There should be no play or looseness between the two components.Install the hub: Slide the steel splined hubs onto the shaft, making sure that it is fully seated on the shaft. Use a mallet or press to ensure a tight fit.Install the flange: Place the flange onto the splined hub and align it with the bolt holes. Insert the bolts and tighten them evenly and gradually, using a torque wrench to the recommended torque values.Check alignment: After installation, check the alignment of the splined shaft and hub to ensure that they are properly aligned. Any misalignment can lead to premature wear and damage to the components.Lubricate: Apply a suitable lubricant to the splines and mating surfaces to reduce friction and wear.Test: Finally, test the installation to verify that the power transmission is accurate and smooth.

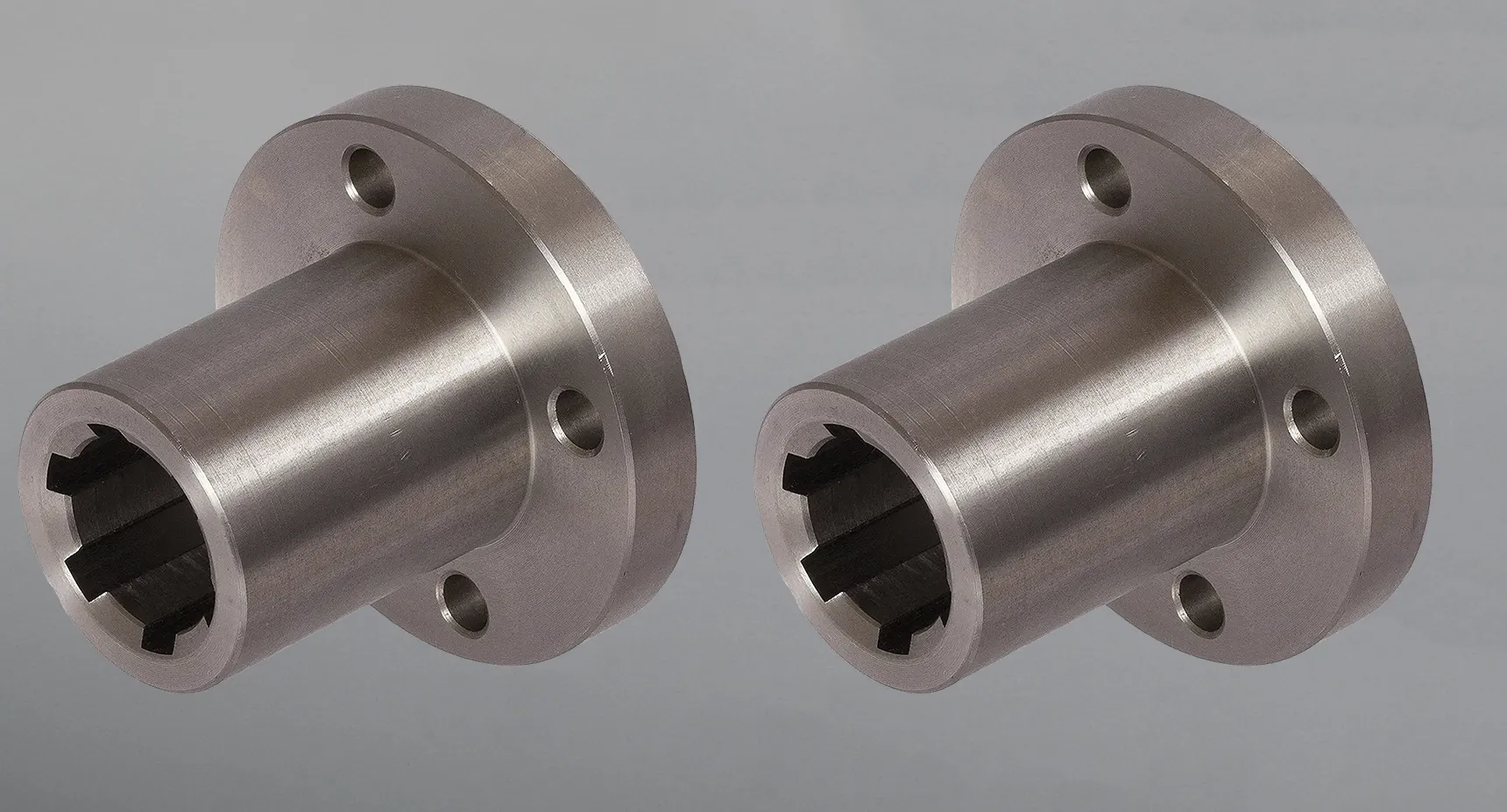

▍Steel Splined Hubs with Flange Maintenance Matters

Proper maintenance of steel splined hubs with flange is crucial for ensuring their reliable and long-lasting performance. Here are some maintenance matters to consider:Regular inspection: Regularly inspect the steel splined hubs, splined shafts, and flanges for signs of wear, damage, or misalignment. Address any issues promptly to prevent further damage to the components.Lubrication: Apply a suitable lubricant to the splines and mating surfaces at regular intervals to reduce friction and wear. Follow the manufacturer's recommendations for the type and frequency of lubrication.Cleaning: Keep the components clean and free of debris, rust, or contaminants that can interfere with the performance of the splines or mating surfaces.Tightening bolts: Check the tightness of the bolts that secure the flange to the steel splined hubs at regular intervals, and tighten them as necessary to the recommended torque values.Misalignment: Address any issues with misalignment between the steel splined hubs and shaft promptly, as this can cause premature wear and damage to the components.Replacement: Replace the steel splined hubs with flange if there is significant wear or damage that cannot be repaired or if they no longer meet the required performance specifications.
