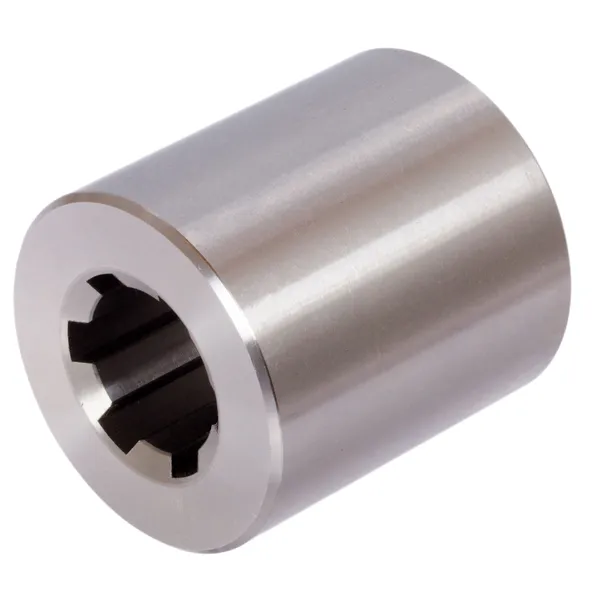

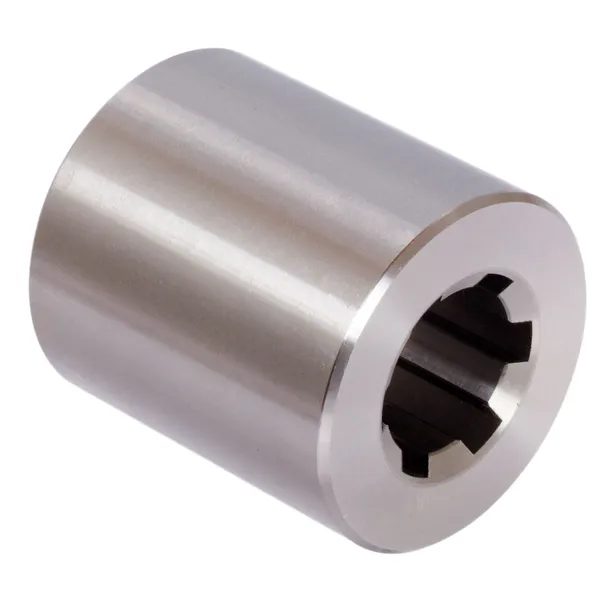

Stainless Steel Round Splined Hubs

Stainless Steel Round Splined Hubs

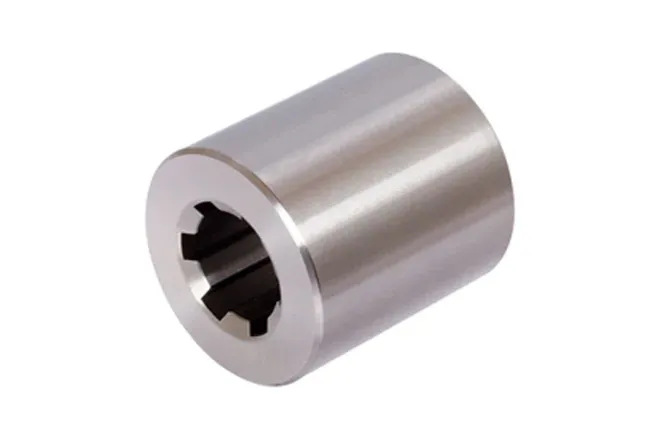

Stainless steel round splined hubs are a type of mechanical connection that uses a series of teeth or splines to mate two pieces of equipment together. The splines on the hub engage with the splines on the shaft, creating a secure and durable connection. Stainless steel is a corrosion-resistant material that is ideal for use in harsh environments. As a result, stainless steel round splined hubs are often used in applications where durability and corrosion resistance are important, such as in the food and beverage industry, the chemical industry, and the marine industry.

▍Benefits of Using Stainless Steel Round Splined Hubs

Stainless steel round splined hubs offer several benefits in various applications, including:1. Durability: Stainless steel is a highly durable material that is resistant to corrosion, rust, and other forms of damage. Using stainless steel round splined hubs can help increase the lifespan of equipment and reduce maintenance costs.2. Strength: Stainless steel is also a strong material that can withstand high levels of stress and pressure. This makes it an ideal choice for applications that require heavy loads or high torque.3. Precision: Stainless steel round splined hubs offer a high level of precision and accuracy when it comes to transmitting torque, which is essential for the smooth and efficient operation of machinery.4. Compatibility: Stainless steel round splined hubs are compatible with a wide range of shafts, making them a versatile choice for various industrial applications.5. Ease of installation: Stainless steel round splined hubs can be easily installed and removed, making maintenance and repair tasks easier and more efficient.6. Hygiene: Stainless steel is a non-porous material that is easy to clean and sanitize, making it ideal for applications in the food and pharmaceutical industries.

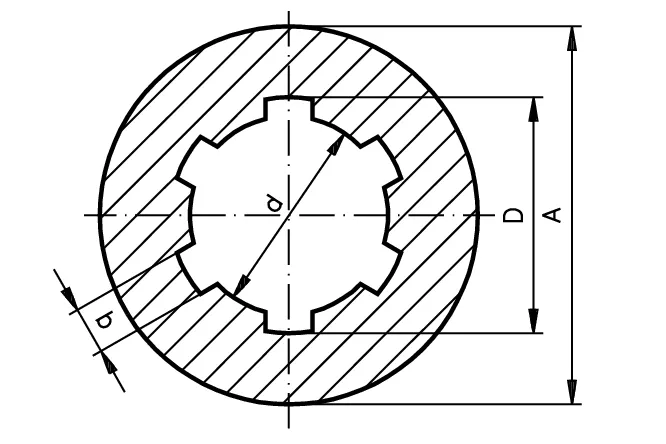

▍Stainless Steel Round Splined Hubs Dimensions:

Profile Type [mm]	Material	No. of Splines	Foot Circle Diameter D [mm]	Inner Diameter d [mm]	Spline Width b [mm]	Outer Diameter A [mm]	Length [mm]	Weight [kg]
KN 11 x 14	Stainless Steel	6	14	11	3	20	40	0.06
KN 13 x 16	Stainless Steel	6	16	13	3.5	28	45	0.16
KN 16 x 20	Stainless Steel	6	20	16	4	32	45	0.2
KN 18 x 22	Stainless Steel	6	22	18	5	40	50	0.27
KN 21 x 25	Stainless Steel	6	25	21	5	40	55	0.36
KN 23 x 28	Stainless Steel	6	28	23	6	50	55	0.47
KN 26 x 32	Stainless Steel	6	32	26	6	52	60	0.7
KN 28 x 34	Stainless Steel	6	34	28	7	60	60	0.76
KN 32 x 38	Stainless Steel	8	38	32	6	60	60	0.88
KN 36 x 42	Stainless Steel	8	42	36	7	70	65	1.08
KN 42 x 48	Stainless Steel	8	48	42	8	65	70	0.94
KN 42 x 48	Stainless Steel	8	48	42	8	80	70	1.88
KN 46 x 54	Stainless Steel	8	54	46	9	80	90	2.25

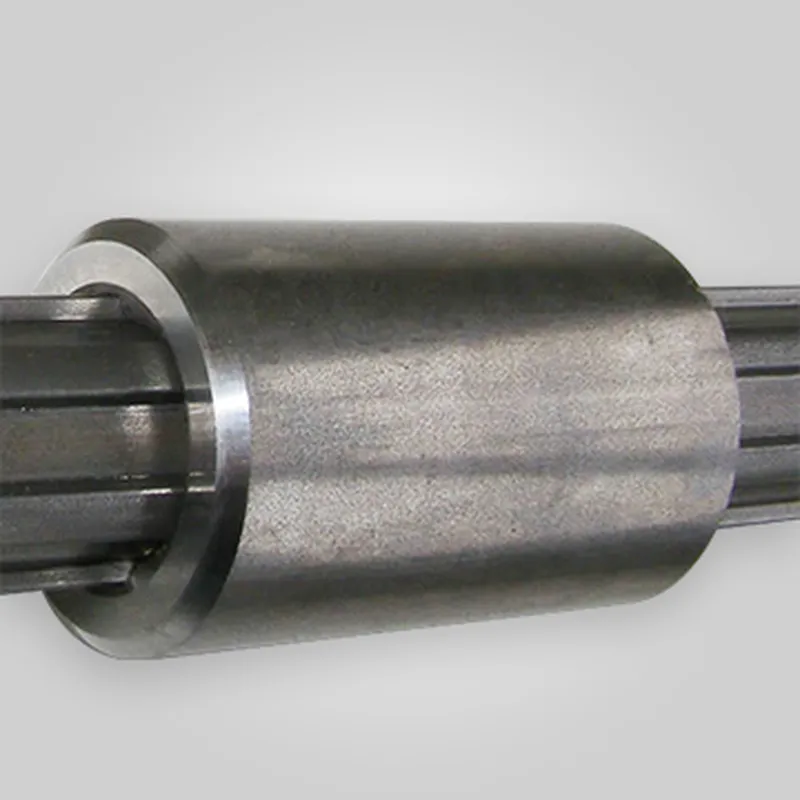

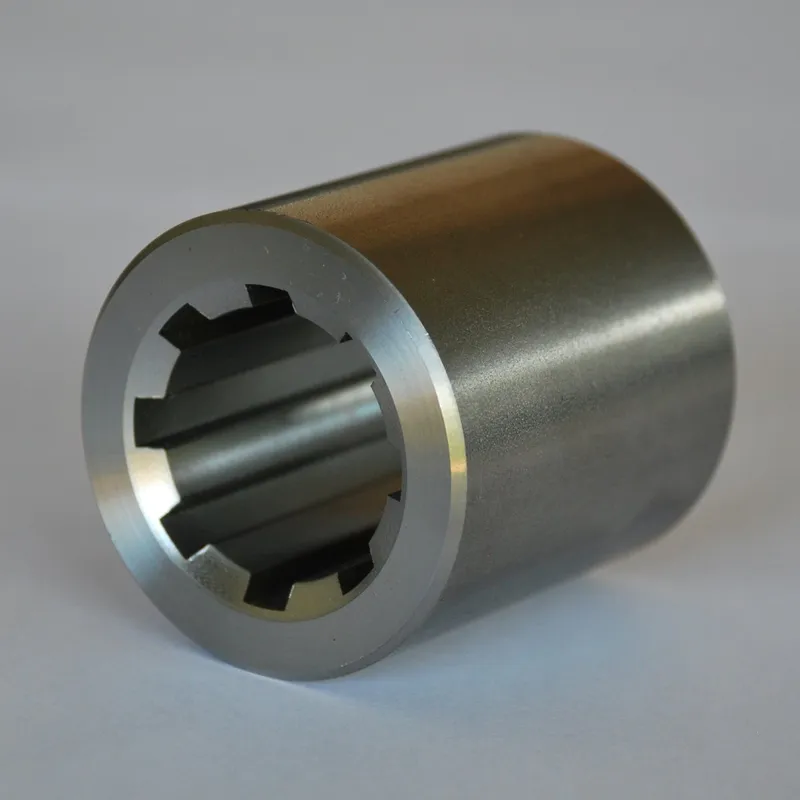

▍Features of Stainless Steel Round Splined Hubs

Stainless steel round splined hubs have a number of features that make them a valuable component for many applications. These features include:1. High Strength: Stainless steel round splined hubs are strong enough to withstand high loads and torques. This makes them ideal for use in applications where there is a lot of force being applied, such as in machine tools and robotics.2. Durability: Stainless steel round splined hubs are durable and can withstand long-term use and abuse. This makes them a good choice for applications where there is a lot of wear and tear, such as in conveyor belts and agricultural machinery.3. Corrosion resistance: Stainless steel round splined hubs are resistant to corrosion, making them ideal for use in harsh environments. This makes them a good choice for applications where there is a lot of moisture or chemicals, such as in wind turbines and mining equipment.4. Versatility: Stainless steel round splined hubs are available in a variety of sizes and styles, making them suitable for a wide range of applications. This makes them a good choice for custom applications where a specific size or style is required.Overall, stainless steel round splined hubs are a versatile and reliable component that can be used in a variety of applications. They offer a number of features that make them a good choice for applications where strength, durability, corrosion resistance, and versatility are important.

▍Types of Splined Hubs in Different Materials

Splined hubs can be made from a variety of materials depending on the specific application and operating conditions. Some of the most commonly used materials for splined hubs include:Steel: Steel is a popular material for splined hubs due to its strength, durability, and resistance to wear and corrosion. Carbon steel is commonly used for general-purpose applications, while higher-grade alloy steels may be used in high-stress or high-temperature applications.Stainless steel: Stainless steel is a corrosion-resistant material that is commonly used in applications where hygiene and cleanliness are critical, such as in the food and pharmaceutical industries.Aluminum: Aluminum is a lightweight material that is commonly used in applications where weight reduction is a priority, such as in aerospace and automotive applications.Brass: Brass is a corrosion-resistant material that is commonly used in applications where electrical conductivity is required, such as in electrical equipment or marine applications.Titanium: Titanium is a high-strength, lightweight material that is commonly used in high-performance applications, such as in the aerospace and defense industries.The choice of material for a splined hub will depend on factors such as application requirements, operating conditions, and cost considerations. It is important to select a material that provides the necessary strength, durability, and resistance to wear and corrosion for the specific application.

Red Brass Round Splined Hubs	Steel Round Splined Hubs

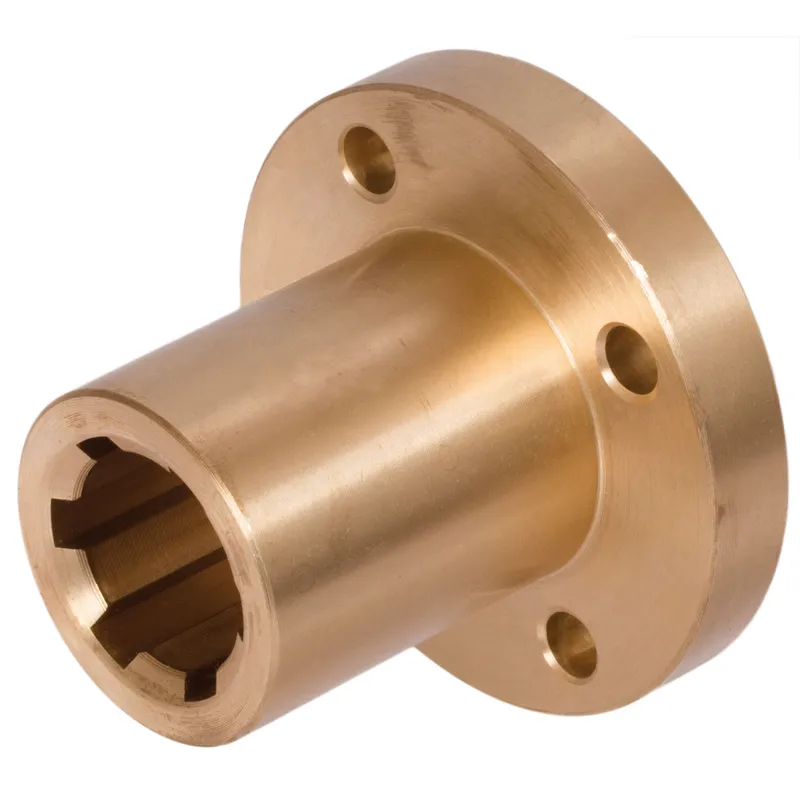

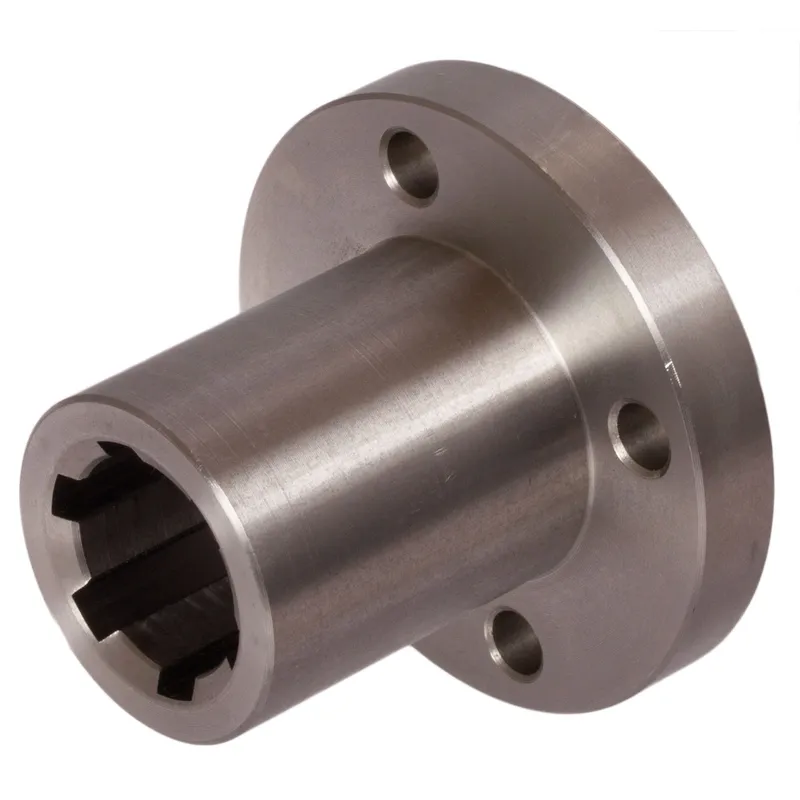

Red Brass Splined Hubs with Flange	Steel Splined Hubs with Flange

▍Applications of Stainless Steel Round Splined Hubs

Stainless steel round splined hubs are used in a variety of industrial applications, including:(1) Power transmission: Stainless steel round splined hubs are commonly used to transmit power between two shafts, such as in gearboxes, motors, and pumps.(2) Aerospace and aviation: Stainless steel round splined hubs are used in the aerospace and aviation industries to transmit power between engines and propellers or rotors.(3) Automotive: Stainless steel round splined hubs are used in drivetrain systems for automobiles, particularly in high-performance vehicles where durability and precision are critical.(4) Robotics: Stainless steel round splined hubs are used in robotic systems to transmit power between motors and joints, allowing for precise and efficient movement.(5) Food and pharmaceuticals: Stainless steel round splined hubs are used in food and pharmaceutical industries because they are easy to clean and sanitize, making them ideal for applications where hygiene is critical.(6) Marine and offshore: Stainless steel round splined hubs are used in marine and offshore applications to transmit power between engines and propellers or thrusters, where reliability and durability are critical.(7) Industrial machinery: Stainless steel round splined hubs are used in various types of industrial machinery, including conveyor systems, pumps, and compressors, where they provide reliable power transmission and low maintenance requirements.

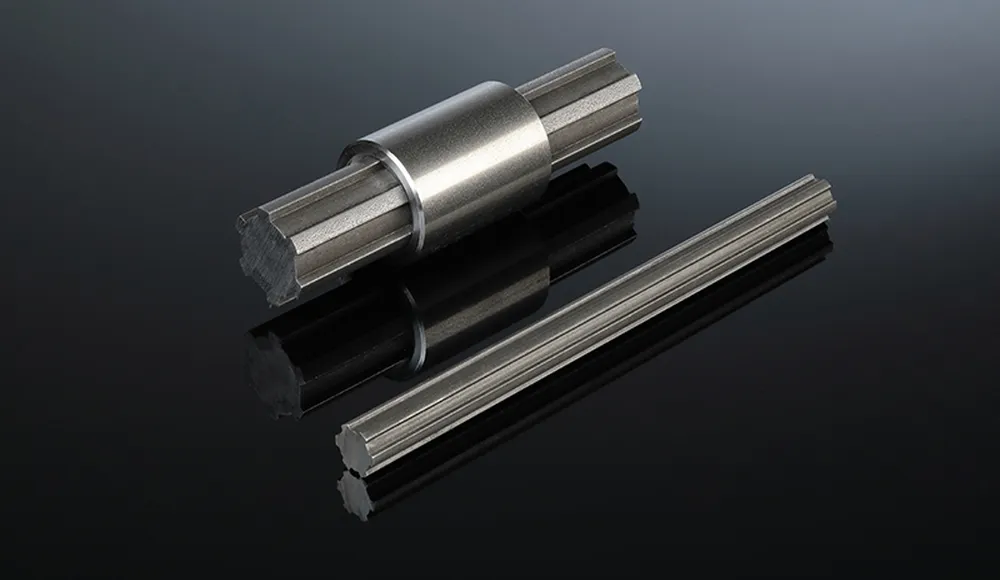

▍How to Choose the Right Stainless Steel Round Splined Hubs?

Stainless steel round splined hubs are a versatile type of connector that can be used in a variety of applications. They are made of corrosion-resistant stainless steel, making them ideal for use in harsh environments. Splined hubs are also very strong and can withstand high loads.Here are some factors to consider when choosing stainless steel round splined hubs:

• Size: Splined hubs come in a variety of sizes, so it is important to choose the right size for your application. The size of the hub will be determined by the size of the shaft or axle that it will be connecting.
• Material: Stainless steel round splined hubs are typically made of 304 or 316 stainless steel. 304 stainless steel is a good choice for general-purpose applications, while 316 stainless steel is more corrosion-resistant and is ideal for use in harsh environments.
• Surface finish: Splined hubs can be finished in a variety of ways, including bright, black, or zinc-plated. The surface finish will affect the appearance of the hub and can also provide some corrosion protection.
• Strength: Splined hubs are available in a variety of strength ratings. The strength rating will determine how much weight the hub can safely support.
• Price: Stainless steel round splined hubs can range in price from a few dollars to several hundred dollars. The price will be affected by the size, material, surface finish, and strength rating of the hub.

Once you have considered these factors, you can choose the right stainless steel round splined hub for your application.
