Replacement Of Thiele S-Type Flight Bars For Mining

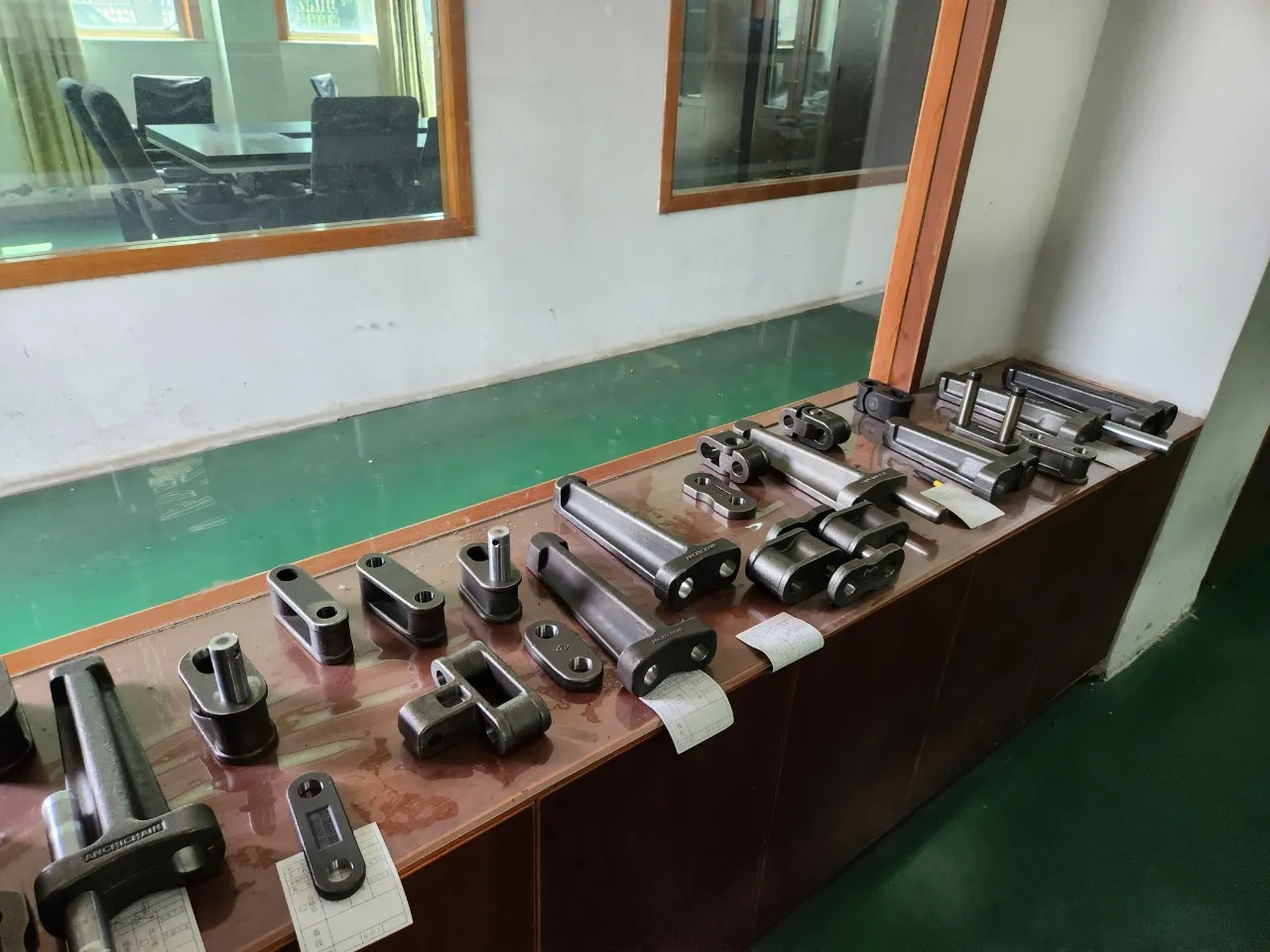

Welcome to the global leader in heavy-duty chain conveyor solutions. We specialize in designing and manufacturing robust, high-performance replacement components for the world's most challenging mining applications. Our mission is to provide an essential advantage: superior component quality and reliability at a competitive cost, ensuring maximum conveyor system uptime.The S-Type Flight Bar, known for its symmetrical design, is a critical component for double-strand scraper and armored face conveyors (AFCs) used in longwall mining and general haulage. Our replacement bars are engineered through rigorous internal testing and quality control processes, ensuring seamless integration and durability that consistently meets or exceeds the demands placed on the original equipment.By choosing our precision-forged components, you leverage decades of manufacturing expertise dedicated solely to power transmission and material handling within aggressive mining environments.

Technical Specifications & Material Expertise

Uncompromising Quality: Material and Heat Treatment Specifications

Our authority in mining components stems from our commitment to material science and measurable quality control, ensuring our products perform reliably in the world's harshest environments.

Material Science & Forging

The base material for our flight bars utilizes proprietary alloy steel that achieves a minimum tensile strength and hardness suitable for heavy-duty applications. Our rigorous process includes a pre-stretching and shot-blasting phase, further increasing the component’s resistance to fatigue.

Hardness Range: Our standard flight bars are manufactured to achieve an excellent balance of high impact toughness and a hardness range of 270–380 HB (910–1290 MPa), allowing them to absorb extreme impact without fracturing while resisting abrasive wear.
Component Structure: The S-Type bar is typically supplied as a flight bar body and an optional wear plate (press bar), which can be straight or arched/bowed, depending on conveyor type.

S-Type Flight Bar Technical Compatibility

Feature	Compatibility Range	Corresponding Chain Systems (Examples)
Material	High-Strength Forged Alloy Steel	THD, TSC, TSD, TIP Chain Equivalents
Chain Size (Nominal)		$?22 \times 86$ to $?42 \times 146$ (Fl., S-Fl.)	Double-Strand Scraper Conveyors (e.g., AFCs)
Chain Center Distance (C)	Available in standard widths (e.g., 120mm to 500mm)	Customized to fit specific trough widths for optimal performance.

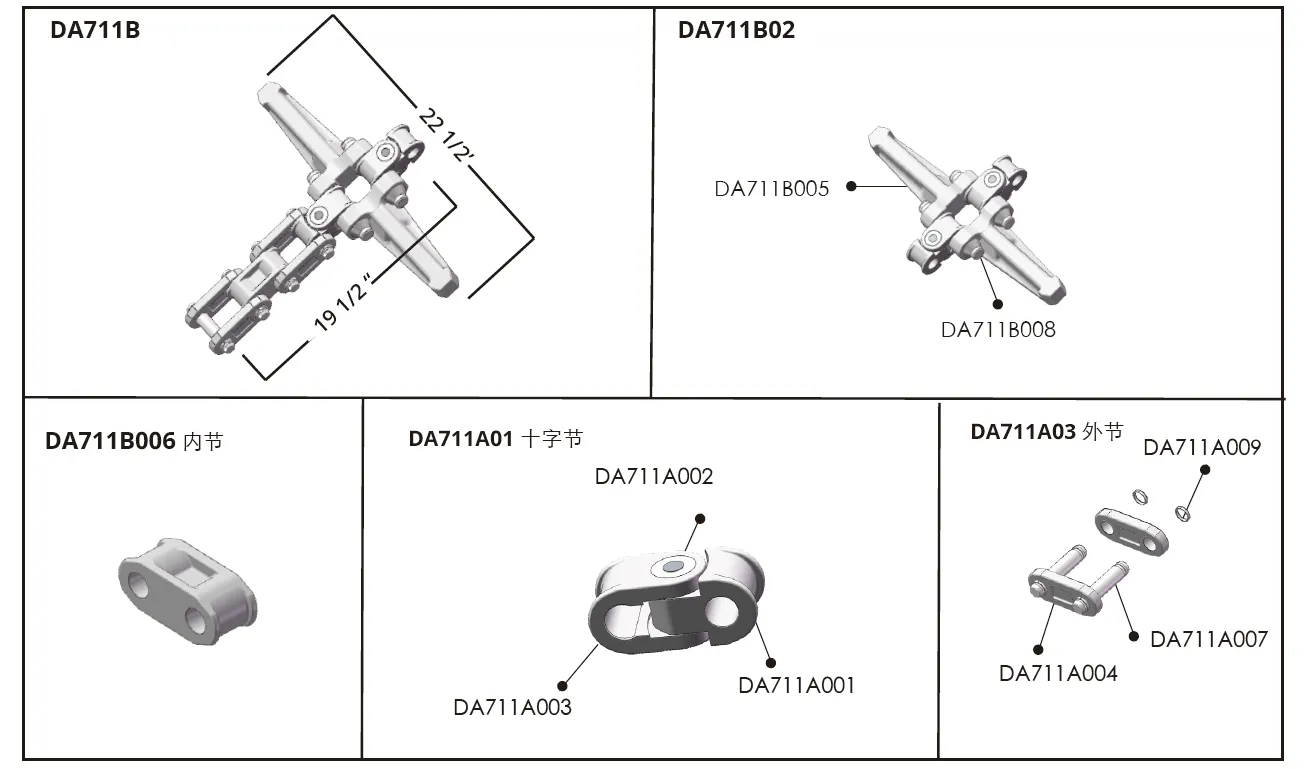

DA711 CONVEYOR CHAIN SELECTION CHART
DA711B		Chain Unit Length is 19 1/2 inches (495.3mm)(one Flight Section， two Outer Links, and one Inner Link)				WIDTH: 22 1/2 INCH (572mm)
Secondary Component
DA711B02Flight Section		DA711B03Outer Link			DA711A01Cross-shaped Link
?Tertiary Component
DA711A001Single Lug Fork End	DA711A002Slotted Tongue End	DA711A003Cross Pin	DA711A004Outer Plate	DA711B005Scraper	DA711B006Inner Link	DA711A007Pin	DA711B008Scraper Pin	DA711A009cross pin joint
Note: DA chain products are suitable for continuous miners, borer miners, and road headers (mining/tunnelling). DA chains pitch range is from 2 5/8 inches to 3 1/4inches. Product data sheets, other than those listed, are available upon request.

K301B CONVEYOR CHAIN? SELECTION CHART
Pitch=4 1/10 INCH（104.14mm）		Chain Unit Length is 24 3/5 INCH （624.84mm）(one Flight Section and two Chain Section)				42 INCH（1066mm）
Secondary Component
K301B01Chain Section		K301B02Outer Link			K301B04Flight Section
Tertiary Component
K301B001Outer Plate	K301B002Inner Link	K301B003Inner link with slotted hole	K301B004Attachment Inner Link	K301B005Pin	K301B006Retainer Ring	K301B011M16X120Bolt	K101B012M16 Washer	K101B013M16 Lock Nut
Note： K series chain products are suitable for shuttle cars, underground feeder breaker chain conveyors. K series chains are suited for washing coal applications. K series chain’s pitch range is from 3 1/4 inches to 4 1/2? inches, product data sheets other than those listed are available upon request.

K205B CONVEYOR CHAIN? SELECTION CHART
Pitch=4 1/10 INCH (104.1mm)		Chain Unit Length is 24 3/5 INCH(624.6mm) (one Flight Section and two Chain Section)						WIDTH: 35 1/2? INCH(902mm)
?Secondary Component
K205B01Chain Section		K205B02Outer Link		K205B04Flight Section		K205B05Attachment Link		K205B06Inner Link
?Tertiary Component
K205B001Outer Plate A	K205B002Outer Plate B	K205B003Outer Plate C	K205B004Inner Plate		K205B005Bush		K205B006Attachment Block
K205B007Pin		DA622B007T-pin	K301B011M16X120 Bolt		K101B012M16 Washer		K101B013M16 Lock Nut

K206B CONVEYOR CHAIN? SELECTION CHART
Pitch =3? INCH (78.1mm)		Chain Unit Length is 24 3/5? INCH (624.6mm) (one Flight Section and two Chain Section)						WIDTH:42? INCH(1068mm)
Secondary Component
K206B01Chain Section		K206B02Outer Link		K206B03Inner Link		K206B04Inner Link with hole		K206B05Flight Section
Tertiary Component
K206B001Outer Plate A	K206B002Outer Plate B	K206B003Inner Plate	K206B004Inner Platewith hole	K206B005Bush	K206B006Pin	K206B007T-pin 6X40	K206B011Bolt M16X90	K101B013M16 Lock Nut
Note：K series chain products are suitable for shuttle cars, underground feeder breaker chain conveyors. K series chains are suited for washing coal applications. K series chain’s pitch range is from 3 1/4 inches to 4 1/2? inches, product data sheets other than those listed are available upon request.

S-Type Flight Bar Features & Benefits:

Precision-Forged S-Type Flight Bars: Built to Outperform

Our S-Type Flight Bars are not merely copies; they are optimized components built for the reality of high-tonnage mining. Every bar is subjected to a specialized manufacturing path that maximizes both impact resistance and wear characteristics.

Core Engineering & Design

Symmetrical, Direct-Fit Design: The S-Type's core geometry is engineered for universal fit, ensuring seamless installation into any conveyor pan designed for the S-Type footprint. This dual-direction capability is crucial for high-efficiency conveyor systems, enabling installation regardless of the transport direction.
Precision Forging: Manufactured using a world-class drop forging process. Forging shapes heated metal by hammering it into dies, producing components with superior strength and durability by ensuring the material’s internal grain structure flows along the component's contour
Calibrated Chain Seats: Critical attention is given to the final machining and calibration of the chain seat. This ensures an exceptionally smooth and stable ride for the chain links, significantly reducing friction and premature wear on the entire chain and conveyor trough.

Key Performance Advantages

Feature	Performance Benefit	Source
High Flexural Strength	Engineered with high-strength alloy steel to resist bending, twisting, and deformation under extreme, multi-directional stress loads.
Maximized Wear Resistance	Optimized heat treatment processes deliver a consistent Brinell hardness across the body, prolonging service life in highly abrasive coal and ore applications.
Operational Versatility	Symmetrical profile and dual-use capability simplifies inventory and installation, removing the risk of incorrect directional assembly.
Hardware Compatibility	Designed to ensure perfect fitment with common hardware, including	Hexagon bolts or Hammerhead bolts.

Specialized Features: Addressing Mining Challenges

Solving Your Toughest Operating Problems

We provide advanced material treatments to directly address the operational challenges that cause premature failure in conveyor systems.

Optional: End Induction Hardening (Ultimate Wear Resistance)

For applications in high-wear mining, which are subject to high volumes of rock (gangue), or use in tunneling and stone drifting, we offer an advanced End Induction Hardening option.

Process: This precisely controlled surface hardening method increases the hardness of the scraper end to up to 55 HRC (or $540 ? 600HV10$ ), significantly enhancing resistance to abrasion and maximizing the component's operational life.
Performance Insight: This specialized treatment slows the wear rate on the ends of the flight bar. It is explicitly confirmed by long-term testing that this hardened tip does not significantly increase wear on the side of the conveyor pan; pan wear is primarily determined by the abrasiveness of the conveyed material. This means you gain extended flight bar life without compromising the conveyor pan itself.
Hardness Grades: We provide different end-hardening grades to match the severity of your operational environment:
- CTH (Maximum Hardening): 51.8 - 55.1 HRC
- GTH (Enhanced Hardening): 45.7 - 49.9 HRC
- MTH (Light Hardening): 39.6 - 44.1 HRC

Solutions for Corrosive Environments

For corrosive underground environments, we offer specialized protective finishes to maximize the integrity and performance of your flight bars:

Tectyl (TEC) Coating: A standard protective coating suitable for good working conditions and shorter storage times. It acts as a lubricant, quickly fusing into the chain joints during initial use, minimizing severe primary wear.
Hot-Dip Galvanizing (TZN): Recommended for long-term storage and severely corrosive working environments. This process creates a permanent, dense, and highly adhesive zinc-iron alloy layer on the surface, offering superior wear and electrochemical protection. Hot-dip galvanizing is proven to significantly increase component service life in aggressive conditions.

Why Choose Our Replacement Flight Bars?

Choosing our replacement flight bars means you benefit from a manufacturer with a proven track record in supplying heavy-duty solutions to world-class mining companies.

Trustworthy Manufacturing: Our production facility operates with advanced welding, thermal cutting, and heat treatment lines. This full vertical integration ensures complete quality control from raw material to final product.
Reliability through Testing: Our dedication to quality is backed by comprehensive in-house testing. Our laboratory conducts constant testing on key performance parameters, including ultimate tensile strength and elongation, giving you confidence in the component's performance.
Seamless Integration Guarantee: Our engineering philosophy focuses on interchangeability. Our flight bars are guaranteed to be a functional, dimensional, and performance-equivalent replacement for your existing OEM flight bars, minimizing installation risks and maintenance complexity.
Full System Support: We don't just supply parts; we provide solutions. Our product range covers a full complement of mining conveyor components, including single and double-strand conveyor chains (like the high-durability K Series double-strand scraper chain) , segmental sprockets , and essential drive chains (like the Heavy-Duty Drive Chain Series).

Request a Quote for Your Conveyor Flight Bar Needs

Do not compromise on the reliability of your critical haulage systems. Partner with our team of specialists today to discuss your specific operational requirements and learn how our S-Type Flight Bars can deliver essential cost savings and unmatched operational lifespan.
