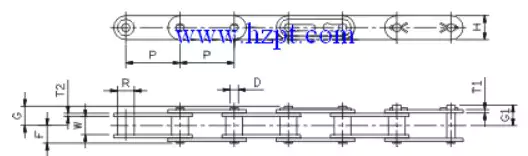

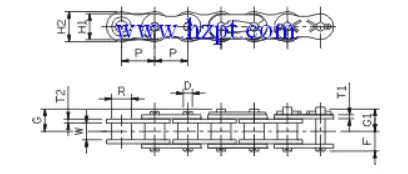

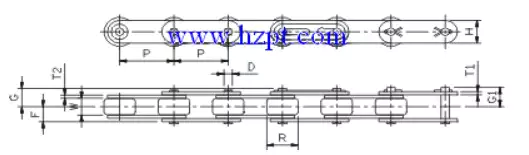

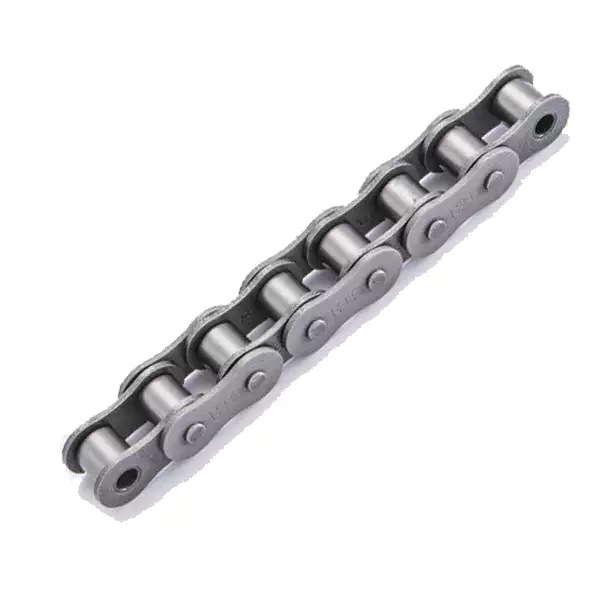

SL chain standard is rollerless, and R indicates bushing diameter. The bushing is a solid type.NSL chain is with roller
CHAIN NO.(ANSI) | Pitch | Width | Roller | Plate | Pin | Average ?Ultimate Strength kgf | Approx Weightkg/m | |||||||
P | W | Dia | Height | Thickness | Dia | Lengths | ||||||||
inch | mm | mm | R | H1 | H2 | T1 | T2 | D | F | G | G1 | |||
| 40SL | 1/2" | 12.70 | 7.94 | 7.92 | 10.20 | 11.80 | 1.50 | 1.50 | 3.96 | 8.25 | 9.30 | 10.00 | 1300 | 0.58 |
| 40NSL | 1/2" | 12.70 | 7.94 | 7.92 | 10.20 | 11.80 | 1.50 | 1.50 | 3.61 | 8.25 | 9.30 | --- | 1200 | 1.29 |
| 50SL | 5/8" | 15.875 | 9.53 | 10.16 | 13.00 | 14.80 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 12.6 | 2000 | 0.97 |
| 60SL | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 17.50 | 2.40 | 2.40 | 5.95 | 12.50 | 14.15 | 15.40 | 3050 | 1.41 |
| 80SL | 1" | 25.40 | 15.88 | 15.88 | 20.40 | 24.00 | 3.10 | 3.10 | 7.94 | 16.10 | --- | 18.80 | 5800 | 2.40 |
| 16BNSL | 1" | 25.40 | 17.02 | 15.88 | 20.80 | 20.80 | 3.20 | 4.00 | 8.27 | 17.70 | --- | 20.20 | 6000 | 2.65 |
SL chain standard is rollerless, and R indicates bushing diameter. The bushing is a solid type.
CHAIN NO.(ANSI) | Pitch | Width | Roller | Plate | Pin | Average ?Ultimate Strength kgf | Approx Weightkg/m | ||||||
P | W | Dia | Height | Thickness | Dia | Lengths | |||||||
inch | mm | mm | R | H | T1 | T2 | D | F | G | G1 | |||
| C2040SL | 1" | 25.40 | 7.94 | 7.92 | 11.70 | 1.50 | .1.50 | 3.96 | 8.20 | 9.30 | 10.00 | 1300 | 0.49 |
| C2050SL | 1-1/4" | 31.75 | 9.53 | 10.16 | 14.60 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 12.60 | 2000 | 0.80 |
| C2060SL | 1-1/2" | 38.10 | 12.70 | 11.91 | 17.10 | 2.40 | 2.40 | 5.95 | 12.50 | 14.15 | 15.40 | 3050 | 1.18 |
| C2080SL | 2" | 50.80 | 15.88 | 15.88 | 23.00 | 3.10 | 3.10 | 7.94 | 16.10 | --- | 18.80 | 5800 | 2.00 |
CHAIN NO.(ANSI) | Pitch | Width | Roller | Plate | Pin | Average ?Ultimate Strength kgf | Approx Weightkg/m | ||||||
P | W | Dia | Height | Thickness | Dia | Lengths | |||||||
inch | mm | mm | R | H | T1 | T2 | D | F | G | G1 | |||
| C2042SL | 1" | 25.40 | 7.94 | 15.88 | 11.70 | 1.50 | 1.50 | 3.96 | 8.20 | 9.30 | 10.00 | 1300 | 0.77 |
| C2052SL | 1-1/4" | 31.75 | 9.53 | 19.05 | 14.60 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 12.60 | 2000 | 1.21 |
| C2062SL | 1-1/2" | 38.10 | 12.70 | 22.23 | 17.10 | 2.40 | 2.40 | 5.95 | 12.50 | 14.15 | 15.40 | 3050 | 1.76 |
| C2082SL | 2" | 50.80 | 15.88 | 28.58 | 23.00 | 3.10 | 3.10 | 7.94 | 16.10 | --- | 18.80 | 5800 | 3.04 |
