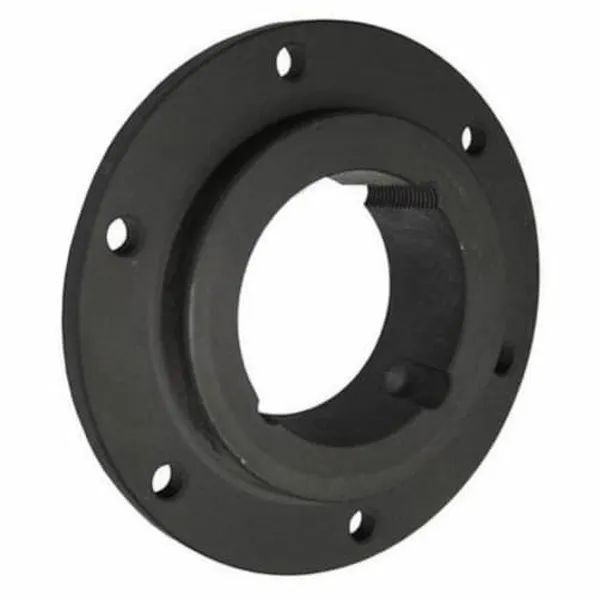

SM1600 Taper Bore Bolt-On Hubs

SM1600 Taper Bore Bolt-On Hubs

SM1600 taper bore bolt-on hubs are one type of bolt-on-hubs that is specially designed for bushes, and its characteristics are simple structure, easy-on, easy-off, simultaneously usable on both sides and soon. It applies to vane wheels, fans, and other parts which must be fixed closely with shafts.SM1600 taper bore bolt-on hubs are made of high-standard grey cast iron GG25, which has enough surface intensity. The surface is phosphated. Attractive and antirust. They are seriously standardized, produced, and highly interchangeable so that the stock costs can be lowered.

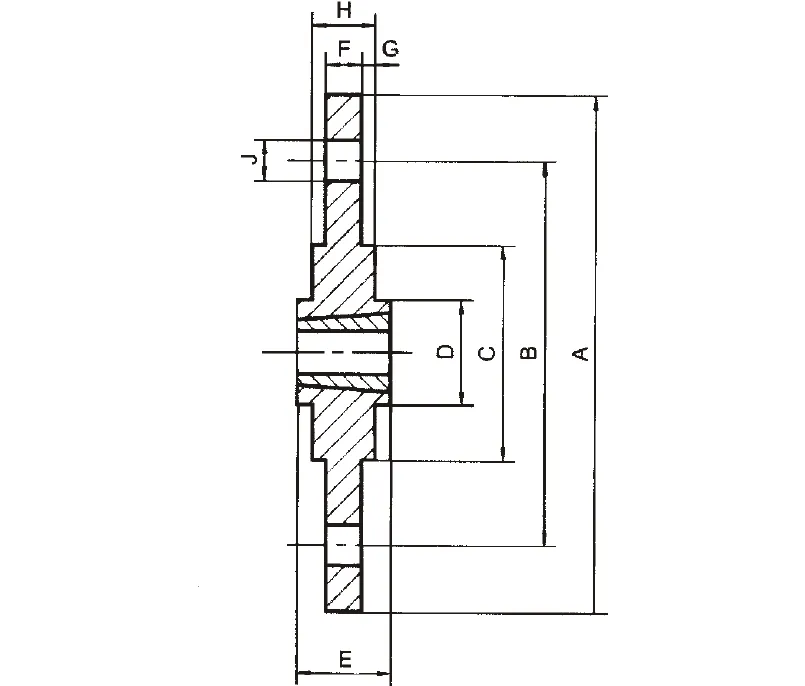

SM1600 Taper Bore Bolt-On Hubs Dimensions:

Specification		SM1600 Taper Bore Bolt-On Hubs
Bushing No.		1615 Taper Lock Bushings
Main dimension	A	200
	B	150
	Chp	110
	D	85
	E	38
	F	7.5
	G	2.5
	H	12.5
Screw hole nx. J		6 X Φ7.5

SM1600 Taper Bore Bolt-On Hubs Advantages:

The SM1600 taper bore bolt-on hubs offer several advantages in various industrial applications. Here are some of the key advantages:1. Easy Installation: SM1600 taper bore bolt-on hubs are designed for quick and straightforward installation. They can be easily mounted or dismounted on a shaft without the need for extensive machining or special tools. This saves time and effort during assembly and maintenance.2. High Torque Transmission: SM1600 taper bore bolt-on hubs provide a secure and reliable connection between the shaft and the hub, ensuring efficient torque transmission. The tapered design increases the surface area of contact, enhancing the load-carrying capacity and reducing the risk of slippage or power loss.3. Versatility: These SM1600 taper bore bolt-on hubs are versatile and can accommodate various shaft sizes due to their taper bore design. They are available in different sizes and configurations, allowing them to fit a wide range of applications and shaft dimensions. This versatility makes them a preferred choice for industries with diverse equipment requirements.4. Axial Positioning: SM1600 taper bore bolt-on hubs allow for axial positioning of the hub on the shaft. This feature enables precise alignment of the hub with other components such as pulleys, sprockets, or gears. Accurate alignment helps prevent unnecessary wear, reduces vibration, and promotes smoother operation.5. Robust and Durable: The SM1600 taper bore bolt-on hubs are typically made from high-quality materials such as steel or cast iron, ensuring durability and long service life. They are designed to withstand heavy loads, harsh operating conditions, and repetitive use without compromising performance.6. Maintenance-Friendly: When maintenance or replacement is required, SM1600 taper bore bolt-on hubs are convenient to work with. They can be easily removed from the shaft, allowing for swift repairs or component replacement without significant downtime.

China Taper Bore Bolt-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, taper bore bolt-on hubs, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
