Spherical Thrust Roller Bearings

Discover Raydafon Group's Spherical Thrust Roller Bearings, the ultimate solution for heavy-duty axial loads in industrial machinery. Engineered with precision-ground rollers and superior materials, these bearings offer exceptional durability and smooth operation, ensuring optimal performance in demanding applications. Ideal for manufacturing plants and construction equipment, they provide reliable support and reduce downtime, giving users confidence and efficiency. Stand out with Raydafon Group's innovative design and proven reliability—upgrade your machinery today and experience unmatched quality.

Send Inquiry

Product Description

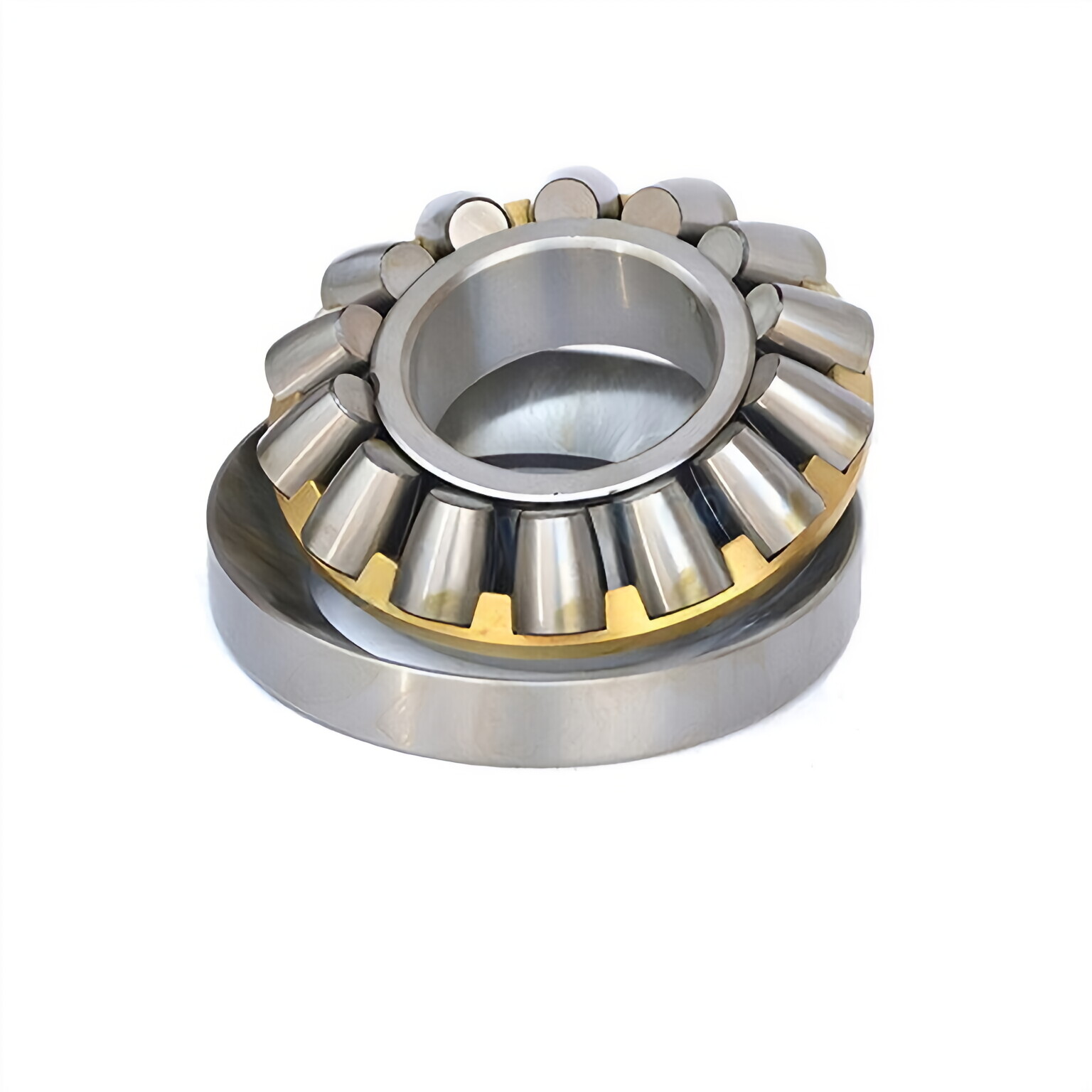

Spherical Thrust Roller BearingsSpherical thrust roller bearings have asymmetrically sphered rollers. These bearings have one shaft washer raceway and one housing washer raceway and the load is transmitted at an angle to the bearing axis. The rollers conform closely to the inner and outer raceways giving the bearings high load carrying capacity and are internally self-aligning.

Product parameters

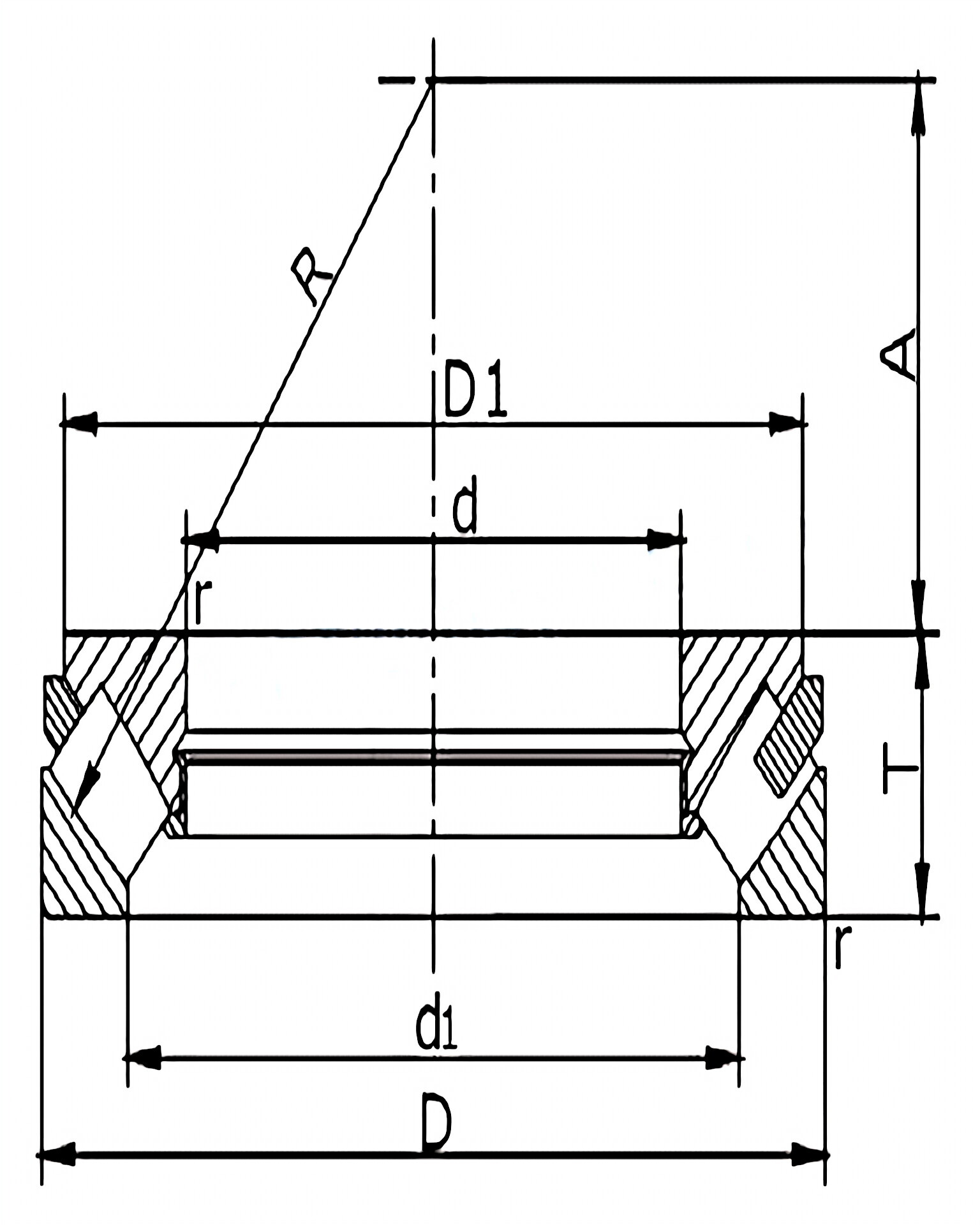

Designation	Principal dimensions			Basic load ratings		Speed ratings
Designation	Principal dimensions			dynamic	static	Reference speed	Limiting speed
Bearing No	d[mm]	D[mm]	H[mm]	C[kN]	C₀[kN]	[r/min]	[r/min]
29412 E	60	130	42	390	915	2 800	5 000
29413 E	65	140	45	455	1 080	2 600	4 800
29414 E	70	150	48	520	1 250	2 400	4 300
29415 E	75	160	51	600	1 430	2 400	4 000
29416 E	80	170	54	670	1 630	2 200	3 800
29317 E	85	150	39	380	1 060	2 400	4 000
29417 E	85	180	58	735	1 800	2 000	3 600
29318 E	90	155	39	400	1 080	2 400	4 000
29418 E	90	190	60	815	2 000	1 900	3 400
29320 E	100	170	42	465	1 290	2 200	3 600
29420 E	100	210	67	980	2 500	1 700	3 000
29322 E	110	190	48	610	1 730	1 900	3 200
29422 E	110	230	73	1 180	3 000	1 600	2 800
29324 E	120	210	54	765	2 120	1 700	2 800
29424 E	120	250	78	1 370	3 450	1 500	2 600
29326 E	130	225	58	865	2 500	1 600	2 600
29426 E	130	270	85	1 560	4 050	1 300	2 400
29328 E	140	240	60	980	2 850	1 500	2 600
29428 E	140	280	85	1 630	4 300	1 300	2 400
29230 E	150	215	39	408	1 600	1 800	2 800
29330 E	150	250	60	1 000	2 850	1 500	2 400
29430 E	150	300	90	1 860	5 100	1 200	2 200
29332 E	160	270	67	1 180	3 450	1 300	2 200
29432 E	160	320	95	2 080	5 600
