Sprockets and Idler Wheels for 812/815/881M/820/ 802/805/881BEVEL/881TAB Chain

Sprockets and Idler Wheels for 812/815/881M/820/ 802/805/881BEVEL/881TAB Chain

Plastic sprockets are commonly used as an alternative to metal sprockets in power transmission and roller chain applications. Manufactured from cast oil-filled nylon, they offer a wide range of benefits over traditional metal counterparts, such as self-lubricating properties and a reduced coefficient of friction. This helps reduce wear on the plastic chain and noise levels of the application. Other benefits include better resistance to corrosion, increased impact strength, and lighter weight than metal alternatives. Split sprockets can also be supplied for applications whereby the machinery is not able to be dismantled. They are provided in two halves and can be assembled around the installation, removing the need for equipment to be taken apart.Plastic Sprocket TypesThe standard styles of a plastic roller chain sprocket are A-plate style, meaning there is no hub on either side of the sprocket, B-hub style, which has a hub on one side, and C-hub style, which has a hub on two sides.Standard bore styles for plastic sprockets are a stock bore, a plain unfinished hole in the center of the sprockets. The finished bore is a specific bore size that includes a key-way and two stainless steel set screws. Idler sprocket, which we can supply bearing idler plastic sprockets, bronze bore idler sprockets, or plain bore style, advise the shaft size, and we provide the bore with proper clearance to idle on the shaft.

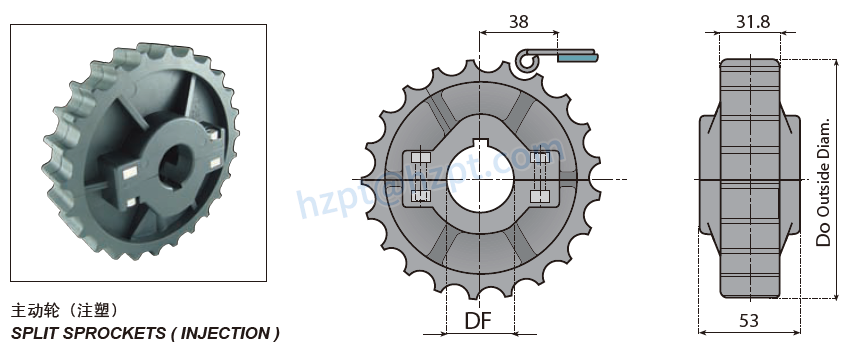

(1) Sprockets for 812-815-881M Chain

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
A01021	21	129	25/30/35/40
A01023	23	142	25/30/35/40
A01025	25	154	25/30/35/40

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
A02021	21	129	25/30/35/40
A02023	23	142	25/30/35/40
A02025	25	154	25/30/35/40

Product Specifications (Split Sprockets)

编号CODE	齿数Z	外径Do mm	孔径DF mm
A03017-1	17	104	25/30/35/40
A03019-1	19	117	25/30/35/40
A03021-1	21	129	25/30/35/40
A03023-1	23	142	25/30/35/40
A03025-1	25	154	25/30/35/40
A03027-1	27	166.8	25/30/35/40
A03029-1	29	178.5	25/30/35/40

Product Specifications (Single-Piece Sprockets)

编号CODE	齿数Z	外径Do mm	孔径DF mm
A03017-2	17	104	25/30/35/40
A03019-2	19	117	25/30/35/40
A03021-2	21	129	25/30/35/40
A03023-2	23	142	25/30/35/40
A03025-2	25	154	25/30/35/40
A03027-2	27	166.8	25/30/35/40
A03029-2	29	178.5	25/30/35/40

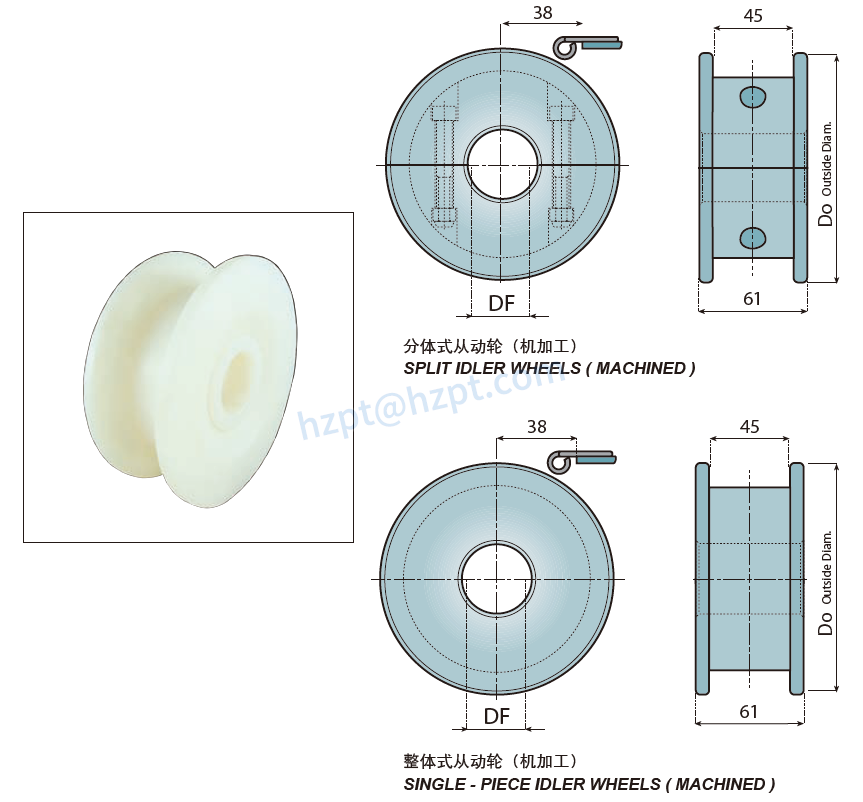

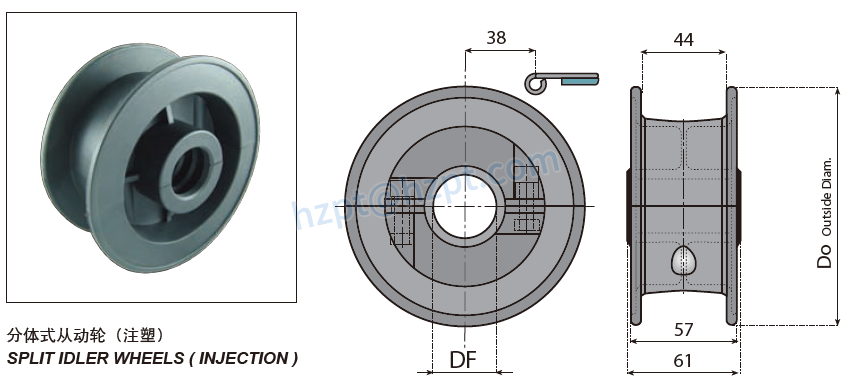

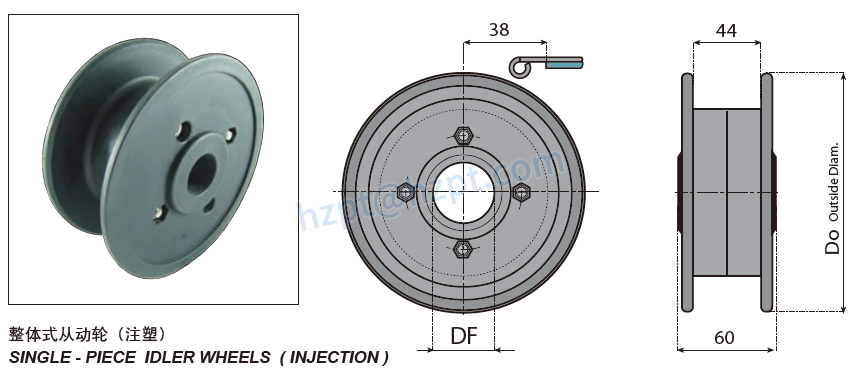

(2) Idler Wheels for 812-815-881M-820 Chain

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
A04019-ID	19	117	25/30/35/40
A04021-ID	21	129	25/30/35/40
A04023-ID	23	142	25/30/35/40
A04025-ID	25	154	25/30/35/40

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
A05019-ID	19	117	25/30/35/40
A05021-ID	21	129	25/30/35/40
A05023-ID	23	142	25/30/35/40
A05025-ID	25	154	25/30/35/40

Product Specifications (Split Idler Wheels)

编号CODE	齿数Z	外径Do mm	孔径DF mm
A06017-ID-1	17	104	25/30/35/40
A06019-ID-1	19	117	25/30/35/40
A06021-ID-1	21	129	25/30/35/40
A06023-ID-1	23	142	25/30/35/40
A06025-ID-1	25	154	25/30/35/40
A06027-ID-1	27	166.8	25/30/35/40
A06029-ID-1	29	178.5	25/30/35/40

Product Specifications (Single-Piece Idler Wheels)

编号CODE	齿数Z	外径Do mm	孔径DF mm
A06017-ID-2	17	104	25/30/35/40
A06019-ID-2	19	117	25/30/35/40
A06021-ID-2	21	129	25/30/35/40
A06023-ID-2	23	142	25/30/35/40
A06025-ID-2	25	154	25/30/35/40
A06027-ID-2	27	166.8	25/30/35/40
A06029-ID-2	29	178.5	25/30/35/40

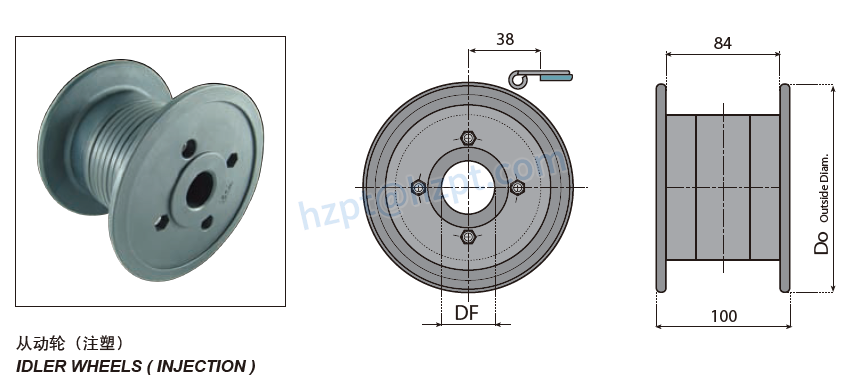

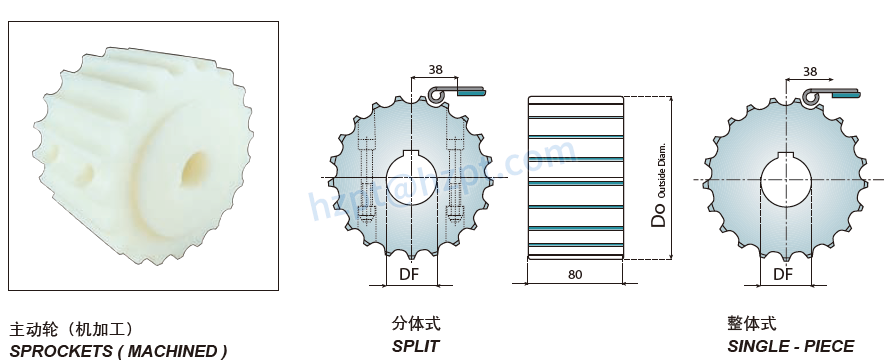

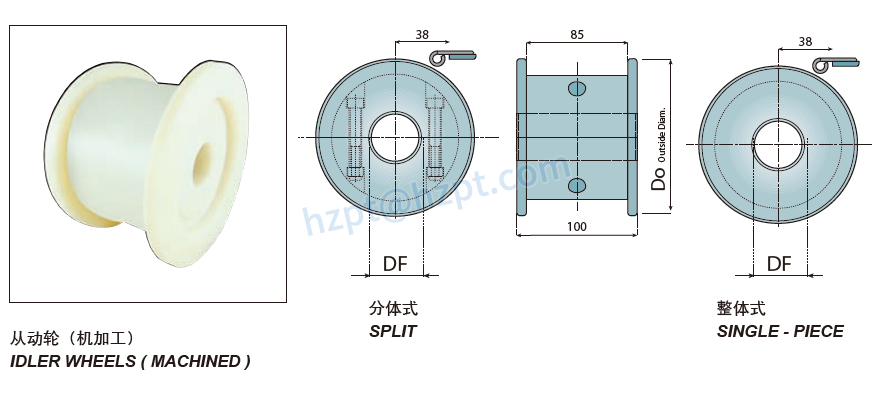

(3) Sprockets & Idler Wheels for 802-805 Chain

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
B08019	19	117	25/30/35/40
B08021	21	129	25/30/35/40
B08023	23	142	25/30/35/40
B08025	25	154	25/30/35/40
B08027	27	166.8	25/30/35/40
B08029	29	178.5	25/30/35/40

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
B09019-ID	19	117	25/30/35/40
B09021-ID	21	129	25/30/35/40
B09023-ID	23	142	25/30/35/40
B09025-ID	25	154	25/30/35/40

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
B10019-ID	19	117	25/30/35/40
B10021-ID	21	129	25/30/35/40
B10023-ID	23	142	25/30/35/40
B10025-ID	25	154	25/30/35/40
B10027-ID	27	166.8	25/30/35/40
B10029-ID	29	178.5	25/30/35/40

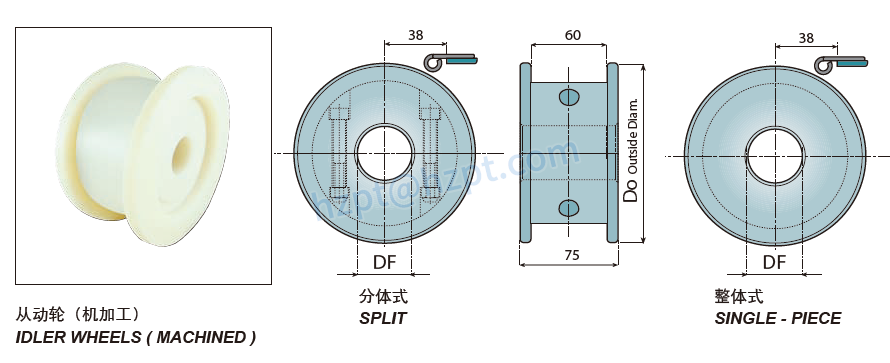

(4) Sprockets & Idler Wheels for 881BEVEL-881TAB Chain

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
F19021	21	129	25/30/35/40
F19023	23	142	25/30/35/40
F19025	25	154	25/30/35/40

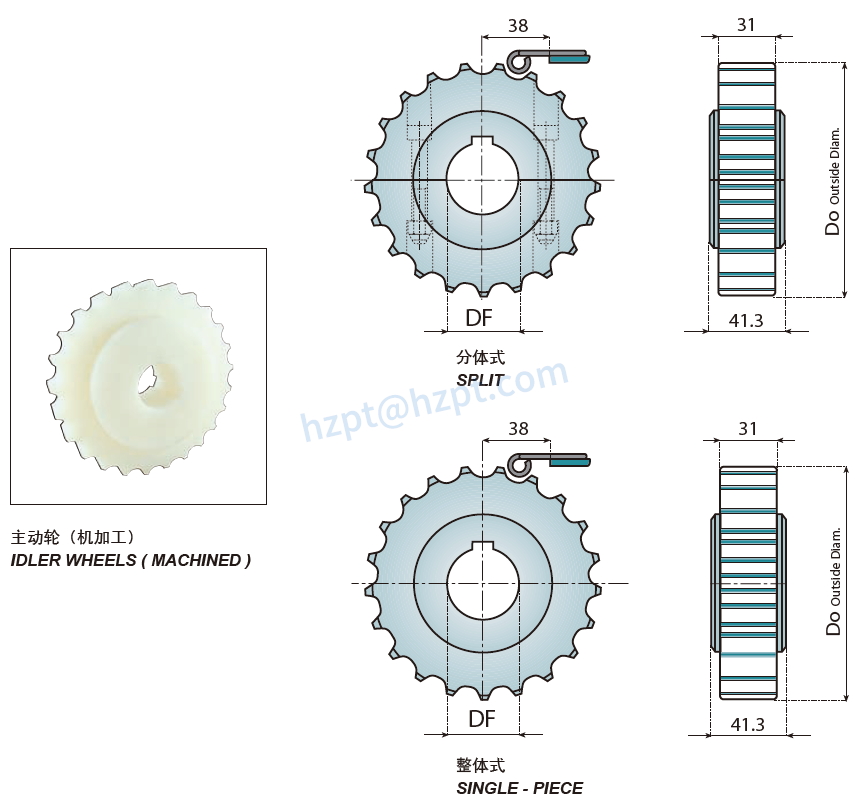

Product Specifications (Split Idler Wheels)

编号CODE	齿数Z	外径Do mm	孔径DF mm
F20017-1	17	104	25/30/35/40
F20019-1	19	117	25/30/35/40
F20021-1	21	129	25/30/35/40
F20023-1	23	142	25/30/35/40
F20025-1	25	154	25/30/35/40
F20027-1	27	166.8	25/30/35/40
F20029-1	29	178.5	25/30/35/40

Product Specifications (Single-Piece Idler Wheels)

编号CODE	齿数Z	外径Do mm	孔径DF mm
F20017-2	17	104	25/30/35/40
F20019-2	19	117	25/30/35/40
F20021-2	21	129	25/30/35/40
F20023-2	23	142	25/30/35/40
F20025-2	25	154	25/30/35/40
F20027-2	27	166.8	25/30/35/40
F20029-2	29	178.5	25/30/35/40

Product Specifications

编号CODE

齿数Z

外径Do mm

孔径DF mm
