Sprockets and Idler Wheels For 880/880M/880TAB/878TAB/880BS Series Chains

Sprockets and Idler Wheels For 880/880M/880TAB/878TAB/880BS 882BEVEL/882M/LBP882M/882TAB/LBP882TAB/LBP8257 Series Chains

Raydafon is a premier supplier of plastic power transmission components. We have plastic sprockets available in ANSI sized #25 - #80 and in a UHMW, Nylatron, or Nylon material. Other materials such as Repro and Acetal can also be used, and we can produce the plastic metric, double pitch, duplex, engineer class, and custom-designed sprockets. Some of the main benefits of using a plastic chain sprocket are that they run quieter and produce a much better wear life on the roller chain. These sprockets are also highly anti-corrosive, extremely lightweight, and have high impact resistance.Our plastic sprockets have a much greater tooth deflection than a standard steel sprocket. This means that several teeth will bear the load of the roller chain. With several teeth in contact, the sprocket's load capacity will match approximately the full working load of the chain.Plastic Sprocket TypesThe standard styles of a plastic roller chain sprocket are A-plate style, meaning there is no hub on either side of the sprocket, B-hub style, which has a hub on one side, and C-hub style, which has a hub on two sides.Standard bore styles for plastic sprockets are a stock bore, a plain unfinished hole in the center of the sprockets. The finished bore is a specific bore size that includes a key-way and two stainless steel set screws. Idler sprocket, which we can supply bearing idler plastic sprockets, bronze bore idler sprockets, or plain bore style, advise the shaft size, and we provide the bore with proper clearance to idle on the shaft.

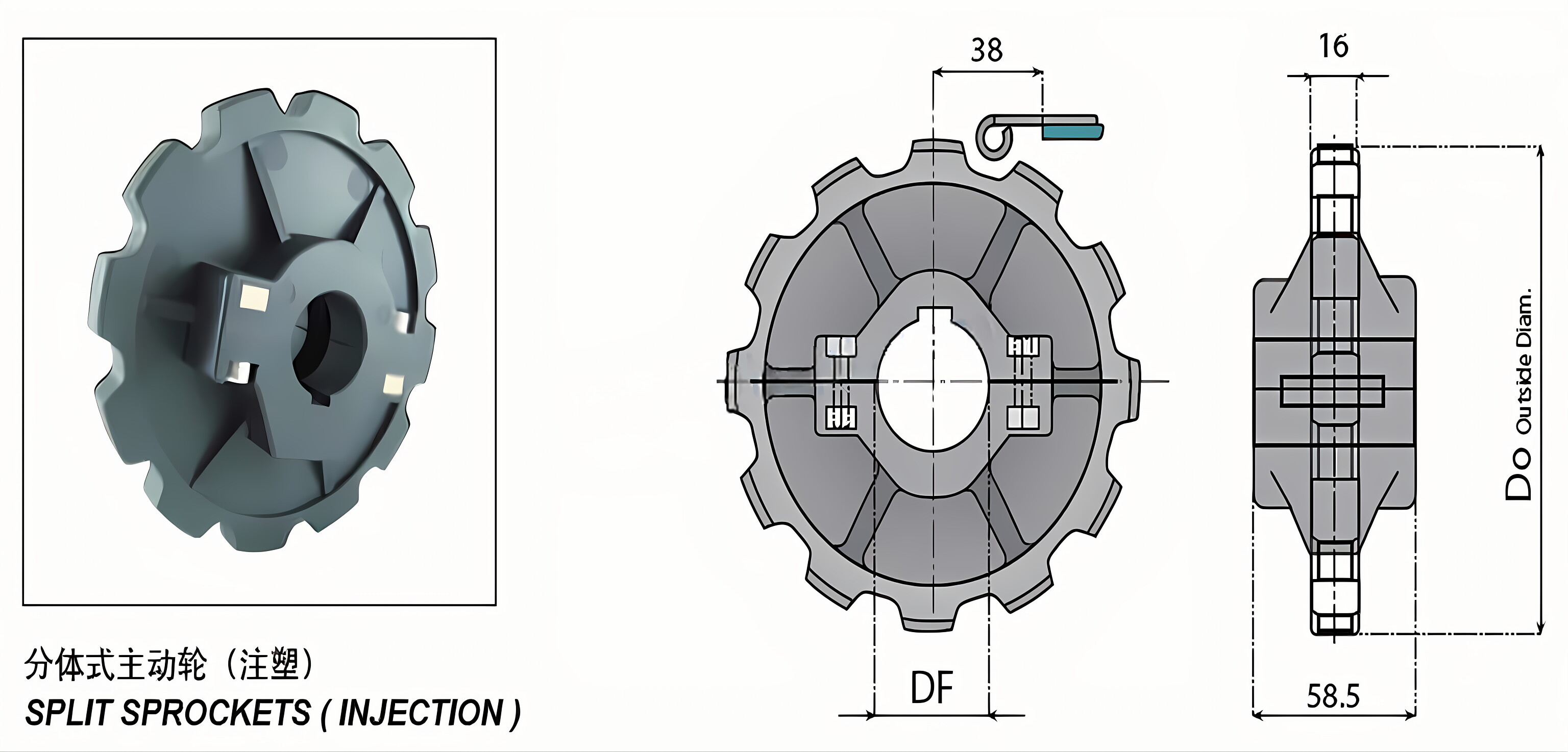

(1) Sprockets and Idler Wheels For 880/880M/880TAB/878TAB/880BS Chain

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
I32010	10	122	25/30/35/40
I32012	12	147	25/30/35/40

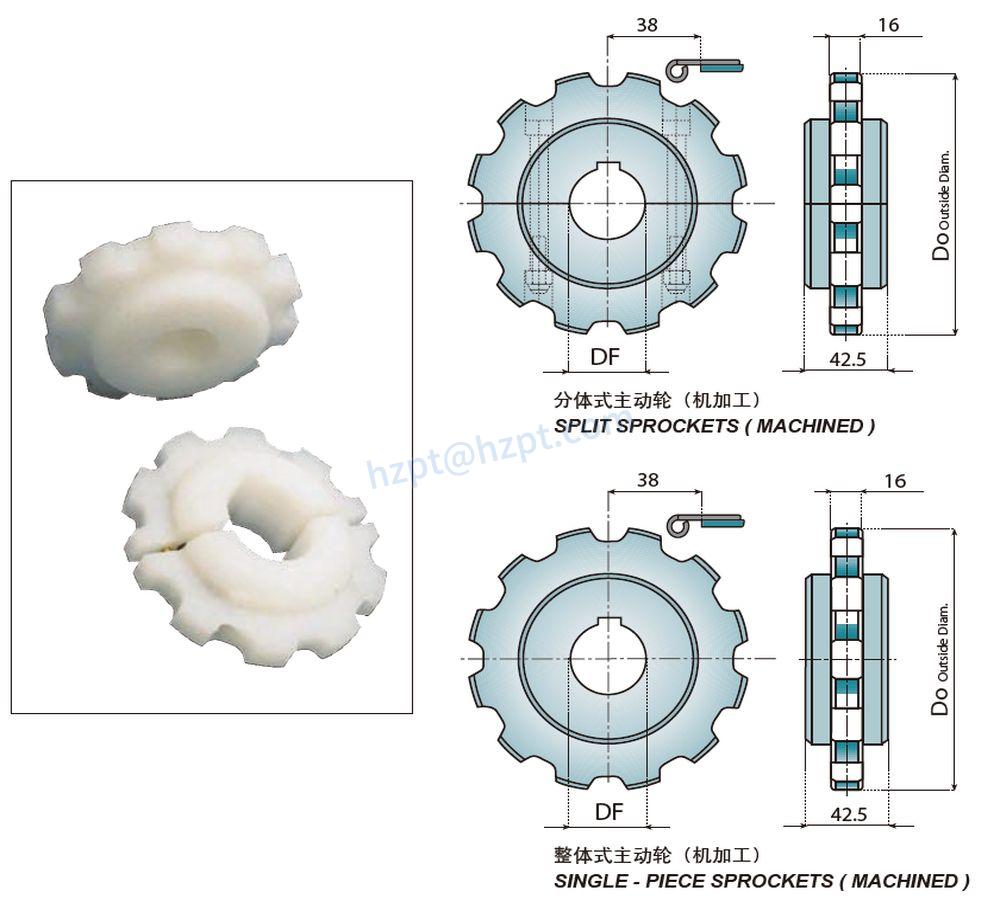

(2) Sprockets and Idler Wheels For 880/880M/880TAB/878TAB/880BS Chain

Product Specifications (Split Sprockets)

编号CODE	齿数Z	外径Do mm	孔径DF mm
I33009-1	9	110	25/30/35/40
I33010-1	10	122	25/30/35/40
I33011-1	11	135	25/30/35/40
I33012-1	12	147	25/30/35/40

Product Specifications (Single-Piece Sprockets)

编号CODE	齿数Z	外径Do mm	孔径DF mm
I33009-2	9	110	25/30/35/40
I33010-2	10	122	25/30/35/40
I33011-2	11	135	25/30/35/40
I33012-2	12	147	25/30/35/40

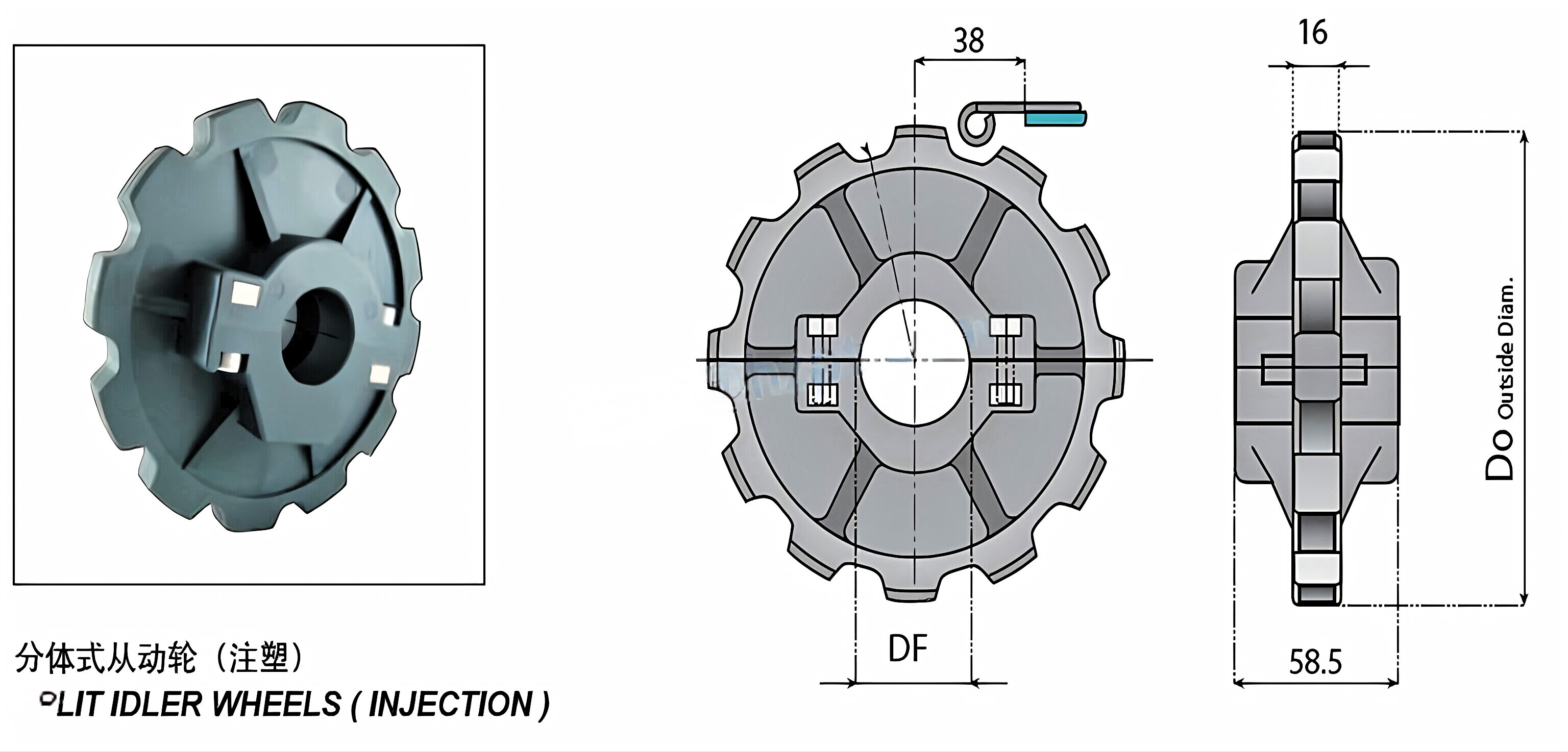

(3) Sprockets and Idler Wheels For 880/880M/880TAB/878TAB/880BS Chain

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
I34010-ID	10	122	25/30/35/40
I34012-ID	12	147	25/30/35/40

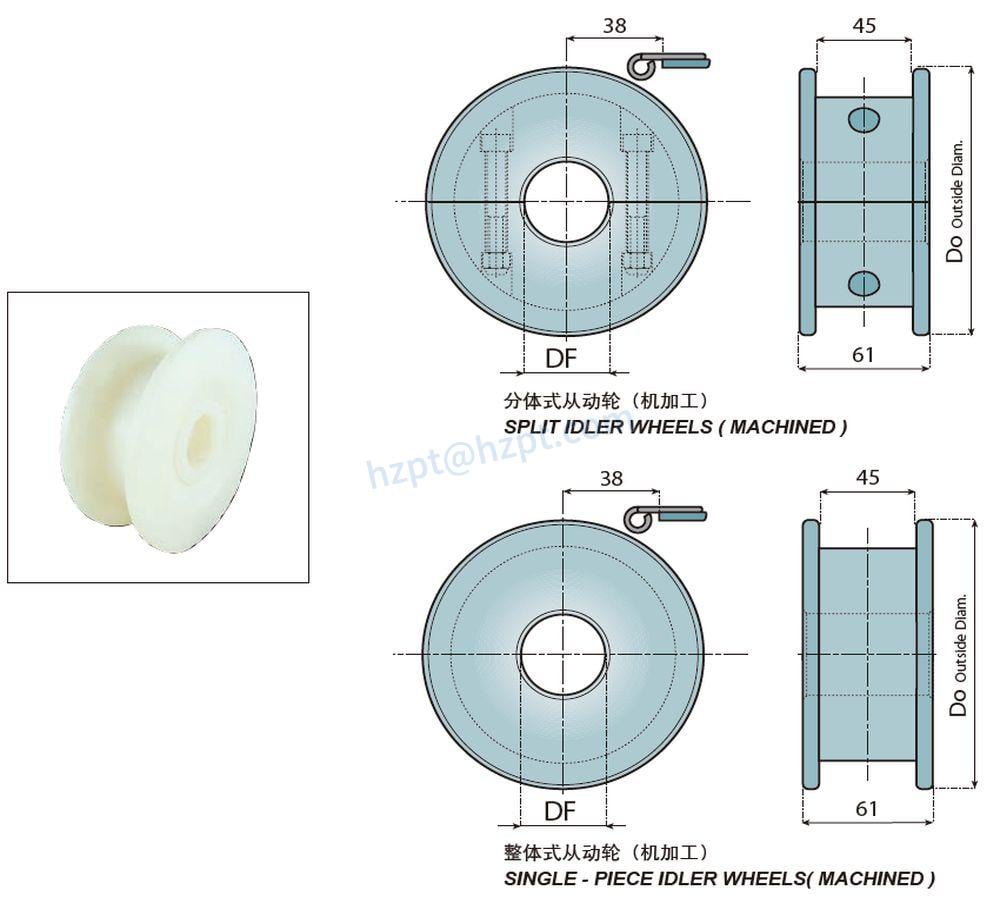

(4) Sprockets and Idler Wheels For 880-880M Chain

Product Specifications (Split Idler Wheels)

编号CODE	齿数Z	外径Do mm	孔径DF mm
I35009-ID-1	9	117	25/30/35/40
I35010-ID-1	10	129	25/30/35/40
I35011-ID-1	11	142	25/30/35/40
I35012-ID-1	12	154	25/30/35/40

Product Specifications (Single-Piece Idler Wheels)

编号CODE	齿数Z	外径Do mm	孔径DF mm
I35009-ID-2	9	117	25/30/35/40
I35010-ID-2	10	129	25/30/35/40
I35011-ID-2	11	142	25/30/35/40
I35012-ID-2	12	154	25/30/35/40

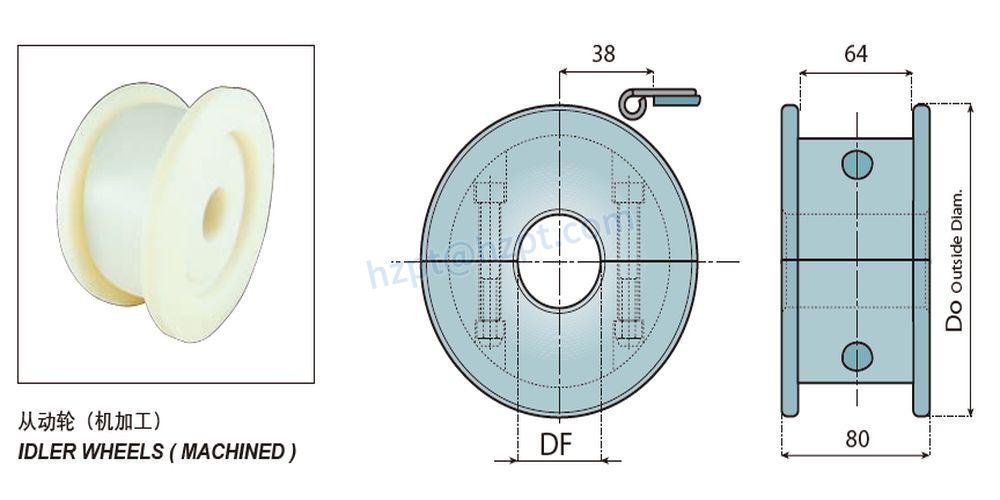

(5) Sprockets and Idler Wheels For 880TAB-878TAB-880BS-RT880 Chain

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
J36009-ID	9	117	25/30/35/40
J36010-ID	10	129	25/30/35/40
J36011-ID	11	142	25/30/35/40
J36012-ID	12	154	25/30/35/40

(6) Sprockets and Idler Wheels For 882BEVEL-882M-LBP882M-882TAB-LBP882TAB-LBP8257 Chain

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
K37010	10	125	25/30/35/40
K37012	12	149	25/30/35/40

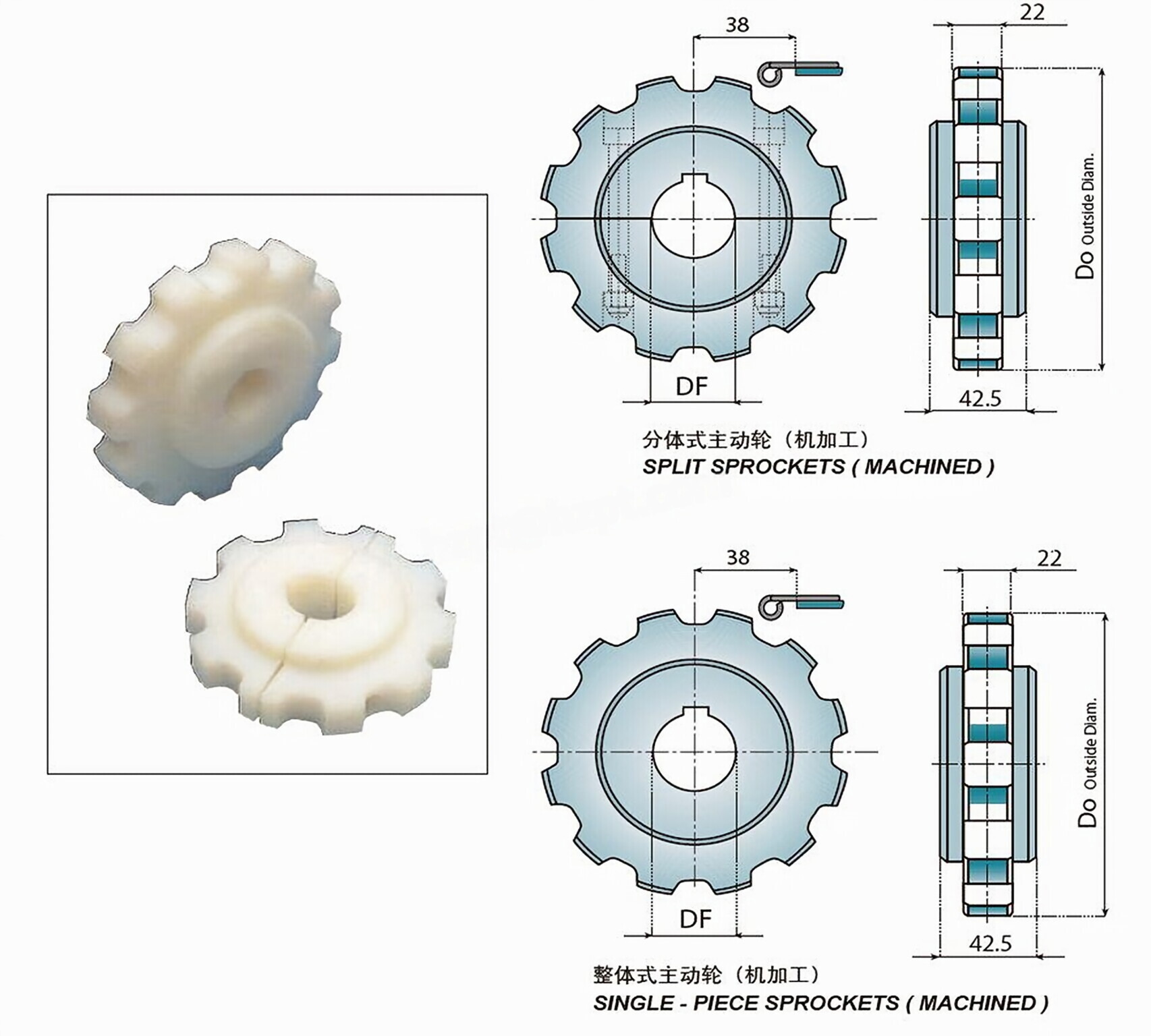

(7) Sprockets and Idler Wheels For 882BEVEL-882M-LBP882M-882TAB-LBP882TAB-LBP8257 Chain

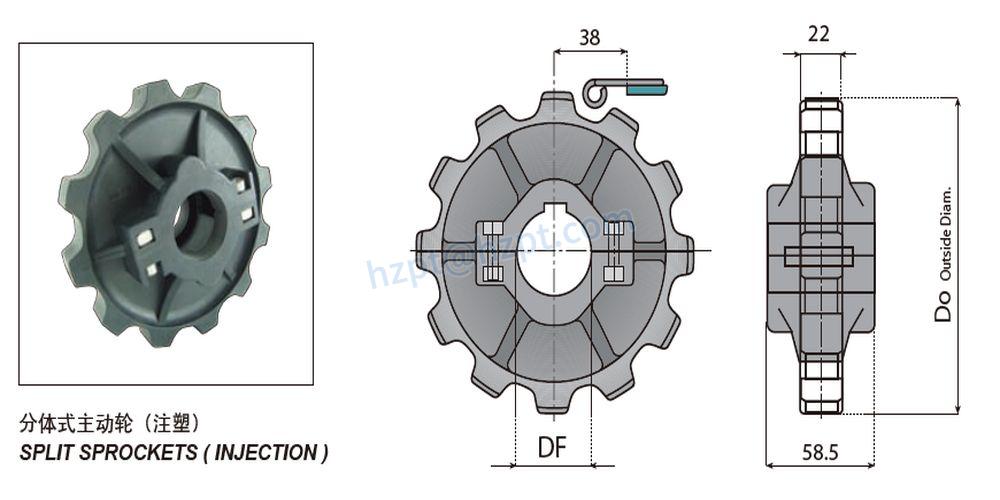

Product Specifications (Split Sprockets)

编号CODE	齿数Z	外径Do mm	孔径DF mm
K38009-1	9	110	25/30/35/40
K38010-1	10	125	25/30/35/40
K38011-1	11	137	25/30/35/40
K38012-1	12	149	25/30/35/40

Product Specifications (Single-Piece Sprockets)

编号CODE	齿数Z	外径Do mm	孔径DF mm
K38009-2	9	110	25/30/35/40
K38010-2	10	125	25/30/35/40
K38011-2	11	137	25/30/35/40
K38012-2	12	149	25/30/35/40

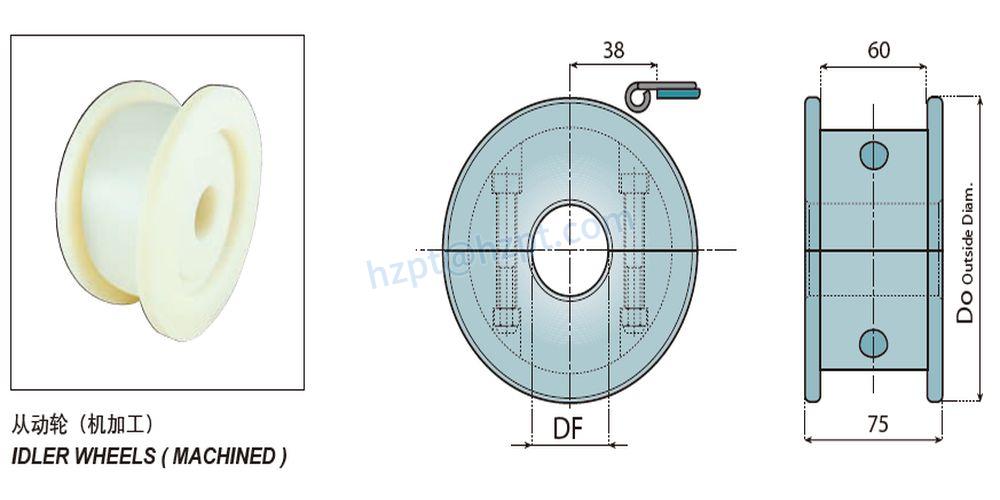

(8) Sprockets and Idler Wheels For 882M-LBP882M Chain

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
K39009-ID	9	117	25/30/35/40
K39010-ID	10	129	25/30/35/40
K39011-ID	11	142	25/30/35/40
K39012-ID	12	154	25/30/35/40

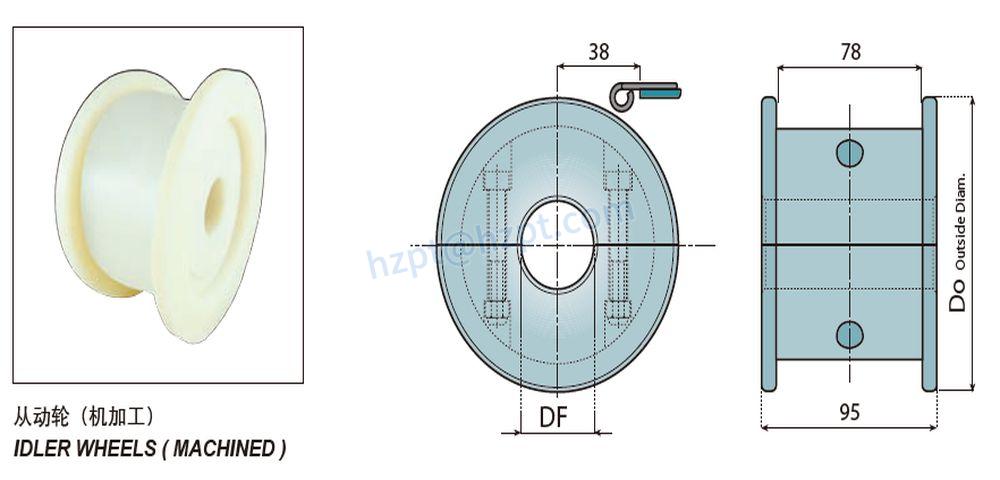

(9) Sprockets and Idler Wheels For 882TAB Chain

Product Specifications

编号CODE	齿数Z	外径Do mm	孔径DF mm
K40009-ID	9	117	25/30/35/40
K40010-ID	10	129	25/30/35/40
K40011-ID	11	142	25/30/35/40
K40012-ID	12	154	25/30/35/40

Plastic Sprockets Key Features

• Self-lubricating grade, negating the need for additional lubricants.
• Lower coefficient of friction and increased wear resistance compared to metal parts.
• Good corrosion resistance.
• High impact strength.
• Lighter weight than metal parts.
• Reduced noise levels during operation than metal parts.
• Split sprockets can be manufactured up to 400mm in diameter.

Why Choose Plastic Sprockets?

Plastics combine the strength of steel with the lightness of aluminum. Plastic sprockets are lightweight, easy to clean, durable, and offer excellent wear resistance. This provides manufacturers of food handling equipment with a reliable and versatile component for various food preparation and transportation systems. Compared to metal sprockets, plastic sprockets create less wear on the chain, hold up to cleaning solutions better than carbon steel, and are more economical than stainless steel. To learn more about the different types of sprockets and other plastic components for food industry systems and applications, please get in touch with us.Besides Plastic Sprockets, We Also Can Supply the Accompanying Plastic Sideflexing Flat Top Chain.

Finding Your Ideal Chain and Sprocket

Do you need a sprocket but aren't sure exactly what you need? This common problem is one that our professionals hear about every week. We excel at working with you to ensure that you get the roller chain sprocket or conveyor chain sprocket that will keep your project or machinery moving again.Sprockets are available for various uses, from forestry to agriculture and everything in between. It's equally as important to select the correct sprocket as it is to use the proper chain -- a mismatch can be catastrophic, causing damage to expensive machinery and even dangerous accidents. At Raydafon, we help you find the right pairing.
