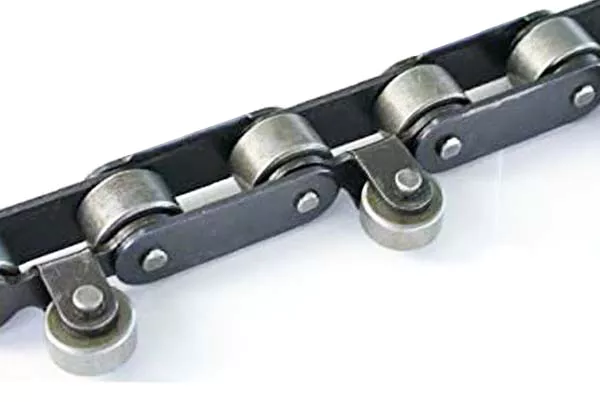

Stainless Steel Conveyor Chains With Side Rollers

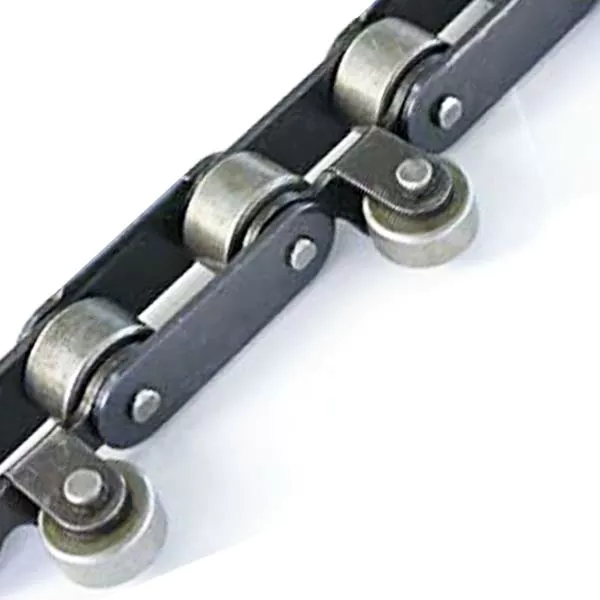

Side roller chains are provided with rollers on one or both sides of ANSI standard roller chains and double-pitch roller chains. The side rollers can be either staggered or in parallel at any given spacing, ensuring stable chain travel for conveyance of materials.Raydafon provides Outboard Roller Conveyor Chain based on standard S roller type of conveyor chain. The standard S roller are engaged with sprockets at the chain center. Flanged outboard rollers are produced both sides by extending the pins and these outboard rollers gives support to the load and used for running. We provide these chains with standard forms or as per the customs design according to the need of customers.These Outboard Roller Conveyor Chain has the following features:? It can support heavy loads? It can install special attachments such as pushers? It can install guides for return strand of chain. Our side roller chain is widely used on conveyor line,1) The roller can be plastic or steel as per customer’s request2) The side roller usually zinc plated or nickel plated without hardening. If you need hardened side roller, please kindly let us know when you send us enquiry and then we can arrange for you.3) There are many sizes available4) Please let us know if you need to use it in pairs5) Please let us know the length of each piece of chain

Related Products

We specialize in the chains made to customers’ drawings and specification. Our advantage is reliable quality, competitive price, prompt delivery and good service. Standard products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain, Hollow Pin Chain, Leaf Chain, Table Top Chain, Side Bow Chain, Lumber Chain, Agriculture Chain, Silent Chain, PIV Chain, Stainless Steel Chain, Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain, Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachment are available.

We also provide sprockets to match your roller chains：https://hzpt.com/sprockets/

Packaging Display of Roller Chains

Our chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability please contact us at any time.

Production Workshop of Roller Chains

Raydafon is an industry-leading, reliable and outstanding roller chain supplier that aims to provide high-quality products at more competitive prices and better service.* Good quality products at competitive pricing* Wide variety of products available in various materials and sizes* Our products are manufactured in an ISO9001 certified factory* Great customer service that's here to answer all of your questions* Largest online selection of power transmission products* Easy online shopping and ordering available 24/7 - 365 days a year* High quality made to order products
