Stainless Steel Metallurgical Bucket Elevator Chain

Raydafon Group introduces the Stainless Steel Metallurgical Bucket Elevator Chain, engineered for demanding industrial applications. This durable chain excels in high-temperature and corrosive environments, ensuring reliable material transport in metallurgy and heavy industries. Its stainless steel construction offers superior strength and longevity, reducing downtime and maintenance costs. Ideal for mining, steel plants, and processing facilities, it enhances operational efficiency and safety. Experience seamless performance and peace of mind with a product designed to withstand extreme conditions. Choose Raydafon Group for innovation and durability that sets new standards in industrial equipment.

Send Inquiry

Product Description

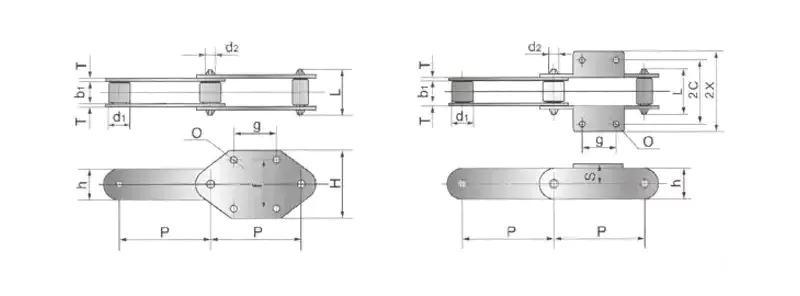

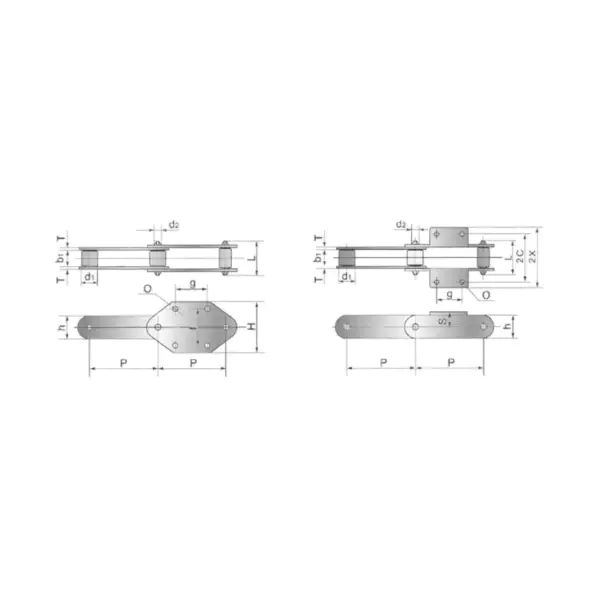

Dimension and Specification of Stainless Steel Metallurgical Bucket Elevator Chain

Pitch	Width Between Inner Plates	Roller Diameter	Pin		Plate		G attachment				Ultimate Tensile Strength
P	b1 min	d1 max	d2 max	I max	h max	T	H	f	g	o	min
mm	mm	mm	m	mm	mm	mm	mm	mm	mm	mm	KN
152.4	36.5	35	15.5	90	50	8	110	70	75	14	200
200	51.8	42	19.1	120	60	10	125	80	100	14	320
200	58	50	20	126	75	10	125	80	100	14	420
250	67.4	63.5	31.75	146	90	12	150	110	150	17	800

Pitch	Width Between Inner Plates	Roller Diameter	Pin		Plate		G attachment					Ultimate Tensile Strength
P	b1 min	d1 max	d2 max	I max	h max	T	2X	2C	S	g	o	min
mm	mm	mm	m	mm	mm	mm	mm	mm	mm	mm	mm	KN
100	37	36	16	80	40	6	130	96	36	30??????? 13?????? 160
101.6	54	25.4(ì×)	16	110	40	10	164	134	36	44	12	280
101.6	27	26.5	11.5	70	35	6	120	80	35	35	10	120
152.4	36.5	35	15.5	90	50	8	150	110	80	80	10	200
200	57.6	48.5	19.1	120	75	10	200	160	125	125	12	380
315	68	70	36	147	100	14	250	200	85	85	24	1250

Introduction

The Stainless Steel Metallurgical Bucket Elevator Chain is a high-quality and durable chain system specifically designed for use in metallurgical bucket elevator applications. This chain is made from stainless steel, which provides excellent resistance to corrosion and wear, making it ideal for use in harsh and demanding environments.

Applications

The Stainless Steel Metallurgical Bucket Elevator Chain is widely used in various industries for efficient and reliable material handling. Some of its key applications include:

1. Metallurgical Industry

This chain is extensively used in metallurgical plants for vertical transportation of materials such as ore, coal, and slag. Its superior strength and corrosion resistance make it ideal for withstanding the harsh conditions of a metallurgical environment.

2. Mining Industry

In mining operations, this chain is utilized for vertical conveying of minerals and ores. Its high wear resistance ensures long-lasting performance even in abrasive mining conditions.

3. Cement Industry

In cement plants, this chain is employed for the transportation of bulk materials like limestone and clinker. Its smooth operation and precise dimensional accuracy contribute to the efficient handling of these materials.

4. Power Plants

This chain is commonly used in power plants for transporting coal and biomass. Its reliable performance and easy maintenance make it an ideal choice for ensuring a continuous supply of fuel in power generation processes.

5. Chemical Industry

In chemical plants, this chain is utilized for handling various chemicals and raw materials in vertical elevators. Its corrosion resistance and customizable options make it suitable for diverse chemical applications.

Why Choose Raydafon Stainless Steel Metallurgy Industry Chains?

At Raydafon, we take pride in offering high-quality Stainless Steel Metallurgical Bucket Elevator Chains that stand out in the industry. Our unique selling points differentiate us from our competitors, emphasizing the superior quality of our products and the exceptional services we provide.When it comes to product quality, our Stainless Steel Metallurgy Industry Chains are manufactured using the finest stainless steel materials, ensuring durability and resistance to corrosion even in harsh environments. We understand the critical role these chains play in the metallurgical industry, and our commitment to delivering reliable and long-lasting products is unmatched.Moreover, our dedication to customer satisfaction is evident in our exceptional service. Our knowledgeable and experienced team is always ready to assist you with any inquiries or concerns. We understand the importance of timely and efficient communication, ensuring that your needs are met promptly and effectively.Furthermore, Raydafon stands out in the industry due to our impressive production capabilities. Equipped with advanced machinery and technology, we have the capacity to efficiently produce a wide range of Stainless Steel Roller Chains.In addition to the Stainless Steel Metallurgical Bucket Elevator Chains, we also offer various other types of stainless steel roller chains for sale. Whether you need chains for conveyors, industrial machinery, or other applications, we have you covered.Explore our wide selection of stainless steel chains and experience the reliability and durability that Raydafon is known for. Trust us to provide you with top-quality products and excellent service.

How To Select Suitable Sprockets?

When it comes to choosing the right sprockets for your Stainless Steel Metallurgical Bucket Elevator Chain, there are a few important factors to consider. By taking these factors into account, you can ensure optimal performance and durability for your chain system.First and foremost, it is essential to determine the correct pitch diameter and the number of teeth needed for your specific application. This will depend on factors such as the speed of the chain, the load it will be carrying, and the desired output RPM. Consulting with a knowledgeable expert can help you determine the appropriate specifications.In addition to pitch diameter and tooth count, it is crucial to select sprockets made from high-quality materials. At our company, we offer a wide range of sprockets for sale, including stainless steel options. Stainless steel sprockets provide excellent corrosion resistance, making them ideal for applications where moisture or chemicals are present.Furthermore, our sprockets come in different types and designs, such as plain bore, taper lock, and pilot bore, allowing for easy installation and compatibility with various shaft sizes. This ensures that you can find the perfect sprockets to suit your specific requirements.

With our wide selection of sprockets and our commitment to high-quality materials, you can trust that our products will meet your needs for durability, performance, and reliability. Contact us today to explore our range of sprockets and find the perfect fit for your Stainless Steel Metallurgical Bucket Elevator Chain.
