Standard Motorcycle Chain

Standard Motorcycle Chain

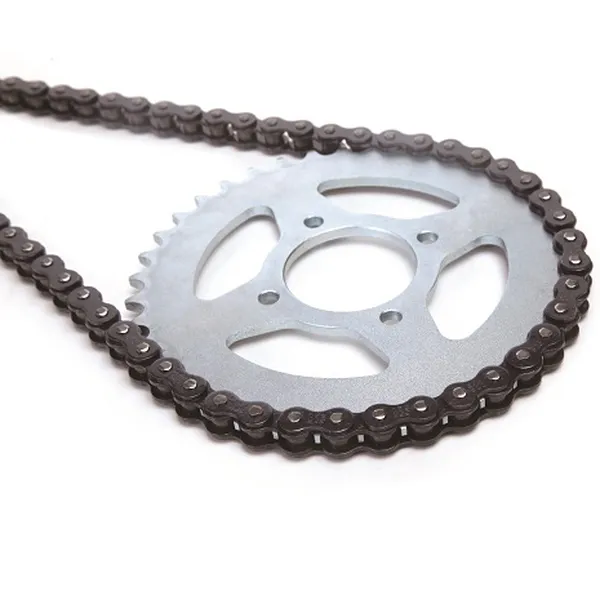

A standard motorcycle chain is a type of roller chain that is used to transmit power from the engine to the rear wheel of a motorcycle. It is made up of a series of links that are connected by pins and rollers. The links are typically made of steel, and the pins and rollers are made of hardened steel.

Standard motorcycle chain is available in a variety of sizes, which are determined by the pitch, width, and thickness of the chain. The pitch is the distance between the centers of two adjacent pins. The width is the distance between the outside of the two outer plates of the chain. The thickness is the distance between the inside of the two inner plates of the chain.

The most common size of a standard motorcycle chain is 428. This size is used on many different types of motorcycles, including street bikes, dirt bikes, and scooters. Other common sizes include 520 and 530.

Standard motorcycle chain is relatively inexpensive and easy to replace. However, it does not last as long as other types of motorcycle chains, such as O-ring chains and X-ring chains. Standard motorcycle chain also requires more frequent lubrication than other types of chain.

Standard Motorcycle Chain Sizes Chart:

Chain No.	Pitch	Bush Type	Width	Pin Dia	Pin Length	Roller Dia	Plate Thickness Inner	Plate Thickness Outer	Tensile Strength	Weight
	mm		mm	mm	mm	mm	mm	mm	KN	kg/m
420	12.700	Curled	6.35	3.96	14.70	7.77	1.50	1.50	15.6	0.57
428	12.700	Curled	7.85	4.45	16.70	8.51	1.60	1.60	17.8	0.71
520	15.875	Curled	6.35	5.08	17.50	10.14	2.03	1.96	26.5	0.91
525	15.875	Curled	7.94	5.08	19.40	10.14	2.03	1.96	26.5	0.98
530	15.875	Curled	9.53	5.08	20.70	10.14	2.03	1.96	26.5	1.09

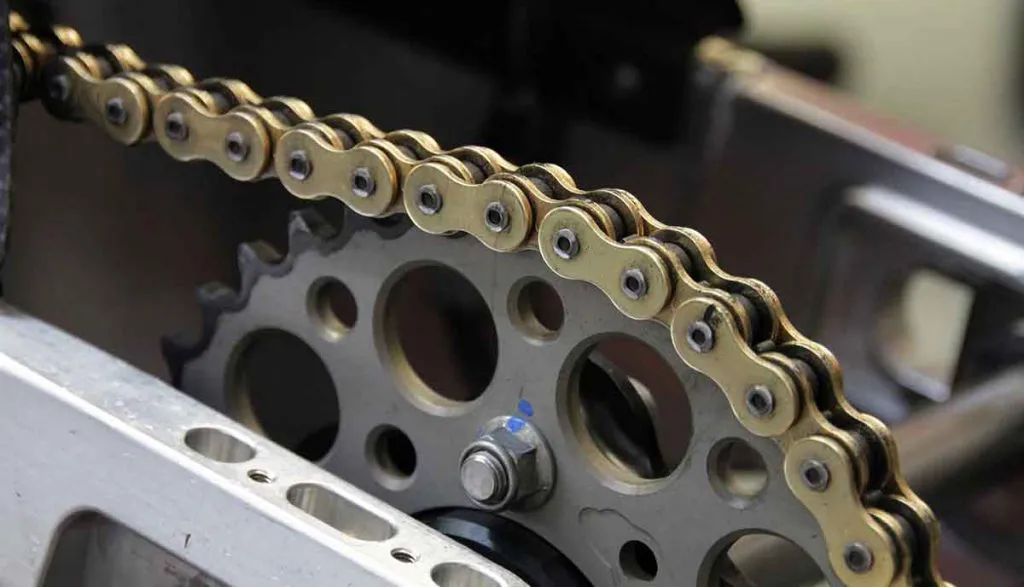

Advantages of Standard Motorcycle Chain:

Standard motorcycle chains, also known as non-sealed chains, are the most basic type of motorcycle chain. They are less expensive than other types of chains, such as O-ring and X-ring chains. They are also lighter and easier to install and maintain.

Here are some of the advantages of standard motorcycle chains:

1. Affordability:?Standard motorcycle chains are the most affordable type of motorcycle chain. This is because they do not have the extra seals and other components that are found in other types of chains.2. Weight savings: Standard motorcycle chains are also lighter than other types of chains. This can be a benefit for motorcycles that are designed for performance, such as sports bikes and racing bikes.3. Ease of installation and maintenance:?Standard motorcycle chains are easier to install and maintain than other types of chains. This is because they do not have the extra seals and other components that can make them more difficult to work with.4. Versatility:?Standard motorcycle chains are suitable for a wide range of motorcycles, from small dirt bikes to large touring bikes. They can handle most riding conditions, making them a good choice for riders who use their bikes for commuting, touring, or just having fun on the weekends.

However, standard motorcycle chains do have some disadvantages. They are not as durable as other types of chains and may require more frequent maintenance. They are also more likely to rust and corrode.

Overall, standard motorcycle chains are a good choice for riders who are looking for an affordable and easy-to-maintain chain. They are also a good choice for riders who do not need the extra durability and performance that is offered by other types of chains.

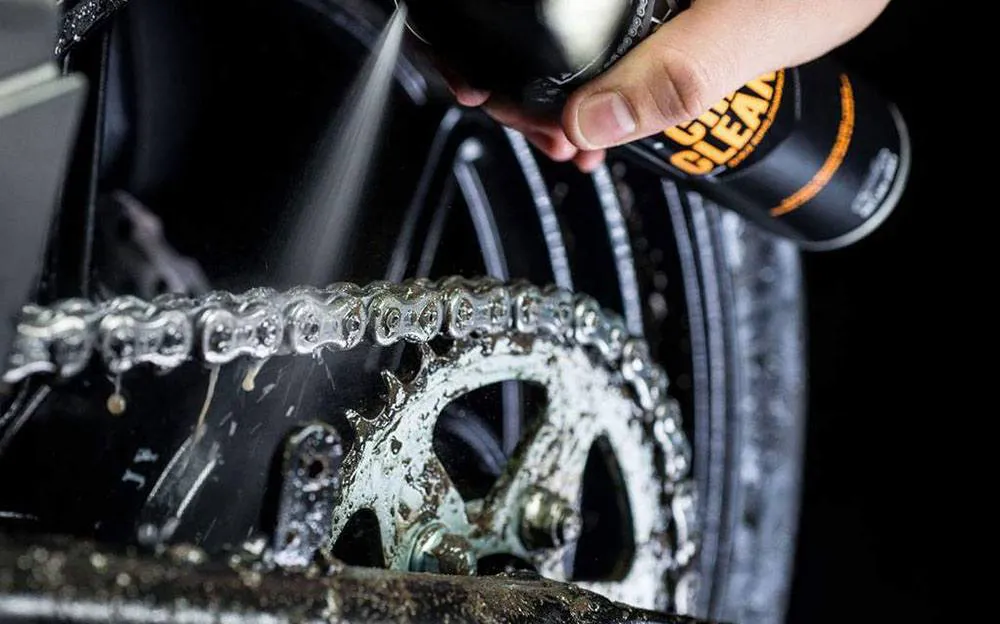

How to Clean Motorcycle Chain?

To clean a motorcycle chain, you will need:

1. Put your motorcycle on a center stand.?This will make it easier to rotate the rear wheel and access the chain.
2. Spray the chain with motorcycle chain cleaner.?Be sure to coat all sides of the chain, including the sprockets.
3. Use the motorcycle chain brush to scrub the chain. Pay special attention to any areas with a heavy buildup of dirt and grime.
4. Rinse the chain with water to remove the chain cleaner.
5. Use a clean rag to dry the chain.

Tips:

• For a deeper clean, you can soak the chain in a bucket of kerosene or diesel fuel for 15-20 minutes before scrubbing it.
• Be careful not to get any chain cleaner on your motorcycle's brakes or tires.
• Once the chain is clean and dry, be sure to lubricate it with a motorcycle chain lube.

How often to clean your motorcycle chain:

How often you need to clean your motorcycle chain will depend on how often you ride and the conditions you ride in. If you ride frequently in dusty or muddy conditions, you may need to clean your chain every few hundred miles. If you ride primarily in dry conditions, you can probably get away with cleaning your chain every 500-1000 miles.

By regularly cleaning and lubricating your motorcycle chain, you can help extend its lifespan and keep your motorcycle running smoothly.

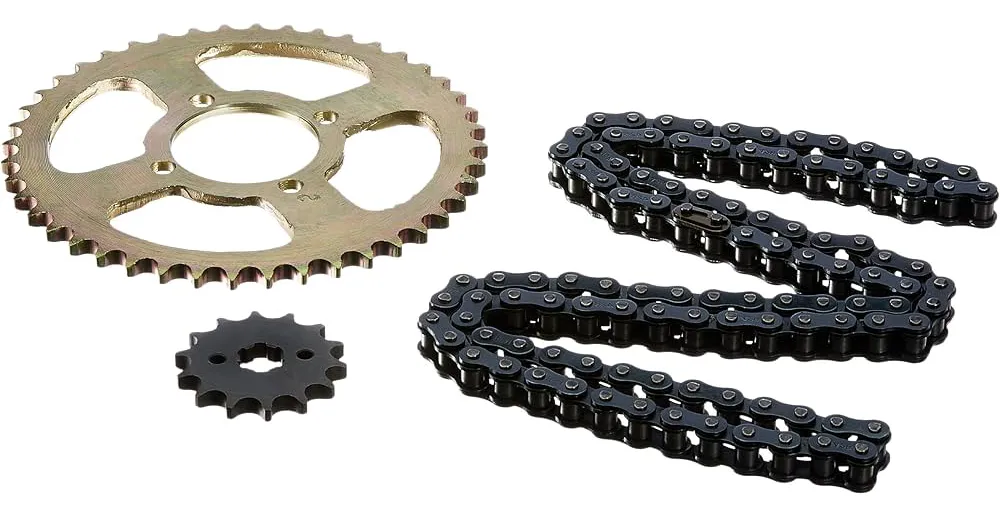

Motorcycle Sprockets for Motorcycle Chain:

Motorcycle sprockets are toothed wheels that work with the motorcycle chain to transmit power from the engine to the rear wheel. There are two sprockets on a motorcycle: a front sprocket and a rear sprocket. The front sprocket is smaller than the rear sprocket, and the two sprockets are connected by the motorcycle chain.

The front sprocket is attached to the output shaft of the engine, and the rear sprocket is attached to the rear axle. When the engine turns, the front sprocket turns the chain, which turns the rear sprocket, which turns the rear wheel.

The size of the front and rear sprockets determines the final drive ratio of the motorcycle. The final drive ratio is the ratio of the number of teeth on the front sprocket to the number of teeth on the rear sprocket. A higher final drive ratio will give the motorcycle more acceleration, but a lower top speed. A lower final drive ratio will give the motorcycle less acceleration, but a higher top speed.

When choosing motorcycle sprockets, it is important to consider the following factors:

• The type of motorcycle you have: Different types of motorcycles have different final drive ratios.
• Your riding style: If you do a lot of city riding, you may want a higher final drive ratio for better acceleration. If you do a lot of highway riding, you may want a lower final drive ratio for a higher top speed.
• The modifications you have made to your motorcycle: If you have made any modifications to your motorcycle, such as changing the engine or exhaust, you may need to change your sprockets to maintain the correct final drive ratio.
