Swivel Connector-EGE-NPT Hydraulic Fittings are commonly used components in hydraulic systems that provide a secure and leak-free connection between hydraulic hoses or pipes. These fittings are specifically designed to connect pipes or hoses with NPT (National Pipe Taper) threads, which are commonly used in North America.The term "swivel connector" refers to the ability of these hydraulic fittings to rotate or swivel, allowing for flexibility and ease of installation. This swivel feature is particularly useful when connecting hoses or pipes that need to move or rotate during operation, as it helps to prevent kinks and twists that could restrict fluid flow or cause damage to the system.EGE is an abbreviation for "Extra Guard Elastomer," which refers to the sealing material used in these hydraulic fittings. EGE seals are made of elastomer, a type of synthetic rubber that offers excellent resistance to hydraulic fluids, chemicals, and high-pressure environments. The EGE seals ensure a tight and reliable seal, preventing leaks and maintaining the integrity of the hydraulic system.NPT (National Pipe Taper) threads are a type of thread design commonly used in North America for pipe connections. NPT threads have a tapered shape, which allows for a tight seal when the male and female threads are tightened together. The taper design helps to create a reliable seal that can withstand high pressures without leaking.Swivel Connector-EGE-NPT Hydraulic Fittings typically consist of two main components: a male fitting and a female fitting. The male fitting has external NPT threads, while the female fitting has internal NPT threads. The fittings can be easily connected by screwing the male fitting into the female fitting, creating a secure and leak-free connection.These Swivel Connector-EGE-NPT Hydraulic Fittings are available in various sizes and configurations to accommodate different hydraulic system requirements. It's important to select the appropriate fitting size and type to ensure compatibility with the hydraulic hoses or pipes being used in the system.

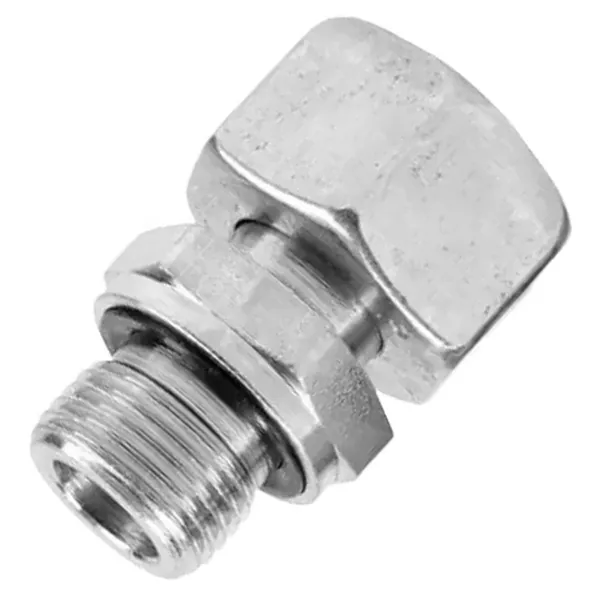

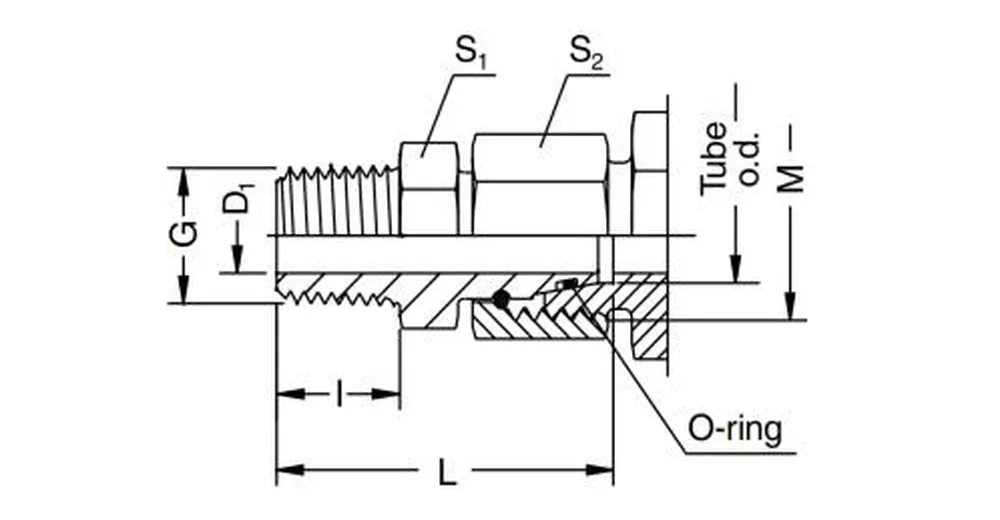

Swivel Connector-EGE-NPT Hydraulic Fitting Size Chart:

EGE-NPTPart NO.	Series Working Pressure(bar/psi)	Tubeo.d.	M	Gmale thread	D1	i	L	S1	S2
EGE06L1/8NPT	L light 315 bar4560 psi	6	M12x1.5	1/8 NPT	2.5	10	31.5	11	14
EGE08L1/4NPT		8	M14X1.5	1/4 NPT	4	15	37.5	14	17
EGE10L1/4NPT		10	M16x1.5	1/4 NPT	6	15	38	14	19
EGE12L3/8NPT		12	M18x1.5	3/8 NPT	8	15.3	40	19	22
EGE15L1/2NPT		15	M22x1.5	1/2 NPT	10	20	49.5	22	27
EGE18L1/2NPT		18	M26x1.5	1/2 NPT	12	20	49	24	32
EGE22L3/4NPT	160 bar2320 psi	22	M30 x 2	3/4 NPT	16	20	52	27	36
EGE28L1NPT		28	M36 x 2	1- NPT	22	25	61	36	41
EGE35L11/4NPT		35	M45 x 2	1 1/4NPT	28	25.5	65.5	46	50
EGE42L11/2NPT		42	M52 x 2	1 1/2NPT	34	26	68.5	50	60
EGE06S1/4NPT	S heavy 630 bar9130 psi	6	M14x1.5	1/4 NPT	2.5	15	37.5	14	17
EGE08S1/4NPT		8	M16x1.5	1/4 NPT	4	15	38	14	19
EGE10S3/8NPT		10	M18x1.5	3/8 NPT	6	15.3	40.5	19	22
EGE12S3/8NPT		12	M20x1.5	1/2 NPT	8	15.3	42	19	24
EGE14S1/2NPT		14	M22x1.5	1/2 NPT	9	20	50.5	22	27
EGE16S1/2NPT	400 bar5800 psi	16	M24x1.5	1/2 NPT	11	20	51	24	30
EGE20S3/4NPT		20	M30 x 2	3/4 NPT	14	20	54	27	36
EGE25S1NPT		25	M36 x 2	1- NPT	18	25	63.5	36	46
EGE30S11/4NPT		30	M42 x 2	1 1/4NPT	23	25.5	70.5	46	50
EGE38S11/2NPT	315 bar4560 psi	38	M52 x 2	1 1/2NPT	30	26	73.5	50	60

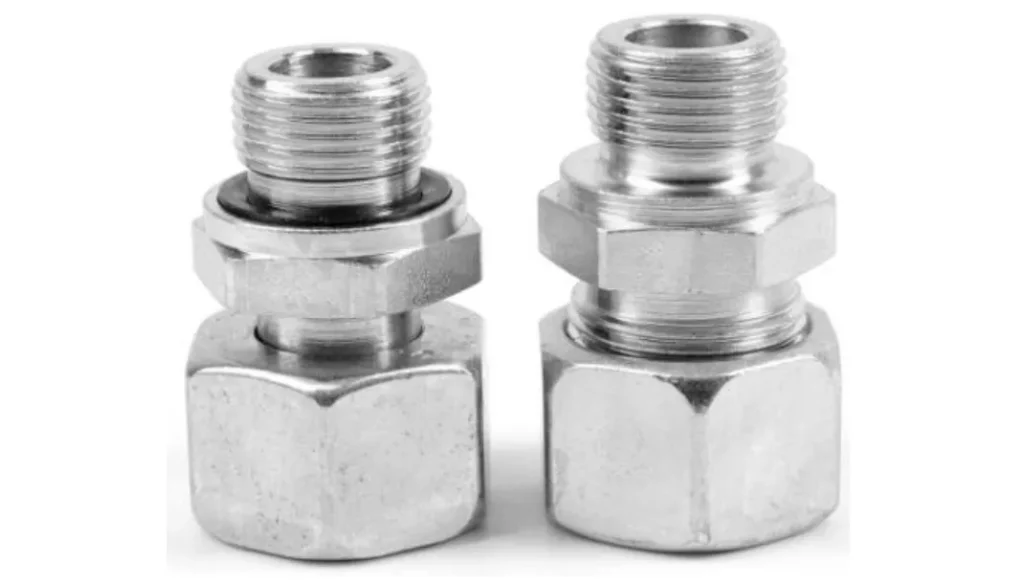

Installation of Swivel Connector-EGE-NPT Hydraulic Fittings:

The installation of Swivel Connector-EGE-NPT Hydraulic Fittings involves a few steps to ensure a proper and secure connection. Here's a general guide to installing these fittings:1. Prepare the fittings and hoses: Ensure that you have the correct size and type of Swivel Connector-EGE-NPT Hydraulic Fittings for your hydraulic system. Also, check the condition of the hoses or pipes you'll be connecting to the fittings. Make sure they are clean, free from debris, and in good condition.2. Apply thread sealant: Apply an appropriate thread sealant compatible with hydraulic systems to the male NPT threads of the fitting. Thread sealant helps to create a reliable seal and prevent leaks. Follow the manufacturer's instructions for applying the sealant.3. Connect the fittings: Screw the male fitting with the applied thread sealant into the female fitting. Start by hand to ensure proper alignment, and then use a wrench to tighten it further. Avoid over-tightening, as it can damage the threads or fittings.4. Position the fittings: Position the Swivel Connector-EGE-NPT Hydraulic Fittings in the desired orientation, considering the movement and flexibility required by your hydraulic system. The swivel feature of these fittings allows for rotation, so you can adjust the position as needed.5. Connect the hoses or pipes: Once the Swivel Connector-EGE-NPT Hydraulic Fittings are securely installed, connect the hydraulic hoses or pipes to the fittings. Make sure the hoses or pipes are properly inserted into the fittings and tightened securely. Double-check that the connections are tight to prevent leaks.6. Test for leaks: After the installation is complete, it's crucial to test the system for any potential leaks. Turn on the hydraulic system and observe the connections for any signs of leakage. If you notice any leaks, tighten the Swivel Connector-EGE-NPT Hydraulic Fittings further or replace any damaged components as necessary.
