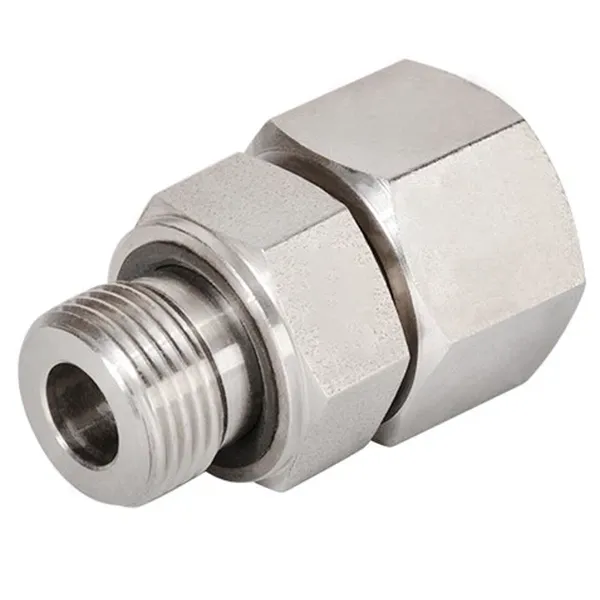

Swivel Connector-EGEO Hydraulic Fittings

Swivel Connector-EGEO Hydraulic Fittings

The Swivel Connector-EGEO Hydraulic Fittings is a type of hydraulic fitting that is widely used in various industries for connecting hydraulic components and creating fluid power systems. These fittings are designed to provide a reliable and leak-free connection between hydraulic hoses, pipes, and other hydraulic equipment.The Swivel Connector-EGEO Hydraulic Fittings are known for their versatility and flexibility. They feature a swivel design that allows for rotational movement, enabling easier installation and alignment of hydraulic components. This swivel capability helps to reduce the stress on hoses and pipes, preventing premature wear and increasing the overall lifespan of the hydraulic system.One of the key advantages of the Swivel Connector-EGEO Hydraulic Fittings is their ability to handle high-pressure hydraulic applications. They are constructed from durable materials, such as stainless steel or carbon steel, which can withstand high pressures and resist corrosion. This makes them suitable for use in demanding environments where hydraulic systems operate under extreme conditions.Another important feature of the Swivel Connector-EGEO Hydraulic Fittings is their leak-free sealing mechanism. These fittings incorporate advanced sealing technologies, such as O-rings or metal-to-metal seals, to ensure a tight and secure connection. This helps to prevent hydraulic fluid leaks, which can lead to system inefficiencies, safety hazards, and environmental contamination.The Swivel Connector-EGEO Hydraulic Fittings come in a variety of sizes, configurations, and end connections to accommodate different hydraulic system requirements. They can be used in conjunction with hydraulic hoses, adapters, valves, cylinders, and other hydraulic components to create a complete fluid power system.

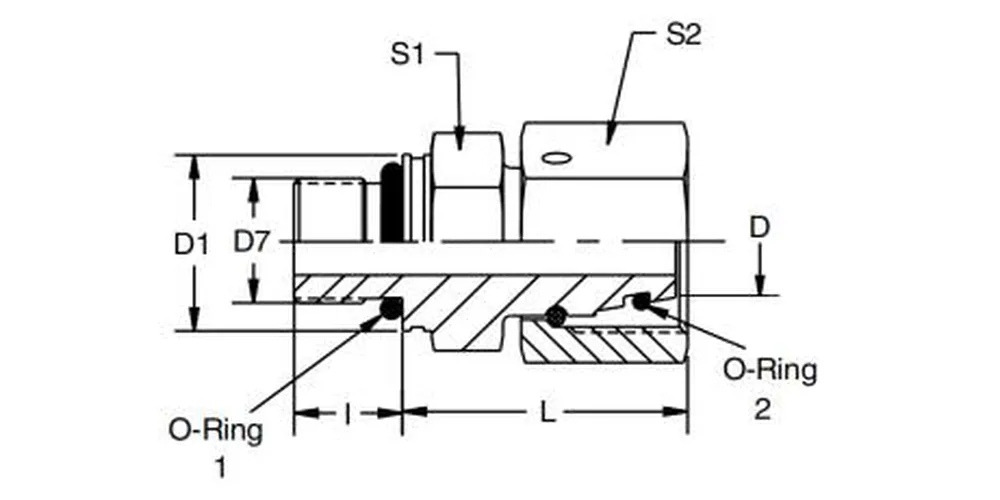

Swivel Connector-EGEO Hydraulic Fitting Size Chart:

EGEOPart no.	Series Working Pressure(bar/psi)	DTube o.d.	D7Metric Thread	D1	I	L	S1	S2
EGEO06LM	L light 315 bar4560 psi	6	M12x1.5	13.8	8.5	24.5	14	14
EGEO08LM		8	M14x1.5	16.8	11.0	26.5	17	17
EGEO10LM		10	M16x1.5	18.8	11.0	27.5	19	19
EGEO12LM		12	M18x1.5	21.8	11.5	30.5	22	22
EGEO15LM		15	M22x1.5	23.8	12.5	31.5	24	27
EGEO18LM		18	M26x1.5	26.8	13.0	31.5	27	32
EGEO22LM	160 bar2320 psi	22	M30x2	31.8	16.0	32.5	32	36
EGEO28LM		28	M36x2	40.8	16.0	35	41	41
EGEO35LM		35	M45x2	49.8	16.0	42.5	50	50
EGEO08SM	S heavy 630 bar9130 psi	8	M16x1.5	18.8	11.0	29.5	19	19
EGEO10SM		10	M18x1.5	21.8	12.5	32	22	22
EGEO12SM		12	M20x1.5	23.8	14.0	34	24	24
EGEO16SM	400 bar5800 psi	16	M24x1.5	26.8	15.0	37	27	30
EGEO20SM		20	M30x2	31.8	18.5	43	32	36
EGEO25SM		25	M36x2	40.8	18.5	48	41	46
EGEO30SM		30	M42x2	49.8	19.0	51	50	50

Benefits of Using Swivel Connector-EGEO Hydraulic Fittings:

Using Swivel Connector-EGEO Hydraulic Fittings offers several benefits in hydraulic applications. Here are some key advantages:1. Flexibility and Ease of Installation: The swivel design of these Swivel Connector-EGEO Hydraulic Fittings allows for rotational movement, making it easier to install and align hydraulic components. This flexibility helps save time and effort during the installation process.2. Stress Reduction: Swivel Connector-EGEO Hydraulic Fittings help reduce stress on hoses and pipes by allowing rotational movement. This feature prevents excessive torsion and bending, which can lead to premature wear and failure of hydraulic components. By minimizing stress, these fittings contribute to the longevity and reliability of the hydraulic system.3. Leak-Free Sealing: Swivel Connector-EGEO Hydraulic Fittings utilize advanced sealing technologies such as O-rings or metal-to-metal seals. These sealing mechanisms provide a tight and secure connection, ensuring leak-free operation. The absence of leaks improves system efficiency, reduces fluid loss, and prevents environmental contamination.4. High-Pressure Capability: These Swivel Connector-EGEO Hydraulic Fittings are designed to handle high-pressure hydraulic applications. Constructed from durable materials like stainless steel or carbon steel, they can withstand the forces generated by high-pressure hydraulic systems. This capability allows them to be used in demanding environments where system integrity and safety are critical.5. Corrosion Resistance: Swivel Connector-EGEO Hydraulic Fittings are often made from materials that resist corrosion, such as stainless steel. This corrosion resistance ensures the longevity of the fittings, even when exposed to harsh operating conditions or corrosive fluids. It helps maintain the performance and reliability of the hydraulic system over time.6. Versatility: These Swivel Connector-EGEO Hydraulic Fittings come in various sizes, configurations, and end connections, providing versatility to accommodate different hydraulic system requirements. They can be easily integrated with hydraulic hoses, adapters, valves, cylinders, and other components, making them suitable for a wide range of applications.7. Improved System Performance: By providing reliable connections and reducing stress on hoses and pipes, Swivel Connector-EGEO Hydraulic Fittings contribute to improved overall system performance. They help maintain consistent fluid flow, minimize pressure drops, and enhance the efficiency of hydraulic systems.
