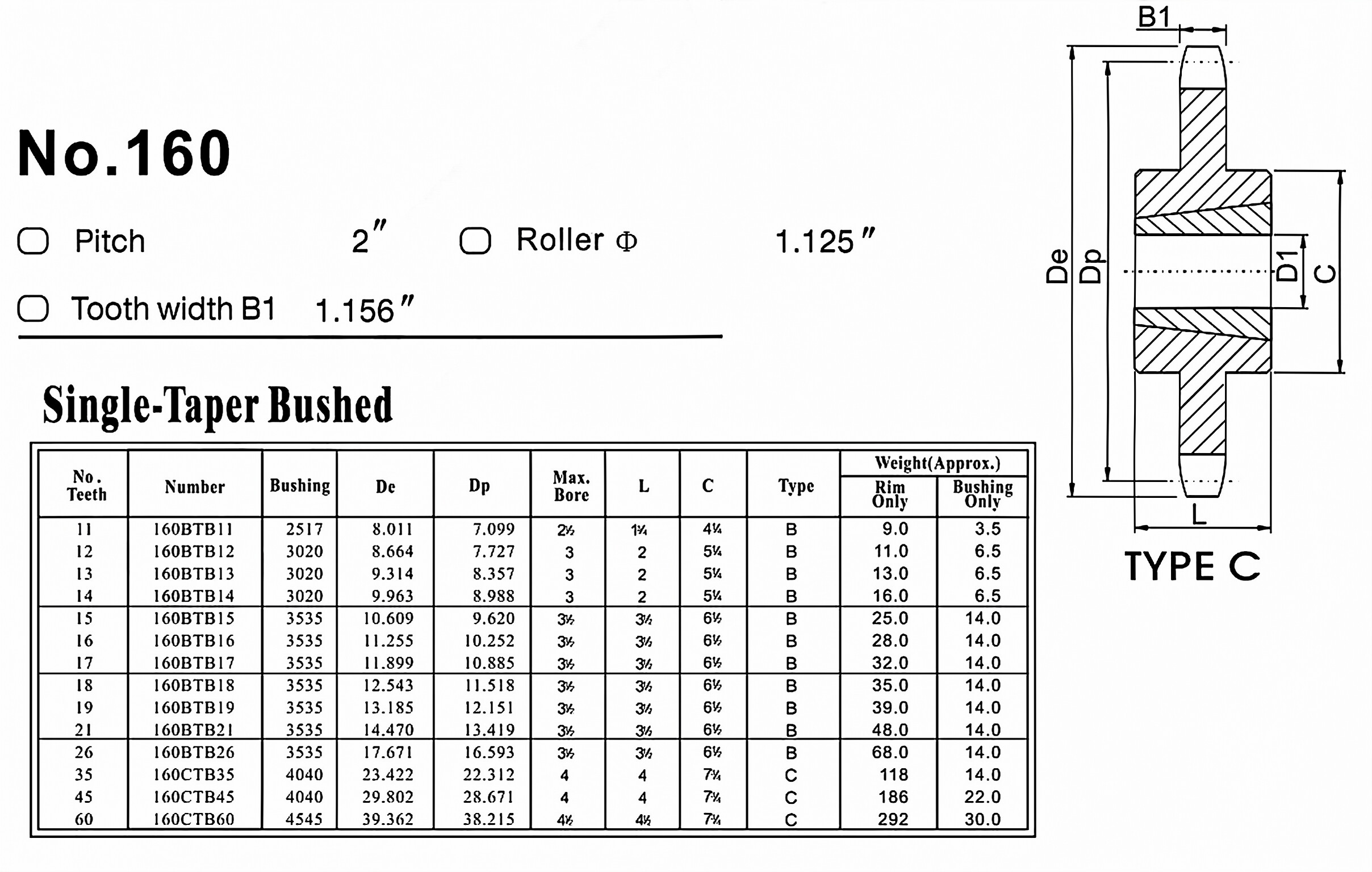

Taper Lock Sprocket No.160 American Standard

Taper Lock Sprocket No.160 American Standard

The Taper Lock Sprocket No.160 American Standard is a type of sprocket used in power transmission systems. It is designed with a tapered bore to securely fit onto a shaft, providing a reliable connection for transmitting power. The Taper Lock Sprocket No.160 American Standard is widely used in various industries for its ease of installation, high precision positioning, versatility, reliability, and low maintenance cost.

Definition and Basic Structure

A taper lock sprocket is a mechanical component that consists of a toothed wheel with a tapered bore. It is typically made of high-quality steel and has teeth that mesh with a chain to transmit rotational motion and power. The tapered bore allows the sprocket to be easily mounted and dismounted from a shaft, ensuring a secure and accurate fit.

Characteristics and Functions

1. Easy Installation: The taper lock design allows for quick and effortless installation, saving time and effort.
2. High Precision Positioning: The taper lock mechanism ensures accurate positioning of the sprocket on the shaft, reducing misalignment and improving overall efficiency.
3. Wide Applicability: Taper lock sprockets are suitable for various power transmission applications, making them versatile and adaptable to different systems.
4. Reliability: The tapered bore provides a stable and secure connection, preventing slippage and ensuring reliable power transmission.
5. Low Maintenance Cost: Taper lock sprockets require minimal maintenance, resulting in cost savings over their lifespan.

One of the key advantages of taper lock sprockets is their ease of installation and removal. This allows for efficient maintenance and replacement of sprockets when necessary.

Installation and Removal Process

1. Prepare Tools and Materials: Gather the necessary tools and materials required for the installation, such as a wrench and the taper lock bushing.
2. Clean Shaft and Sprocket Surface: Ensure that the shaft and sprocket surfaces are clean and free from any debris or contaminants that could affect the installation process.
3. Place Taper Lock Bushing: Insert the taper lock bushing into the sprocket's tapered bore, ensuring it is properly seated.
4. Install Sprocket: Slide the sprocket onto the shaft, aligning it with the keyway if applicable, and pushing it until it is snug against the taper lock bushing.
5. Tighten Locking Nut: Use a wrench to tighten the locking nut on the taper lock bushing, applying the recommended torque to secure the sprocket in place.

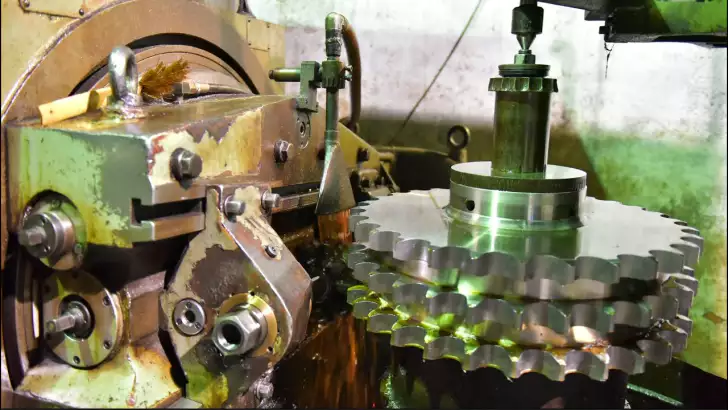

QD Sprocket Manufacturing Process

1. Raw Material Preparation: Select and prepare high-quality steel or other suitable materials for the sprocket manufacturing process.
2. Cutting: Cut the raw material into the desired shape and size using specialized cutting tools or machinery.
3. Forging or Casting: Depending on the manufacturing method, the sprocket may undergo forging or casting processes to shape it further.
4. Machining: Use precision machining techniques to refine the sprocket's dimensions and create tooth profiles.
5. Tooth Rolling: Roll the teeth using specialized machinery to ensure precise tooth profiles and optimal engagement with the chain.
6. Heat Treatment: Apply heat treatment processes to enhance the sprocket's strength, hardness, and durability.
7. Surface Treatment: Treat the sprocket's surface to improve its corrosion resistance, aesthetics, and overall performance.
8. Quality Inspection: Perform rigorous quality checks and inspections to ensure each sprocket meets the required standards and specifications.

FAQ (Frequently Asked Questions)

1. Q: How do I choose the right Taper Lock Sprocket No.160 American Standard for my application?

A: To select the appropriate sprocket, consider factors such as the power transmission requirements, shaft diameter, and chain type compatibility. Consult the manufacturer's guidelines or seek professional advice for optimal sprocket selection.

2. Q: Can a Taper Lock Sprocket No.160 American Standard be reused?

A: Yes, taper lock sprockets are designed for easy removal and reinstallation, allowing for reuse when needed. However, ensure that the sprocket and taper lock bushing are in good condition before reuse.

3. Q: What maintenance is required for Taper Lock Sprockets?

A: Regularly inspect the sprocket and bushing for wear or damage. Clean them as necessary and ensure proper lubrication to optimize performance and extend their lifespan.

4. Q: Are Taper Lock Sprockets suitable for high-speed applications?

A: Yes, taper lock sprockets can be used in high-speed applications. However, it is crucial to consider factors such as balancing, alignment, and proper lubrication to minimize vibrations and optimize performance.

5. Q: Can Taper Lock Sprockets be used with different types of chains?

A: Yes, Taper Lock Sprockets can accommodate various chain types, such as roller chains or engineering class chains. Ensure compatibility between the sprocket and the chain for efficient power transmission.

Author: Miya
