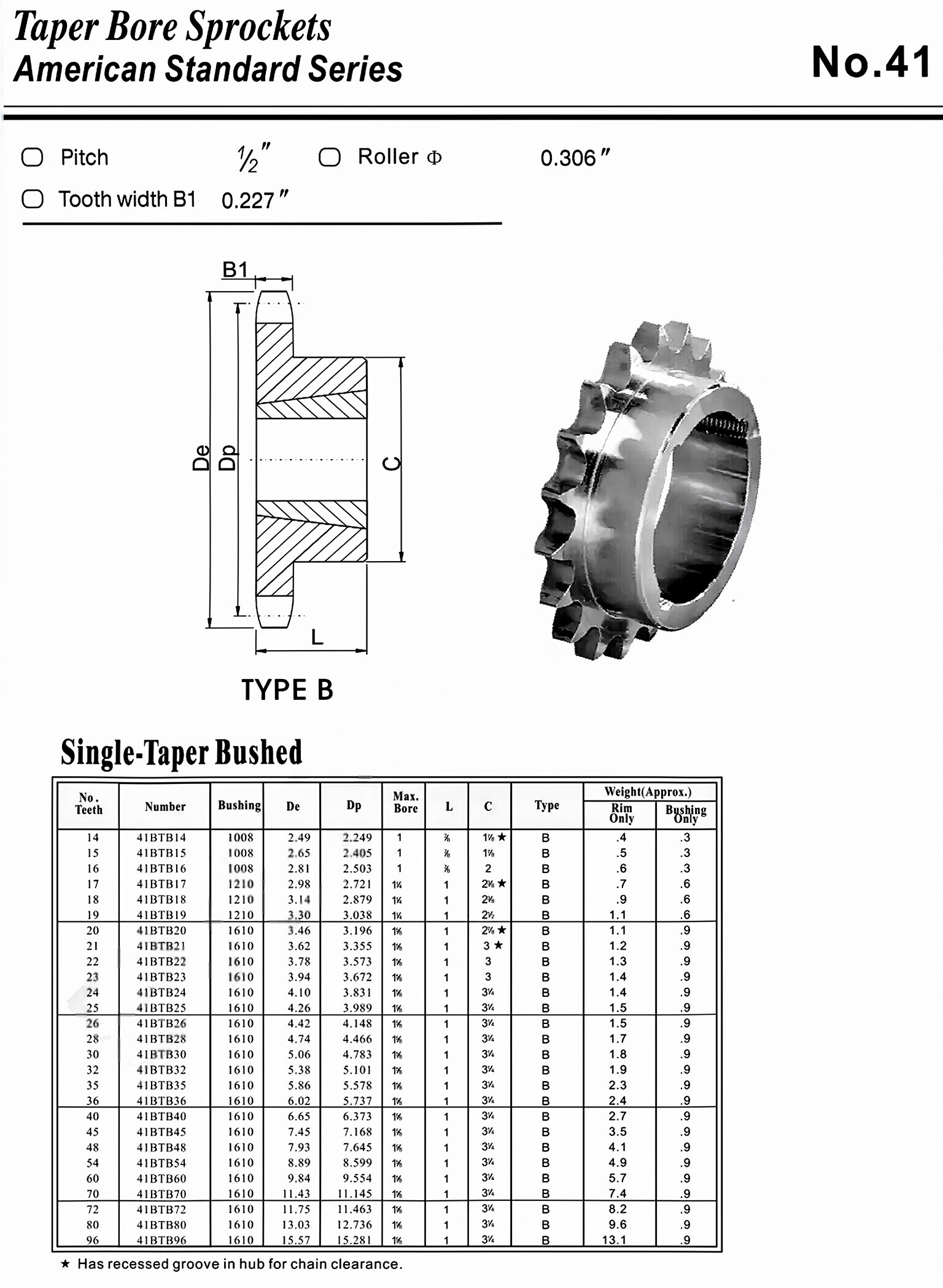

Taper Lock Sprocket No.41 American Standard

Taper Lock Sprocket No.41 American Standard

Taper Lock Sprocket No.41 American Standard is a type of sprocket that is used in power transmission systems. It is designed with a tapered bore and a hub that can be easily mounted on a shaft without the need for a keyway. The sprocket is used to transmit motion and power from one shaft to another, and it is commonly found in conveyor systems, agricultural machinery, and industrial equipment.

Definition and Basic Structure of Taper Lock Sprocket

A Taper Lock Sprocket is a type of sprocket that is designed with a tapered bore and a hub. The sprocket can be easily mounted on a shaft without the need for a keyway, and it is locked in place using a locking bush. The basic structure of a Taper Lock Sprocket consists of a hub, teeth, and a bore. The teeth are used to engage with the chain, and the bore is used to mount the sprocket on the shaft.

Characteristics and Functions of Taper Lock Sprocket

• Easy to Install: The Taper Lock Sprocket is designed with a tapered bore that allows for easy installation without the need for a keyway. This makes it easy to install and remove the sprocket from the shaft.
• High Precision Positioning: The Taper Lock Sprocket provides high precision positioning, which ensures accurate transmission of power and motion.
• Wide Applicability: The Taper Lock Sprocket is widely used in conveyor systems, agricultural machinery, and industrial equipment due to its versatility.
• Reliability: The Taper Lock Sprocket is known for its reliability, which makes it a popular choice for power transmission systems.
• Low Maintenance Cost: The Taper Lock Sprocket is easy to maintain, which reduces maintenance costs over time.

The Taper Lock Sprocket's ease of installation and removal is a major advantage, as it reduces downtime and allows for quick and easy maintenance. Its high precision positioning ensures accurate transmission of power and motion, while its wide applicability makes it a versatile choice for various applications. Its reliability and low maintenance cost make it a popular choice for power transmission systems.

Installation and Removal Process of Taper Lock Sprocket

The installation and removal process of a Taper Lock Sprocket involves several steps:

1. Prepare Tools and Materials: Gather the necessary tools and materials, including the Taper Lock Bushing, the sprocket, and a torque wrench.
2. Clean Shaft and Sprocket Surface: Clean the shaft and sprocket surface to remove any dirt or debris that could affect the installation.
3. Place Taper Lock Bushing: Place the Taper Lock Bushing onto the shaft and align it with the sprocket bore.
4. Install Sprocket: Carefully slide the sprocket onto the bushing until it is flush against the shoulder.
5. Tighten Locking Nut: Use a torque wrench to tighten the locking nut to the specified torque value.

Following these steps will ensure that the Taper Lock Sprocket is installed correctly and securely. It is important to follow the manufacturer's instructions and torque specifications to ensure proper installation.

Manufacturing Process of QD Sprocket

The manufacturing process of a QD Sprocket involves several steps:

1. Prepare Raw Materials: Prepare the raw materials, which may include steel or other metals.
2. Cut Material: Cut the material to the required size and shape.
3. Forge or Cast: Forge or cast the material into the desired shape, depending on the manufacturing process used.
4. Machine Teeth: Machine the teeth of the sprocket using a cutting tool.
5. Heat Treatment: Heat treat the sprocket to improve its hardness and durability.
6. Surface Treatment: Apply a surface treatment, such as plating or coating, to improve the sprocket's corrosion resistance.
7. Quality Inspection: Inspect the sprocket to ensure it meets the required quality standards.

Following these steps ensures that the QD Sprocket is manufactured to the required standards and specifications. Each step is carefully monitored to ensure that the sprocket meets the required quality standards.

FAQ

• What is a Taper Lock Sprocket? A Taper Lock Sprocket is a type of sprocket that is designed with a tapered bore and a hub. It can be easily mounted on a shaft without the need for a keyway.
• What are the advantages of a Taper Lock Sprocket? The advantages of a Taper Lock Sprocket include ease of installation, high precision positioning, wide applicability, reliability, and low maintenance cost.
• What is the installation process of a Taper Lock Sprocket? The installation process of a Taper Lock Sprocket involves preparing tools and materials, cleaning the shaft and sprocket surface, placing the Taper Lock Bushing, installing the sprocket, and tightening the locking nut.
• What is the manufacturing process of a QD Sprocket? The manufacturing process of a QD Sprocket involves preparing raw materials, cutting material, forging or casting, machining teeth, heat treatment, surface treatment, and quality inspection.
• What are the applications of a Taper Lock Sprocket? Taper Lock Sprockets are commonly used in conveyor systems, agricultural machinery, and industrial equipment.

By understanding the basics of Taper Lock Sprocket No.41 American Standard, its characteristics and functions, and the installation and removal process, you can ensure that your power transmission system operates efficiently and effectively.

Author: Miya
