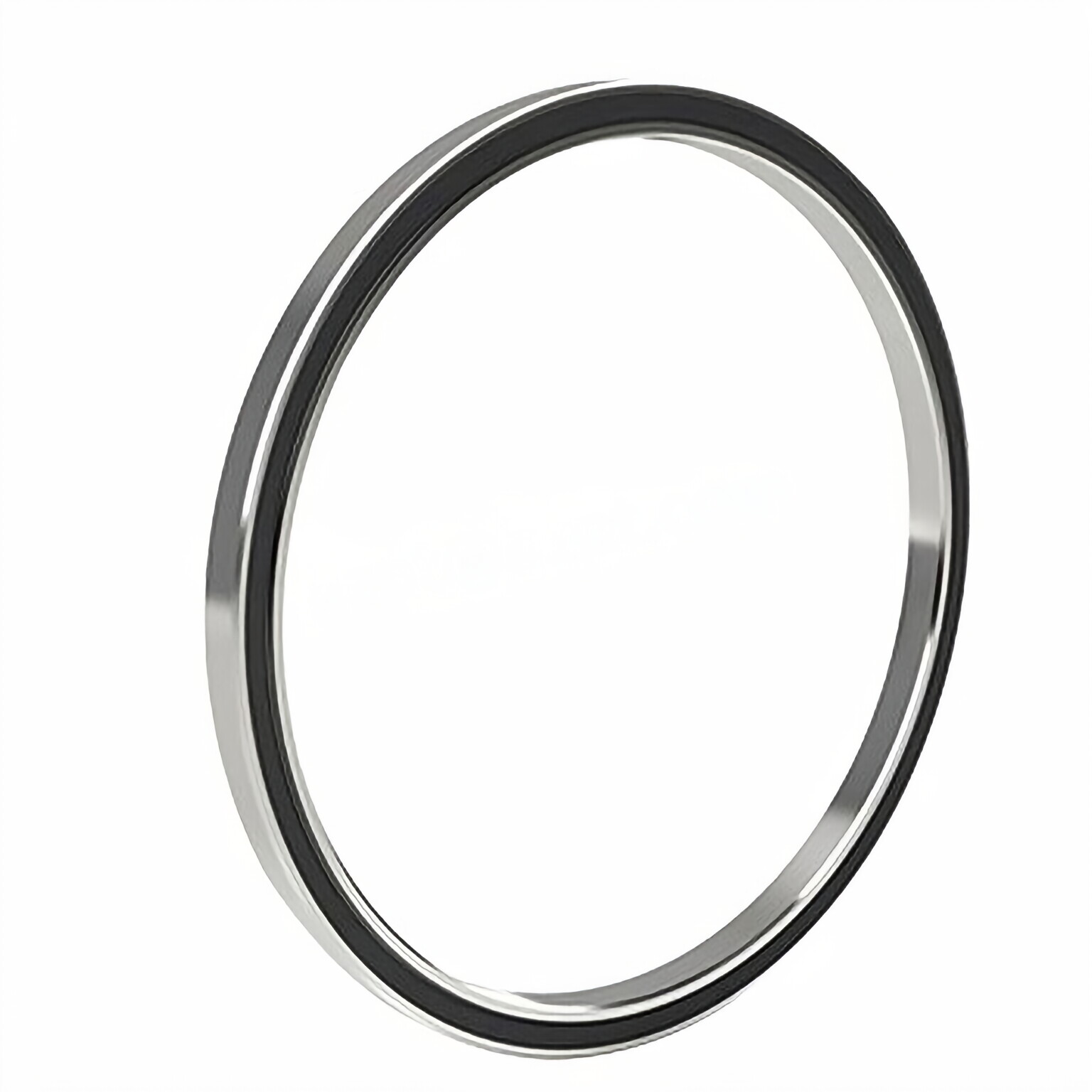

Thin Section Sealed Four-point Contact Ball Bearings( X type)

Raydafon Group's Thin Section Sealed Four-point Contact Ball Bearings (X type) deliver unmatched precision and durability for demanding applications like robotics and aerospace. These bearings combine lightweight construction with superior sealing to reduce friction and extend lifespan, ideal for engineers seeking reliable performance in compact spaces. Experience smoother operation and enhanced efficiency—trust Raydafon Group to elevate your machinery with cutting-edge design.

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

Thin Section Sealed Four-point Contact Ball Bearings( X type)Thin-section sealed four-point contact ball bearing is also designed for mounting sealing devices on both sides based on a thin-section four-point contact ball bearing. We have many options for the structural form of the sealing device. The speed is lower than a thin-section four-point contact ball bearing.

Type X-Thin section sealed four-point contact ball bearings can carry radial and axial loads in two directions. One thin four-point contact bearing can replace the two angular contact ball bearings. Thin Section Four Point Contact Ball Bearing bore diameter ranges from 1 inch to 40 inches; cross-section ranges from 0.1875 × 0.1875 inches to 1.000 × 1.000 inches.

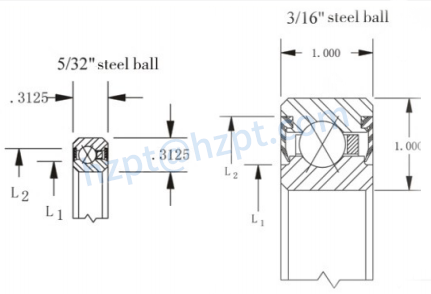

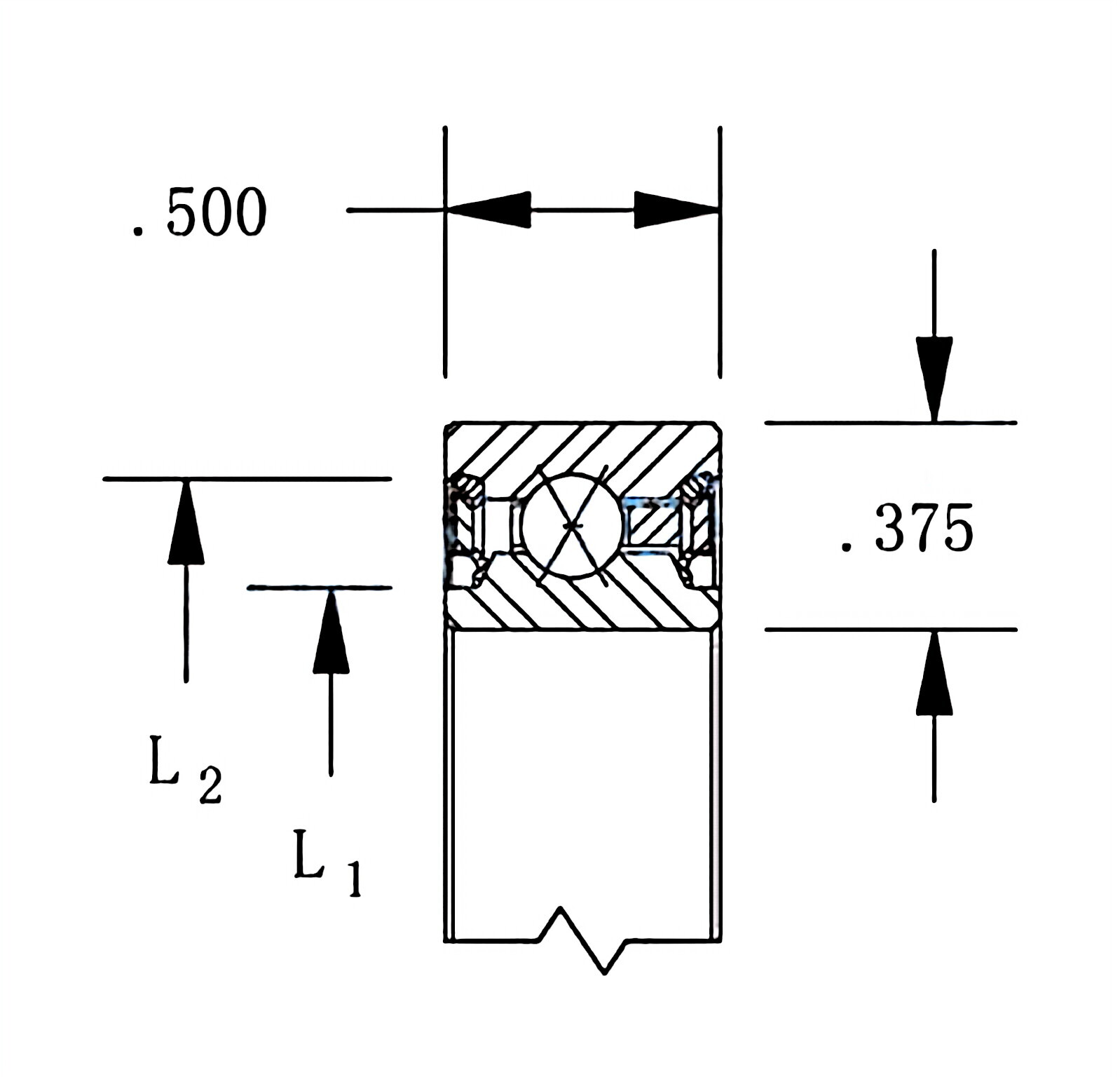

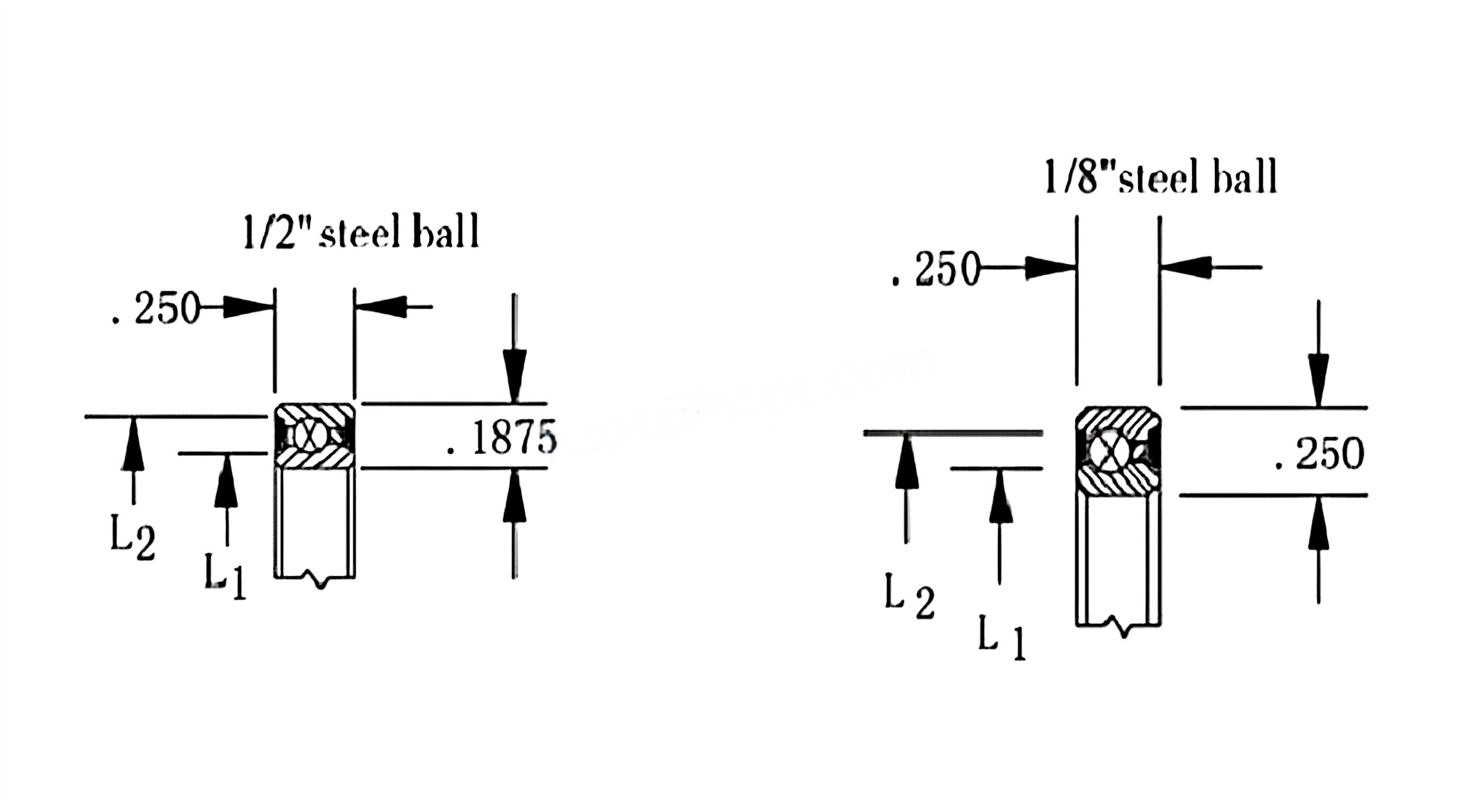

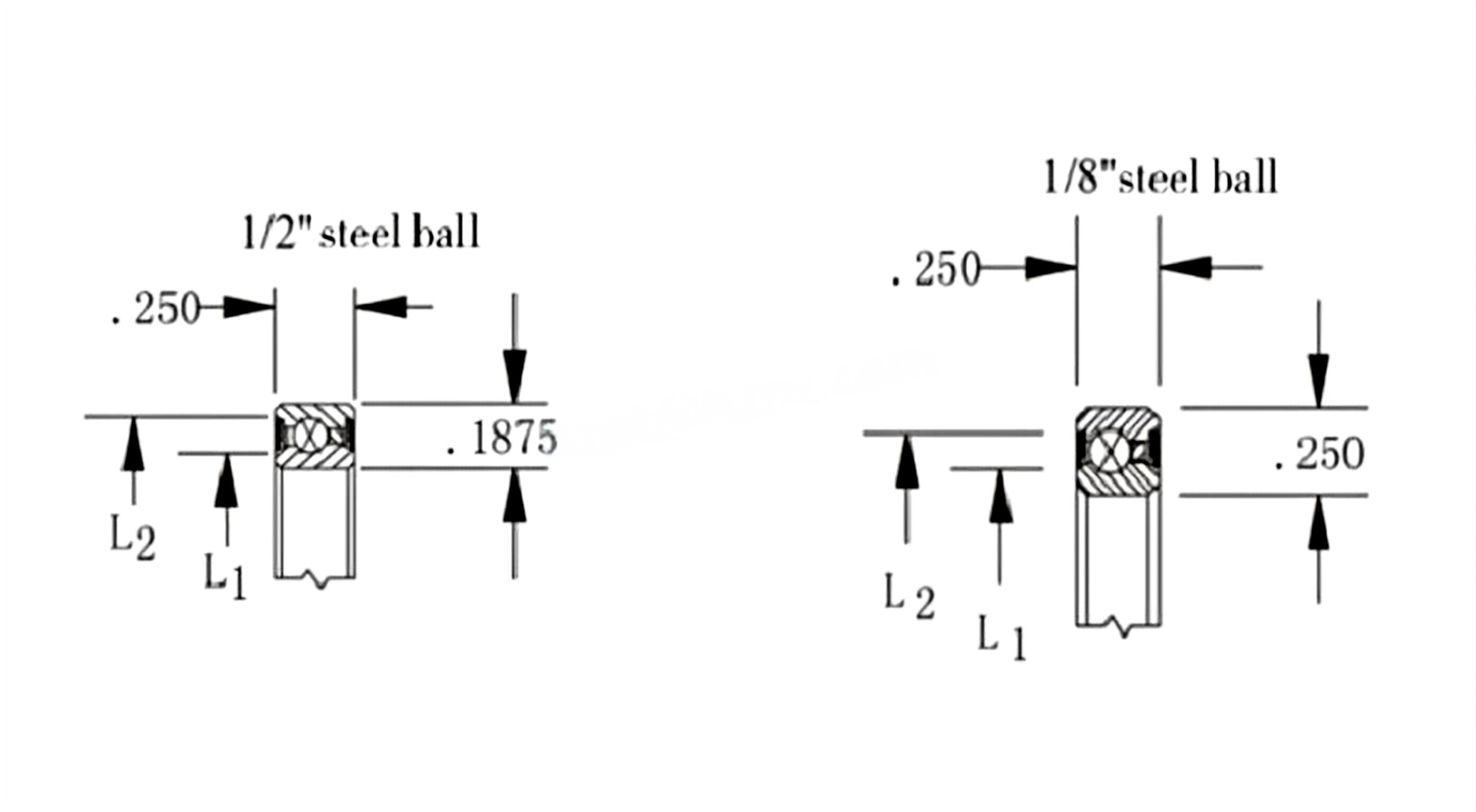

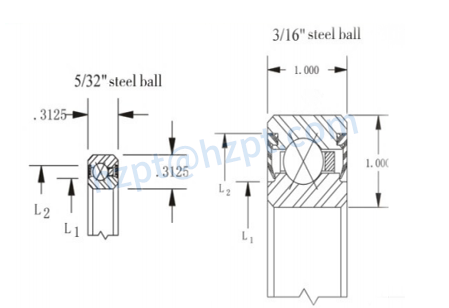

Technical data

(1) HJHA series Thin Section Sealed Four-point Contact Ball Bearings( X type)

HJHA series									WeightKg
Type	(inch/mm) Dimension				Basic Cap. N
	d	D	L1	L2	Radial		Thruet
	d	D	L1	L2	Cor	Cr	Coa	Ca
HJHA010X	1.000 25.4	1.375 34.952	1.108 29.0	1.274 31.4	1290	670	3205	1650	0.016
HJHA015X	1.500 38.1	1.875 47.625	1.608 41.7	1.774 44.1	1780	800	4450	2050	0.024

(2) HJA series Thin Section Sealed Four-point Contact Ball Bearings( X type)

HJA series									WeightKg
Type	(inch/mm) Dimension				Basic Cap. N
	d	D	L1	L2	Radial		Thrust
	d	D	L1	L2	Cor	Cr	Coa	Ca
HJA020X	2.000 50.8	2.500 63.5	2.148 54.6	2.356 59.8	3020	1420	7600	3510	0.045
HJA025X	2.500 63.5	3.000 76.2	2.648 62.7	2.856 72.5	3690	1600	9290	4050	0.054
HJA030X	3.000 76.2	3.500 88.9	3.148 80	3.356 85.2	4400	1820	10980	4490	0.064
HJA035X	3.500 88.9	4.000 101.6	3.648 92.7	3.856 98	5070	2000	12670	4930	0.077
HJA040X	4.000 101.6	4.500 114.3	4.148 105.4	4.356 110.6	5730	2130	14310	5380	0.086
HJA042X	4.200 107.95	4.750 120.65	4.398 111.7	4.606 117	6090	2220	15160	5600	0.091
HJA045X	4.500 114.3	5.000 127	4.648 118	4.856 123.3	6400	2310	16000	5820	0.095
HJA047X	4.750 120.65	5.250 133.35	4.898 124.4	5.106 129.7	6760	2400	16850	6000	0.100
HJA050X	5.000 127	5.500 139.7	5.148 130.8	5.356 136	7070	2490	17690	6220	0.104
HJA055X	5.500 139.7	6.000 152.4	5.648 143.5	5.856 148.7	7780	2620	19380	6580	0.113
HJA060X	6.000 152.4	6.500 165.1	6.148 156.2	6.356 161.4	8450	2800	21070	6980	0.127
HJA065X	6.500 165.1	7.000 177.8	6.648 168.9	6.856 174.1	9110	2930	22760	7330	0.136

(3) HJB series

HJB series									WeightKg
Type	(inch/mm) Dimension				Basic Cap. N
	d	D	L1	L2	Radial		Thrust
	d	D	L1	L2	Cor	Cr	Coa	Ca
HJB020X	2.000 50.8	2.625 66.675	2.136 54.3	2.362 60	4130	2000	10400	5020	0.068
HJB025X	2.500 63.5	3.125 79.375	2.636 67	2.862 72.7	5070	2310	12620	5730	0.086
HJB030X	3.000 76.2	3.625 92.075	3.136 79.7	3.362 85.4	5960	2580	14890	6400	0.100
HJB035X	3.500 88.9	4.125 104.775	3.636 92.4	3.862 98.1	6850	2800	17160	7070	0.122
HJB040X	4.000 101.6	4.625 117.475	4.136 105	4.362 110.8	7780	3070	19430	7650	0.136
HJB042X	4.200 107.95	4.875 123.825	4.386 111.4	4.662 118.4	8130	3160	20310	7910	0.141
HJB045X	4.500 114.3	5.125 130.175	4.636 117.8	4.862 123.5	8670	3290	21690	8220	0.154
HJB047X	4.750 120.65	5.375 136.525	4.886 124.1	5.162 131.1	9020	3380	22580	8450	0.159
HJB050X	5.000 127	5.625 142.875	5.136 130.5	5.362 136.2	9560	3510	23910	8800	0.168
HJB055X	5.500 139.7	6.125 155.575	5.636 143.2	5.862 148.9	10490	3730	26180	9340	0.181
HJB060X	6.000 152.4	6.625 168.275	6.136 155.9	6.362 161.6	11380	3960	28450	9870	0.200
HJB065X	6.500 165.1	7.125 180.975	6.638 168.6	6.862 174.3	12270	4130	30720	10400	0.213

(4) HJG series

HJG series									WeightKg
Type	Dimension(inch/mm)				Basic Load Ratings(N)
	d	D	L1	L2	Radial		Thruet
	d	D	L1	L2	Cor	Cr	Coa	Ca
HJG120X	12.000 304.8	14.000 355.6	12.554 318.9	13.602 345.5	94860	37830	237140	94590	4.218
HJG140X	14.000 355.6	16.000 406.4	14.554 369.7	15.602 396.3	109440	41610	273630	104060	4.899
HJG160X	16.000 406.4	18.000 457.2	16.554 420.5	17.602 447.1	124060	45250	310130	113130	5.579
HJG180X	18.000 457.2	20.000 508	18.554 471.3	19.602 497.9	138640	48720	346620	121840	6.214
HJG200X	20.000 508	22.000 558.8	20.554 522.1	21.602 548.7	153220	52100	383070	130240	7.167

(5) HJU series

HJU series									WeightKg
Type	(inch/mm) Dimension				Basic Cap. N
	d	D	L1	L2	Radial		Thrust
	d	D	L1	L2	Cor	Cr	Coa	Ca
HJU040X	4.000 101.6	4.750 120.65	4.150 105.4	4.547 115.5	9340	3910	23380	9820	0.249
HJU042X	4.250 107.95	5.000 127	4.400 111.76	4.797 121.8	9870	4090	24710	10180	0.263
HJU045X	4.500 114.3
