Product Overview

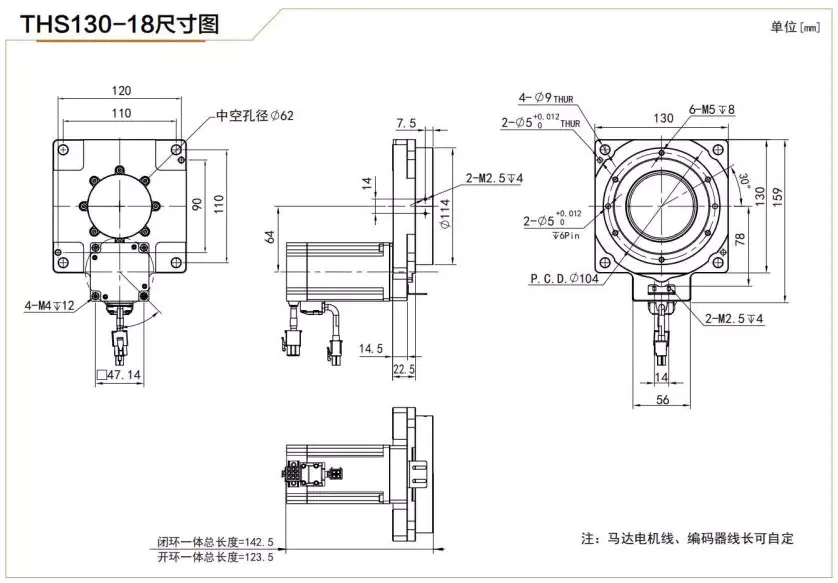

The THS130 hollow rotary actuator Rotating Platform Table With High Precision Planetary Gearbox is an advanced motion control product designed for high-precision rotary positioning applications. It features a hollow design that allows cables, fluids, or other necessary components to pass through the center of the actuator without interfering with its rotation. This product is also known as the Hollow Rotary Platform or Hollow Rotary Table. The product image is shown below:The THS130 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox is widely used in various industries, including robotics, aerospace, medical devices, military equipment, optical instruments, and industrial automation. It provides high torque output while maintaining a compact structure. Looking into the future, the market trend suggests that the demand for accurate positioning equipment will continue to rise, which will further drive the development of Hollow Rotary Actuators.

Technical Parameter

Specifications	THS130-18
Reduction ratio	18
Positioning accuracy	士0.5arcmin
Allowable torque	5Nm
Permissible speed	200r/min
Repetitive positioning accuracy	士5arcsec
Allowable inertia load	130N
Allowable axial load	2000Nm
Deviation of rotating platform tabletop	士0.005mm
Parallelism of rotating platform	士0.015mm
Concentricity of rotating platform	士0.01mm
Rotating platform bearings	Cross Roller Bearing
Protection and other records	IP40
Moment of inertia	2500*0.000001kg.m²
Weight	2.8kg
Appearance dimensions	57mm
Phase number	2PHASES
Rated current	5A/PHASES
Coil impedance	0.45±10%OHM/PHASE
Coil impedance	1.2MH
Maintain torque	2.2kg.cm
Moment of inertia	480g.cm
Motor length	Open loop: 81mm Closed loop: 101mm
Encoder resolution	/
Insulation level	B
Step angle	1.8°
Lead	1000

Hollow Rotary Actuator Basic Construction

The basic construction of the THS130 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox includes:

1. Crossed roller bearing
2. Precision gears
3. Input mounting flange
4. Input shaft
5. Sensing device

The product image is shown below:Each part plays a crucial role in the overall functionality of the actuator. The crossed roller bearing provides high rigidity and accuracy in rotary motion. Precision gears ensure smooth and efficient power transmission. The input mounting flange and shaft allow for easy installation and connection to external systems. The sensing device provides real-time feedback of the actuator's position, which enables precise control of the motion process.

Working Principle

The THS130 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox works based on the following principles:

1. Drive Source: The actuator is typically powered by a motor, which can be a servo motor, stepper motor, or DC motor. The motor converts electrical energy into mechanical energy and delivers it through the output shaft to the transmission system.
2. Transmission Mechanism: The transmission system generally consists of a set of precision gears, such as a planetary gearbox. The motor's power is transmitted to the sun gear through the input shaft, and the sun gear drives a set of planetary gears that rotate around it. These planetary gears simultaneously rotate and revolve around the internal ring gear, thereby achieving torque amplification and reducing the rotation speed. The hollow design of the actuator allows external cables, fluid pipes, or other necessary components to pass through the center of the actuator without affecting its rotation function.
3. Hollow Shaft Design: The core feature of the actuator is an internal, hollow rotating shaft that allows cables, fluid pipes, or other necessary components to pass through the shaft center without affecting the actuator's rotation function. This feature greatly enhances the device's integration in limited spaces.
4. Position Control and Feedback: To achieve precise position control, the Hollow Rotary Actuator is equipped with position sensors, such as encoders or magnetostrictive displacement sensors. These sensing devices detect the actuator's rotation angle in real-time and send the data back to the control system to form a closed-loop feedback mechanism, ensuring that the actuator moves accurately according to the set target position.
5. Applied Load: The output end of the actuator is connected to the load that needs to rotate through a flange or other interface methods, such as robot joints, radar antennas, medical equipment, etc. This allows for precise continuous or intermittent rotation operations.

The product image is shown below:In summary, the THS130 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox provides high-precision rotary positioning with a compact design, making it an ideal solution for various applications.

Design and Selection Considerations

Designing and selecting the right Hollow Rotary Actuator involves considering various factors, including:

Factor	Description
Load capacity	The maximum load that the actuator can handle
Rotational speed	The maximum speed at which the actuator can rotate
Resolution	The minimum amount of rotation the actuator can achieve
Accuracy	The degree of precision in achieving the target position
Environmental conditions	The temperature, humidity, and other environmental factors that may affect the actuator's performance

Applications

The THS130 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox finds its application in various industries, including:

1. Robotics: Used in robotic arm joints to achieve accurate positioning and rotation
2. Aerospace: Used in antenna positioning systems and satellite tracking systems
3. Medical Devices: Used in medical scanners and diagnostic equipment
4. Military Equipment: Used in targeting systems and missile guidance systems
5. Optical Instruments: Used in telescopes and cameras
6. Industrial Automation: Used in conveyor systems and assembly lines

Each application has specific requirements for the actuator's load capacity, accuracy, speed, and other factors. The product image is shown below:
