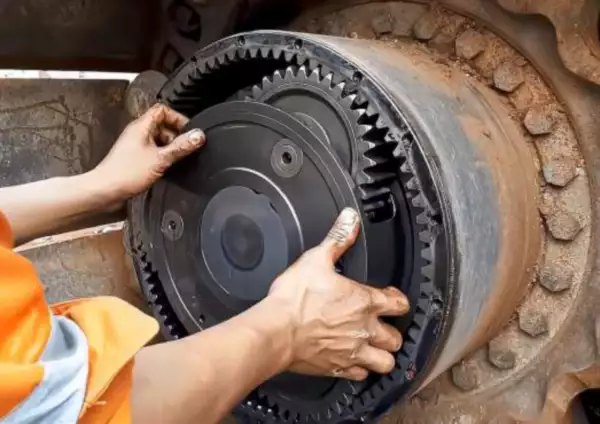

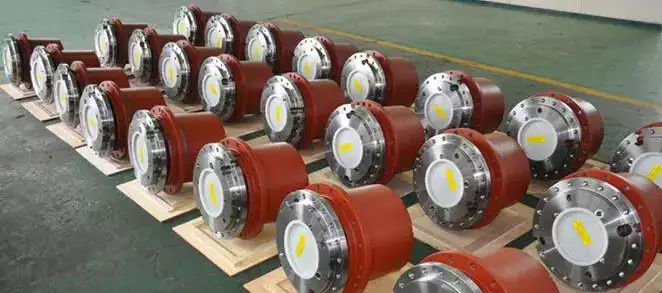

Track Drive Planetary Gearboxes for Excavator

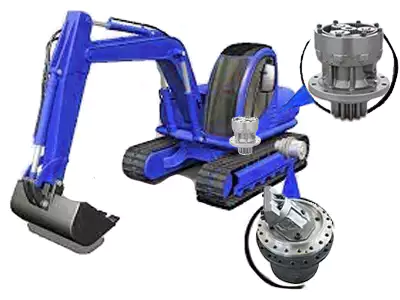

Where is Track Drive in Excavator?

The Track Drive (crawler drive) is installed in an Excavator (excavator) usually at the bottom of the excavator. It is the core component of the excavator's traveling system. Specifically, the crawler drive device is installed on the crawler frame (Undercarriage) on each side of the excavator, and usually includes a drive wheel (Drive Wheel), an idler wheel (Idler Wheel), a roller (Roller), and a track tensioner (Track Tensioner). ) as well as the track itself.

The Role of the Track Drive in the Excavator

• Providing traction: Through the engagement of the drive wheels with the crawler tracks, the crawler drive converts the excavator's engine power into ground traction, allowing the excavator to move on various terrains, including rough, soft soil or muddy areas.
• Ensure stability and passability: The crawler tracks provide a larger ground contact area compared to the tires, reducing the ground contact pressure. This enables the excavator to remain stable on unstable ground and is less likely to sink, improving the adaptability of the working site. .
• Steering and in-situ steering function: The excavator can achieve steering by adjusting the speed difference of the crawler drives on both sides, and can even complete the steering in place, which is very beneficial for working in narrow spaces.
• Support weight: The crawler drive device and the entire crawler system jointly bear the weight of the excavator, dispersing the load and avoiding excessive pressure on the ground.
• Adjust the track tension: Some track drive devices are equipped with a track tensioning mechanism, which can adjust the tightness of the track to ensure that the track is neither too loose nor too tight during operation to avoid derailment or accelerated wear.

Design Features of Our Track Drive in Excavator

Track Drive Planetary Gearboxes not only optimize the performance of the Excavator, but also ensure the stability and durability in various complex environments. They are an important component to improve the operating efficiency and economic benefits of the excavator.

1. High torque density: Using a planetary gear structure, it can achieve large torque output in a compact volume, meet the power needs of the excavator under heavy load conditions, and promote it to move freely in complex terrain.
2. Efficient transmission: The gears are precision processed and optimized to reduce transmission losses, improve overall transmission efficiency, help save energy, reduce emissions, and extend operating time.
3. Durability and impact resistance: The use of high-strength alloy steel and wear-resistant materials, combined with precision heat treatment technology, ensures that the gearbox operates stably for a long time under frequent impacts and high loads, extending its service life.
4. Integrated design: including tensioning mechanism, braking system, etc., to achieve integrated design, simplify installation and maintenance, and also facilitate integration with the excavator's hydraulic control system to achieve precise control.
5. Sealing and protection: Use multiple sealing technologies, including oil seals, dust covers, etc., to effectively prevent the intrusion of external pollutants such as mud, water, dust, etc., keep the interior clean, and reduce wear and tear.

Track Drive Planetary Gearboxes Offer Superior Compatibility and Customization Flexibility

Our high-performance Track Drive Planetary Gearboxes offer superior compatibility and customization flexibility to fit the vast majority of Excavator models on the market, from industry leaders to emerging manufacturers. From Caterpillar's 300 series, Komatsu's PC series, Hitachi's ZX series, to Volvo's EC series and Liebherr's R series, we can provide accurately matched transmission solutions.We are well aware of the differences in working environment, power requirements, torque output, etc. between different brands and models of excavators. Therefore, we focus on customized services in the following key areas:

• Personalized interface size: According to the specific requirements of the excavator chassis, we can customize the installation interface of the gearbox to ensure seamless connection with the crawler system of various brands of excavators. Whether it is a standard configuration or a special design, it can be easily integrated.
• Accurate matching of power and torque: From small excavators to large mining excavators, our gearbox design can cover a wide range of power, accurately match the engine output of different types of excavators, ensure efficient and lossless power transmission, and meet the requirements from light load to Various torque requirements under extreme working conditions.
• Enhanced environmental adaptability: For extreme operating environments, such as extremely cold, high temperature, dusty or corrosive areas, we provide special materials and surface treatment options to enhance the weather resistance and anti-corrosion capabilities of the gearbox to ensure stable operation under harsh conditions. .
• Intelligent control integration: In order to improve the intelligence and convenience of operation, our gearboxes can integrate advanced sensors and control systems, support remote monitoring, automatic tensioning and other functions, and seamlessly integrate with the intelligent management system of modern excavators.

We not only provide standard product lines, but are also committed to tailoring the most appropriate transmission solutions through in-depth communication with customer needs. Whether it is a large-scale engineering project that pursues ultimate efficiency, or a complex working condition that requires special flexibility and durability, our Track Drive Planetary Gearboxes can become your trustworthy choice for upgrading the performance of your excavator.
