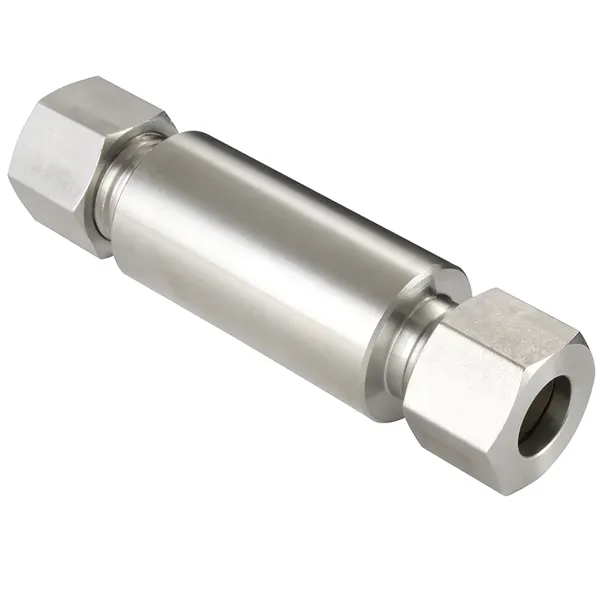

Weld bulkhead fittings, also known as ESV (Extended Structural Vessel) hydraulic fittings, are specialized components used in hydraulic systems to create a sealed connection through a bulkhead or panel. These fittings provide a secure and leak-free passageway for hydraulic fluid between two separate spaces, typically on opposite sides of a wall or barrier.The primary purpose of Weld Bulkhead Fitting-ESV is to enable the passage of hydraulic lines or hoses through a structural barrier such as a wall, partition, or bulkhead. They are commonly utilized in applications where hydraulic lines need to be routed between compartments or enclosures while maintaining the integrity of the barrier.When installing ESV Hydraulic Fittings, it is important to follow proper welding techniques to ensure a secure and leak-free connection. Additionally, it is essential to select fittings that are compatible with the hydraulic fluid, system pressure, and temperature requirements.

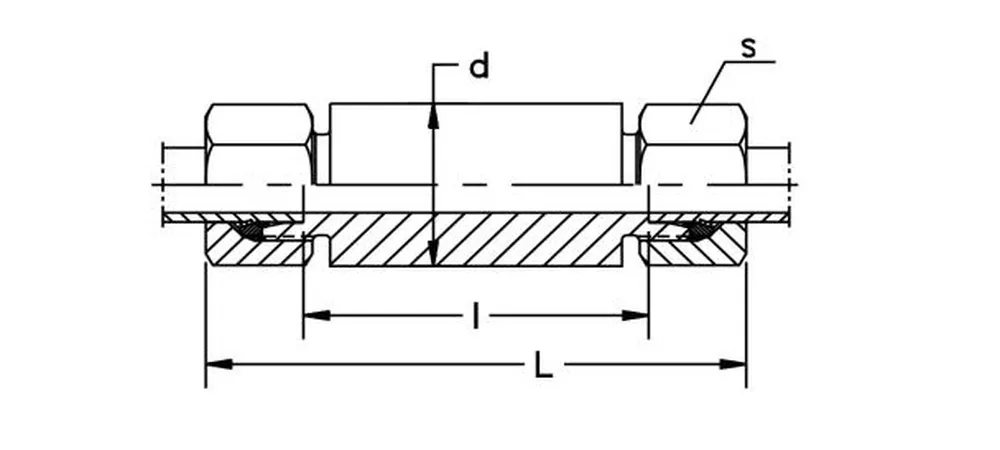

Weld Bulkhead Fitting-ESV Hydraulic Fitting Size Chart:

ESVPart no.	Series Working Pressure(bar/psi)	Tubeo.d.	d	l	L	S
-ESV06L	L light 315 bar4560 psi	6	18	56	85	14
-ESV08L		8	20	56	85	17
-ESV10L		10	22	58	87	19
-ESV12L		12	25	58	87	22
-ESV15L		15	28	70	100	27
-ESV18L		18	32	69	101	32
-ESV22L	160 bar2320 psi	22	36	73	105	36
-ESV28L		28	40	73	106	41
-ESV35L		35	50	71	114	50
-ESV42L		42	60	70	115	60
-ESV06S	S heavy 630 bar9130 psi	6	20	60	89	17
-ESV08S		8	22	60	89	19
-ESV10S		10	25	59	91	22
-ESV12S		12	28	59	91	24
-ESV14S		14	30	72	107	27
-ESV16S	400 bar5800 psi	16	35	71	107	30
-ESV20S		20	38	71	114	36
-ESV25S		25	45	72	120	46
-ESV30S		30	50	73	126	50
-ESV38S	315 bar4560 psi	38	60	72	133	60

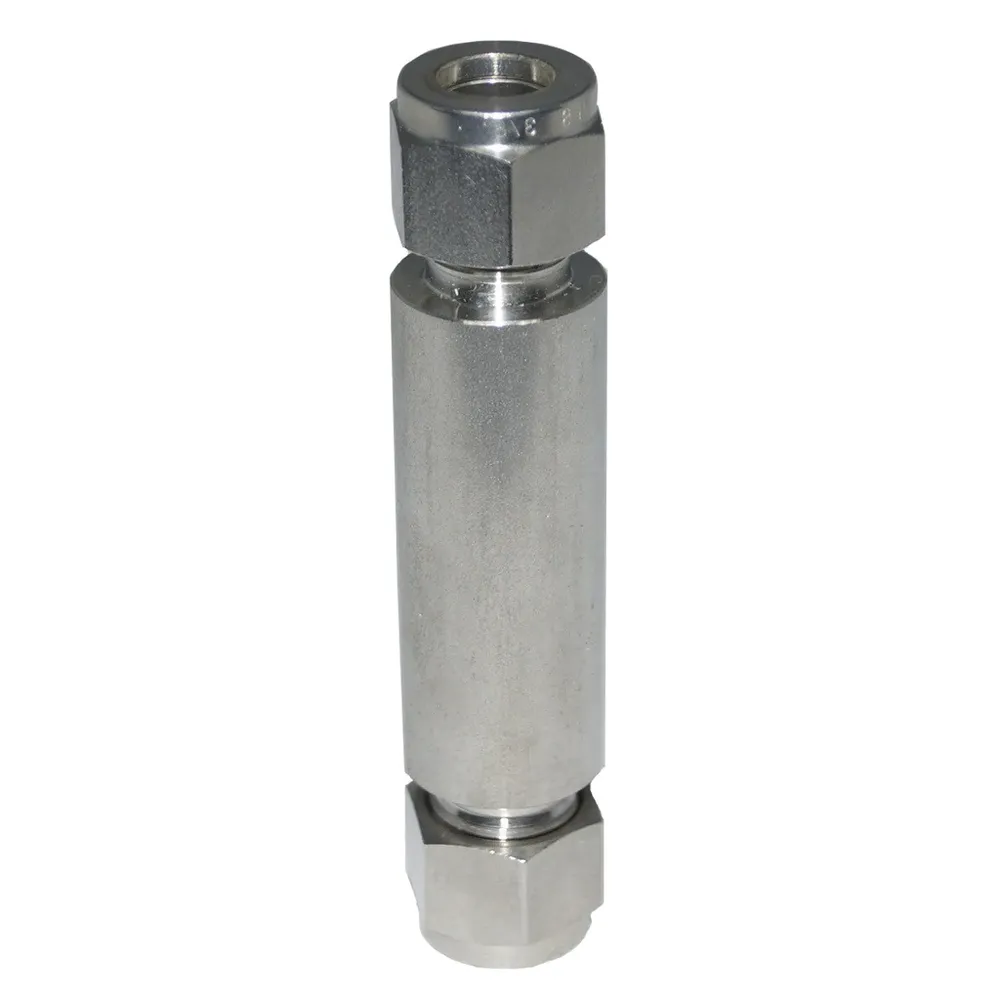

Advantages of Weld Bulkhead Fitting-ESV Hydraulic Fittings:

Weld bulkhead fitting-ESV hydraulic fittings offer a number of advantages over other types of hydraulic fittings, including:

1. Leakproofness: Weld bulkhead fitting-ESV hydraulic fittings are welded to the bulkhead, creating a permanent and leakproof seal. This is especially important in high-pressure hydraulic systems, where even small leaks can lead to serious problems.2. Durability: Weld bulkhead fitting-ESV hydraulic fittings are made from high-quality materials and are designed to withstand the harsh conditions of industrial and commercial environments. They are also resistant to vibration, corrosion, and other forms of damage.3. Versatility: Weld bulkhead fitting-ESV hydraulic fittings can be used with a wide variety of hydraulic hoses and tubing. They are also available in a wide range of sizes and configurations to meet the needs of any application.4. Ease of installation: Weld bulkhead fitting-ESV hydraulic fittings are relatively easy to install, even in confined spaces. They can be welded to the bulkhead using a variety of methods, including TIG welding, MIG welding, and arc welding.5. Reduced weight and size: Weld bulkhead fitting-ESV hydraulic fittings are smaller and lighter than other types of hydraulic fittings, such as flanged and threaded fittings. This can be an important factor in applications where space and weight are limited.6. Reduced maintenance: Weld bulkhead fitting-ESV hydraulic fittings require very little maintenance. Once they are installed, they can be left in place for many years without any problems.7. Increased safety: Weld bulkhead fitting-ESV hydraulic fittings are very safe and reliable. They are less likely to leak or fail than other types of hydraulic fittings, making them ideal for use in applications where safety is a critical concern.

Overall, weld bulkhead fitting-ESV hydraulic fittings offer a number of significant advantages over other types of hydraulic fittings. They are leakproof, durable, versatile, easy to install, and require very little maintenance. They are also smaller and lighter than other types of hydraulic fittings, making them ideal for applications where space and weight are limited. Finally, weld bulkhead fitting-ESV hydraulic fittings are very safe and reliable, making them ideal for use in applications where safety is a critical concern.
