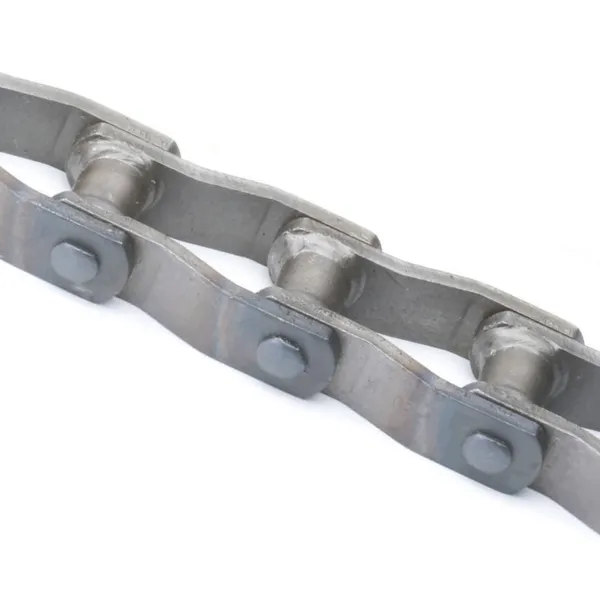

WH124HD Chain WH124HD Welded Steel Mill Chain

WH124HD Chain WH124HD Welded Steel Mill Chain

WH124HD welded steel mill chain that we offer exceeds quality, working life, and strength. Additionally, This WH124HD extra heavy-duty chain is exceptionally durable, low maintenance, and is supplied at a great price! Something notable about this chain is that each component has been heat-treated and constructed using high-quality steel to further increase the chain's overall working life and strength. Also, this chain is stronger than the standard WH124 chain because it has thicker sidebars and larger diameter pins and barrels, dramatically increasing the chain's overall working life and durability.WH124HD welded steel chain is often recommended for most conveying, driving, and elevating applications, where a high-strength and durable steel roller-less chain is required. Some of the applications where WH124HD welded steel mill chain is most commonly found are heavy-duty conveyors, forest products, grain handling, pulp and paper, and sugar processing.

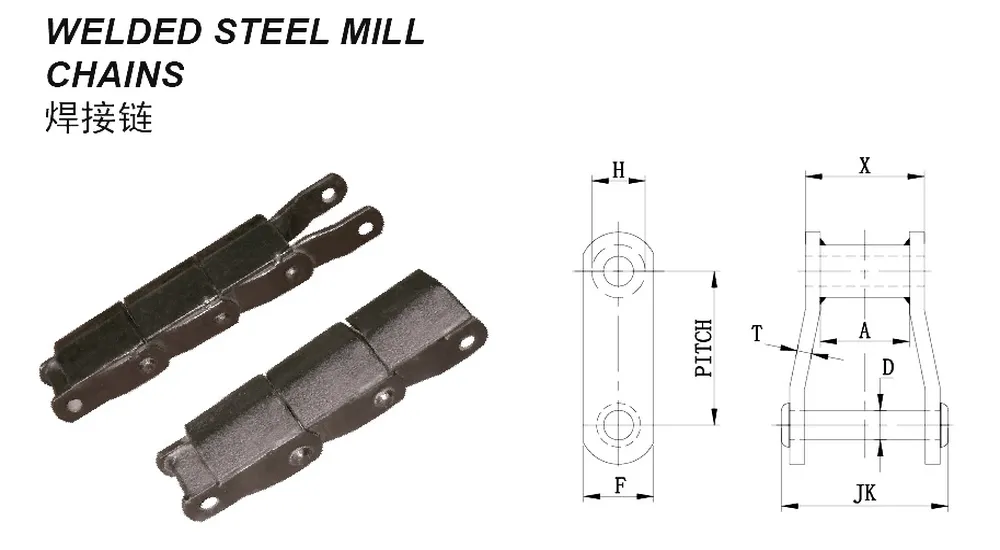

▍WH124HD Welded Steel Mill Chain Dimensions:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH124HD Chain	4.063	100000	10500	30	14.7	3.00	1.00	0.50	2.00	1.62	1.62

▍WH124HD Welded Steel Mill Chain Features:

The WH124HD welded steel mill chain has several features that make it well-suited for heavy-duty industrial applications. Some of the key features of this WH124HD welded steel mill chain include:1. Welded construction: The WH124HD welded steel mill chain is made from welded steel links, which provides added strength and durability. The welded construction also helps to prevent the chain from breaking or coming apart under heavy loads.2. High-strength carbon steel: This WH124HD welded steel mill chain is made from high-strength carbon steel, which has been heat-treated to increase its durability and strength. This allows the chain to withstand heavy loads and high stress without breaking or deforming.3. Large pitch: The WH124HD welded steel mill chain has a large pitch, which means that the distance between each link is relatively large. This helps to reduce the amount of wear and tear on the chain, which can extend its lifespan.4. Corrosion-resistant: The WH124HD welded steel mill chain is often coated with a rust and corrosion-resistant finish, which helps to protect it from damage caused by exposure to moisture, chemicals, and other corrosive materials.5. Wide range of attachments: The WH124HD welded steel mill chain can be customized with a wide range of attachments to suit specific applications. These attachments may include hooks, clevises, and other hardware that can be used to connect the chain to equipment or other components.Overall, the WH124HD welded steel mill chain is a durable, strong, and reliable industrial chain that is designed to withstand heavy loads and high stress in tough operating environments.

▍WH124HD Welded Steel Mill Chain Attachments:

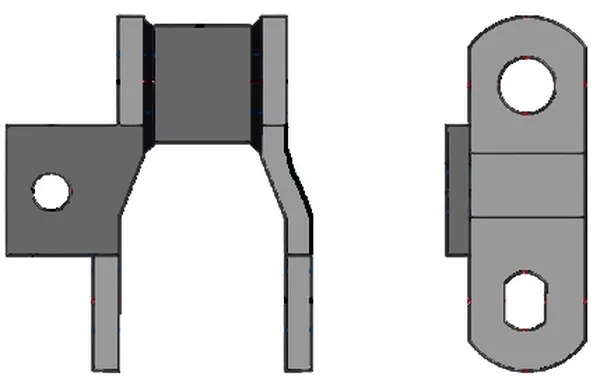

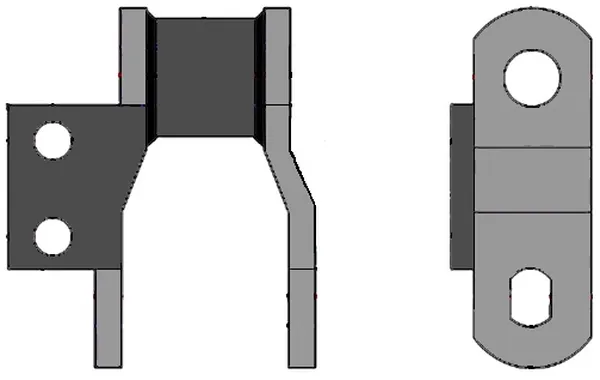

WH124HD Chain A1 Attachment	WH124HD Chain A2 Attachment

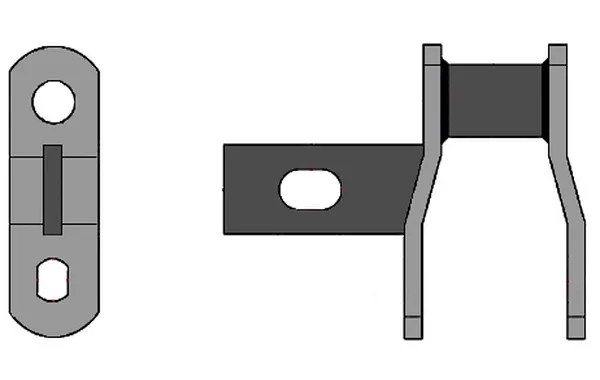

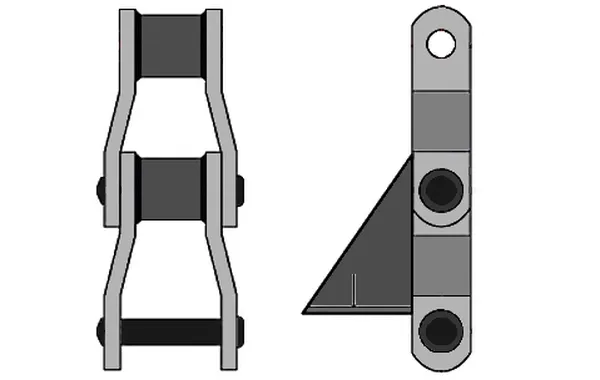

WH124HD Chain A22 Attachment	WH124HD Chain S1 Attachment

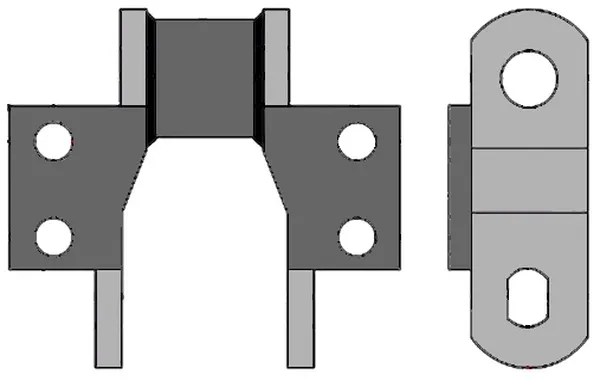

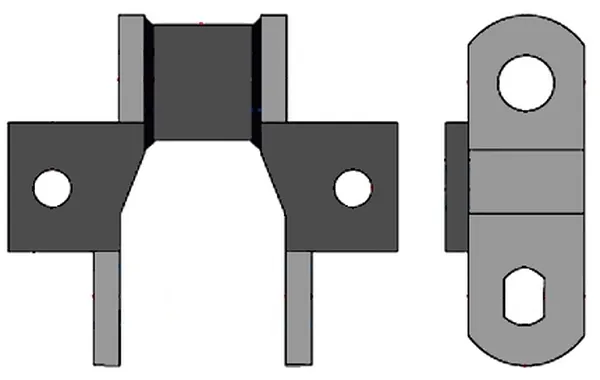

WH124HD Chain K1 Attachment	WH124HD Chain K2 Attachment

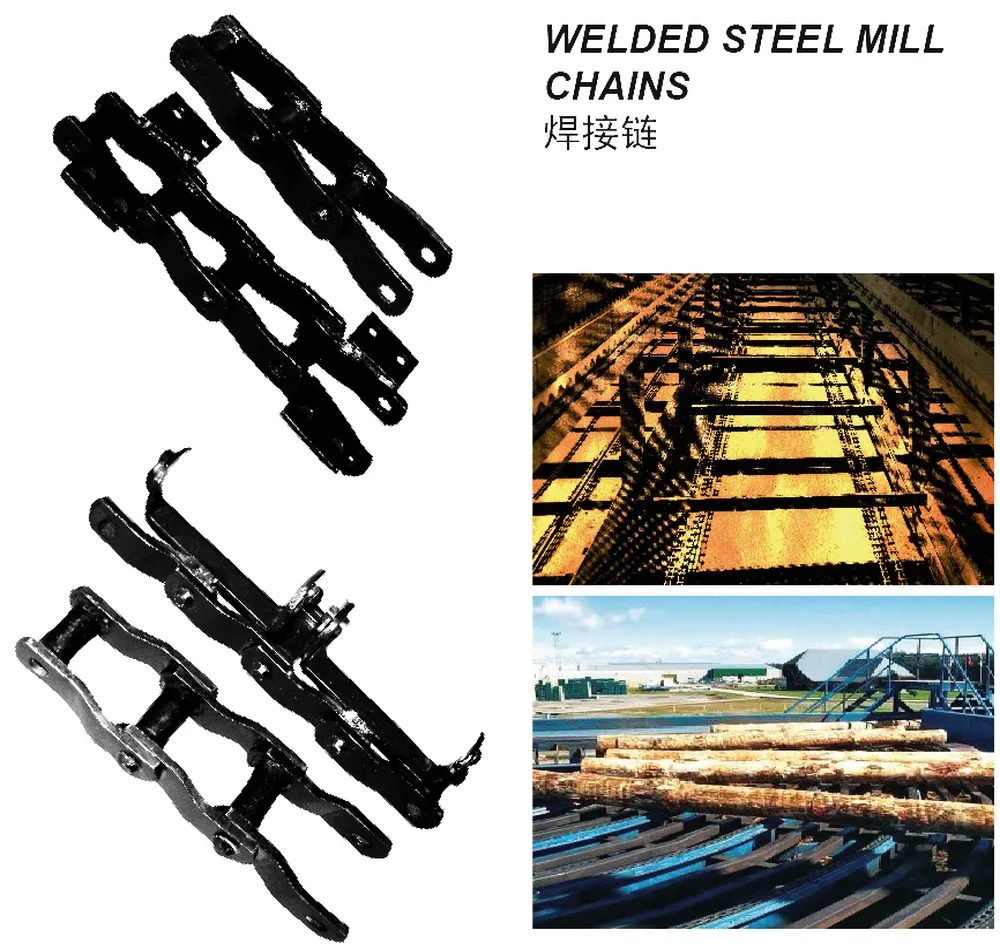

▍WH124HD Welded Steel Mill Chain Applications:

WH124HD welded steel mill chain is a high-strength and durable chain that is used in a wide range of applications. It is often recommended for most conveying, driving, and elevating applications where a high-strength and durable steel roller-less chain is required.Some of the most common applications for WH124HD welded steel mill chain include:(1) Heavy-duty conveyors: This type of WH124HD welded steel mill chain is ideal for use in heavy-duty conveyors that are used to transport materials such as coal, ore, and grain. The high tensile strength of the chain makes it capable of handling the high loads and wear and tear that are common in these applications.(2) Forestry:?WH124HD welded steel mill chain is also used in forestry applications such as logging and sawmilling. The chain's durability makes it ideal for use in these demanding environments.(3) Grain Handling: This type of WH124HD welded steel chain is also used in grain-handling applications such as elevators and silos. The chain's high strength and durability make it capable of handling the heavy loads and wear and tear that are common in these applications.(4) Pulp and paper:?WH124HD welded steel mill chain is also used in pulp and paper applications such as paper mills and sawmills. The chain's high strength and durability make it capable of handling the heavy loads and wear and tear that are common in these applications.(5) Sugar processing: This type of WH124HD welded steel chain is also used in sugar processing applications such as sugar mills and refineries. The chain's high strength and durability make it capable of handling the heavy loads and wear and tear that are common in these applications.In addition to these common applications, WH124HD welded steel mill chain can also be used in a variety of other applications where a high-strength and durable chain is required.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, agricultural chains, silent chains, PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
