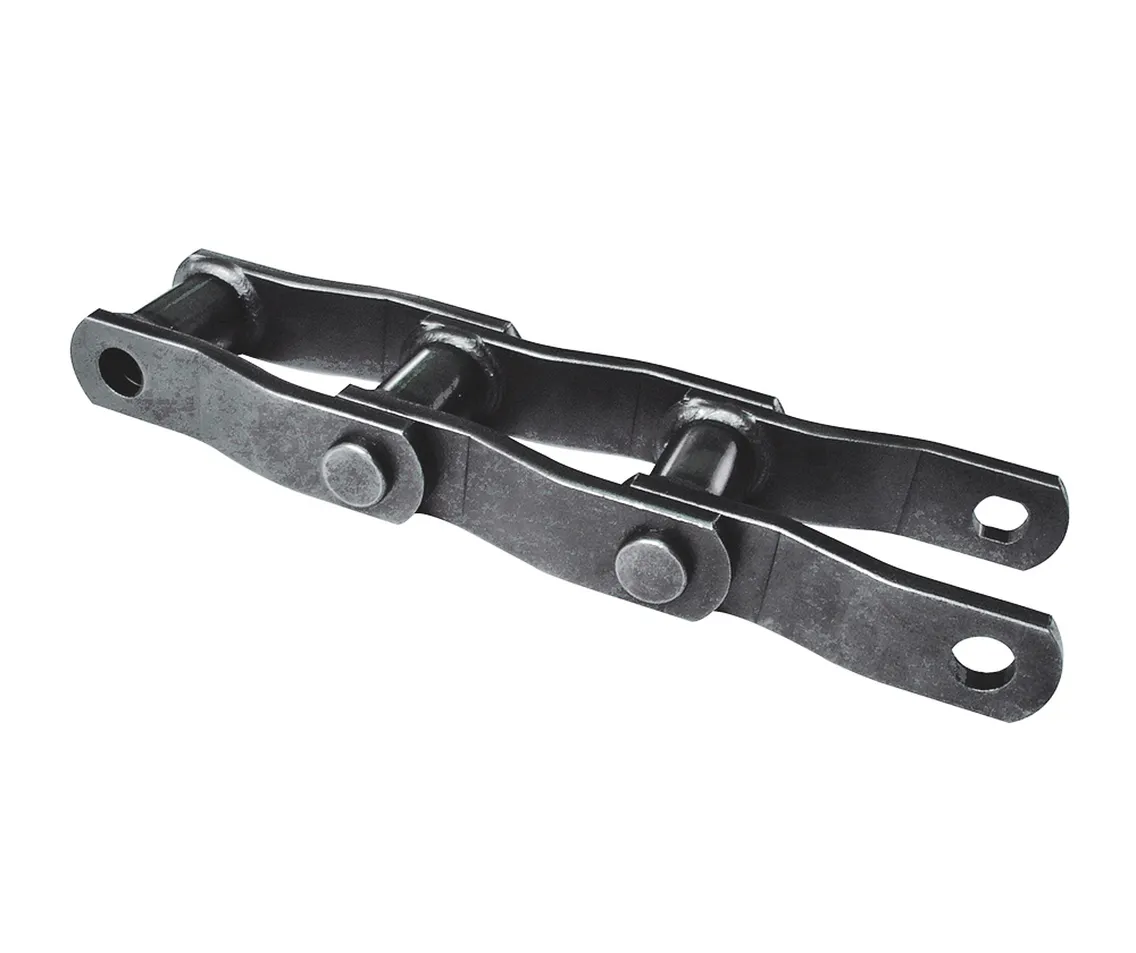

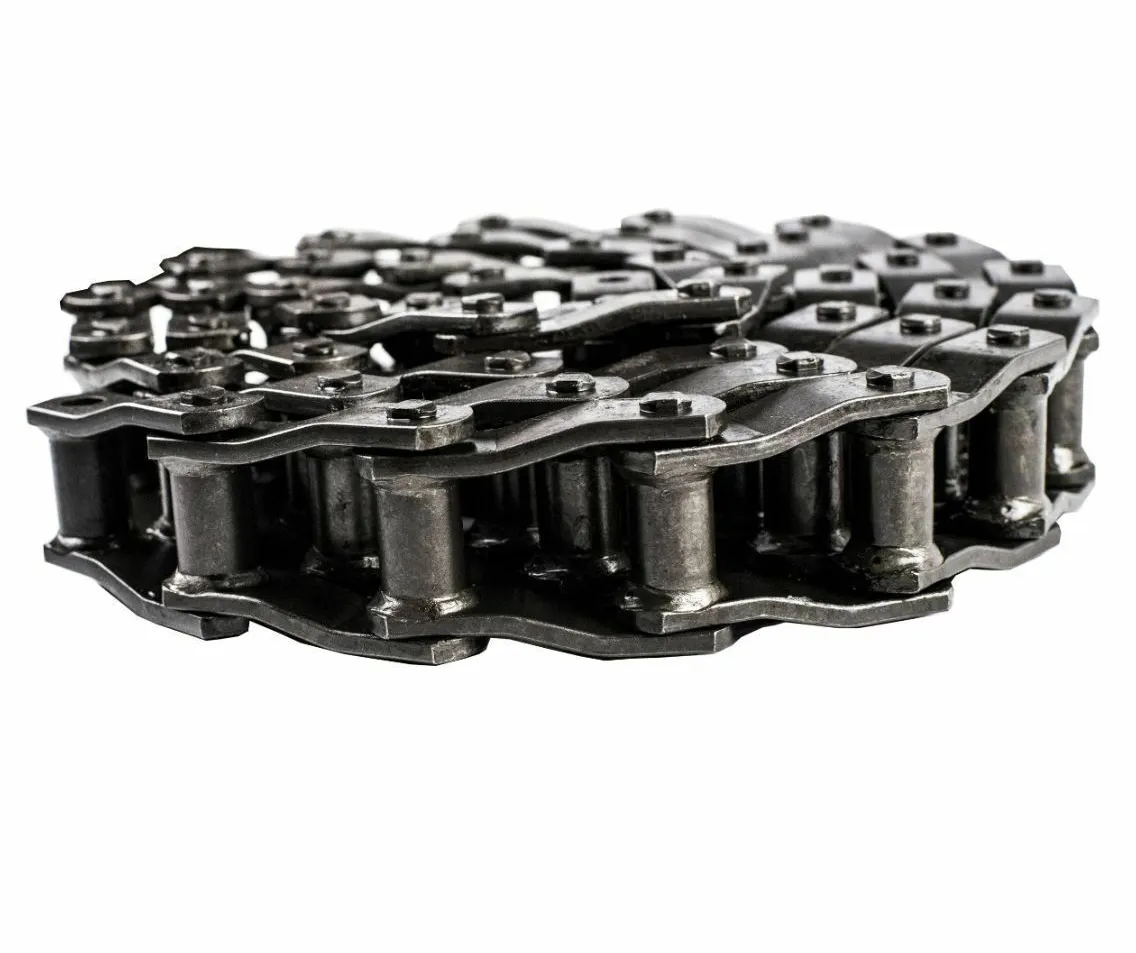

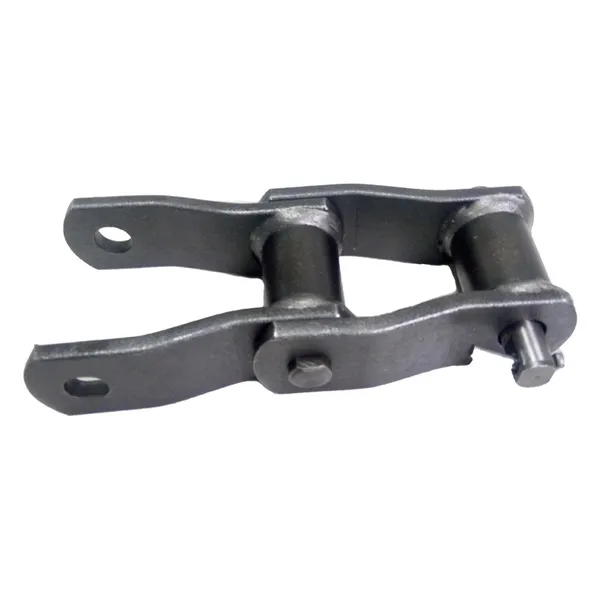

The WH82 welded steel mill chain is a high-strength, rollerless chain that is designed for use in demanding applications. It is made of high-quality steel and features fully heat-treated pins, barrels, and side plates. The welds are also high-precision and strengthened, which makes the WH82 chain extremely durable. The WH82 welded steel mill chain is commonly used in heavy-duty conveyors, forestry, grain handling, pulp, paper, and sugar processing. It is also a good choice for applications where shock loads and abrasive conditions are present.

▍WH82 Welded Steel Mill Chain Specifications:

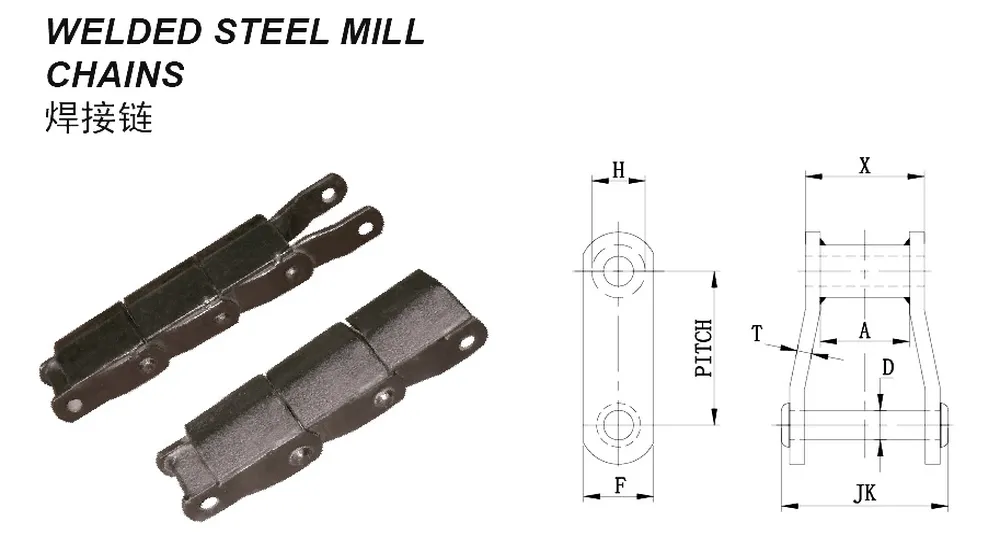

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH82 Chain	3.075	36000	4400	39	4.8	2.25	0.56	0.25	1.25	1.06	1.25

▍Characteristics of WH82 Welded Steel Mill Chain:

The WH82 welded steel mill chain is a high-strength, rollerless chain that is designed for use in demanding applications. It is made of high-quality steel and features fully heat-treated pins, barrels, and side plates. The welds are also high-precision and strengthened, which makes the chain extremely durable.Here are some of the key characteristics of the WH82 welded steel mill chain:

• Ultra-high tensile strength: The WH82 welded steel mill chain has an ultra-high tensile strength of 36,000 lbs. This means that it can withstand a lot of force before it breaks.
• Low per-foot weight: The WH82 welded steel mill chain has a low per-foot weight of 4.8 lbs. This makes it a lightweight chain that is easy to transport and maneuver.
• Fully heat-treated pins, barrels, side plates, and welds: The WH82 welded steel mill chain has fully heat-treated pins, barrels, side plates, and welds. This makes the chain extremely durable and resistant to wear and tear.
• High-grade steel core with great metallurgy: The WH82 welded steel mill chain has a high-grade steel core with great metallurgy. This makes the chain strong and tough, and it also helps to prevent rust and corrosion.
• Easy attachment weldability: The WH82 welded steel mill chain has easy attachment weldability. This means that it can be easily welded to sprockets and other components.

Overall, the WH82 welded steel chain is a high-quality, durable chain that is well-suited for demanding applications. It is strong, lightweight, and easy to work with. If you are looking for a high-performance chain for your next project, the WH82 chain is a good option.

▍WH82 Chain Vs WR82 Chain

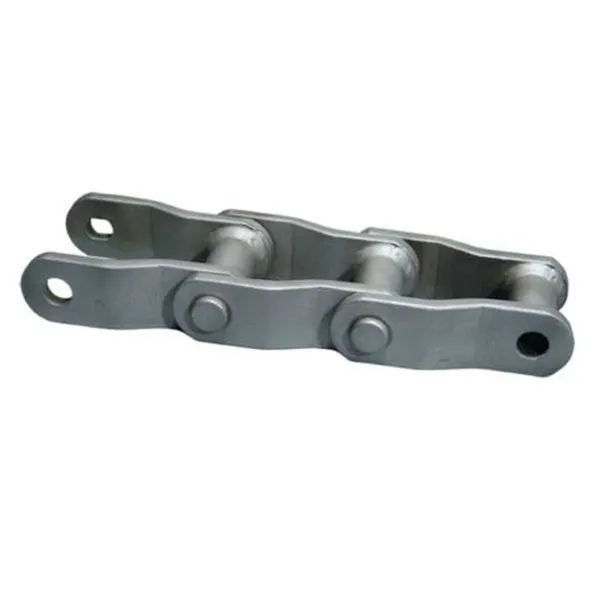

The WH82 chain and WR82 chain are both types of welded steel mill chains but with some differences in their construction and applications. The WH82 chain, as previously described, is a welded heavy-duty steel mill chain that is designed to withstand heavy loads and high temperatures. It is commonly used in steel mills, paper mills, and other heavy-duty material handling applications.On the other hand, the WR82 chain is also a welded steel mill chain but with a slightly different construction. It features a wider waist link plate than the WH82 chain, which provides increased wear life and higher strength. This chain is designed specifically for heavy-duty applications that require high strength and durability, such as in lumber mills, sawmills, and the forest products industry.In summary, the key difference between the two chains is that the WR82 chain has a wider waist link plate, which provides increased wear life and higher strength, making it suitable for heavy-duty applications in the lumber and forest products industry. The WH82 chain, on the other hand, is designed for heavy-duty applications in steel mills, paper mills, and other material handling applications that require high strength and heat resistance.

WH82 Chain	WR82 Chain
