Wheel Drive Planetary Gearbox For Scissor Lift

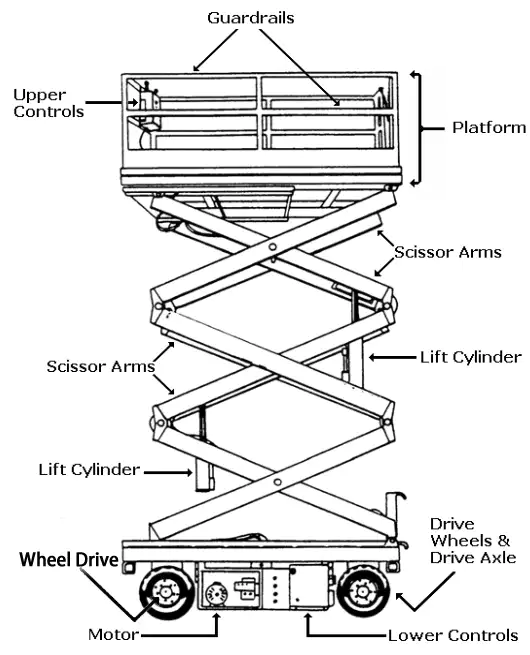

Where is the Wheel Drive Planetary Gearbox on Scissor Lift

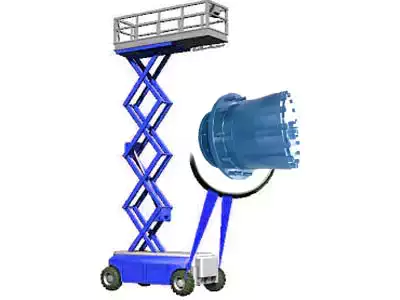

The Wheel Drive Planetary Gearbox is typically installed near the drive wheels or drive system in a scissor lift. Specifically, it is typically integrated into the drive hub of the lift or directly connected to the drive shaft of the lift.The Wheel Drive Planetary Gearbox plays the role of the driving core in scissor lifts. By providing enhanced driving force, precise speed control, compact design, and high efficiency and durability, it ensures the stable, safe, and efficient operation of the lift under various working conditions.Normally, a standard Scissor Lift is equipped with at least two Wheel Drive Planetary Gearboxes installed on both sides of the bottom of the lift, driving the wheels on both sides. This configuration ensures that the elevator can move, turn, and maintain good traction on uneven surfaces. Each gearbox is responsible for driving one side of the wheel, providing balanced and powerful propulsion through synchronous operation. Of course, the specific quantity may also vary depending on the design, size, and manufacturer of the elevator. For example, some large or specially designed scissor lifts may be equipped with more drive wheels and gearboxes to meet higher load or special application requirements.

Features of Wheel Drive For Scissor Lift

• Efficient driving and torque amplification: The planetary gearbox can provide efficient torque conversion with a compact structure, ensuring that the elevator has sufficient driving force even in limited motor power conditions, making it easy to climb slopes or drive on rough terrain under load. This is attributed to the special design of the planetary gear mechanism, which can achieve high torque output and improve overall operational efficiency.
• Precision control and stability: The planetary gearbox not only provides powerful driving force, but also controls the speed and acceleration of the elevator through precise gear ratios, making operation smoother. This is crucial for ensuring the stability of the loading platform and the safety of operators. Especially during low-speed movement or positioning, precise control ability can improve the accuracy of the operation.
• Durability and reliability: Due to the use of high-quality materials and precise manufacturing processes, planetary gearboxes have high durability and reliability, which can operate stably in long-term and high-intensity working environments, reduce failure rates, extend maintenance cycles, and lower maintenance costs. For scissor type elevators that require frequent use, this is the key to ensuring work efficiency and reducing downtime.
• Space optimization: The compact design of the planetary gearbox enables it to be efficiently integrated into the drive system of the elevator without taking up too much space, which is particularly important for scissor type elevators with complex internal structures and valuable space, helping to maintain the tightness and maneuverability of the overall design.
• Maintenance convenience: Although planetary gearboxes have complex structures, many designs consider maintenance convenience, such as quickly replaceable parts and easily accessible lubrication points, which help simplify daily maintenance work and reduce downtime.

Working principle of Wheel Drive system in Scissor Lift

The working principle of the Wheel Drive system in Scissor Lift is to work together through a precise mechanical and electronic control system to ensure that the lift can move, turn, and lift smoothly and safely. The following are several key steps and principles for its collaborative work:

1. Power source: The power of a Scissor Lift usually comes from an electric motor or hydraulic system. The electric motor is powered by a battery, while the hydraulic system relies on an electric pump or a pump driven by an internal combustion engine to generate pressure and drive the flow of hydraulic oil.
2. Planetary Gearbox Conversion: The Planetary Gearbox in Wheel Drive receives kinetic energy transmitted by a power source (motor or hydraulic motor) and amplifies torque and adjusts speed through planetary motion of the gears. This process ensures that even under heavy loads or when overcoming significant resistance, sufficient driving force can be provided to enable the wheels to rotate smoothly.
3. Independent control of driving wheels: In some high-end Scissor Lift designs, each driving wheel may be equipped with an independent Wheel Drive Planetary Gearbox, which can achieve independent driving and speed control of the wheels, enhance the vehicle's maneuverability and ability to pass through complex terrains. This design also makes the elevator more flexible when turning, reducing tire wear and ground damage.
4. Electronic control system: Through electronic controllers, operators can precisely control the speed and direction of the drive system. The system monitors the data of various sensors, such as wheel speed and load status, and automatically adjusts the output to ensure safe and smooth driving and operation.
5. Collaborative lifting operation: During lifting operations, the Wheel Drive and the scissor mechanism work together. When it is necessary to raise or lower, the hydraulic system drives the scissor structure to unfold or fold, and the wheel drive system ensures that the entire elevator remains stable in its moving position, even during the lifting process, it can be finely adjusted to meet the specific needs of the work site.

Our gearbox can adapt to the vast majority of Scissor Lifts

Our high-performance Wheel Drive Planetary Gearbox is designed to meet the strict requirements of the vast majority of Scissor Lifts on the market, demonstrating excellent adaptability and reliability in diverse work scenarios such as construction sites, warehouse management, and aerospace maintenance. Our products not only seamlessly connect with multiple classic models of mainstream brands in the industry such as JLG, Genie, Haulotte, and Skyjack, including but not limited to JLG 1930ES, Genie GS-1930, Haulotte Star 10, Skyjack SJIII 3226, etc., but also provide highly customized services to ensure that each gearbox can be perfectly integrated into customers' specific devices.Customized services cover:

1. Interface size: No matter what specifications of shaft diameter, flange size, or special connectors your Scissor Lift requires, our engineering team can customize the interface of the gearbox according to actual needs, ensuring accurate matching with your elevator drive system, simplifying the installation process, and improving assembly efficiency.
2. Power matching: Based on the power output of the electric or hydraulic motor carried by the Scissor Lift, we optimize the gear ratio and transmission efficiency to ensure that the gearbox can operate efficiently within the most suitable load range, avoid power waste, and ensure system stability and safety.
3. Torque requirements: We provide customized torque solutions for different working environments and load conditions. Whether it is the need for high torque output to cope with heavy climbing, or the need for fine control to ensure smooth operation, we can meet specific torque requirements by adjusting the internal gear structure and material.
4. Environmental adaptability: Considering that Scissor Lift may operate in extreme climates and complex environments, we have chosen high-quality materials that are corrosion-resistant and high-temperature resistant to enhance the sealing of the gearbox, ensuring its long-term stable operation under various harsh conditions.
