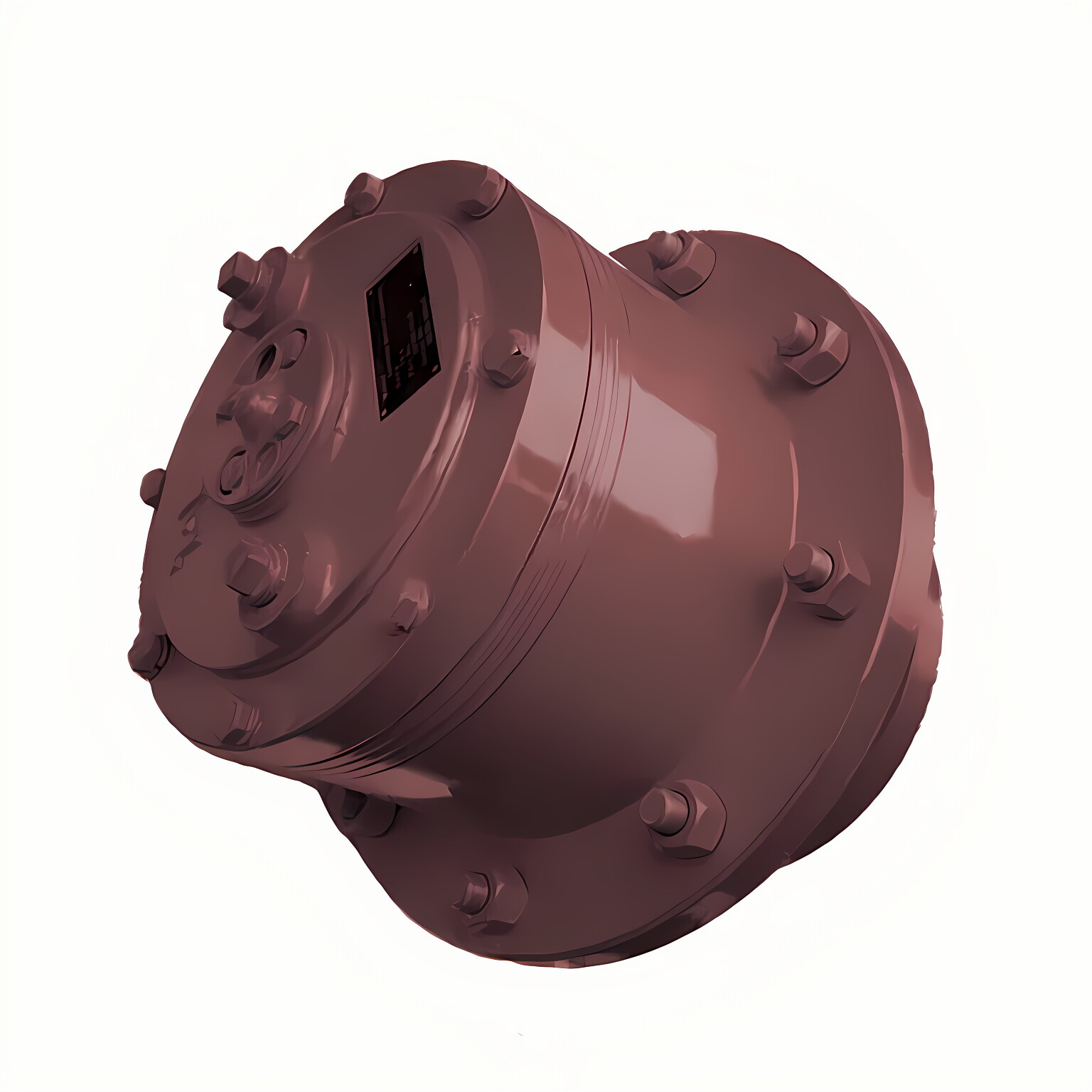

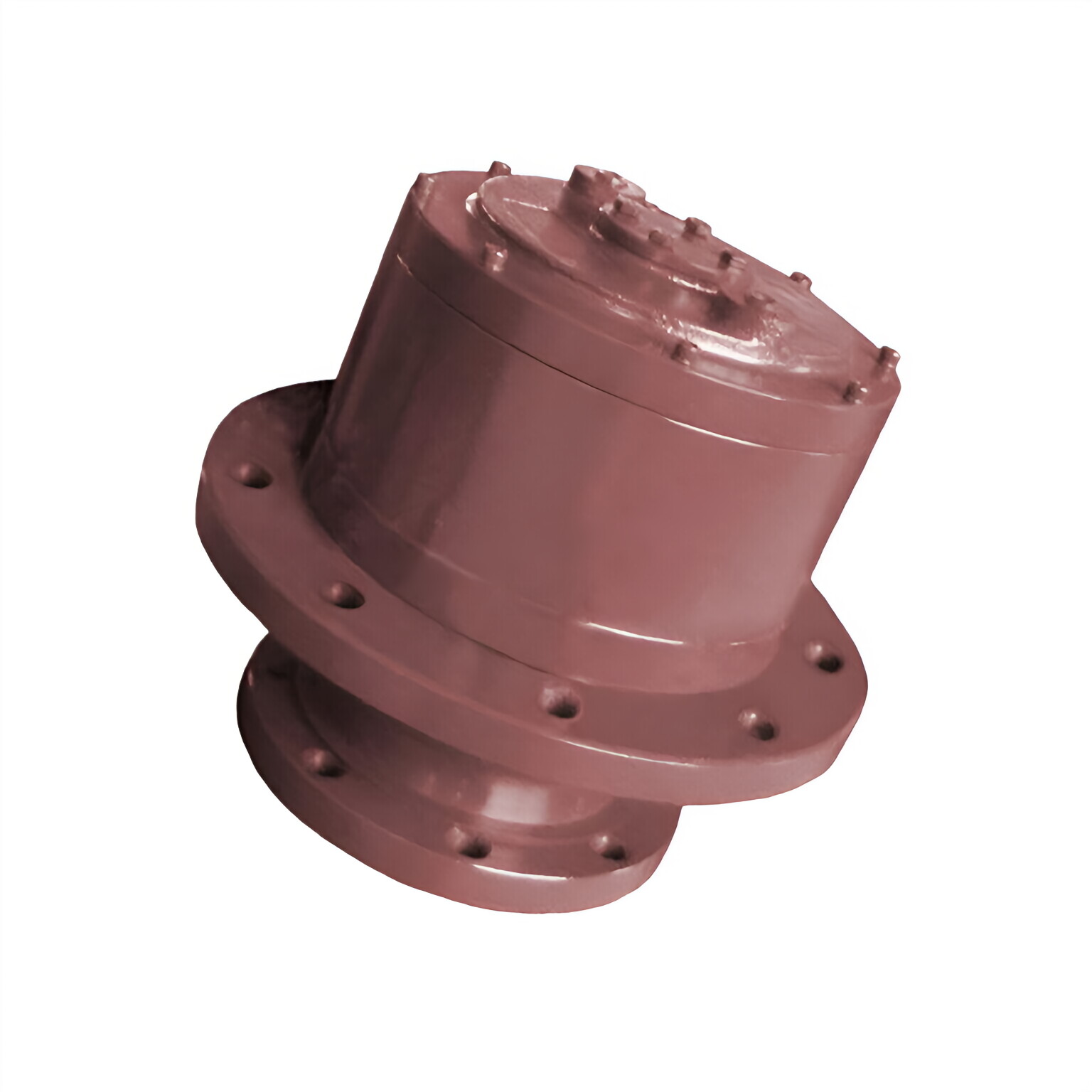

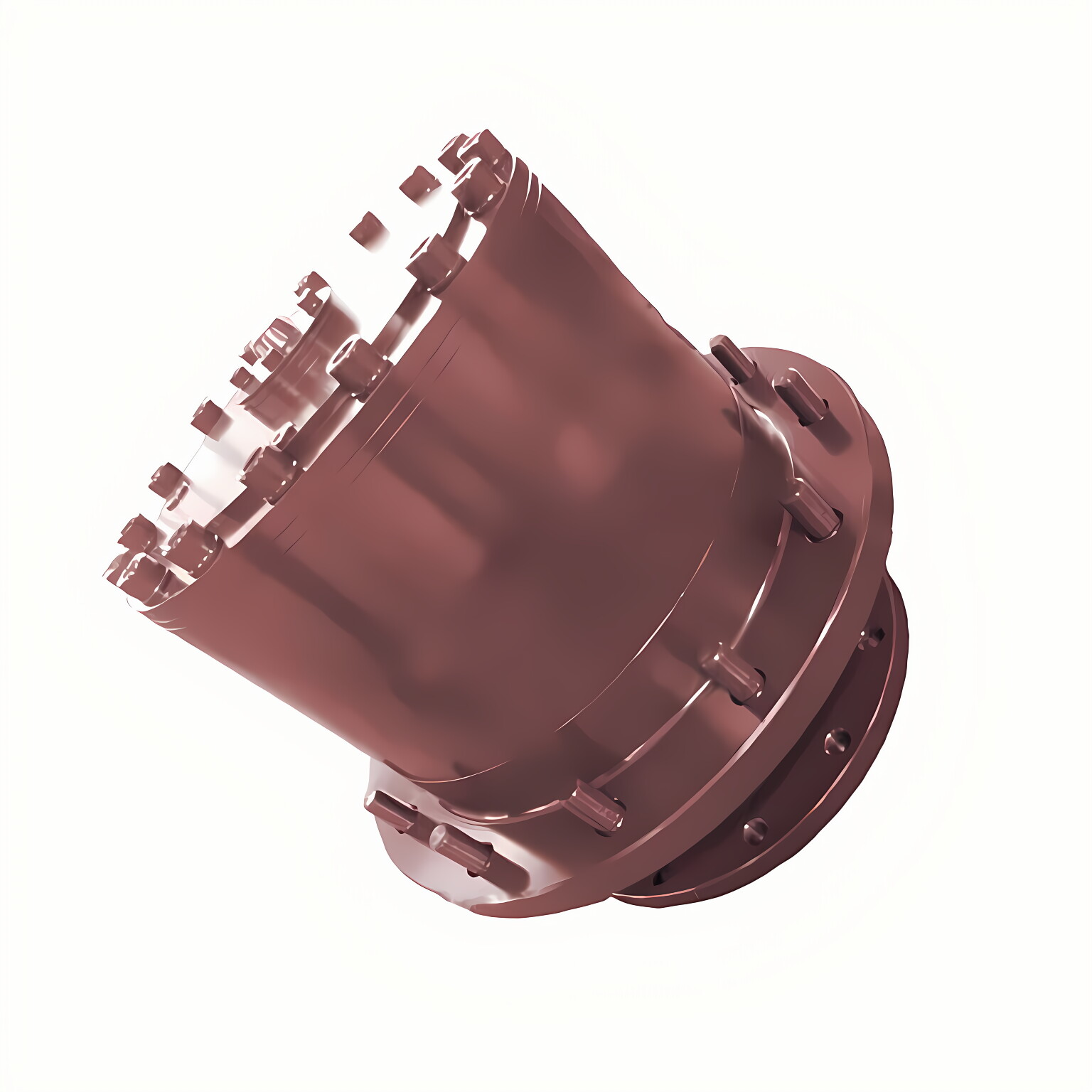

 Wheel Drives Superior PerformanceThe EP600L Series wheel drive planetary gearbox is designed for self-propelled vehicles with hydraulic or electric motors. Available in a wide range of ratios, the gearbox allows the power system to operate at optimum efficiency. The EP600L planetary gear reducer for wheeled vehicle has the capacity to drive whatever the type of machine with up to 2.5m of tire diameter and 50 tons each wheel. Thanks to the wide ratio range, there is a solution for any type of transmission and application. The manual declutch system can disengage the gearhead from the motor for emergency towing.Wheel Drives Key Features 1. Output torque range: 1000-60000 N.m2. Gear ratios: i=5.3-1423. Support: thegearbox has rotating housing flanges to fit wheel4. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors or others5. Hydraulic motor options: pressure relief valve, overcenter valve6. Bearing: robust bearing system absorbing the forces exerted by the ring gear7. Brake: hydraulically released parking brake8. Others: NB600L Series wheel drives with manual disconnect application9. Large radial and axial load capacity due to the use of strong tapered roller bearings.10. Reliable oil seal protection, designed according to our field experience.11. Universal and SAE input direct mounting flanges12. The units are designed for their direct mounting into the wheel rims.13. Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Replacement of Bonfiglioli 600 Series, so these three can be used interchangeably.

Track drives Type	Max. torque N.m	Range of ratios (i)	Max. Input speed (rpm)	Braking torque (N.m)
EP601 L1A	1750	5.77	1000	450-600
EP603 L2A	4000	19-23-32-40	3000	210
EP603 L2B	4000	19-23-32-40	3000	210
EP602 L2	5000	12.4-25.8	3000	-
EP605 L2	7000	22-27-30-42-53	3000	220-310
EP606 L2 L3	12000	30-35-43-68-79	3000	300-800
EP607 L2 L3	17000	33-75-108	3000	300-600
EP609 L2 L3	23000	33-142	3000	300-600
EP610 L2 L3	30000	20-111	3000	300-800
EP611 L2 L3	36000	41-47	3000	300-800
EP613 L3	45000	108	3000	300-800
EP615 L3	60000	108	3000	300-1000

Our planetary gearbox, wheel drive gearbox, winch drive gearbox, track drive gearboxcan be alternatives to Replacement of Bosch Rexroth gearboxes

GFT13W2	GFT17W2	GFT17W3	GFT24W2	GFT26W2	GFT36W3	GFT40W2
GFT50W3	GFT60W3	GFT80W3	GFT110W3	GFT160W3	GFT220W3	GFT330W3

The EP600L gearbox can be alternative to Trasmital Replacement of Bonfiglioli

601R

603W

605W

606W

609W

611W

613W 615W
