X458 Chain

X458 Chain

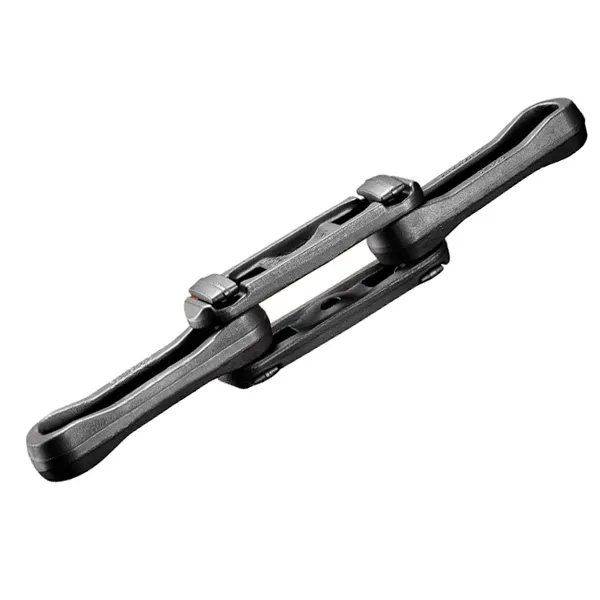

This X458 chain features fully heat-treated and solid components that are manufactured using high-quality steel and have an ultimate strength of 48,000 lbs. Additionally, this X458 chain is designed to have increased flexibility, transverse pitch strength, and the best overall operating performance. X458 rivetless drop forged chain is used in a wide range of applications, including the automotive industry, car washes, material handling, meat packing, overhead conveyors, poultry processing, sugar processing, trolley conveyors, and more. We also offer a full line of X458 chain sprockets and X458 chain attachments. Thanks to our sourcing experts, partners, and engineers, this chain is normally in stock at a great price. For pricing and availability, please get in touch with us, and we will be happy to assist you.

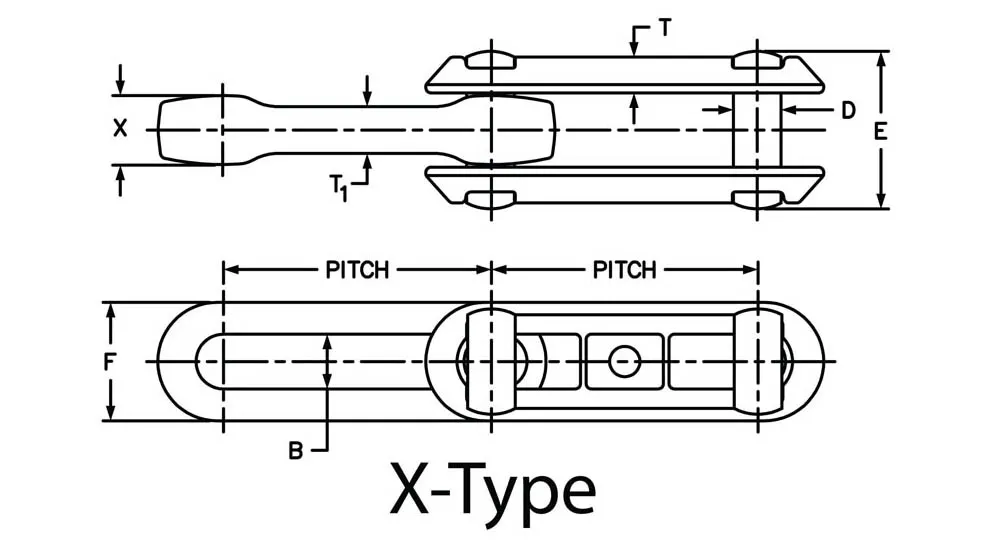

▍X458 Chain Specifications

Pitch:	?4.031"
Dimension (D):	0.625"
Dimension (E):?	2.19"
Dimension (F):	1.44"
Dimension (T):?	0.48"
Dimension (T1):	0.66"
Dimension (X):?	1.02"
Dimension (B):?	0.69"
Ultimate Strength:?	48,000 LBS
Links Per 10ft:?	30
Weight:?	3.2 lbs/ft

▍X458 Chain Design Features

The X458 chain is designed with several features that make it suitable for heavy-duty industrial applications. Some of its design features include:1. Thick link plates: The X458 chain has thicker link plates than standard chains, which provides extra strength and wear resistance.2. Solid bushings: The bushings in the X458 chain are solid, which helps to reduce wear and increase the chain's overall strength.3. High-quality materials: X458 chains are made from high-quality materials such as alloy steel, which provides excellent tensile strength and fatigue resistance.4. Shot peening: The X458 chain undergoes a shot peening process, which helps to increase its fatigue strength and resistance to stress corrosion cracking.5. Pre-stretching: X458 chains are pre-stretched during the manufacturing process, which helps to reduce elongation and increase the chain's overall lifespan.6. Lubrication: Proper lubrication is essential for the performance and lifespan of the X458 chain. It is recommended to use a high-quality lubricant that is appropriate for the application and operating conditions.

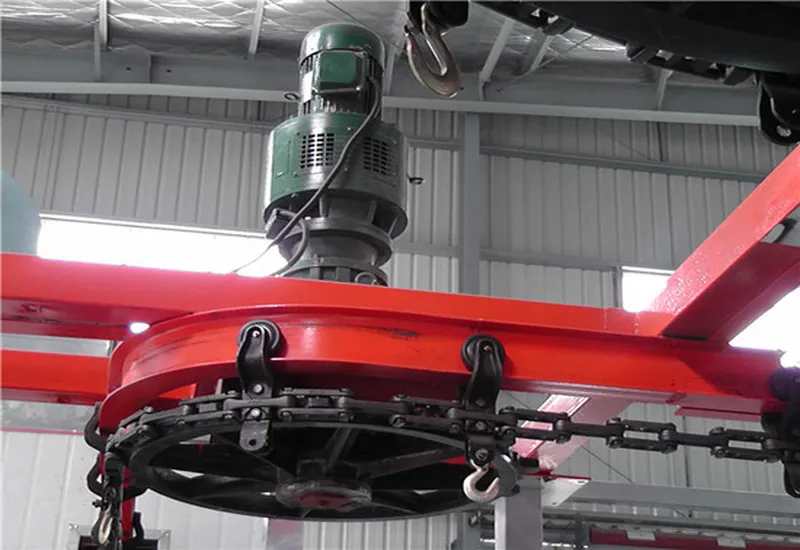

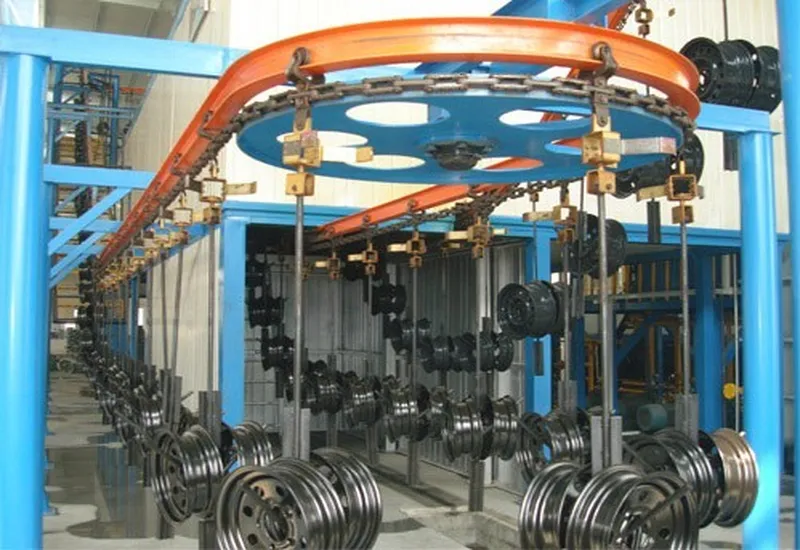

▍X458 Chain Common Applications

X458 chain is a high-strength-to-weight ratio chain that can be quickly and easily assembled and disassembled without the use of tools. The loose link designs help to prevent material from packing into the joints, therefore, offering some self-cleaning ability. Typical applications include overhead conveyors, twin-strand conveyors, flight conveyors, washing lines, and trolley conveyors. It is often found being used in compacting or sticky material applications, paint lines, heavy-duty swarf conveyors, sugar mill conveyors, meat processing, and appliance assembly lines, to name a few.

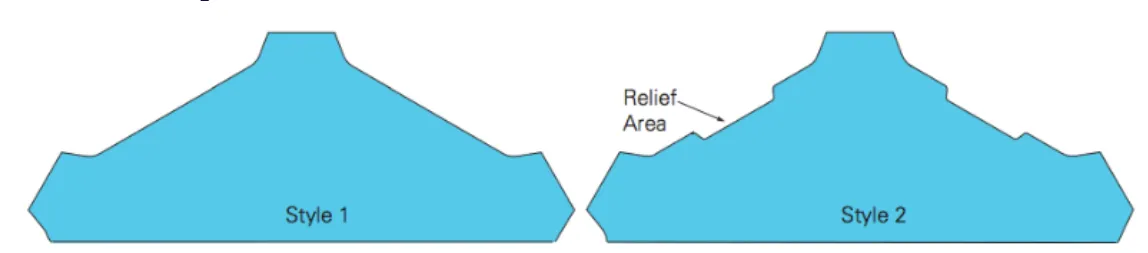

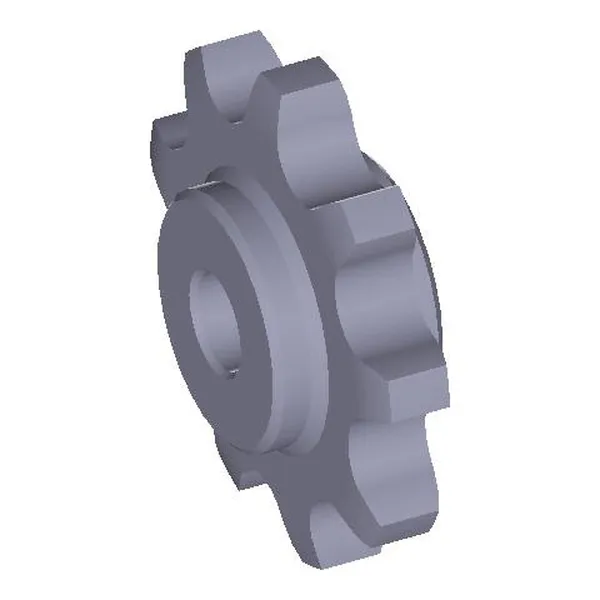

▍X458 Chain Sprockets for X458 Chain

X458 chain sprockets and X458 chains are commonly used in material handling applications that require heavy-duty conveying. The sprockets and chains work together to transmit power and motion between two or more shafts.The X458 chain is a type of roller chain that is commonly used in material handling applications that require heavy-duty conveying. It is designed to handle high loads and resist wear and tear. The chain is made up of a series of interconnected links that are joined together by pins. The links consist of inner and outer plates, which are connected by rollers that allow the chain to move smoothly over the sprockets. X458 chains are available in different sizes and configurations to suit different applications.X458 chain sprockets are toothed wheels that work together with the X458 chain to transmit power and motion between two or more shafts. The sprockets are designed to mesh with the chain, and as the sprocket rotates, it pulls the chain along with it. The teeth of the sprocket are designed to fit into the gaps between the rollers of the chain, ensuring a positive drive. X458 chain sprockets are available in different sizes and configurations to match the size and pitch of the chain.It is important to ensure that the X458 chain and X458 chain sprockets are properly matched and installed to ensure reliable and efficient operation. Proper lubrication is also essential to ensure the long-term performance and reliability of the chain and sprockets. Regular inspection and maintenance can help to identify and address any issues before they lead to downtime or equipment failure.The chart below shows standard X458 chain sprocket sizes and tooth counts. Please note that we offer two tooth-profile styles of X-458 chain sprockets (style 1 & style 2), be sure to specify which style is needed, or style 1 will be provided. Additionally, X458 sprockets can be supplied in other configurations such as; split, shear-pin, b-hub, and from materials like stainless steel or plastic.
