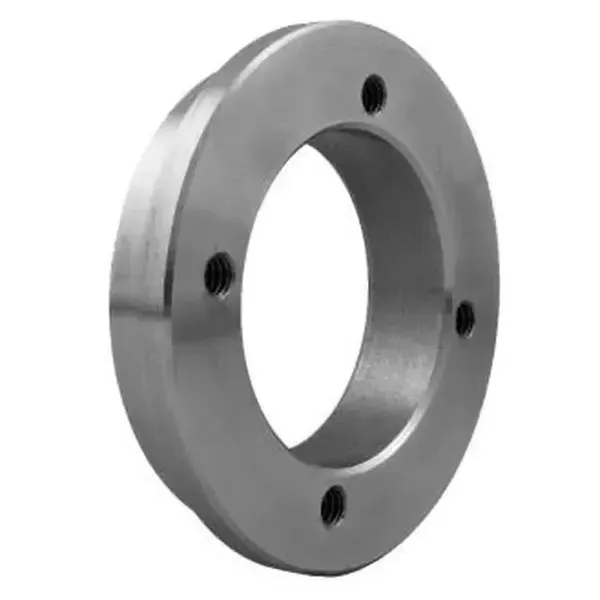

XTH100 Weld-On Hubs

XTH100 Weld-On Hubs

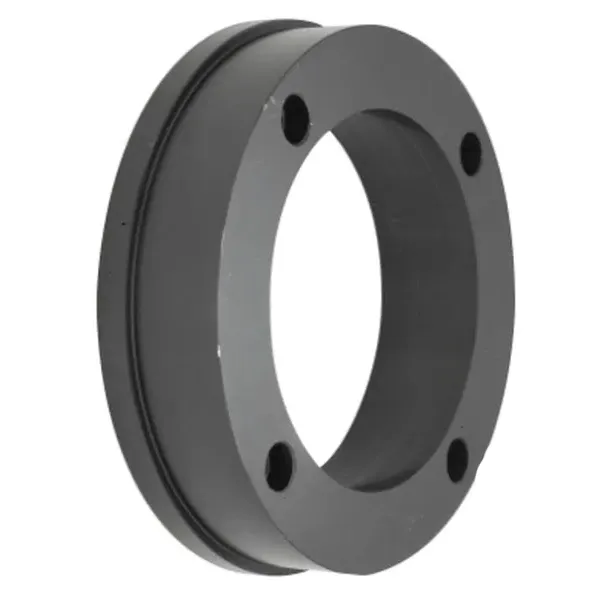

The XTH100 weld-on hubs are designed to be used with the XTB100 tapered bushings. They are made from high-quality steel and are precision machined to ensure a snug fit. The extended flange provides a convenient means of welding the hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators, and many other devices which must be firmly fastened to the shaft.The XTH100 weld-on hubs offer a number of advantages over other types of hubs, including:

• They are made from high-quality steel that is resistant to corrosion and wear.
• They are precision machined to ensure a snug fit with the XTB100 bushings.
• The extended flange provides a convenient means of welding the hubs into the shaft.
• They are available in a variety of sizes to accommodate different applications.

If you are looking for a high-quality, reliable weld-on hub for your XTB100 bushings, then the XTH100 weld-on hubs are the perfect choice for you.

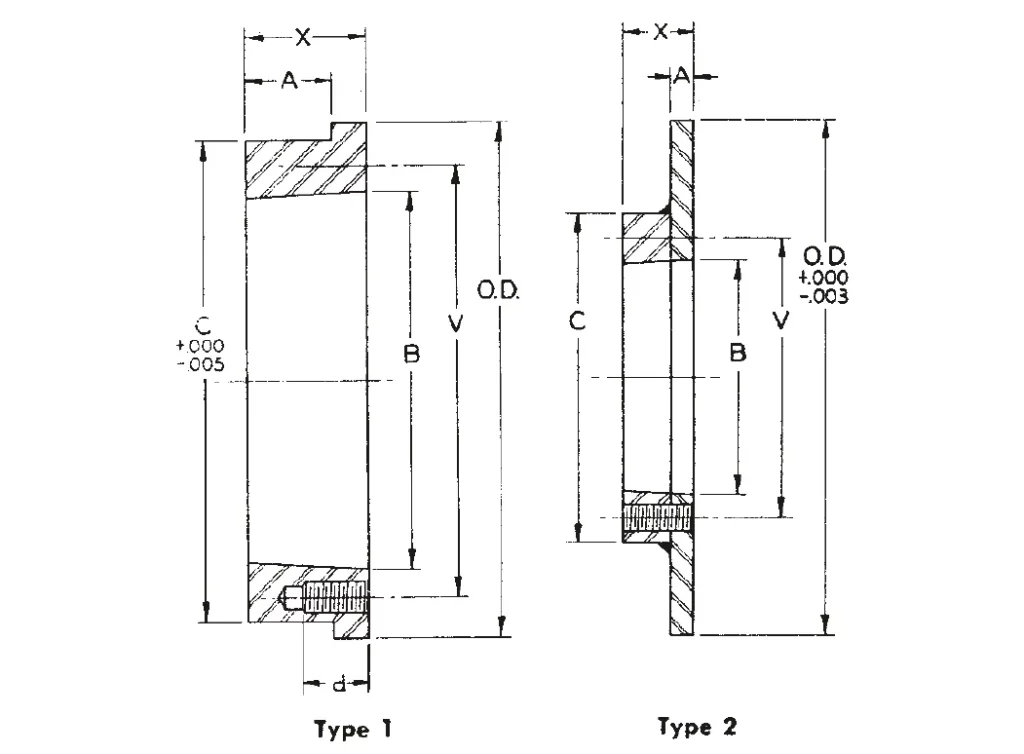

XTH100 Weld-On Hubs Dimensions:

Part No.		XTH100 Hubs (Type 1 Hubs)
For Bushing		XTB100 Bushings
Dimensions	O.D.	18"
	A	3"
	B	13.688"
	C	17 1/2"
	V	15 9/16"
	X	4 1/8"
	d	2 3/16"
	No.	6
	Size	1 1/8" - 7UNC
Wt lbs.		122

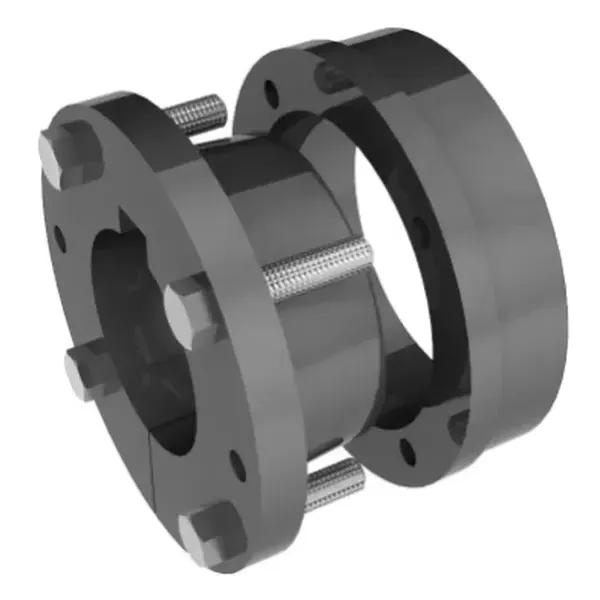

XTH100 Weld-On Hubs Design Features:

The XTH100 weld-on hubs are designed to be used in conjunction with XTB100 bushings for various applications. Here are some key features of XTH100 weld-on hubs:1. Compatibility: The XTH100 weld-on hubs are specifically designed to work with XTB100 bushings. It's essential to ensure that the hub and bushing models are compatible and have matching specifications.2. Welding Process: The XTH100 weld-on hubs are intended to be welded onto the shaft or component using appropriate welding techniques. The welding process should be performed by a skilled professional to ensure a strong and durable connection.3. Material and Construction: XTH100 weld-on hubs are typically made from high-quality materials such as steel or other metals that offer strength and durability. The specific material used may depend on the application requirements and environmental conditions.4. Size and Dimensions: The XTH100 weld-on hubs are available in different sizes and dimensions to accommodate various shaft diameters and bushing sizes. It's important to select the correct hub size that matches the shaft and bushing dimensions to ensure a proper fit.5. Installation and Alignment: When installing the XTH100 weld-on hubs, it's crucial to ensure proper alignment with the shaft and bushing. Accurate alignment helps maintain the integrity of the connection and prevents any potential issues or misalignment during operation.6. Application Range: XTH100 weld-on hubs find applications in a wide range of industries, including mechanical power transmission, conveyor systems, machinery, and equipment where a secure connection between a shaft and a bushing is required.

XT Weld-On Hubs Vs Taper Bore Weld-On Hubs:

XT weld-on hubs and taper bore weld-on hubs are two different types of hubs used in mechanical power transmission systems. Here's a comparison between the two:

1. Design:
   • XT Weld-On Hubs: XT weld-on hubs have a straight-bore design. They are typically made of steel and have a cylindrical shape. They are designed to be welded directly onto shafts or other components.
   • Taper Bore Weld-On Hubs: Taper bore weld-on hubs, as the name suggests, have a tapered bore design. They also have a cylindrical shape but with a tapered inner bore. The taper allows for a tight and secure fit onto the shaft.
2. Shaft Attachment:
   • XT Weld-On Hubs: XT weld-on hubs are welded directly onto the shaft. They require welding equipment and expertise to attach them securely.
   • Taper Bore Weld-On Hubs: Taper bore weld-on hubs use a taper-lock bushing system. The hub is mounted on the shaft using a tapered bushing, which provides a mechanical interference fit. The bushing is typically secured in place with set screws.
3. Shaft Alignment:
   • XT Weld-On Hubs: XT weld-on hubs do not provide any means for adjusting the alignment of the shaft. Proper alignment must be ensured during the welding process.
   • Taper Bore Weld-On Hubs: Taper bore weld-on hubs offer some degree of shaft alignment adjustment. The taper-lock bushing allows for slight angular and axial adjustments during installation.
4. Versatility:
   • XT Weld-On Hubs: XT weld-on hubs are generally suitable for applications where precise alignment is not critical, such as conveyors or low-speed machinery.
   • Taper Bore Weld-On Hubs: Taper bore weld-on hubs are commonly used in applications that require more precise shaft alignment, such as high-speed machinery or equipment with stringent alignment requirements.

In summary, the main difference between XT weld-on hubs and taper bore weld-on hubs lies in their design, shaft attachment method, shaft alignment capabilities, and application suitability. XT weld-on hubs are simpler in design and require welding for attachment, while taper bore weld-on hubs have a tapered bore design, use a taper-lock bushing system for attachment, and offer some shaft alignment adjustment. The choice between the two depends on the specific requirements of the application.

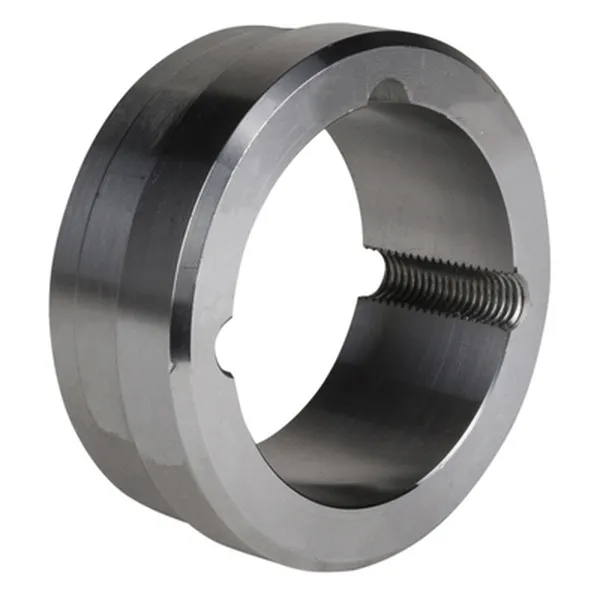

XT Weld-On Hubs	Taper Bore Weld-On Hubs

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
