XTH60 Weld-On Hubs

XTH60 Weld-On Hubs

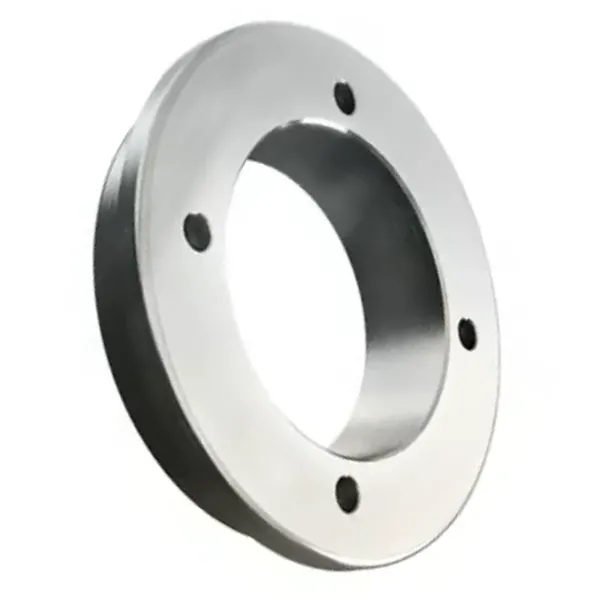

The XTH60 weld-on hubs are a type of mechanical component designed for use with XTB60 bushings. These hubs provide a secure and reliable method for attaching XTB60 bushings to various types of machinery and equipment. Weld-on hubs are commonly used in applications where a high level of strength and durability is required. They are typically made from robust materials such as steel to withstand heavy loads and harsh operating conditions.The XTH60 weld-on hubs are specifically designed to be compatible with XTB60 bushings. Bushings are cylindrical components that are inserted into a hub or housing to provide a bearing surface or to act as a spacer. XTB60 bushings are likely designed to fit precisely with the XTH60 weld-on hubs, ensuring a tight and secure fit.By welding the XTH60 hub onto a machine or equipment, and inserting the XTB60 bushing into the hub, a reliable connection is created. This connection allows for smooth rotational movement, reduces friction, and helps to distribute loads effectively.The XTH60 weld-on hubs for XTB60 bushings are commonly used in various industries such as manufacturing, construction, and agriculture. They are often employed in applications involving power transmission, machinery, and equipment where rotational movement and load-bearing capabilities are essential.

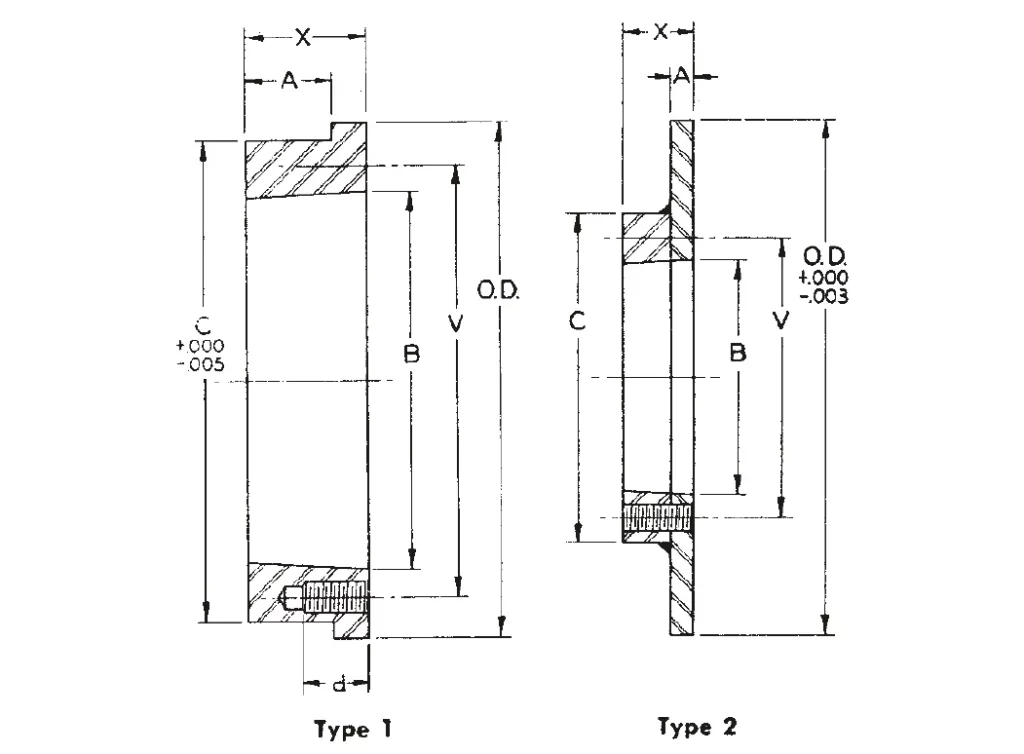

XTH60 Weld-On Hubs Dimensions:

Part No.		XTH60 Hubs (Type 1 Hubs)
For Bushing		XTB60 Bushings
Dimensions	O.D.	11 3/4"
	A	1 15/16"
	B	8.625"
	C	11 1/4"
	V	9 7/8"
	X	2 3/4"
	d	1 5/8"
	No.	4
	Size	7/8" - 9UNC
Wt lbs.		24.5

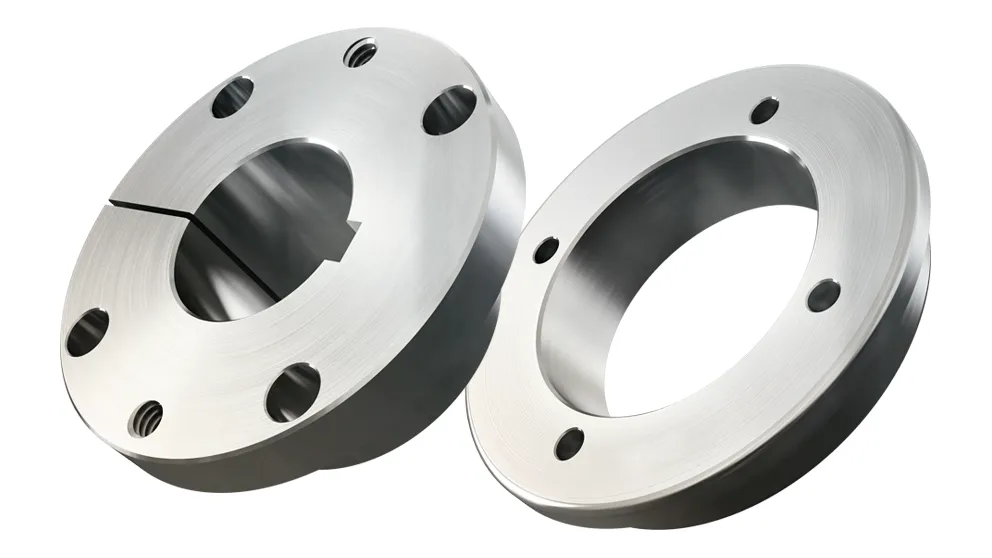

XTH60 Weld-On Hubs Benefits:

The XTH60 weld-on hubs for XTB60 bushings offer several benefits in industrial applications. Here are some of the advantages:1. Secure Attachment: The weld-on design ensures a strong and secure attachment between the XTH60 hub and the bushing. Welding creates a permanent bond, eliminating the risk of loosening or dislodging during operation.2. High Strength: The XTH60 weld-on hubs are typically made from durable materials such as steel, providing high strength and resistance to heavy loads and harsh environments. This ensures the hubs can withstand demanding applications without compromising performance.3. Enhanced Load Distribution: The combination of XTH60 weld-on hubs and XTB60 bushings allows for efficient load distribution. The bushings act as a bearing surface, reducing friction and evenly distributing loads across the hub. This helps to minimize wear and extend the lifespan of the equipment.4. Reduced Friction and Wear: The XTH60 weld-on hubs and XTB60 bushing are designed to reduce friction during rotational movement. This results in smoother operation and reduced wear on both the hub and bushing, enhancing the overall efficiency and longevity of the equipment.5. Versatility: XTH60 weld-on hubs are compatible with XTB60 bushings, providing versatility in various applications. Whether it's power transmission, machinery, or equipment, these hubs can be used in different industries and settings.6. Easy Installation: XTH60 weld-on hubs are relatively easy to install. Once the hub is properly aligned and welded onto the equipment or machinery, the XTB60 bushing can be easily inserted into the hub. This simplifies the assembly process and saves time during installation.

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
