XTH80 Weld-On Hubs

XTH80 Weld-On Hubs

The XTH80 weld-on hubs are designed to be used in conjunction with XTB80 bushings. These components are commonly used in mechanical power transmission systems and are particularly suited for applications where a rotating shaft needs to be connected to a stationary component.The XTH80 weld-on hubs are typically made of high-quality steel and feature a cylindrical shape with a central bore. The bore is precision machined to match the outer diameter of the XTB80 bushing. The hub is then welded onto the shaft, creating a secure and rigid connection.The XTB80 bushings, on the other hand, are typically made of durable materials such as steel. They have an inner diameter that matches the outer diameter of the shaft and an outer diameter that matches the bore of the XTH80 hub. These bushings provide a bearing surface between the rotating shaft and the stationary hub, reducing friction and wear.When using the XTH80 weld-on hubs with XTB80 bushings, the bushing is inserted into the hub's bore, and the hub is then welded onto the shaft. This connection allows for the transmission of torque from the shaft to the hub, enabling smooth and efficient power transfer.

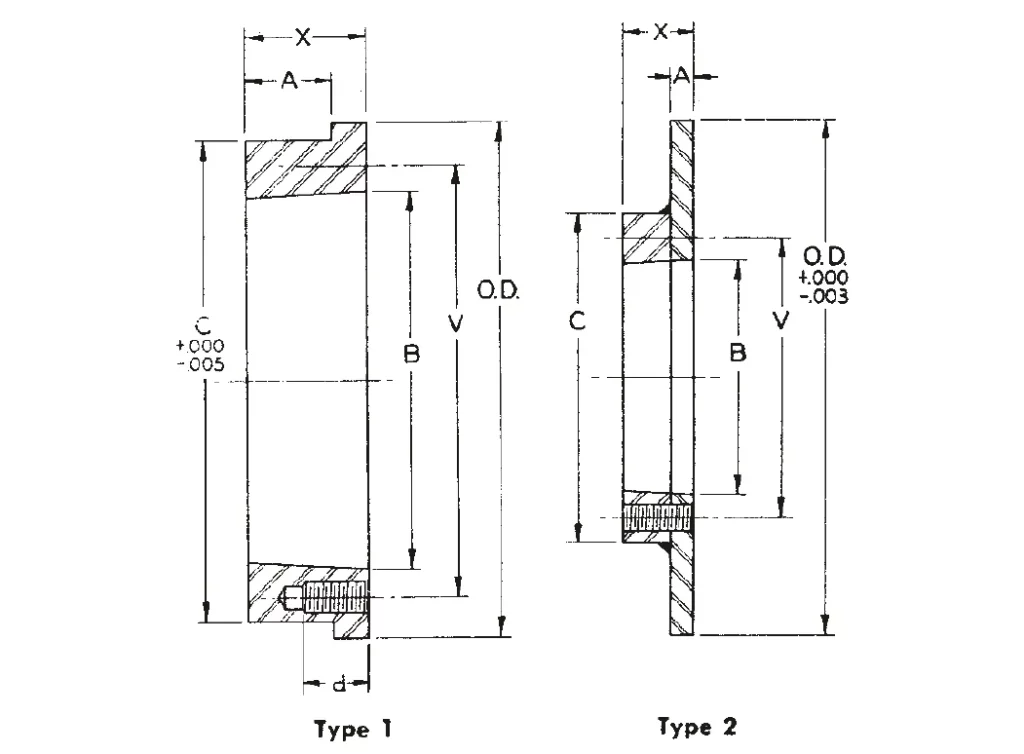

XTH80 Weld-On Hubs Dimensions:

Part No.		XTH80 Hubs (Type 1 Hubs)
For Bushing		XTB80 Bushings
Dimensions	O.D.	15"
	A	2 7/16"
	B	11.125"
	C	14 5/8"
	V	12 7/8"
	X	3 7/16"
	d	2 3/8"
	No.	4
	Size	1 1/8" - 7UNC
Wt lbs.		75.6

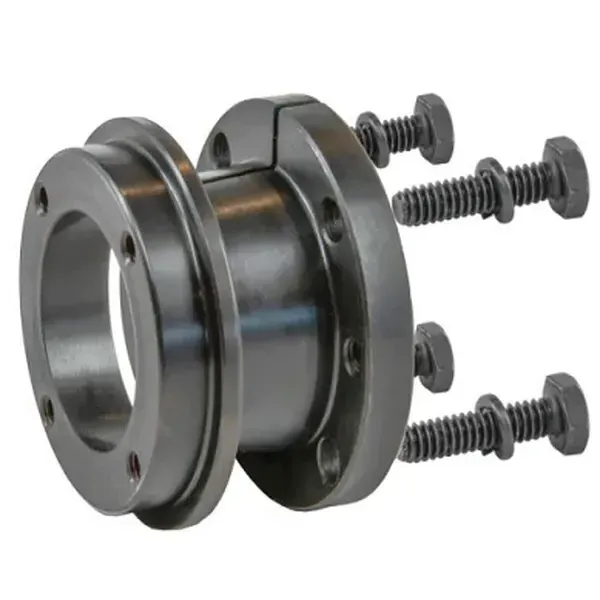

XTH80 Weld-On Hubs Advantages:

The XTH80 weld-on hubs offer several advantages in mechanical power transmission applications:1. Easy Installation: The weld-on hubs are relatively easy to install. The pre-drilled holes or slots in the XTH80 weld-on hubs facilitate the welding process, allowing for quick and efficient assembly. Once welded, the hubs are securely attached and ready for operation.2. High Strength and Durability: The XTH80 weld-on hubs are typically made from high-strength steel, providing excellent durability and resistance to wear. They can withstand heavy loads, shocks, and harsh operating conditions, ensuring reliable performance even in demanding applications.3. Versatility: The XTH80 weld-on hubs can be used in a wide range of applications and industries. Whether it's conveyor systems, industrial machinery, or equipment, these hubs are designed to accommodate various shaft sizes and transmit torque efficiently.4. Reduced Maintenance: The robust construction of the XTH80 weld-on hubs minimizes the need for frequent maintenance. Their durable design and secure connection help prevent issues such as misalignment, slippage, or premature wear, reducing downtime and maintenance costs.5. Compatibility with XTB80 Bushings: The XTH80 weld-on hubs are specifically designed to work in conjunction with XTB80 bushings. This compatibility ensures optimal performance and efficient power transmission. The bushings provide a bearing surface, reducing friction and wear between the hub and the shaft.6. Long Service Life: The combination of high-strength materials, secure welding, and compatibility with bushings contributes to the extended service life of the XTH80 weld-on hubs. They are built to withstand the rigors of continuous operation, resulting in reduced replacement and downtime costs.

XTH80 Weld-On Hubs Applications:

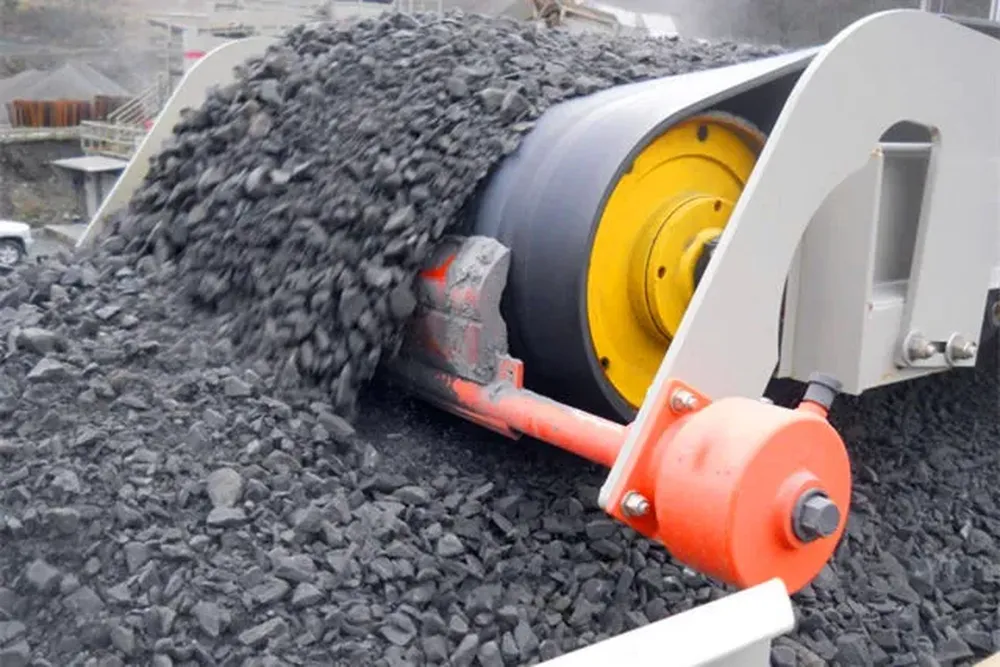

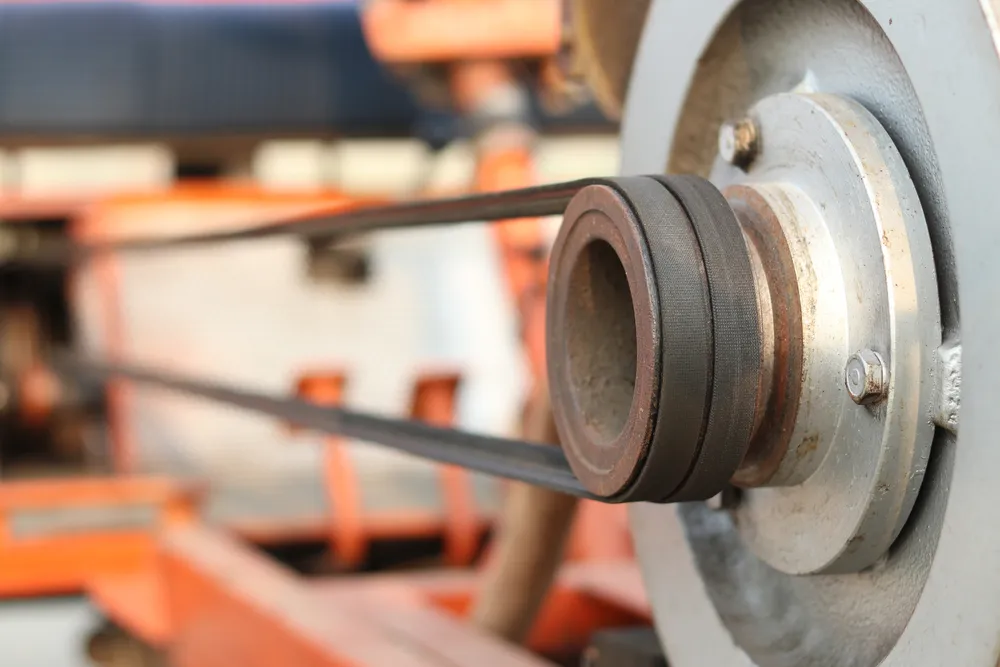

The XTH80 weld-on hubs find applications in a wide range of mechanical power transmission systems. Some common applications include:(1) Conveyor Systems: The XTH80 weld-on hubs are used in conveyor systems to transmit power and rotational motion between the drive components and the conveyor belt or rollers. They provide a secure connection between the shaft and the conveyor structure, ensuring efficient and reliable operation.(2) Industrial Machinery: These XTH80 weld-on hubs are utilized in various industrial machinery, such as pumps, compressors, mixers, and agitators. They enable the transfer of torque from the motor or engine to the driven components, allowing for the smooth operation of the machinery.(3) Material Handling Equipment: XTH80 weld-on hubs are employed in material handling equipment like lifts, cranes, and hoists. They facilitate the transfer of rotational power from the motor or engine to the lifting or moving mechanisms, enabling the efficient handling and transportation of heavy loads.(4) Agricultural Machinery: In agricultural applications, the XTH80 weld-on hubs are used in equipment like harvesters, balers, and irrigation systems. They transmit power from the engine or power take-off (PTO) shaft to various agricultural implements, enabling tasks such as cutting, baling, or spraying.(5) Construction Equipment: These XTH80 weld-on hubs are utilized in construction machinery, such as concrete mixers, excavators, and compactors. They play a crucial role in transmitting power from the engine to the working components, allowing for efficient digging, lifting, and compacting operations.(6) Mining Equipment: XTH80 weld-on hubs are employed in mining equipment, including crushers, conveyors, and drilling rigs. They enable the transmission of power to extract, transport, and process minerals efficiently in demanding mining environments.(7) Manufacturing Equipment: These XTH80 weld-on hubs are used in various manufacturing equipment, such as machine tools, presses, and packaging machines. They facilitate the transfer of power from motors to rotating components, enabling precise machining, forming, or packaging operations.

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
