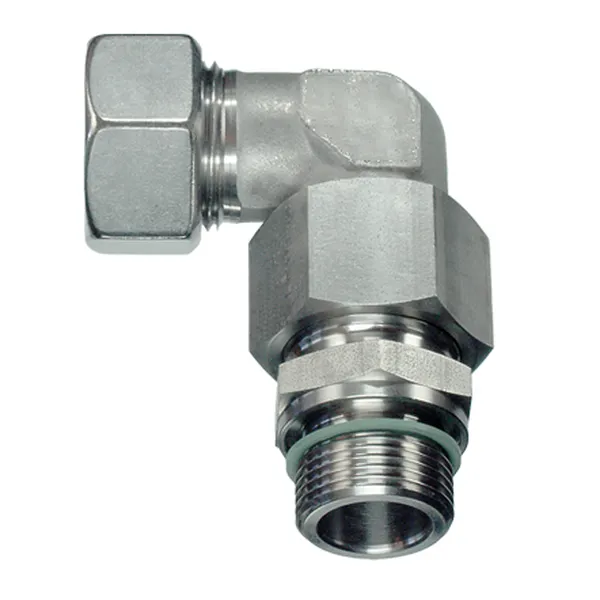

Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings

Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings

The Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings are a type of hydraulic fitting used in fluid power systems. It is designed to provide a secure and leak-free connection between hydraulic components, such as hoses, tubes, and pipes while allowing for adjustable swivel movement. Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings are commonly used in hydraulic systems in a variety of industries, including construction, agriculture, and manufacturing. They are also used in some automotive and aerospace applications.Here are the features of the Assembled Adjustable Swivel Elbow-EW-R-ED hydraulic fitting:1. Swivel Elbow: The swivel elbow is the main body of the fitting. It typically has male threads on one end and female threads on the other end. The male threads are used to connect to other hydraulic components, while the female threads allow for the connection of hoses or tubes.2. Adjustable Swivel: The fitting incorporates an adjustable swivel mechanism, which enables rotation of the connected components. This swivel feature allows for flexibility in positioning the connected hoses or tubes, making it easier to route hydraulic lines in confined spaces or complex configurations.3. Leak-Free Design: The Assembled Adjustable Swivel Elbow-EW-R-ED is designed to provide a reliable and leak-free connection. It typically employs sealing mechanisms, such as O-rings or metal-to-metal seals, to prevent fluid leakage under high-pressure conditions.4. Material and Finish: Hydraulic fittings are commonly made from materials like steel, stainless steel, or brass for their strength and durability. The chosen material depends on the specific application requirements. The fittings may also have a protective finish, such as zinc plating or corrosion-resistant coatings, to enhance their longevity.5. Size and Configuration: Hydraulic fittings come in various sizes, ranging from small fittings for low-pressure applications to larger fittings for high-pressure systems. The Assembled Adjustable Swivel Elbow-EW-R-ED is available in different sizes and configurations to accommodate specific hydraulic system requirements.

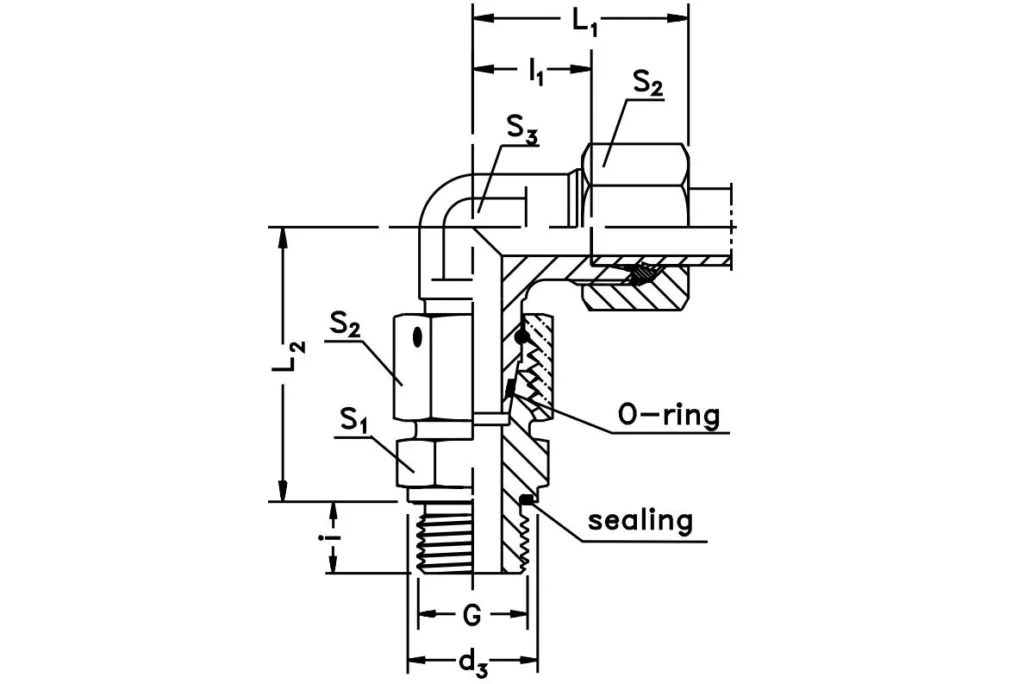

Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fitting Size Chart:

EW-MPart NO.	SeriesWorking Pressure (bar/psi)	Tube O.d	Gmale thread	d3	i	l1	L1	L2	S1	S2	S3
EW06LRED	L Light 315 bar4560 psi	6	G 1/8A	14	8	12	27	34.5	14	14	12
EW08LRED		8	G 1/4A	19	12	14	29	37.5	19	17	12
EW10LRED		10	G 1/4A	19	12	15	30	40	19	19	14
EW12LRED		12	G 3/8A	22	12	17	32	42	22	22	17
EW15LRED		15	G 1/2A	27	12	21	36	46.5	27	27	19
EW18LRED		18	G 1/2A	27	14	23.5	40	50	27	32	24
EW22LRED	160 bar 2320psi	22	G 3/4A	32	16	27.5	44	55	32	36	27
EW28LRED		28	G 1A	40	18	30.5	47	59	41	41	36
EW35LRED		35	G 1 1/4A	50	20	34.5	56	68.5	50	50	41
EW42LRED		42	G 1 1/2A	55	22	40	63	75	55	60	50
EW06SRED	S Heavy 630 bar9130 psi	6	G 1/4A	19	12	16	31	40	19	17	12
EW08SRED		8	G 1/4A	19	12	17	32	42.5	19	19	14
EW10SRED		10	G 3/8A	22	12	17.5	34	45	22	22	17
EW12SRED		12	G 3/8A	22	12	21.5	38	48	22	24	17
EW14SRED		14	G 1/2A	27	14	22	40	54	27	27	19
EW16SRED		16	G 1/2A	27	14	24.5	43	55	27	30	24
EW20SRED	400 bar5800 psi	20	G 3/4A	32	16	26.5	48	65	32	36	27
EW25SRED		25	G 1A	40	18	30	54	73	41	46	36
EW30SRED		30	G 1 1/4A	50	20	35.5	62	78.5	50	50	41
EW38SRED	315 bar4560 psi	38	G 1 1/2A	55	22	41	72	89	55	60	50

Benefits of Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings:

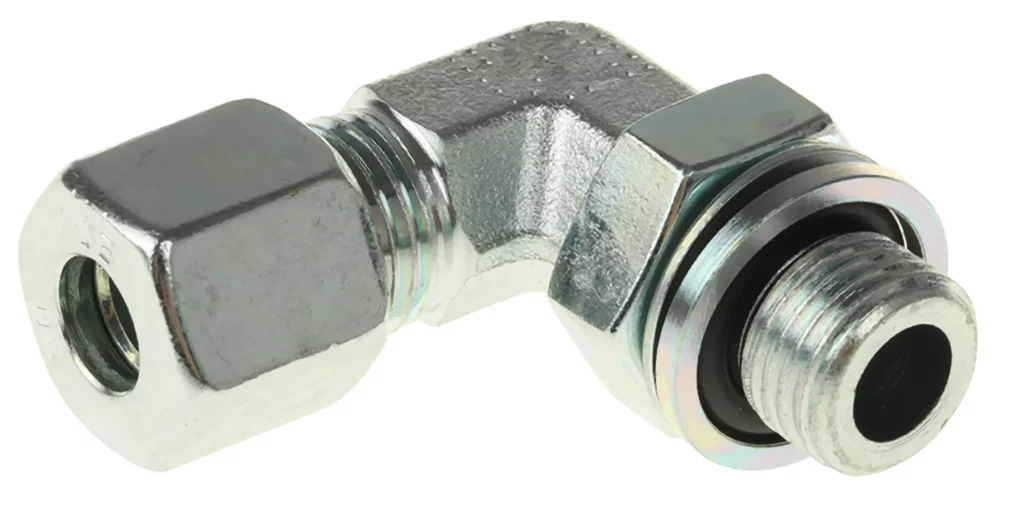

The Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings offer several benefits in fluid power systems. Here are some advantages of using these fittings:1. Adjustable Swivel Capability: The key advantage of these Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings is their adjustable swivel feature. It allows for flexible positioning and alignment of hydraulic components, such as hoses and tubes, in tight or complex spaces. The adjustable swivel helps optimize the routing of hydraulic lines, making installation and maintenance easier.2. Enhanced Flexibility: The ability to adjust the swivel angle of the Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings provides increased flexibility in hydraulic system design. It enables smoother movement and reduces stress on hoses and tubes, minimizing the risk of kinks, bends, or damage. This flexibility allows for efficient utilization of space and facilitates the integration of hydraulic components into various applications.3. Leak-Free Connection: Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings are designed to provide a reliable and leak-free connection. The sealing mechanisms, such as O-rings or metal-to-metal seals, ensure tight sealing under high-pressure conditions, preventing fluid leakage. This feature enhances the overall efficiency and safety of the hydraulic system.4. Easy Installation and Maintenance: These Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings are designed to be user-friendly, simplifying the installation and maintenance processes. The adjustable swivel feature eliminates the need for complex hose routing, making it easier to connect and disconnect hydraulic components when necessary. This convenience saves time and effort during installation, repairs, or system modifications.5. Compatibility and Versatility: The Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings are available in various sizes and configurations to accommodate different hydraulic system requirements. They are compatible with a wide range of hydraulic components, including hoses, tubes, and pipes. This versatility allows for seamless integration into diverse applications across industries.6. Durability and Strength: These Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings are typically made from robust materials like steel, stainless steel, or brass, ensuring durability and long-lasting performance. They are designed to withstand high-pressure conditions and harsh operating environments, providing reliable connections even in demanding applications.7. Wide Range of Applications: Assembled Adjustable Swivel Elbow-EW-R-ED Hydraulic Fittings find applications in numerous industries, including manufacturing, construction, agriculture, aerospace, and more. They are suitable for hydraulic systems used in equipment such as machinery, vehicles, industrial processes, and hydraulic power units.
