CMN160A Micro-Oil Screw Air Compressor

CMN160A Micro-Oil Screw air compressor

Advantages of Our Micro-Oil Air Compressor

1. Shaftless Design, Robust and Durable

Our CMN160A Micro-Oil Screw Air Compressor features a unique shaftless design. This design eliminates the need for any typical shaft seals that fail under non-lubricated conditions. This revolutionary approach extends the lifespan of the seal to infinity, resolving the issue of regular replacement of seals.

2. Low Energy Consumption

Our compressor adopts the world's largest screw design and a dual-pressure cavity host. This results in a volume efficiency exceeding 95%, making it a real energy-saving compressor.

3. High-Temperature Resistance

Our compressor can withstand a wide range of harsh environmental conditions, operating normally in temperatures ranging from -20 to 55 degrees Celsius, with a continuous working temperature not exceeding 92 degrees.

4. Oil Content Less Than 2ppm

Our high-performance host only requires a small amount of air compressor oil to achieve excellent sealing effects, with an air production oil content of less than 2ppm.

Structural Features of Our Micro-Oil Air Compressor

1. Ultra-Quiet Air Intake System

Our compressor features an ultra-quiet air intake system, which has obtained a patent for its innovative design.

2. High-Quality Safety Valve and Minimum Pressure Valve

We utilize high-quality safety valves and minimum pressure valves to ensure optimal and safe operation.

3. Precision Temperature Sensor

Our precision temperature sensor accurately monitors and regulates the operating temperature of the compressor.

4. Ultra-Quiet Centrifugal Fan

Our ultra-quiet centrifugal fan ensures noise-free operation, contributing to a quieter working environment.

5. SMC Electromagnetic Control Valve

We use a Japanese SMC electromagnetic control valve that delivers exceptional reliability and performance.

6. CMN's Patented Control Valve

Our CMN patented control valve contributes to the overall efficiency and performance of the compressor.

7. High-Quality Touch Screen Control System

Our high-quality touch screen control system offers easy operation and monitoring of the compressor's performance.

The Principle of Compressed Air in Our Micro-Oil Screw Air Compressor

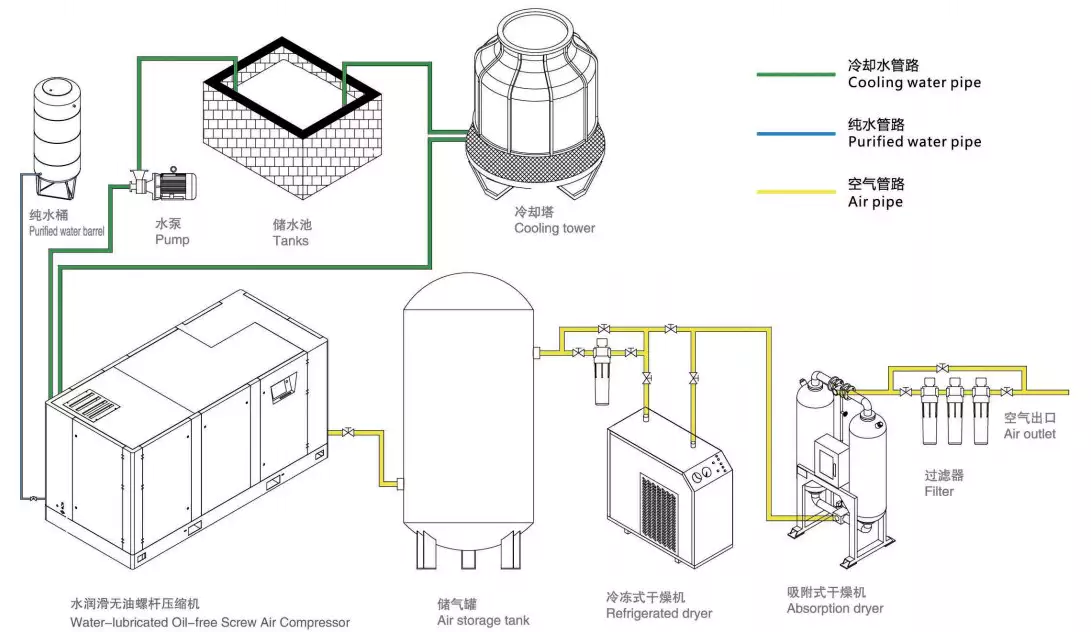

The micro-oil air compressor utilizes a pair of main screws, the pressure screw, and the rotating screw, to accomplish the compression process. The rotation of the screws increases the compression ratio of the air, thus increasing its pressure. The compressed air is then directed towards the machine's outlet. Heat generated during this process is mitigated by a cooling system, and a filtration system ensures the air quality by removing potential contaminants and particles.

Applications of Our Micro-Oil Air Compressor

Our micro-oil air compressor has a wide range of applications. It is used in the textile industry where oil-free, low-pressure compressed air is required. It is also used in the glass industry to blow glass bottles into shape, in the chemical industry for processes such as pressure filtering and transfer, and in the cement industry where it aids in transportation without causing cement dust to fly around.

About Our Company

Our company's full range of products has passed Germany's TUV Class 0 oil-free certification, CE certification, ISO9001 certification, and TS16949 certification. We are the first in the industry to use water for internal cooling and lubricating of the high-end screw compressor, and we pioneered the secondary compression high-pressure micro-oil screw compressor with a pressure of up to 4.OMPa.
