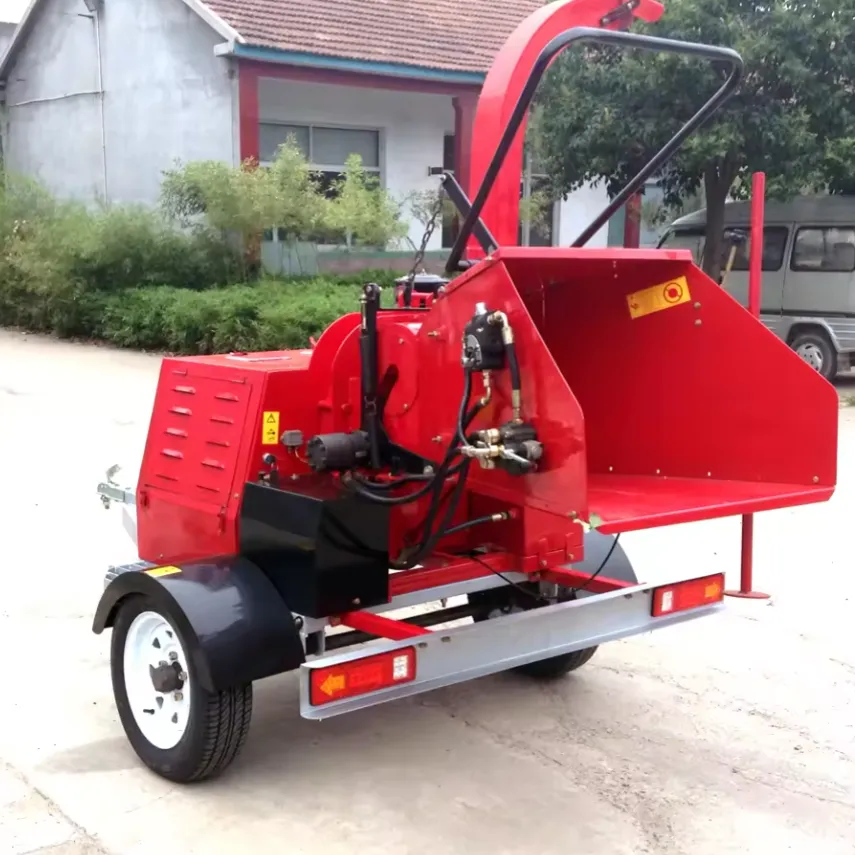

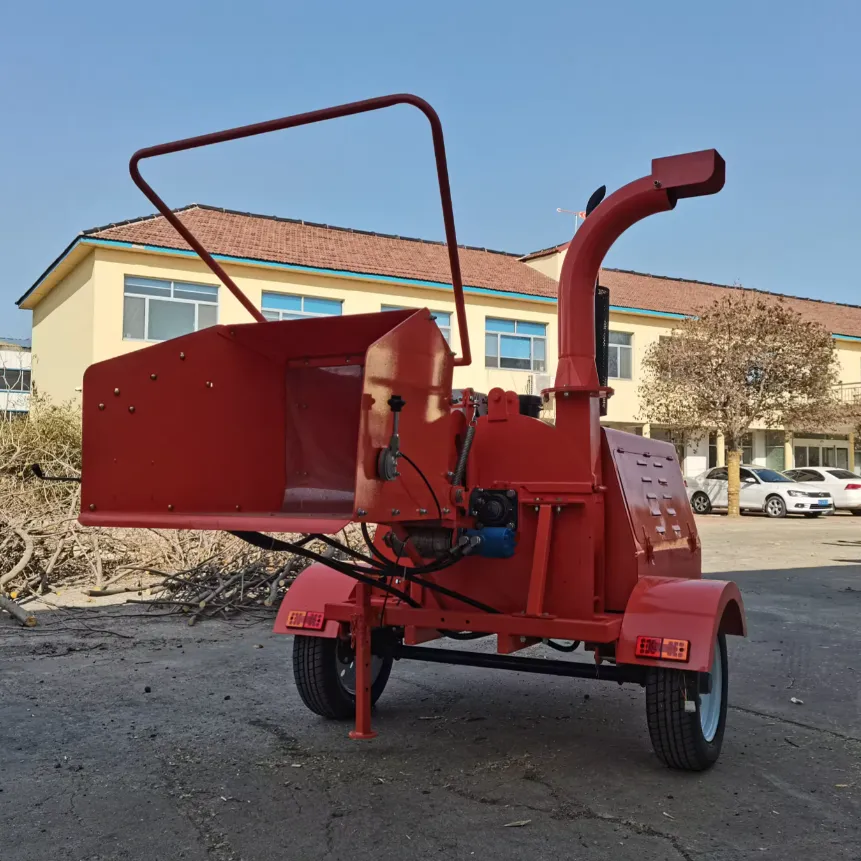

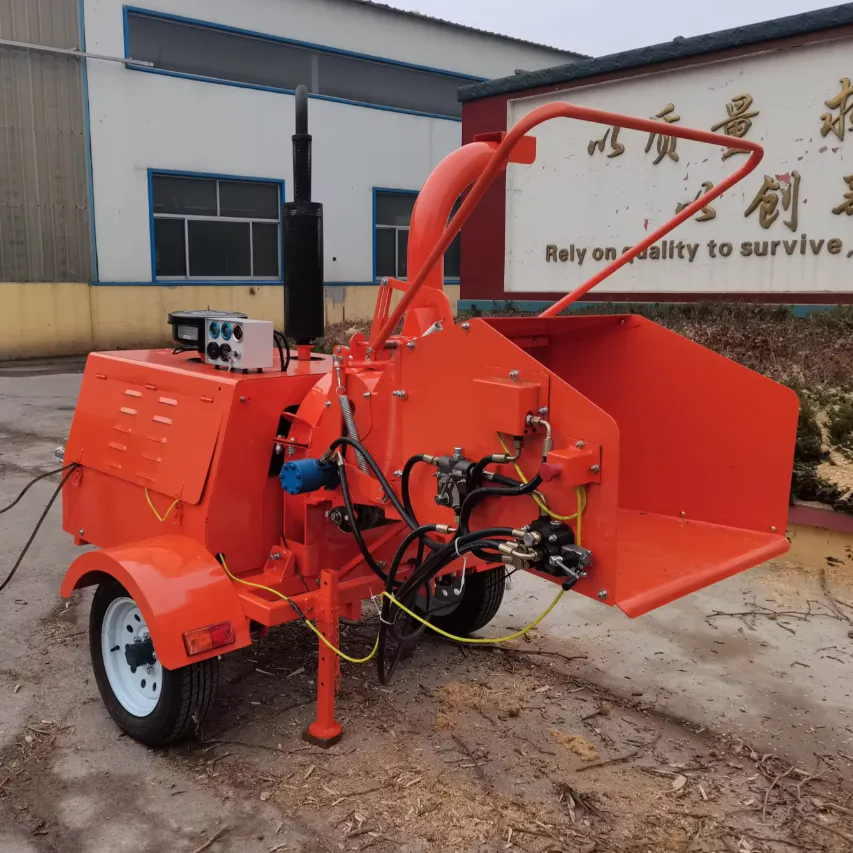

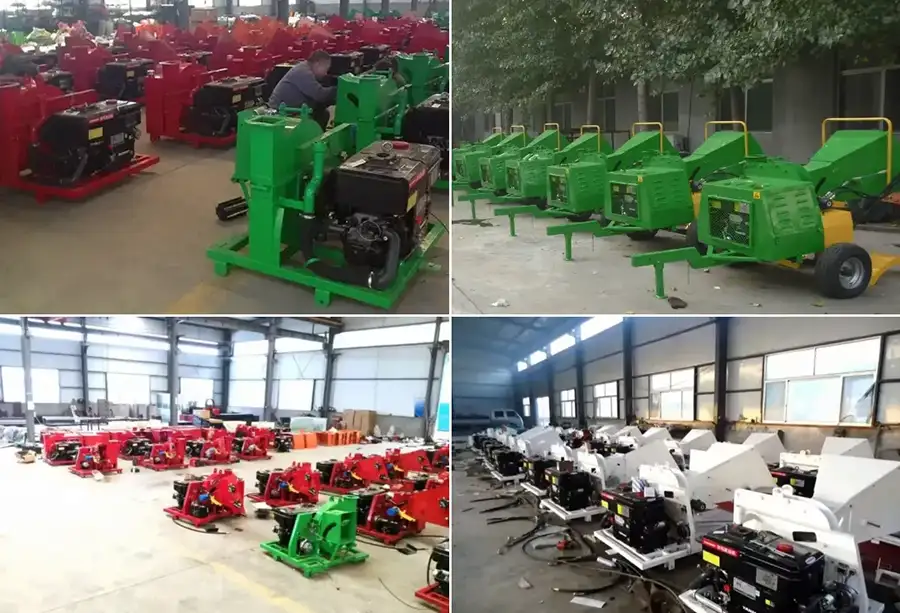

Diesel Wood Chipper Shredder for Chipping Wood

[embed]https://youtu.be/sqxBad8yFs0[/embed] The diesel wood chipper shredder is a robust and highly efficient machine designed for chipping wood. It comes with a 1-year warranty and can be customized to suit individual needs with OEM, ODM, and OBM support. The model numbers DWC-22 and DWC-40 are equipped with a power source and a feeding system that is both hydraulic and mechanical. With a chip capacity of 8 inches, these models are perfect for heavy-duty garden shredding tasks. Each unit is safely packaged in an iron crate and shipped from the port of Qingdao. A diesel wood chipper shredder is a powerful machine designed to process wood waste and turn it into smaller wood chips or mulch. It is commonly used in forestry, landscaping, and waste management applications. The diesel engine provides the necessary power to drive the cutting blades, chipping mechanism, and shredding chamber, allowing for efficient and effective wood waste processing. Diesel wood chipper shredders are available in various sizes, ranging from small units suitable for homeowners and gardeners to large industrial-grade machines used in commercial operations. They can handle different types of wood waste, including branches, tree limbs, twigs, and other organic materials. The primary function of a diesel wood chipper shredder is to chip and shred the wood waste into smaller pieces. The machine typically features a hopper or chute where the wood waste is fed into, and it is then directed towards a chipping mechanism. This mechanism, which can consist of a rotating drum or disc with sharp blades or knives, cuts and shears the wood waste into chips. Some diesel wood chipper shredders also have a shredding chamber or mechanism. This chamber contains rotating blades or hammers that further process the wood chips into smaller, finely shredded pieces. The resulting wood chips or mulch are discharged through a separate outlet or chute. Diesel wood chipper shredders offer several advantages. The diesel engine provides sufficient power and allows for greater mobility compared to electric-powered machines, making them suitable for remote locations or areas without easy access to electricity. They are also known for their high capacity and ability to handle larger pieces of wood waste. Additionally, diesel wood chipper shredders are durable and can withstand heavy-duty use.

Specifications of Diesel Wood Chipper Shredder

Specifications for Best Wood Chipper
Model	DWC-18	DWC-22	DWC-40
Engine	18HP Changechai diesel engine	22HP Changechai diesel engine	40HP Laidong diesel engine
Chipper capacity	max. 150mm	max. 150mm	max. 200mm
Feeding system	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic
Flywheel diameter	640mm	640mm	640mm
Blades number	1 stationary blade, 2 rotary blades
Flywheel weight	85kg	85kg	85kg
Feed Hopper Inner Opening	200x220mm	200x220mm	200x220mm
Rated RPM	1080	1080	1280
Weight	650kg	690kg	800kg
Working efficiency	7-11cbm/h	7-11cbm/h	9-13cbm/h

Advantages of the Diesel Wood Chipper Shredder

The diesel wood chipper shredder boasts numerous advantages that make it a top choice for gardening and forestry operations. These include:

1. Powerful Diesel Engine: Equipped with a robust diesel engine, the chipper shredder offers high torque for efficient wood chipping.
2. Hydraulic and Mechanical Feeding System: This system ensures consistent and efficient feeding of wood into the shredder.
3. High Chip Capacity: The machine can chip wood up to 8 inches in diameter, making it ideal for heavy-duty tasks.
4. Customizable: The chipper shredder supports OEM, ODM, and OBM customization, allowing for tailored solutions based on specific needs.
5. One-year Warranty: The machine comes with a one-year warranty, providing peace of mind and assurance of quality.
6. Safe Packaging and Delivery: Each unit is securely packaged in an iron crate and shipped from Qingdao, ensuring safe delivery.

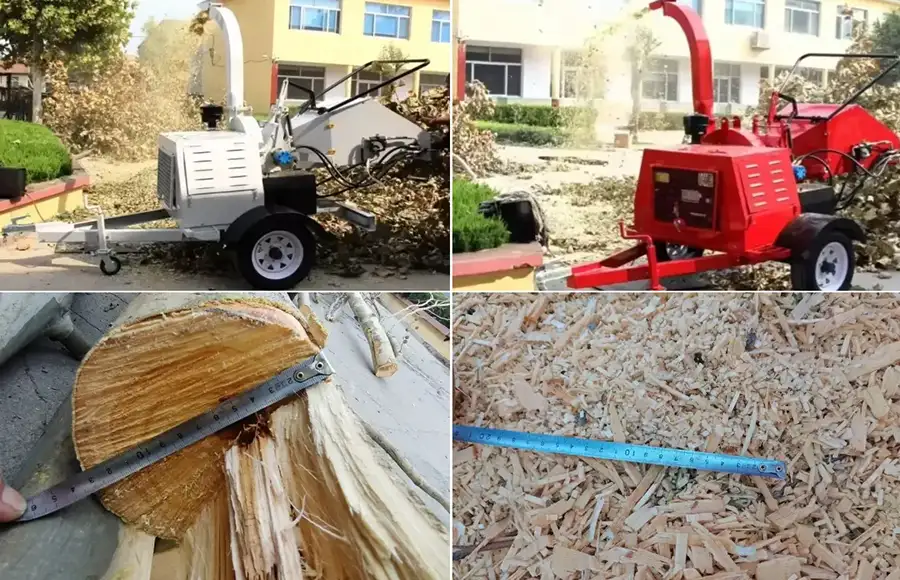

Diesel Wood Chipper Shredder Application Scenarios

A diesel wood chipper shredder is a versatile machine used for processing wood waste and turning it into useful materials. Here are some applications of a diesel wood chipper shredder:

• Forestry and Landscaping: Diesel wood chipper shredders are commonly used in forestry and landscaping operations. They can efficiently chip and shred branches, tree limbs, and other wood waste generated during tree trimming, land clearing, or storm cleanup. The resulting wood chips can be used as mulch, bedding material, or biomass for energy production.
• Garden and Yard Waste Management: Homeowners and gardeners can benefit from using a diesel wood chipper shredder to manage garden and yard waste. It can handle small to medium-sized branches, leaves, twigs, and other organic materials, reducing them into smaller wood chips or mulch. This reduces the volume of waste and makes it easier to handle and compost.
• Composting: Wood chips and shredded organic materials from a diesel wood chipper shredder can be added to compost piles or bins to speed up the decomposition process. The smaller particle size increases the surface area, allowing for faster microbial activity and decomposition. The resulting compost can be used as nutrient-rich soil amendment for gardens, landscaping, or agricultural applications.
• Animal Bedding: Wood chips produced by a diesel wood chipper shredder can be used as bedding material for livestock, poultry, or equine operations. The wood chips provide a comfortable and absorbent bedding surface that helps control odors and moisture. They can be particularly useful in barns, stables, or poultry houses.
• Wood Recycling and Manufacturing: Wood chips generated by a diesel wood chipper shredder can be used as raw material in various wood recycling and manufacturing processes. They can be used for particleboard, fiberboard, or paper production. The consistent size and quality of the wood chips make them suitable for these applications.

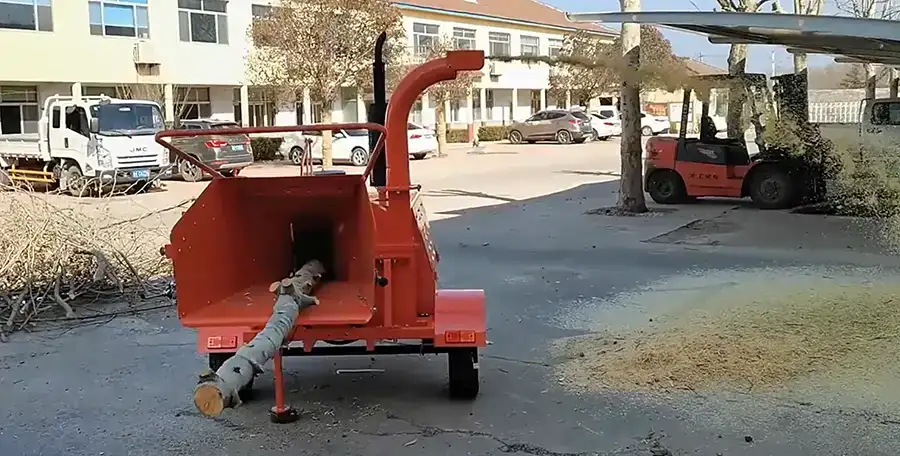

How Does the Diesel Wood Chipper Shredder Work?

A diesel wood chipper shredder works by utilizing a combination of cutting blades, a chipping mechanism, and a shredding chamber to process wood waste. Here's a general overview of how it works: 1. Feeding: The wood waste, such as branches or tree limbs, is fed into the wood chipper shredder through a hopper or chute. The machine is designed to handle a specific size range of wood waste, and larger pieces may need to be pre-trimmed or cut to fit. 2. Chipping: The wood waste enters the chipping mechanism, which consists of a rotating drum or disc equipped with sharp blades or knives. As the drum or disc spins, the blades cut and shear the wood waste into smaller pieces or chips. The chips are typically ejected through a discharge chute. 3. Shredding: Some wood chipper shredders have an additional shredding chamber or mechanism. This chamber contains a set of rotating blades or hammers that further process the wood chips. The blades or hammers repeatedly strike and break down the chips into smaller, more finely shredded pieces. 5. Discharge: The shredded wood chips or mulch are discharged through a separate outlet or chute. The machine may have adjustable settings to control the size of the wood chips or mulch produced. 5. Power Source: A diesel wood chipper shredder is powered by a diesel engine, which provides the necessary energy to drive the cutting blades, chipping mechanism, and shredding chamber. The engine is typically started using a pull cord or an electric starter.

Diesel Wood Chipper Operating Precautions

Operating a diesel wood chipper requires careful attention to safety precautions to prevent accidents and ensure the well-being of the operator and those in the surrounding area. Here are some important operating precautions to follow when using a diesel wood chipper:

• Inspection: Before starting the chipper, inspect it thoroughly for any signs of damage or wear. Check that all safety guards and shields are in place and secure. Ensure that the cutting blades are sharp and properly aligned. If any issues are identified, do not operate the chipper until the necessary repairs or adjustments have been made.
• Clear the Work Area: Remove any obstructions, such as rocks, metal, or other debris, from the work area. Clear the area of people and pets to maintain a safe distance during operation. Establish a safety perimeter or use barriers to prevent unauthorized access to the chipper.
• Feed Material Carefully: Feed the wood material into the chipper cautiously and at a controlled pace. Avoid overloading the chipper beyond its recommended capacity, as this can lead to malfunctions or accidents. Never insert your hands or any body part into the chipper's chute or near the rotating blades.
• Maintain Stability: Ensure that the chipper is placed on stable ground and properly secured before operation. If the chipper is mobile, engage the brakes and ensure it is on a level surface. Avoid operating the chipper on slopes or uneven terrain that can compromise stability.
• Shut Down and Maintenance: After using the chipper, wait for all moving parts to come to a complete stop before performing any maintenance or cleaning tasks. Follow the manufacturer's instructions for proper maintenance procedures, including blade sharpening, lubrication, and inspection of critical components.
• Fuel Safety: Handle diesel fuel with care. Refuel the chipper in a well-ventilated area, away from open flames or sparks. Store fuel in approved containers and follow local regulations for fuel storage and disposal.

Choose the Right Diesel Wood Chipper for Chipping Wood

When choosing the right diesel wood chipper for chipping wood, there are several factors to consider. Here are some key factors to keep in mind:

• Power and Capacity: Consider the power and capacity of the diesel wood chipper. The machine should have sufficient horsepower to handle the size and type of wood waste you will be chipping. Higher horsepower allows for faster processing and handling of larger branches or tree limbs. Additionally, the chipper should have a capacity that matches your needs, meaning it can handle the volume of wood waste you expect to chip.
• Chipping Mechanism: Look at the chipping mechanism of the wood chipper. It should have sharp blades or knives that can effectively cut and chip the wood waste. Consider the design and quality of the chipping mechanism to ensure it can handle the type of wood waste you will be processing.
• Shredding Capability: If you require finer wood shredding, consider a wood chipper that includes a shredding chamber or mechanism. This will allow you to further break down the wood chips into smaller, finely shredded pieces.
• Feed Opening Size: The size of the feed opening is important because it determines the maximum diameter of branches or tree limbs that can be fed into the chipper. Ensure that the feed opening is large enough to accommodate the size of wood waste you will be chipping.
• Mobility and Portability: Consider the mobility and portability of the wood chipper. If you need to transport the chipper to different locations, look for features such as wheels or a towable design for easier movement.
• Safety Features: Safety should be a priority when choosing a wood chipper. Look for safety features such as an emergency stop button, feed control systems, and safety shields that prevent accidental contact with the chipping mechanism.

Why Choose Raydafon's Diesel Wood Chipper?

Raydafon Agricultural Machinery Co., Ltd. is a leading manufacturer of agricultural machinery with a wealth of experience in the industry. Here's why you should choose Raydafon's diesel wood chipper:

• Professionalism: With over 100 employees, including 20 technical staff and five senior R&D personnel, we boast a strong professional team that ensures the highest standards of quality in our products.
• International Certifications: Our products are internationally certified, showcasing our commitment to quality and safety.
• Customized Services: We offer personalized solutions with OEM, ODM, and OBM support, allowing us to cater to specific customer needs.

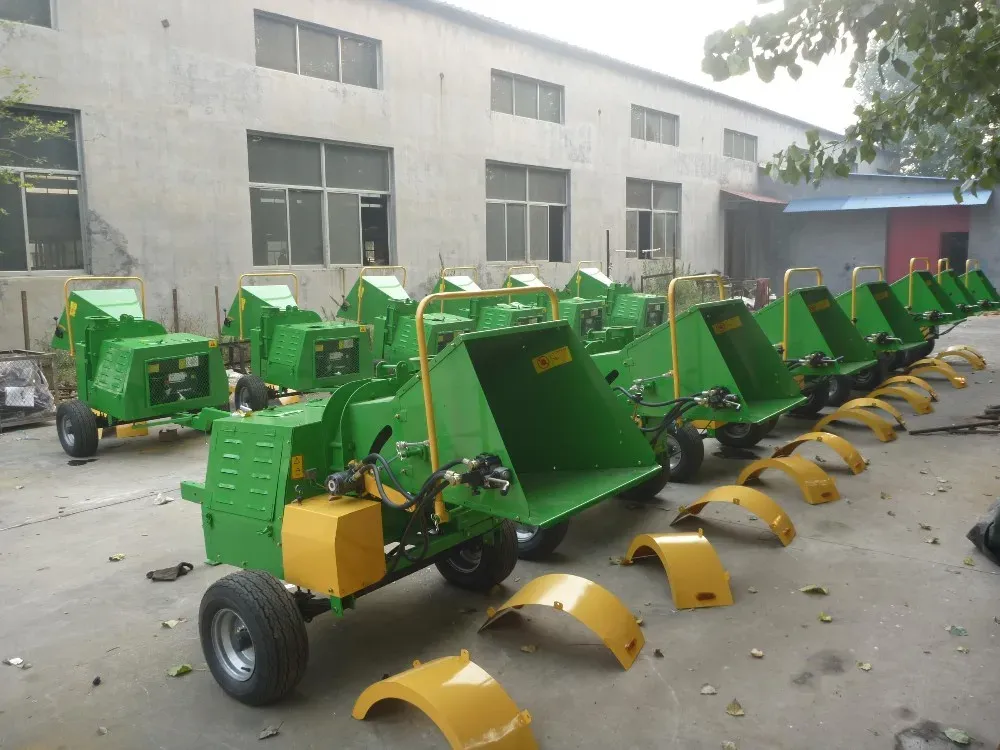

• Advanced Production Facilities: Our advanced production lines, equipped with lathing, milling, planing, stamping, cutting plate, and electric welding machines, ensure efficient and high-quality production.
• After-sales Services: We provide reliable after-sales services, ensuring that our customers are always satisfied with our products and services.

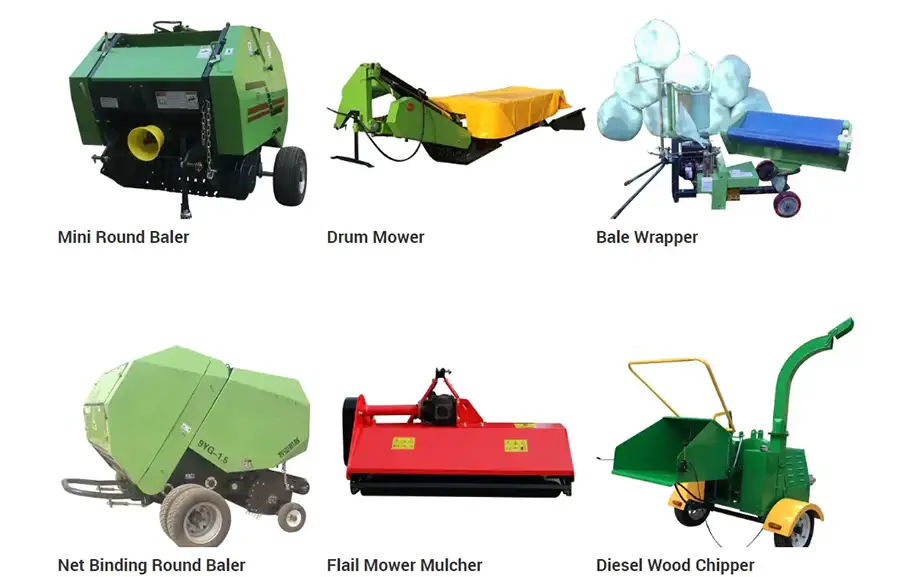

Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We offer a range of professional, international certifications, customized services, state-of-the-art production facilities, and dependable after-sales services. Author: Yjx
