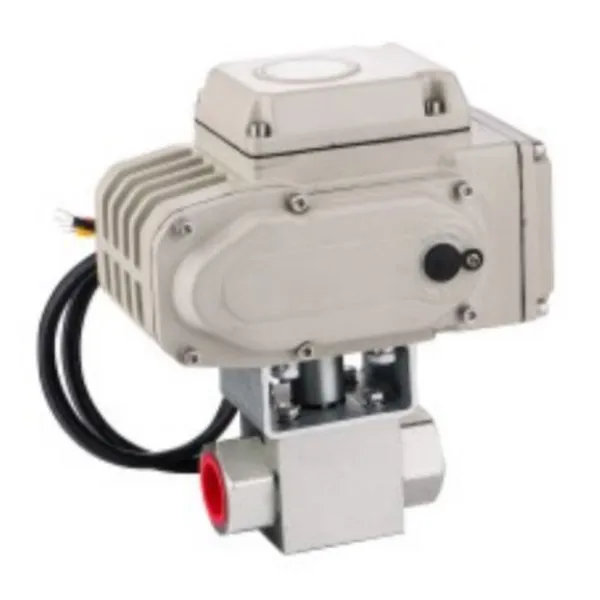

EBV Series Electric Hydraulic Ball Valves

EBV Series Electric Hydraulic Ball Valves

The EBV Series electric hydraulic ball valve is composed of a ball valve and an electric actuator. It is suitable for pressure below 500 bar and can be controlled remotely. The EBV Series electric ball valve generally uses AC 220V, AC 380V, and DC 24V voltage as power, receives 4-20mA or 0-10Ma current signal, and controls the ball valve to rotate 9-90 ° to complete the opening and closing of the ball valve. When ordering, please select the electric ball valve model and inform us of the voltage and current.

Features of EBV Series Electric Hydraulic Ball Valves:

The following are some of the features of EBV Series electric hydraulic ball valves:

• Welded body joint: This ensures positive leak-free performance.
• Full port sizes: This allows for unrestricted flow.
• Dual Teflon seals: These prevent leakage.
• Bottom-loaded stem: This enhances safety.
• Ball internal relief port design: This ensures positive shut off of the valve in either flow direction, even during system evacuation.
• Electric operation: This allows for remote control and automation.
• Hydraulic operation: This provides high torque and power for demanding applications.
• Bidirectional flow: The valve can be installed in any position.
• Wide range of sizes and pressure ratings: This makes the EBV Series suitable for a variety of applications.

EBV Series Electric Hydraulic Ball Valve Technical Parameters:

Nominal Size	1/4in to 2in
Body Material	Stainless Steel 304/316/316L
Connection Type Options	G threaded, NPT threaded, or welded
Max. Pressure	400bar
Working Temperature	-10℃ to 180℃ (14℉ to 356℉)
Seat Material	PTFE
Core Material	Stainless Steel 304/316/316L
Stem Material	Stainless Steel 304
Application Medium	Water, Gas, Oil, Powder, Steam, Corrosive Medium, etc

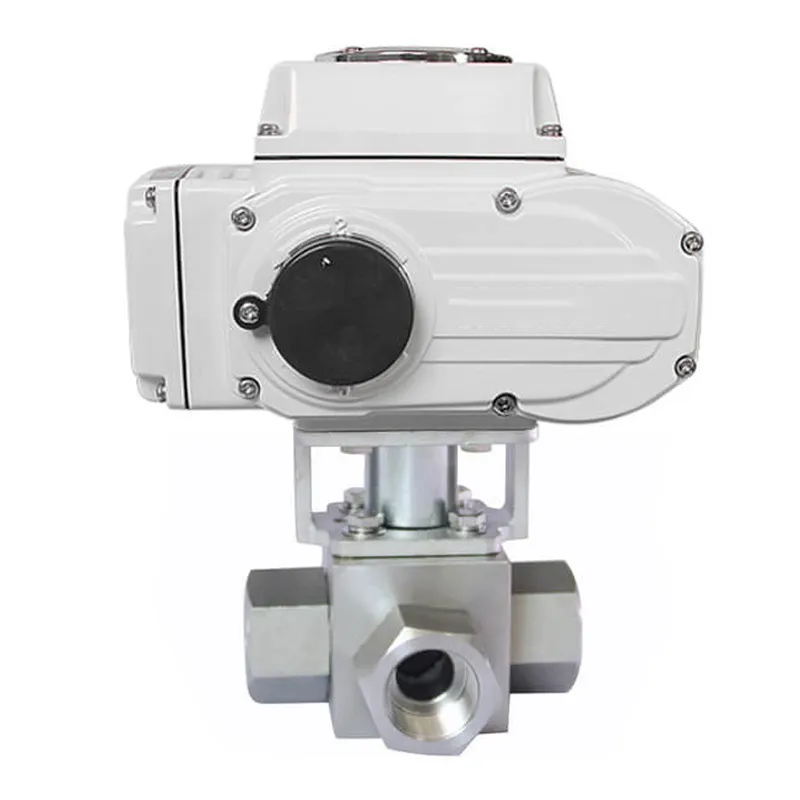

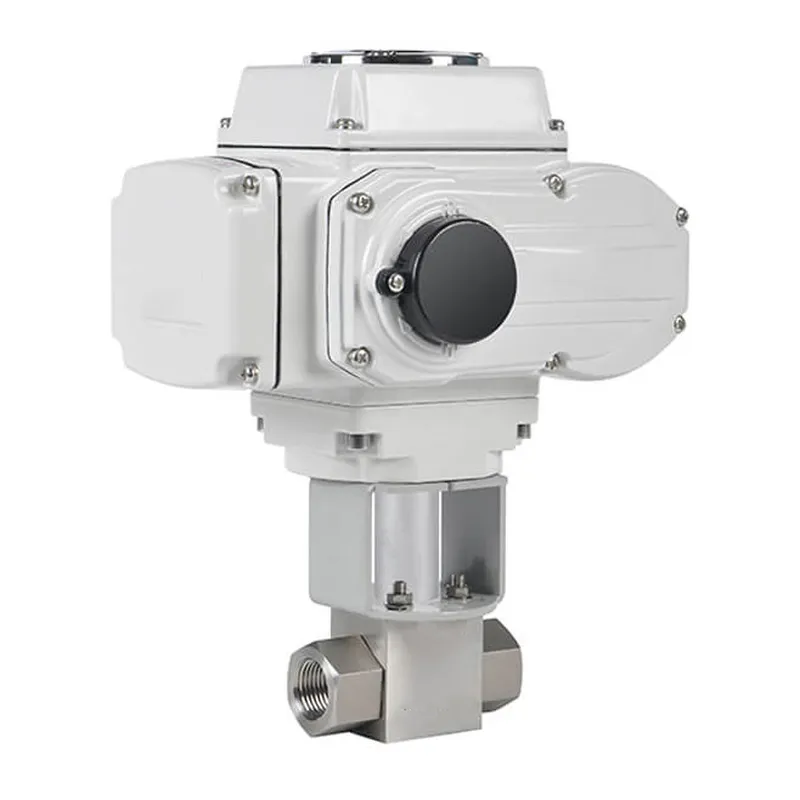

How Does the EBV Series Electric Hydraulic Ball Work?

An electric hydraulic ball valve is a type of valve that uses an electric motor to drive a hydraulic pump, which in turn generates hydraulic pressure to open and close the valve. This type of valve is often used in industrial applications where high torque and precise control are required.

Here is a step-by-step overview of how an electric hydraulic ball valve works:

1. The electric motor is turned on, which drives the hydraulic pump.
2. The hydraulic pump generates hydraulic pressure, which is sent to the hydraulic actuator.
3. The hydraulic actuator uses the hydraulic pressure to move the ball valve stem.
4. The ball valve stem rotates the ball inside the valve body, which opens or closes the valve.

Electric hydraulic ball valves have a number of advantages over other types of valves, including:

• High torque: Electric hydraulic ball valves can generate a high amount of torque, which makes them ideal for opening and closing large valves.
• Precise control: Electric hydraulic ball valves can be precisely controlled, which makes them suitable for applications where accurate flow control is required.
• Durability: Electric hydraulic ball valves are very durable and can withstand high temperatures and pressures.
• Low maintenance: Electric hydraulic ball valves require relatively little maintenance.

Applications of EBV Series Electric Hydraulic Ball Valves:

EBV Series electric hydraulic ball valves, also known as electrically actuated hydraulic ball valves, are widely used in various industries and applications where precise control of fluid flow is required. Some of the common applications of EBV Series electric hydraulic ball valves include:1. Industrial processes: These EBV Series electric ball valves are often used in industrial processes that involve the control of liquids or gases. They can be found in applications such as oil and gas refineries, chemical plants, water treatment facilities, and power generation plants.2. HVAC systems: Electric hydraulic ball valves are used in heating, ventilation, and air conditioning (HVAC) systems to regulate the flow of water or refrigerant. They provide reliable and efficient control, ensuring optimal performance and energy savings.3. Water management: In water management applications, such as irrigation systems, EBV Series electric ball valves are used to control the flow of water. They can be remotely operated, allowing for convenient control and automation of water distribution.4. Process automation: These EBV Series electric hydraulic ball valves play a crucial role in process automation systems, where precise and reliable control of fluid flow is essential. They can be integrated into control systems, allowing for remote operation, monitoring, and adjustment of flow rates.5. Chemical and petrochemical industries: In chemical and petrochemical plants, electric hydraulic ball valves are used to control the flow of various chemicals and fluids, ensuring safe and efficient operations. They are often employed in processes such as mixing, blending, and transferring of chemicals.6. Pharmaceutical and food industries: The pharmaceutical and food industries require precise control over fluid flow during manufacturing processes. EBV Series electric hydraulic ball valves are used to regulate the flow of ingredients, additives, and other fluids, ensuring accurate dosing and maintaining product quality.7. Water and wastewater treatment: In water and wastewater treatment facilities, these EBV Series electric ball valves are used to control the flow of water, chemicals, and other fluids. They play a vital role in processes such as filtration, disinfection, and chemical dosing.8. Marine and offshore applications: EBV Series electric hydraulic ball valves find application in marine and offshore industries, where they are used in systems such as shipboard HVAC, ballast water management, and oil rig operations. They are designed to withstand harsh environmental conditions and provide reliable operation.

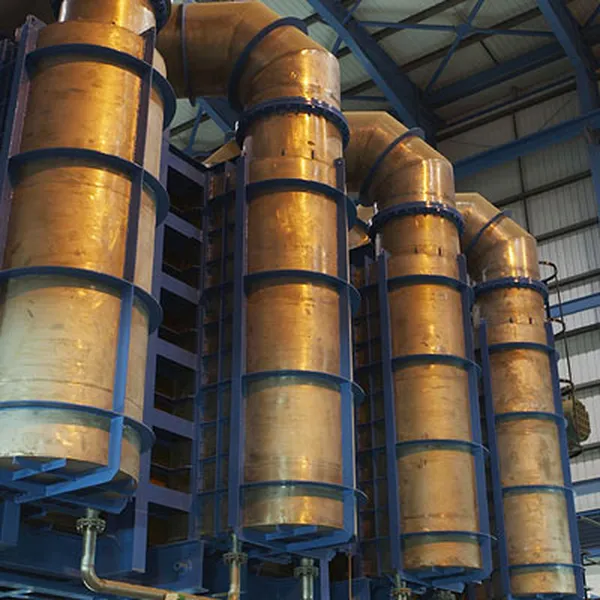

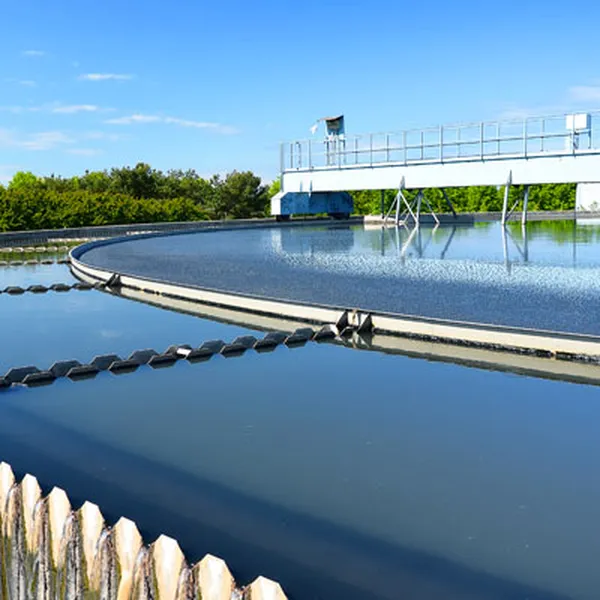

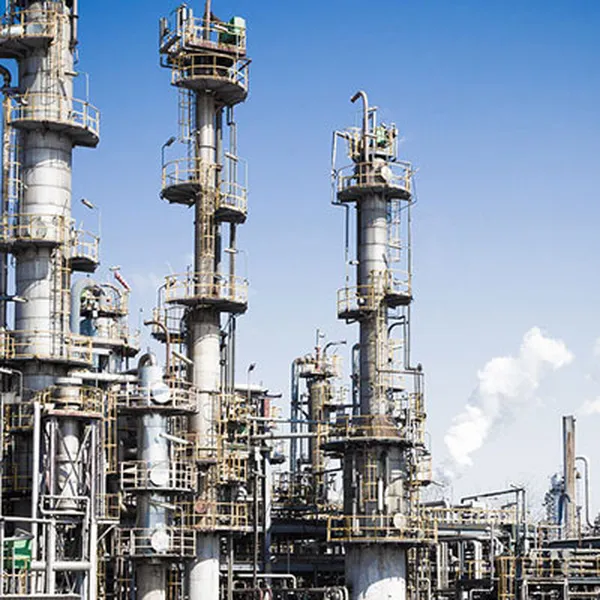

Water & Wastewater	Desalination	Chemical

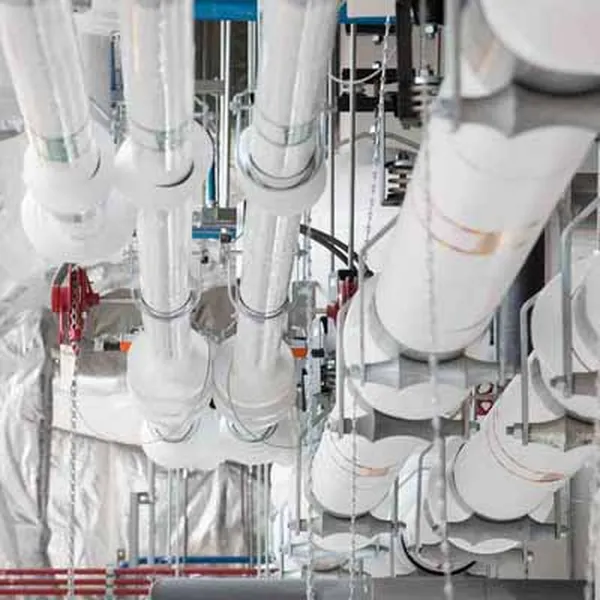

Irrigation	Mining	HVAC
